ISE2008D
産業用イーサネットスイッチ

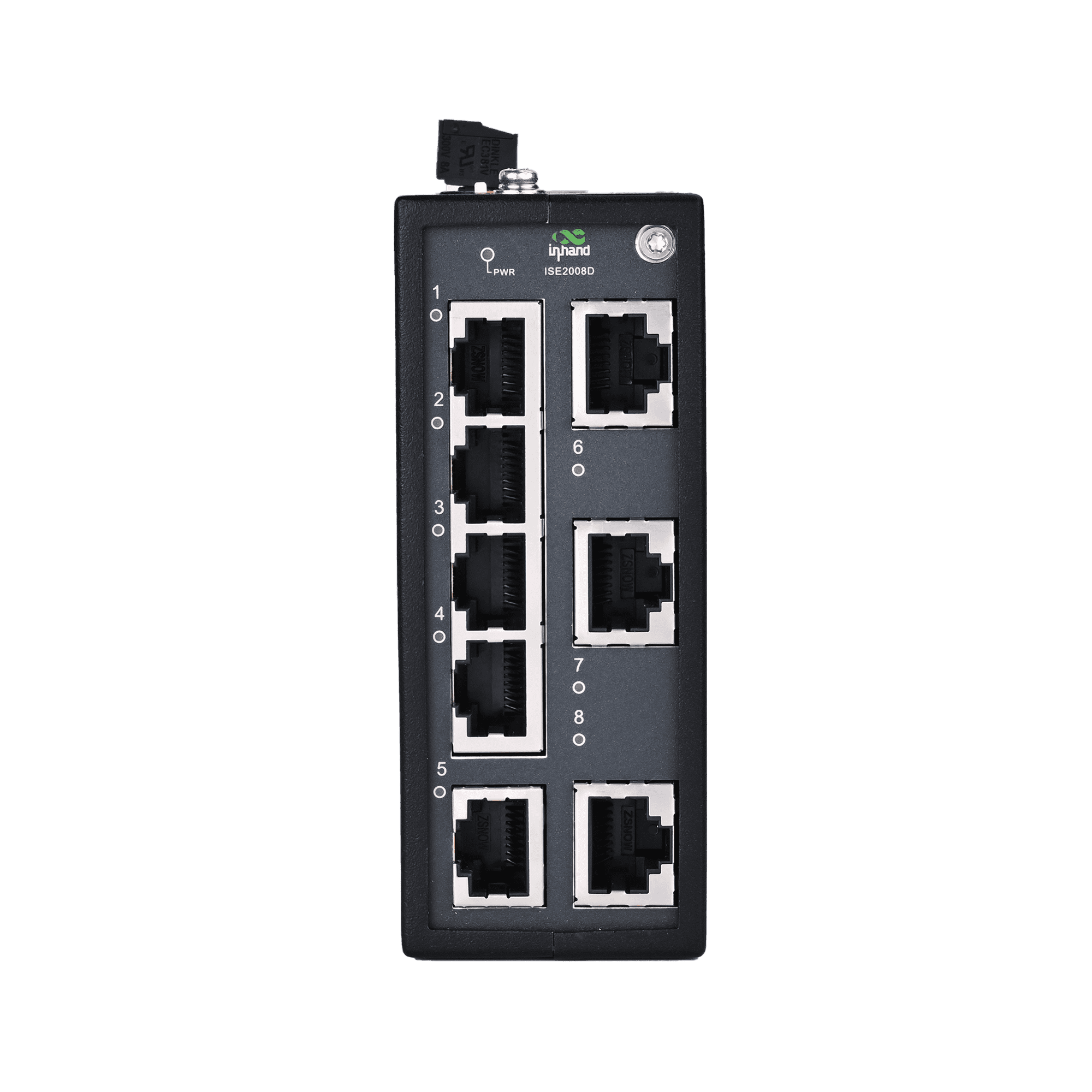

This unmanaged industrial Ethernet switch is available with either 8 10/100Base-T ports or 2 100Base-X SFP slots and 6 10/100Base-T ports.
OVERVIEW
Built for Simple and Reliable Industrial Ethernet Switching
Hardware QoS Control
Allows users to enable or disable QoS functions via front-panel DIP switches to prioritize traffic for specific industrial applications.
Broadcast Storm Protection
Supports broadcast storm protection enabled by hardware switches to prevent excessive traffic and improve network stability.
Industrial-Grade Hardware
Built with industrial-grade chipsets and a rugged die-cast aluminum housing for reliable operation in harsh environments.
Compact Fanless Design
Features a compact, fanless design with a die-cast aluminum housing for easy installation and reliable heat dissipation.
Wide Temperature Operation
Supports fanless operation across a wide temperature range from -40°C to +75°C for unattended industrial installations.
Rugged Power Protection
Supports wide-range AC and DC power input with built-in overload and surge protection for reliable industrial operation.
-
Key Technical Specifications
Certifications CE, FCC, ULDimensions / Weight 40 x 100 x 61.8 mm / 0.23 kgEMC IEC 61000-4-2/3/4/5/6/8/18, Class 3-5Environment -40 to +75 C operating, IP30, fanlessPorts 8 x 10/100 BaseT (or 2 x 100BaseX SFP + 6 x 10/100 BaseT)Power 9.6-60 VDC & 18-30 VAC, redundant dual inputs, 5 WSwitching Performance 16 Gbps backplane bandwidth, 4K MAC, 1.5 Mbit buffer, <10 us latencyType Unmanaged Industrial Ethernet Switch, Layer 2, Store-and-Forward
-
Physical Performance
Cooling Method Fanless coolingDimensions (W × D × H) 40 mm × 100 mm × 61.8 mmEnclosure Fully enclosed seamless metal enclosureHumidity 5 ~ 95% (non-condensing)Ingress Protection IP30Mounting Method DIN-rail mountingOperating Temperature -40 °C ~ +75 °CStorage Temperature -40 °C ~ +85 °CWeight 0.23 kg
-
Hardware Performance
Backplane Bandwidth 16 GbpsDIP Switch Quality of Service (QoS), Broadcast Storm Protection (BSP)MAC Table Size 4KPacket Buffer Size 1.5 MbitsProcessing Type Store-and-ForwardSwitching Delay <10 μs
-
Power Parameters
Operating Voltage 9.6–60 VDC & 18–30 VAC, Redundant dual inputsOvercurrent Protection SupportedPower Consumption 5 WReverse Polarity Protection Supported
-
Electromagnetic Characteristics
EMS IEC(EN)61000-4-2, Class 3; IEC(EN)61000-4-3, Class 3 IEC(EN)61000-4-4, Class 3; IEC(EN)61000-4-5, Class 3 IEC(EN)61000-4-6, Class 3; IEC(EN)61000-4-8, Class 5 IEC(EN)61000-4-18, Class 3
-
Certifications
Certifications CE, FCC, UL
-
Quality Assurance
MTBF 35 yearsWarranty Period 5 years
-
DIP Switch Settings
Broadcast Storm Protection (BSP) – Off Disables the broadcast storm protection functionBroadcast Storm Protection (BSP) – On Enables broadcast storm protection for all ports (allows max 200 broadcast packets per second)Quality of Service (QoS) – Off Disables the QoS functionQuality of Service (QoS) – On Enables the QoS function, processes packet priorities in 2 WRR queues. Priority 7,6,5,4 → Queue 1 (WRR Weight 16); Priority 3,2,1,0 → Queue 0 (WRR Weight 1)
Standard package*
- ISE2008D Unmanaged Industrial Switch *1
* Standard package contents vary by standard order codes.
Contact us directly to learn more about our packaging options.
関連事例
Remote Monitoring Solution of ETC Equipment
Remote Monitoring Solution of ETC Equipment Applications and Cases Key Takeaways Rn…
Learn More →スマートEV充電インフラ
Outdoor EV Charging Stations Applications and Cases Key Takeaways Connect and protect…
Learn More →分散型太陽光発電所の監視
Distributed Solar PV Power Plant Monitoring Applications and Cases Key Takeaways Maximize…
Learn More →Secondary Water Supply
Secondary Water Supply Applications and Cases Key Takeaways Smart Secondary Water Supply…
Learn More →Frequently Asked Questions
What is the ISE2008D?
The ISE2008D is an unmanaged 8-port industrial Ethernet switch available in two port configurations: 8× 10/100BaseT copper, or 2× 100BaseX SFP + 6× 10/100BaseT copper for fiber uplink. Layer 2, fanless, IP30, DIN-rail mounted, redundant 9.6–60 V DC / 18–30 V AC dual power input. Operating temperature −40 °C to +75 °C. Certifications: CE, FCC, UL.
How do I install and power the ISE2008D?
Mount on a 35 mm DIN rail. Connect the redundant power inputs to a 9.6–60 V DC or 18–30 V AC source — automatic failover between the two inputs. Connect Ethernet devices to the RJ45 ports; if your variant has SFP slots, install compatible 100BaseX SFP modules for fiber uplink. Plug-and-play.
What configuration options does the ISE2008D have?
Two physical DIP switches: QoS (2-queue WRR priority) and Broadcast Storm Protection. Set DIPs before powering. No web interface, no CLI — these are the only configurable options on the unmanaged ISE2008D.
When should I choose the ISE2008D vs ISE2016D?
Choose ISE2008D for compact deployments with up to 8 ports and DIN-rail mounting in tight cabinets. Choose ISE2016D when you need 16 ports plus a built-in alarm relay output (for power-failure or link-down notifications to a monitoring system). The ISE2016D has a larger footprint (52×140×110 mm) and 8K MAC table, vs. ISE2008D’s 24×100×61.8 mm and 4K MAC table.
—
