Industrial Router ODU302 Product User Manual¶

Preface¶

Declaration¶

Thank you for choosing our product. Before using the product, please read this user manual carefully. Compliance with the following declaration will help maintain intellectual property rights and legal compliance, ensuring that your user experience is consistent with the latest product information. If you have any questions or need to obtain written permission, please feel free to contact our technical support team.

Copyright Notice

The contents of this user manual are protected by copyright and are the property of InHand Networks Co., Ltd. and its licensors. No part of this manual may be excerpted, copied, or reproduced in any form without written permission, and may not be disseminated in any form.

Disclaimer

Due to continuous updates in product technology and specifications, InHand Networks cannot guarantee that the information in this user manual is fully consistent with the actual product. Therefore, InHand Networks assumes no liability for any disputes arising from inconsistencies between actual technical parameters and this manual. Any changes to the product will be made without prior notice. InHand Networks reserves the right of final modification and interpretation.

Copyright Information

The contents of this user manual are protected by copyright law. The copyright belongs to InHand Networks Co., Ltd. and its licensors. All rights reserved. No part of this manual may be used, copied, or disseminated without written permission.

Graphical Interface Conventions¶

Symbol	Meaning	Example
`< >`	Indicates a variable or parameter to be replaced with an actual value	`<IP Address>` indicates that a specific IP address should be entered
`" "`	Indicates text labels on the interface	Click the "Save" button
`>`	Indicates menu hierarchy or operation sequence	【Network】>【Cellular】
`【】`	Indicates a menu or page name	Enter the 【System Settings】page

Technical Support¶

Email: [email protected]

URL: www.inhand.com

How to Use This Manual¶

a) Find Your Starting Point

First-time users: It is recommended to read in sequence: Getting to Know the Device → Installation and First Use → Common Scenario Configuration → Function Description and Parameter Reference.
Users who already have the device installed: You can directly refer to Function Description and Parameter Reference or Appendix A Troubleshooting.
Cloud platform management users: You can refer to the DM Cloud Platform Access section in Common Scenario Configuration.

b) Quick Task Reference

Task	Corresponding Chapter	Estimated Time
Install the device hardware	Installation and First Use	Approx. 10 minutes
Access the Internet via cellular network	Cellular Internet Access	Approx. 5 minutes
Access the Internet via wired connection	Wired Internet Access	Approx. 5 minutes
Access the Internet via Wi-Fi	Wi-Fi Internet Access	Approx. 5 minutes
Connect to DM Cloud Platform	DM Cloud Platform Access	Approx. 10 minutes
Configure VPN	VPN	As needed
Restore factory settings	Restoring Factory Settings	Approx. 3 minutes
Troubleshoot network issues	Appendix A Troubleshooting	As needed

Chapter 1 Getting to Know the Device¶

1.1 Overview¶

The ODU302 is the outdoor cellular routers, integrating 3G, 4G LTE, and advanced security features. With embedded hardware watchdog, link detection, auto-recovery, and auto-reboot capabilities, the ODU302 provides reliable communications for unattended sites. Reliable VPN technology secures sensitive data transmissions. The ODU302 also supports remote management tools including a Web interface, and the InHand Device Manager Cloud platform for batch configuration and monitoring.

The ODU302 features IP65 ingress protection and supports PoE power input, making it highly suitable for outdoor deployment scenarios.

1.2 Packing List¶

Each ODU302 product includes the following standard accessories. Please check carefully upon receipt of the product. Contact InHand sales staff if anything is missing or damaged.

In addition, according to different site characteristics, InHand can provide customers with optional accessories.

Table 1-2-1 Standard Package

Item	Quantity	Description
ODU302 Outdoor Router	1	Outdoor router
Ethernet Cable	1	1 m Ethernet cable
Wall-mount Bracket	1	For wall mounting
Pole-mount Clamp	1	For pole mounting
SIM Eject Pin	1	For SIM card installation
Outdoor Waterproof Connector	2	Outdoor waterproof connector
Outdoor Waterproof Cover	2	Outdoor waterproof cover
Outdoor Waterproof Nut	1	Outdoor waterproof nut
Expansion Bolts and Screws Set	1	Mounting fasteners

Table 1-2-2 Optional Accessories

Item	Quantity	Description
DC Power Adapter	1	DC power adapter
PoE Injector	1	PoE power injector
AC Power Cord	1	AC power cord

1.3 Appearance and Interfaces¶

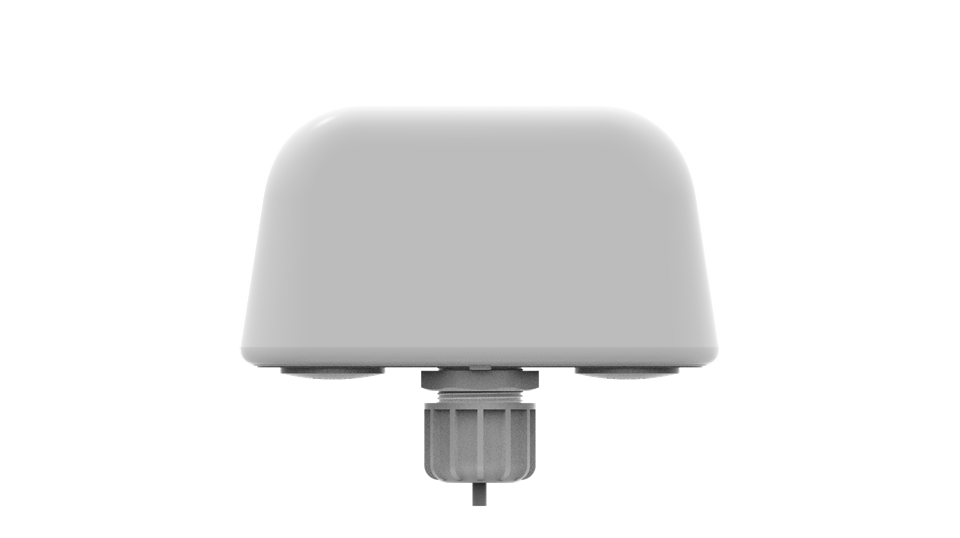

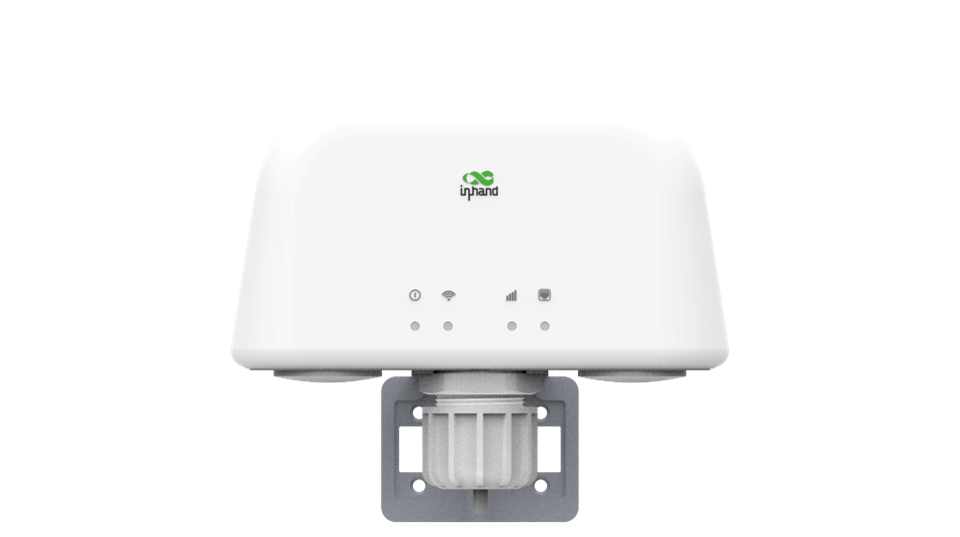

Fig. 1-1 Equipment Panel (Front View)

Fig. 1-2 Equipment Panel (Rear View)

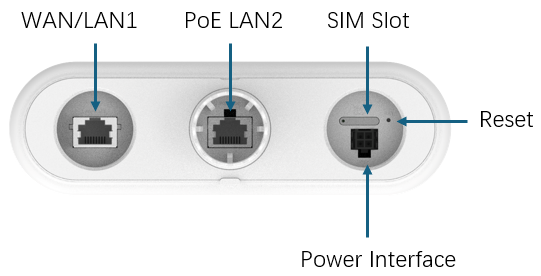

Fig. 1-3 Equipment Panel (Bottom View)

Table 1-3-1 Interface Description

Interface	Position	Function Description
Power	Bottom	DC power input terminal (9~36V DC)
WAN/LAN1	Bottom	Configurable as WAN or LAN1
PoE LAN2	Bottom	LAN2 Ethernet port supporting PoE
SIM Slot	Bottom	Dual SIM card slots
Reset	Bottom	Reset button for restoring factory settings

1.4 LED Indicators¶

Table 1-4-1 LED Indicator Description

LED Indicator	State	Meaning
System	Off	Powered off
	Steady in red	System powered on
	Blink in red	System error
	Steady in green	System working
	Blink in blue	System Upgrading
Wi-Fi	Off	Wi-Fi not enabled
	Blink in green	Wi-Fi driver loading
	Steady in green	AP working
Cellular	Off	Cellular not enabled
	Blink in red	Dialing in progress
	Steady in green	Signal value 21~30
	Steady in blue	Signal value 11~20
	Steady in red	Signal value 0~10
Ethernet Port	Off	Ethernet disconnected
	Steady in red	Only WAN port connected
	Steady in green	Only LAN port connected
	Steady in blue	Both LAN and WAN ports connected

1.5 Restoring Factory Settings¶

To restore the device to default settings using the reset button, follow these steps:

When the router power on, press and hold the reset button for 10 seconds, the system LED will change from solid blue to blinking blue. The unit has been restored to default settings and will start up normally later.

Alternatively, users can restore factory settings via the Web interface:

Log in to the Web page.
Click System >> Configuration Management in the navigation tree.
Click the Restore Factory Settings button.
Confirm the recovery. The system will restart and the factory settings will be restored.

1.6 Default Settings¶

Table 1-6-1 Default Settings

Parameter	Default Value
LAN IP Address	192.168.2.1
LAN Subnet Mask	255.255.255.0
DHCP Server	Enabled
DHCP IP Pool Range	192.168.2.2 ~ 192.168.2.100
Web Login Username	adm
Web Login Password	Refer to device nameplate
WAN/LAN1 Mode	LAN
Cellular Dial-up	Enabled
Wi-Fi Mode	AP
Wi-Fi SSID	inhand
Wi-Fi Authentication	Open type
Device Manager	Disabled

Chapter 2 Installation and First Use¶

2.1 Pre-Installation Preparation¶

Table 2-1-1 Installation Environment Requirements

Item	Requirement
Power Supply	9~36V DC or PoE(802.3af)
Operating Temperature	-30℃ to +70℃
Storage Temperature	-40℃ to +85℃
Relative Humidity	5% to 95% (non-condensing)
Network Coverage	Ensure 3G/4G cellular network coverage at the installation site

Required Tools and Materials:

1 PC
1 SIM card (ensure data service is enabled and not suspended)
Power supply (9~36V DC or PoE(802.3af))

Caution: The device shall be installed and operated in a powered-off state. Installation should account for the surrounding environment.

2.2 Installation Guide¶

Before installation and deployment, insert a valid SIM card in advance.

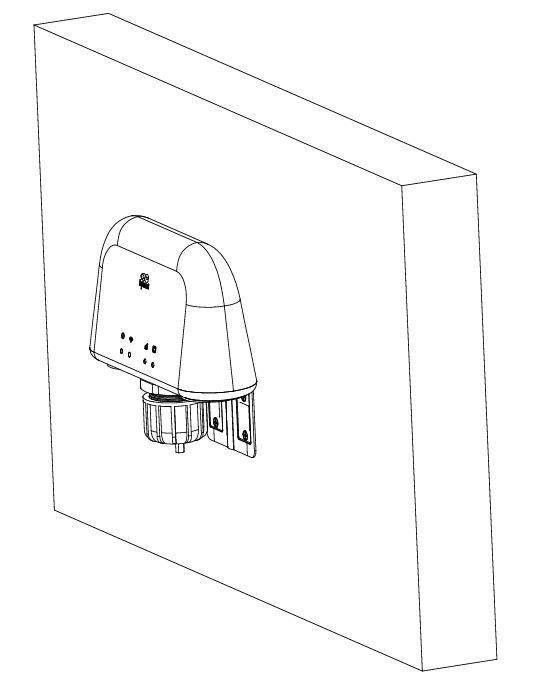

2.2.1 Wall Mount Installation¶

1. Parts List

4G ODU Main Unit
Wall/Pole Mount Bracket
Cable Gland Assembly: M30×1.5 Nut, Cable Rubber Seal, Gland Claw, Gland Lock Nut
Wall Anchor Screws Kit
Installation Steps

Step 1: Drill mounting holes on the solid wall according to the hole layout of the wall mount bracket.

Step 2: Assemble the cable gland in sequence: Gland Lock Nut → Gland Claw → Cable Rubber Seal → M30×1.5 Nut. Feed the whole gland assembly through the pre-drilled wall hole from outdoor side.

Connect the bottom thread of ODU unit with M30 nut of cable gland and tighten fully to maintain IP65 waterproof rating.

Step 3: Secure the wall mount bracket to wall with supplied anchor screws. Clip the bracket onto the side slot of ODU housing and lock tightly.

Step 4: Route Ethernet cable from outdoor through the gland into indoor space. Fasten the gland claw to seal the cable entry completely against rain ingress.

Precautions
This unit is IP65 outdoor rated; all threaded joints and gland components must be fully tightened for waterproof performance.
Install only on solid flat walls. Hollow or soft walls are not allowed to avoid bracket falling off.
Tighten the gland claw firmly after cable routing to eliminate gaps and prevent water penetration.

Fig. 2-1 DIN-Rail Installation

2.2.2 Pole Mount Installation¶

Parts List
4G ODU Main Unit
Universal Wall & Pole Mount Bracket
Cable Gland Assembly: M30×1.5 Nut, Cable Rubber Seal, Gland Claw, Gland Lock Nut
0–100mm Stainless Steel Hose Clamp
Utility Pole
Installation Steps

Step 1:Assemble the cable gland in order: Gland Lock Nut → Gland Claw → Cable Rubber Seal → M30×1.5 Nut. Route Ethernet cable through the center of the gland with reserved slack.

Step 2:Thread the bottom port of ODU onto the M30×1.5 nut and fully tighten to maintain IP65 waterproof rating.

Step 3:Clip the universal mount bracket onto the side slot of the ODU housing and lock securely.

Step 4:Thread the 0–100mm hose clamp through the bracket, wrap around the utility pole, then tighten the clamp to fix the bracket firmly to the pole surface.

Step 5:Adjust the orientation of the ODU unit. Tighten the gland claw to compress the rubber seal against the cable and block water ingress.

Precautions
This unit is IP65 outdoor rated. All threaded joints and gland components must be fully tightened to avoid water damage.
Suitable for cylindrical poles with a diameter ranging from 0 mm to 100 mm.
Periodically check the tightness of the hose clamp for outdoor deployment to prevent the device from falling off.
Mount the unit above flood-prone areas with the cable port facing downwards to minimize rainwater accumulation.

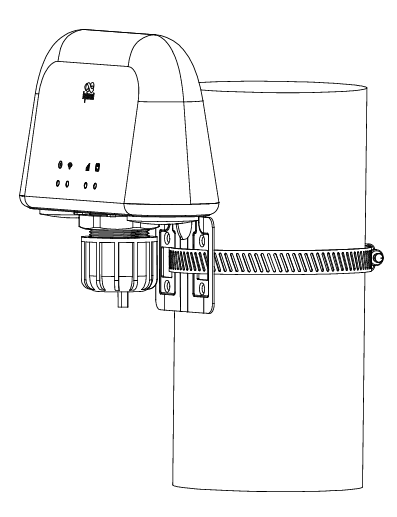

Fig. 2-2 Pole Mount Installation

2.2.3 Cabinet Mount Disassembly¶

Included Parts
4G ODU Unit
Cabinet Mount Plate
M30×1.5 Lock Nut
Installation Procedures

Step 1:Drill M30 standard through-hole on the cabinet mount plate to fit the threaded gland at the bottom of the ODU.

Step 2:Insert the threaded bottom end of the 4G ODU through the hole from the outer side of the cabinet mount plate into the cabinet interior.

Step 3:Screw on the M30×1.5 lock nut onto the internal thread and fully tighten, securing the ODU firmly to the plate to preserve IP65 waterproof performance.

Step 4:Route Ethernet cable through the ODU gland into the cabinet for internal wiring. Assemble the full cable gland kit and compress the rubber seal to block water ingress.

Important Notes
Tighten the M30 lock nut completely to prevent device loosening and water leakage under outdoor vibration.
The cabinet mount plate shall have sufficient structural rigidity; reinforcing ribs are required for thin sheet metal to avoid bending deformation.
Do not remove sealing gaskets at threaded joints, otherwise the outdoor ingress protection will fail.

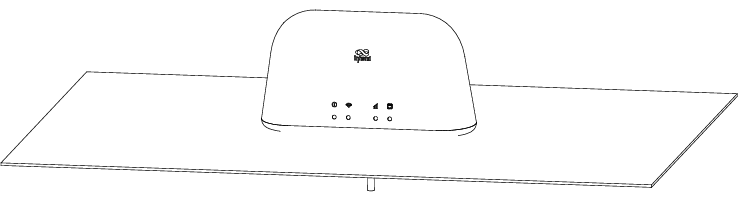

Fig. 2-3 Cabinet Mount Installation

2.2.4 Logging into the Router¶

After completing the hardware installation, ensure that the Ethernet adapter is installed on the management PC before logging in to the router's Web settings page.

I. Automatic Acquisition of IP Address (Recommended)

Set the management computer to "automatically obtain an IP address" and "automatically obtain a DNS server address" (default configuration of the computer operating system) to allow the device to automatically assign an IP address to the management computer.

II. Set a Static IP Address

Set the IP address of the management PC (such as 192.168.2.2) to be in the same network segment as the LAN interface of the device (initial IP address of the LAN interface: 192.168.2.1, subnet mask: 255.255.255.0).

III. Cancel the Proxy Server

If the management PC uses a proxy server to access the Internet, the proxy service must be disabled. The steps are as follows:

In the browser window, select "Tools >> Internet Options".
Select the "Connections" tab and click the "LAN Settings" button to enter the "LAN Settings" window. Confirm whether the option "Use a Proxy Server for LAN" is checked; if checked, uncheck it and click the <OK> button.

IV. Log in to the Web Settings Page

Open a web browser and enter the IP address of the ODU302, such as http://192.168.2.1, in the address bar (default setting of the ODU302). Upon connection, log in from the login interface as Admin. Enter the username and password at the login interface (please check the device nameplate for the default username and password).

Caution: For security reasons, it is recommended to modify the default login password after the first login and keep the password information secure.

Chapter 3 Common Scenario Configuration¶

Scenario 1: Cellular Internet Access¶

Objective: Access the Internet via a 4G/3G cellular network.

Prerequisites: The SIM card has been inserted and the device is powered on.

Estimated Time: Approx. 2 minutes.

Operation Steps:

Insert the SIM card into slot 1. Connect the network cable and power cable, then power on the device.

Caution: To replace or insert a SIM card, the device must be powered off and restarted to avoid data loss or equipment damage.

Open a browser and log in to the device Web interface. (Refer to Section 2.2.4 for Web login steps.)
Click Network >> Cellular in the navigation tree to set the dial-up access parameters. The device has the dial-up function enabled by default. Wait a few minutes for the device to access the Internet. (If it does not dial up, the cellular service can be restarted.)

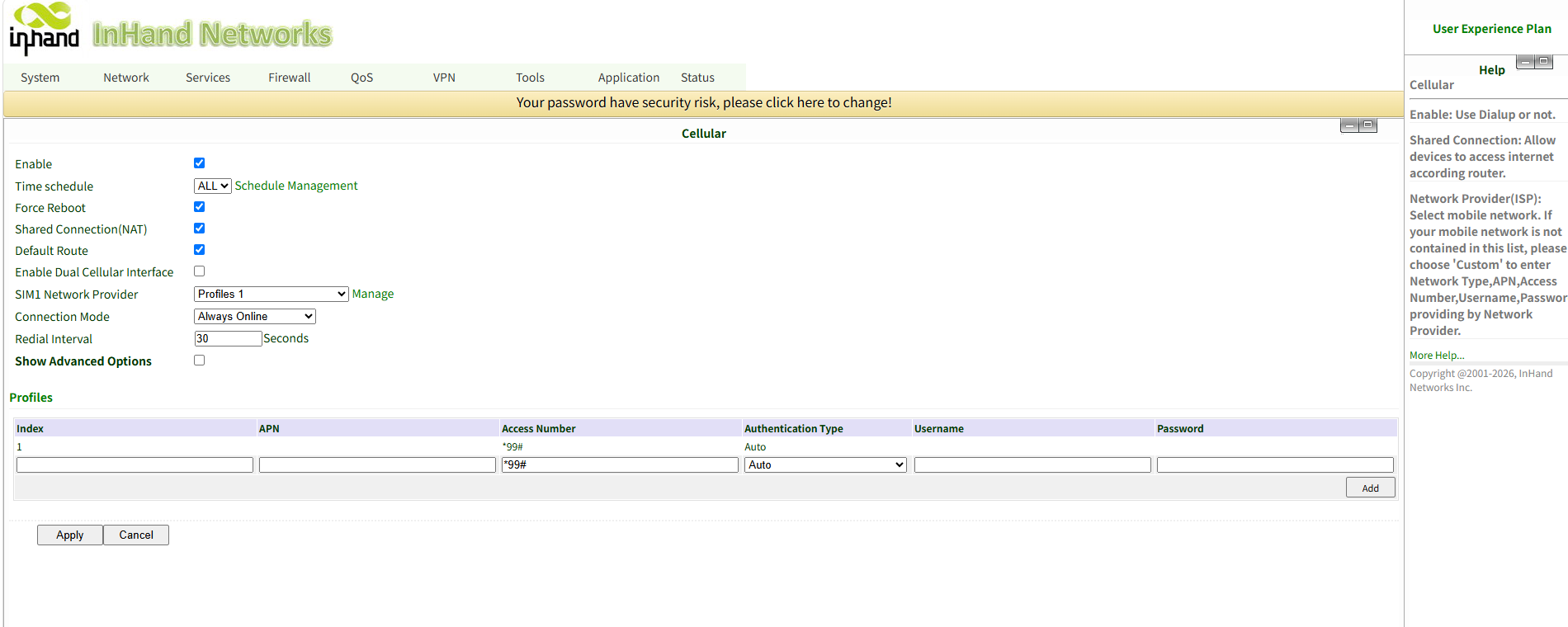

Fig. 3-1 SIM Card Dial-Up Configuration

The device supports dual SIM card mode. When a SIM card is inserted into slot 2, the dual SIM card function must be enabled in advanced settings. Private network dial parameters can be set in the dial parameter settings. Click Apply, and then select the cellular network operator.

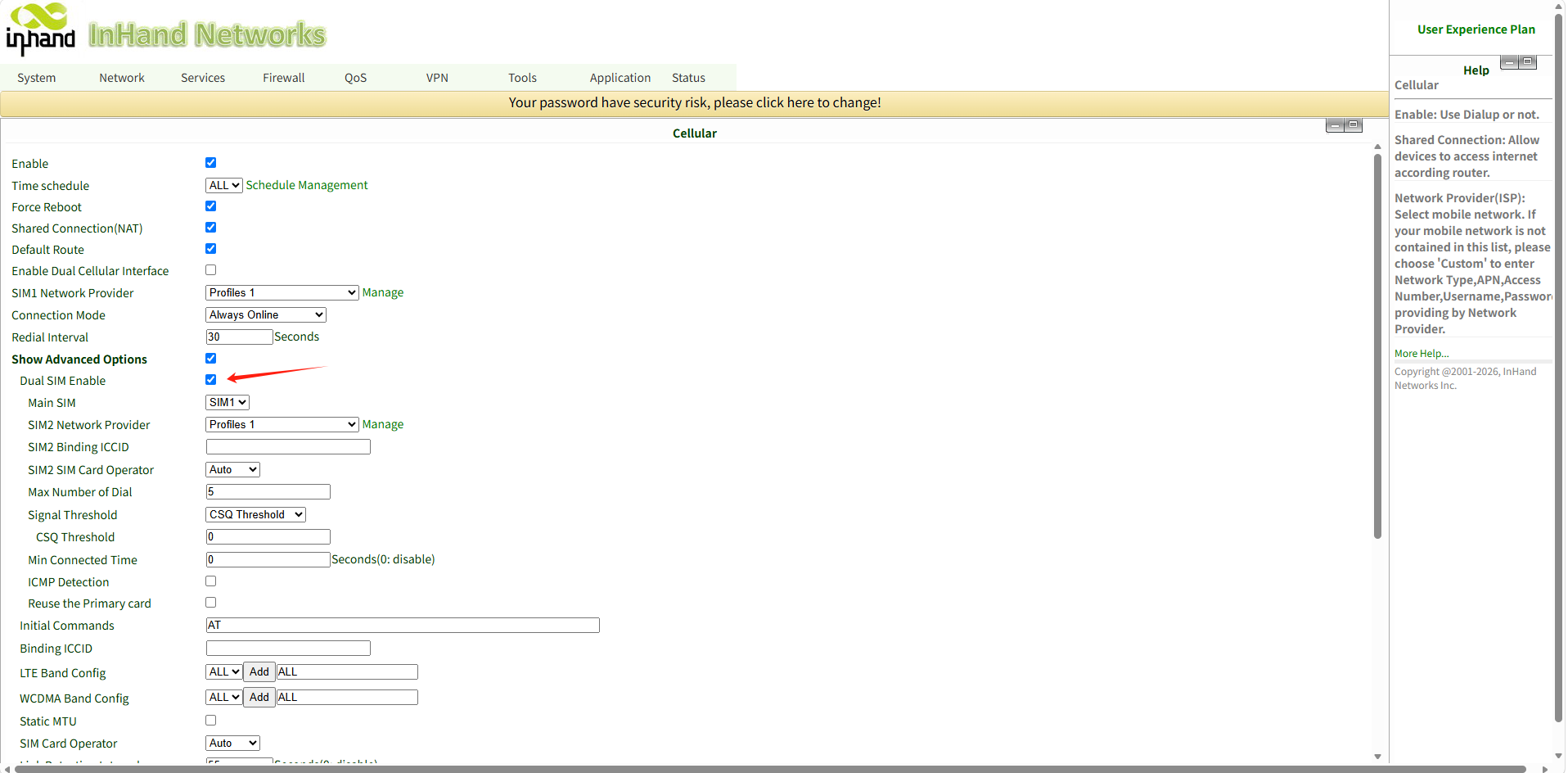

Fig. 3-2 Dialing Parameters

Click Status >> Network Connections in the navigation tree to view the network status. If the status shows "connected" and an IP address has been assigned, this indicates that the SIM card has successfully accessed the Internet.

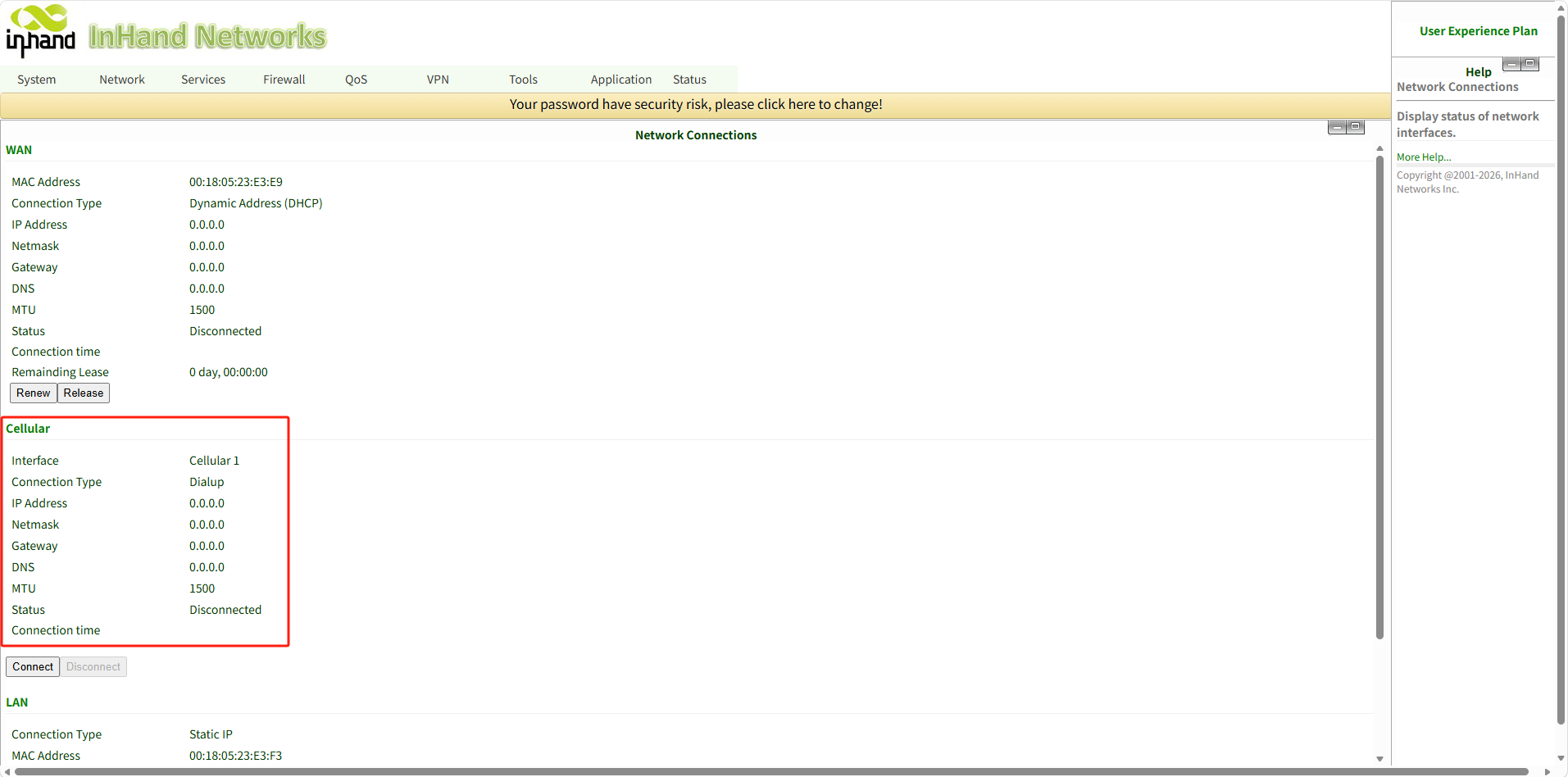

Fig. 3-3 Dial-Up Connection Status

Verification Method:

Check the Cellular LED on the device panel; it should be solid yellow (dialing successful).
On the Status >> Network Connections page, confirm that the dial-up interface has obtained an IP address.
Use the ping tool on the Tools >> Ping Detection page to test connectivity to an external address (e.g., 8.8.8.8).

Common Issues:

Dial-up fails: Check whether the SIM card is correctly inserted, whether the APN parameters are correctly configured, and whether the SIM card has sufficient balance and data service enabled.
Frequent reconnection: Check whether the ICMP detection server is reachable and whether the signal strength is stable.

Scenario 2: Wired Internet Access¶

Objective: Access the Internet via a wired Ethernet connection.

Prerequisites: An Ethernet cable is available and the upstream network provides Internet access; the device is powered on.

Estimated Time: Approx. 5 minutes.

Operation Steps:

Plug in the power cord and network cable according to the diagram. Connect the WAN port to the Internet and connect the LAN2 port to the PC.
Set the PC to be in the same network segment as the IP address of the gateway device.

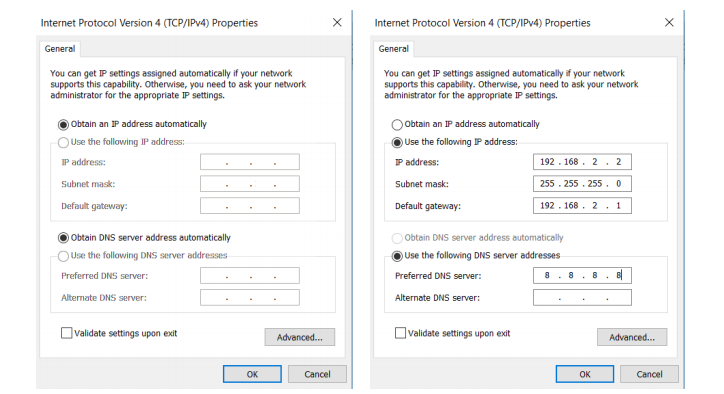

Fig. 3-4 Dynamic Acquisition / Manual Configuration

The PC IP address should be set to any value in the range "192.168.2.2 ~ 192.168.2.254". The gateway is "192.168.2.1" and the subnet mask is "255.255.255.0". The DNS should be configured to the operator's DNS server address.

- **Method 1**: DHCP automatically obtains the address (Recommended).
- **Method 2**: Use a fixed IP address. Set the PC and gateway in the same address segment (DHCP Server for LAN2 Port is enabled by default).

Enter the device default address 192.168.2.1 in the browser to enter the device Web management page. (If the page indicates that the connection is not secure, open hidden or advanced options and select continue.)

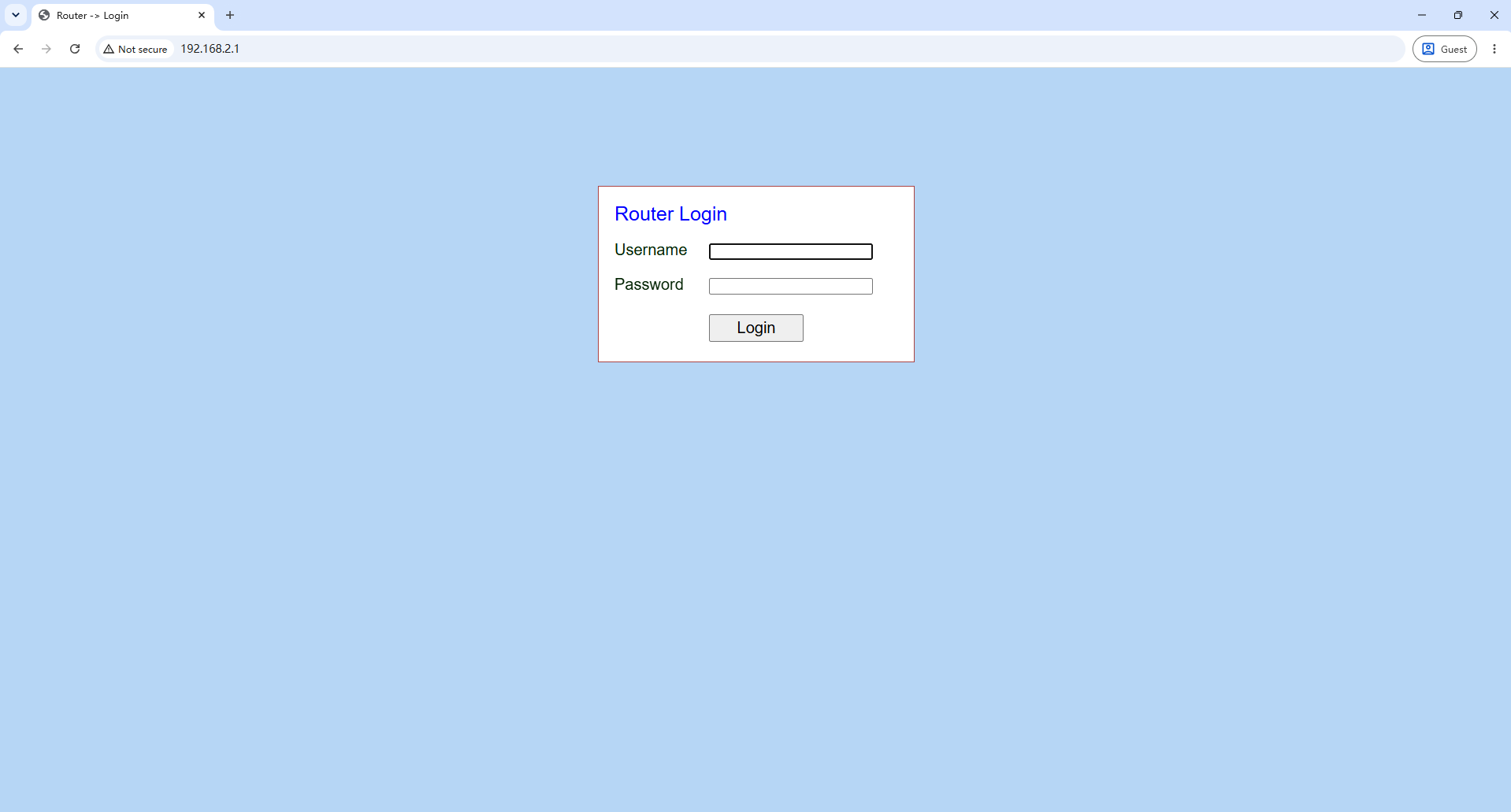

Fig. 3-5 Login to Web Page Management

Configure the WAN port. Click Network >> WAN/LAN Switch in the navigation bar, select WAN mode, and configure the IP address of the WAN port so that the device can access the Internet. (Ensure that the interface is in WAN mode; the initial default is LAN mode.)

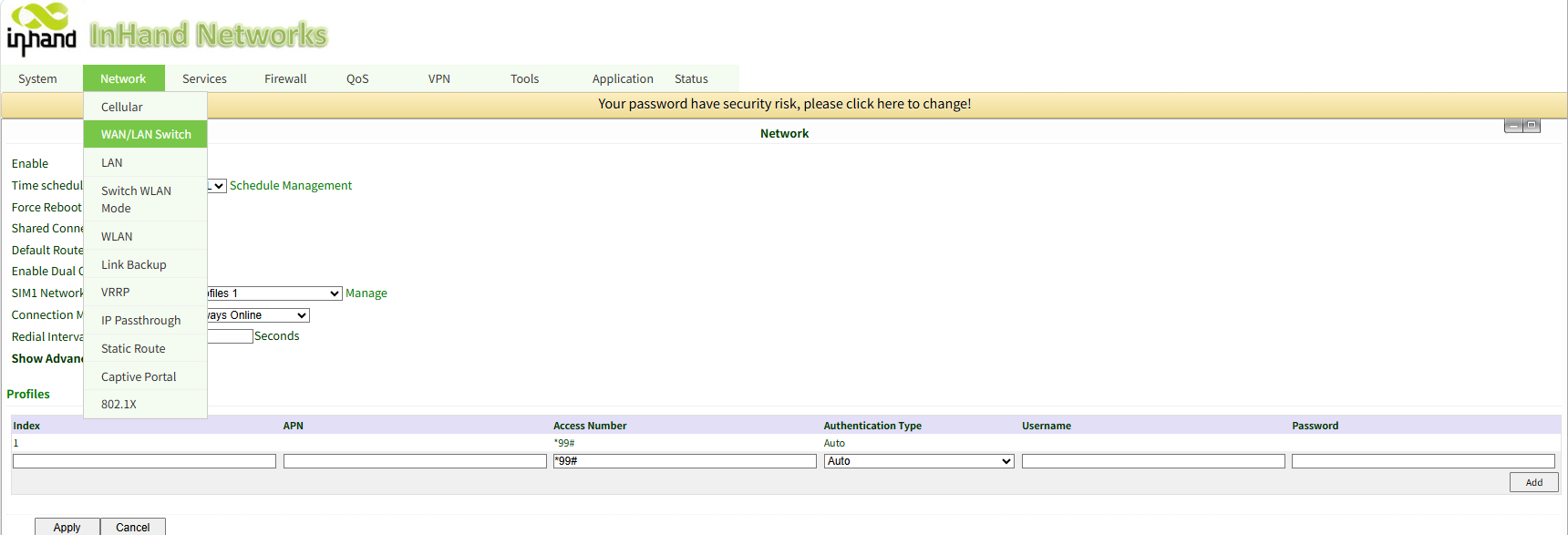

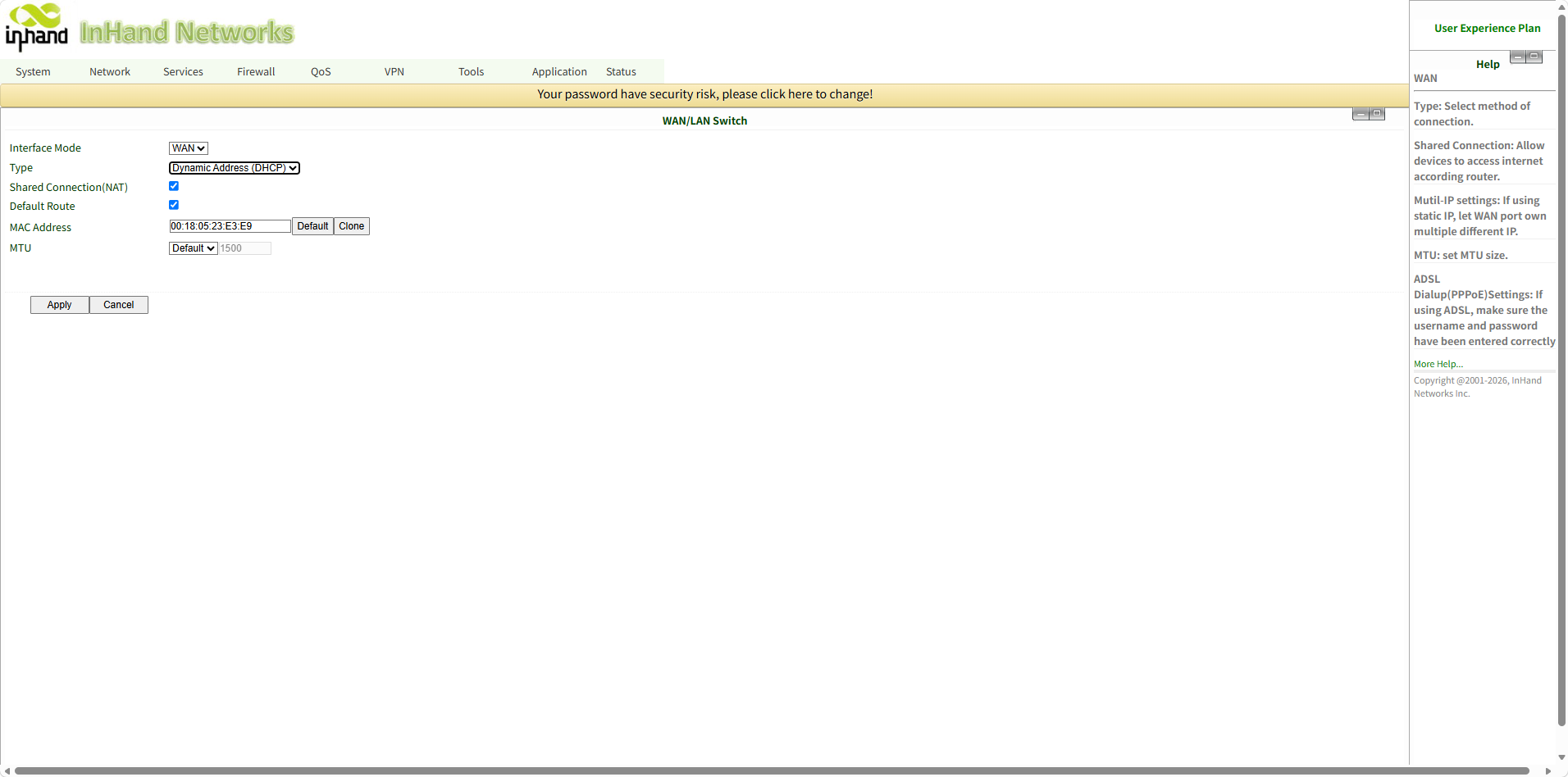

Fig. 3-6 WAN Port Setup

Three address assignment methods are available: Dynamic DHCP (recommended), Static IP, and ADSL Dial-up (PPPoE). Click Apply after configuration is completed.

Fig. 3-7-a Dynamic IP Configuration of WAN

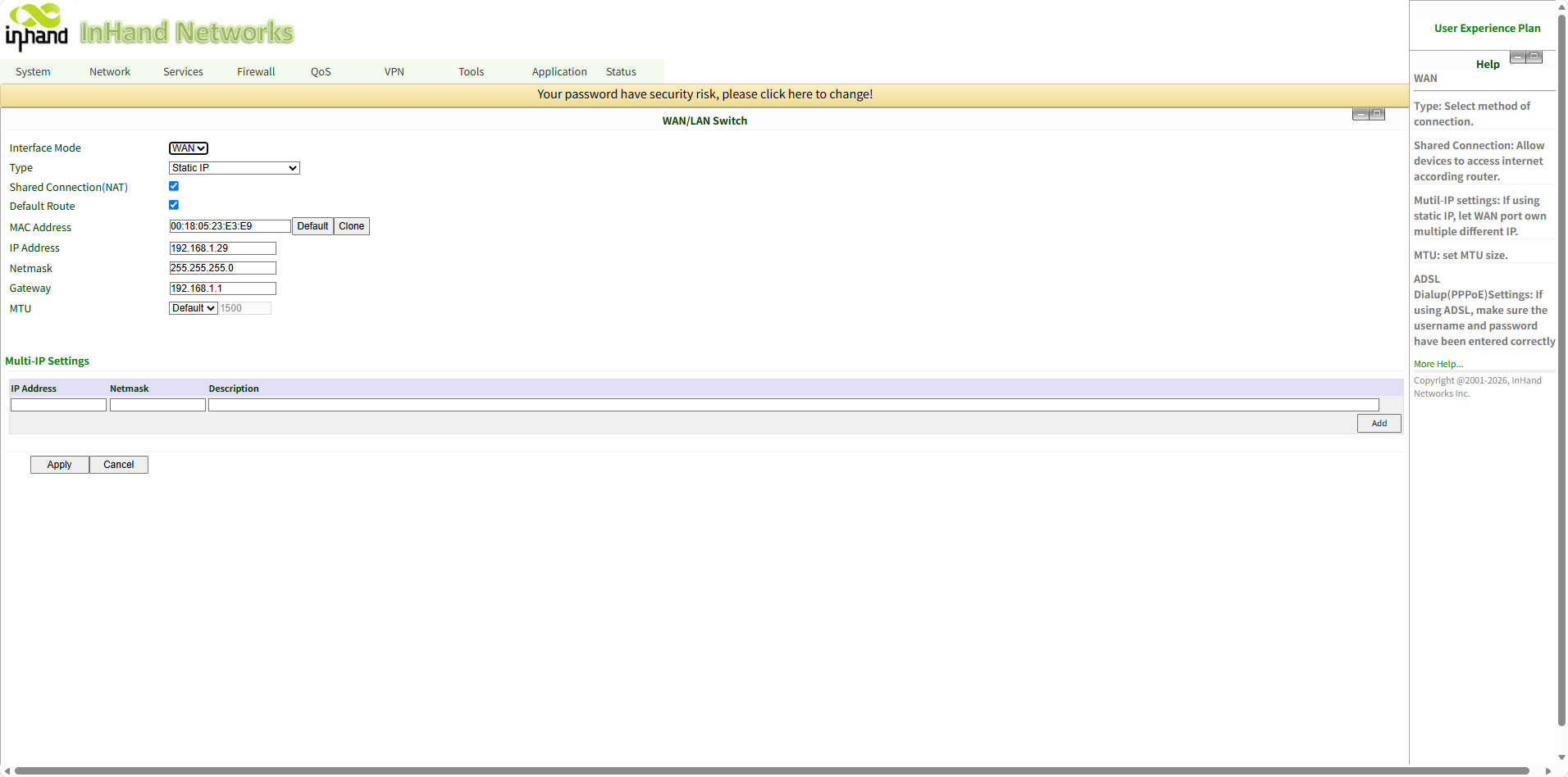

Fig. 3-7-b Static IP Configuration of WAN

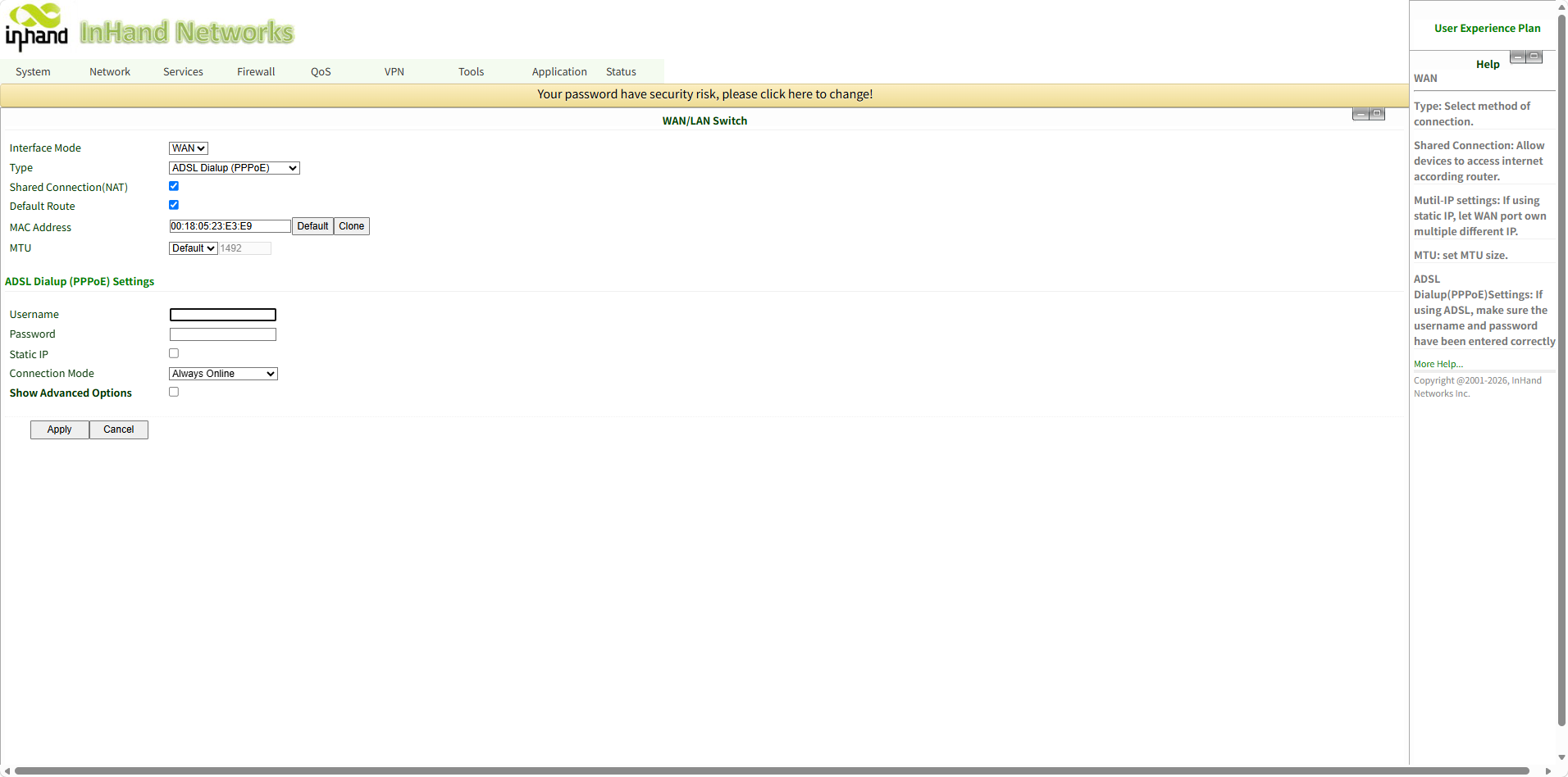

Fig. 3-7-c ADSL Dial-up of WAN

Use the ping tool to verify the network connection.

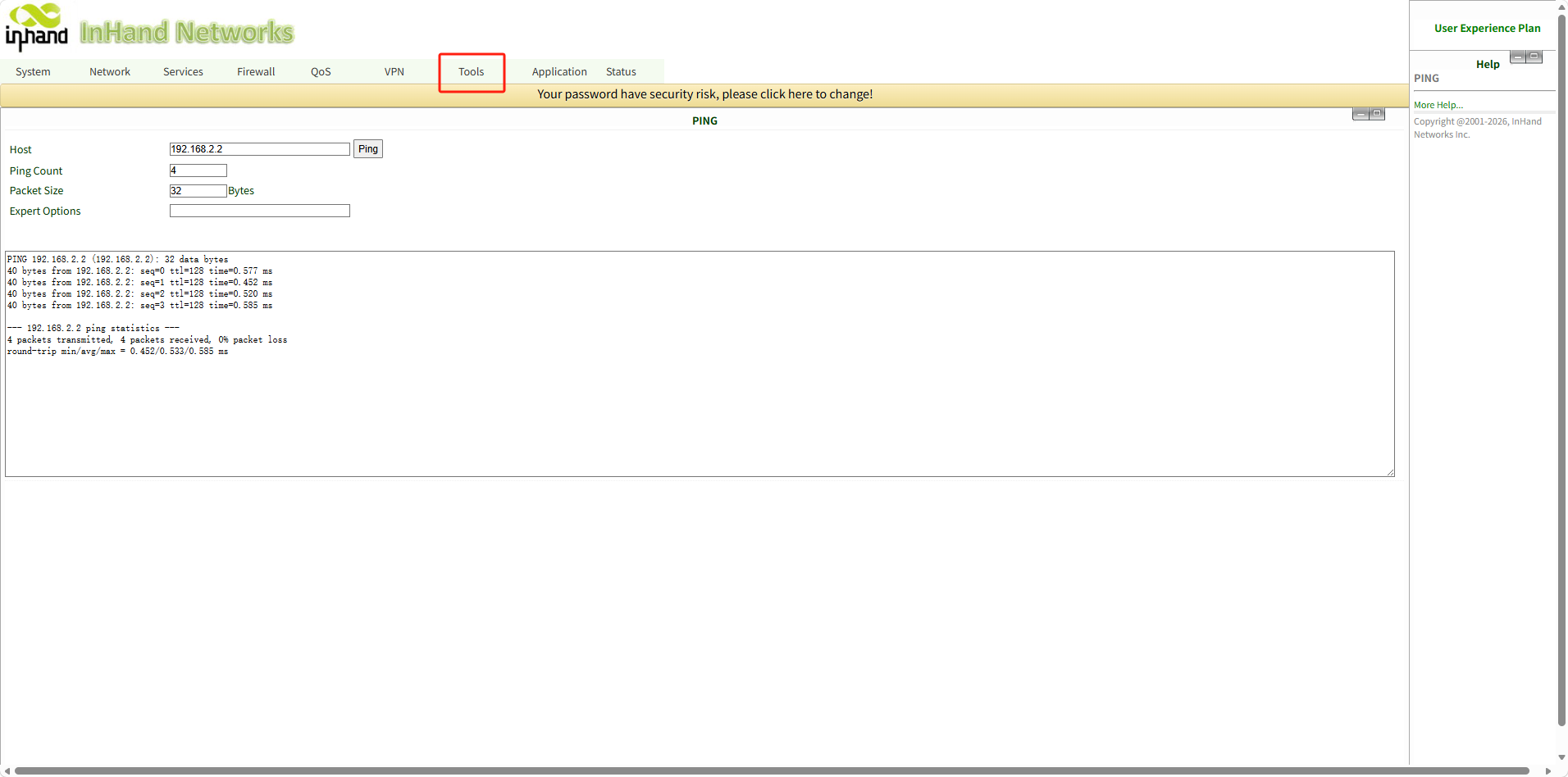

Fig. 3-8 Ping Result Diagram

Verification Method:

On the Status >> Network Connections page, confirm that the WAN interface has obtained an IP address.
Use the ping tool on the Tools >> Ping Detection page to test connectivity to an external address.

Common Issues:

Unable to obtain an IP address: Check whether the upstream DHCP server is functioning or whether the static IP parameters are correctly configured.
WAN port has no Internet access: Check whether the WAN/LAN Switch is set to WAN mode.
ADSL dial-up fails: Check whether the username and password are correct.

Scenario 3: DM Cloud Platform Access¶

Objective: Connect the device to the InHand DM Cloud Management Platform for remote management.

Prerequisites: The device has successfully accessed the Internet; a DM Cloud Platform account has been registered.

Estimated Time: Approx. 10 minutes.

Operation Steps:

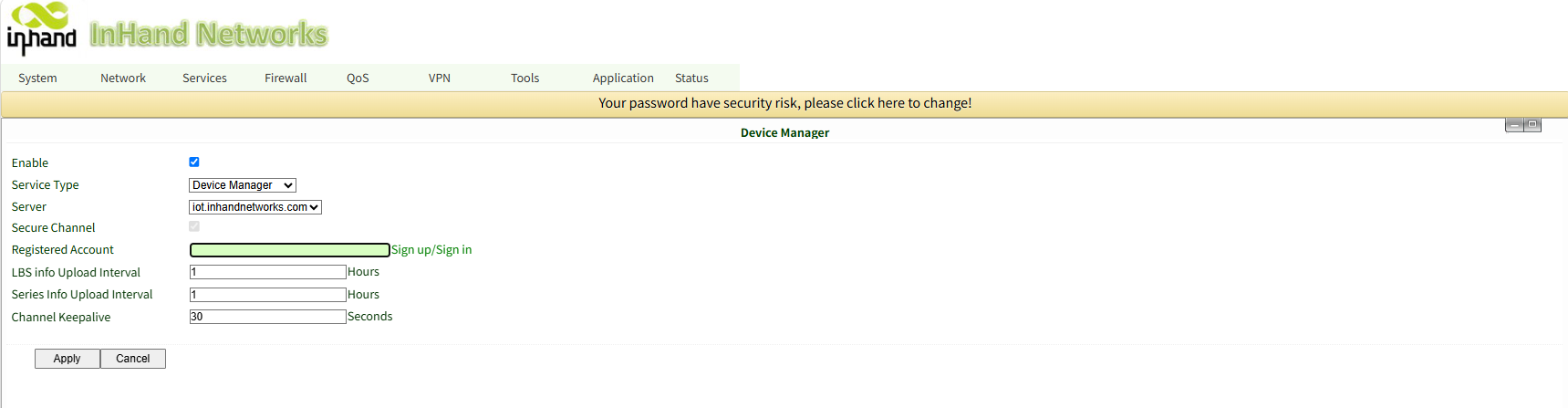

Ensure the device has successfully accessed the Internet. Click Service >> Device Remote Management Platform in the navigation menu to set up access to the DM Cloud Platform.Server address: the address of the Device Manager. The addresses developed by InHand are as follows:

Fig. 3-9 Remote Platform Configuration

- Device Manager: iot.inhandnetworks.com
- InConnect: ics.inhandnetworks.com

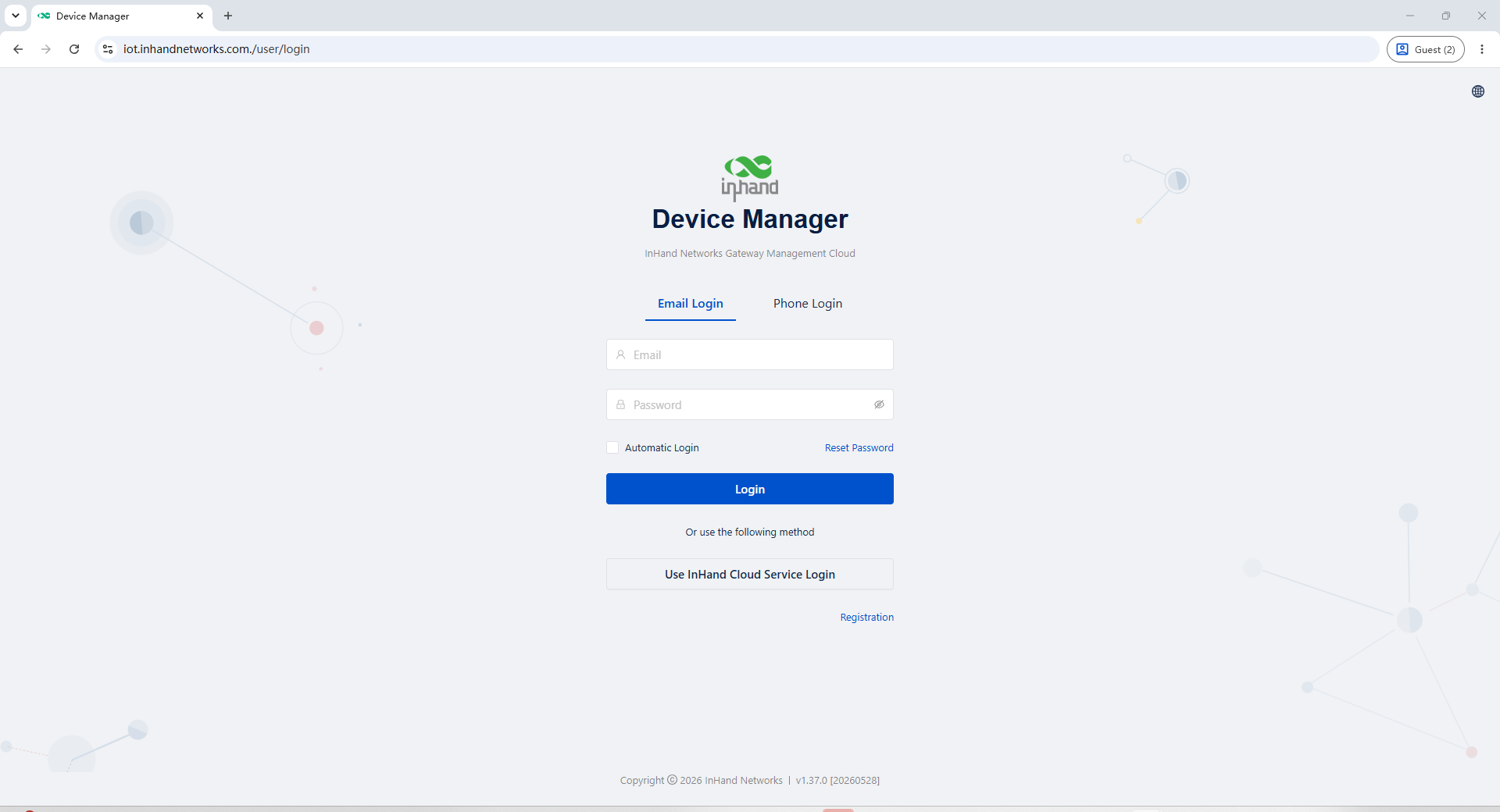

Register or log in to the DM Cloud Platform account. Access the registration/login page via the link: https://iot.inhandnetworks.com.

Fig. 3-10 Account Registration/Login

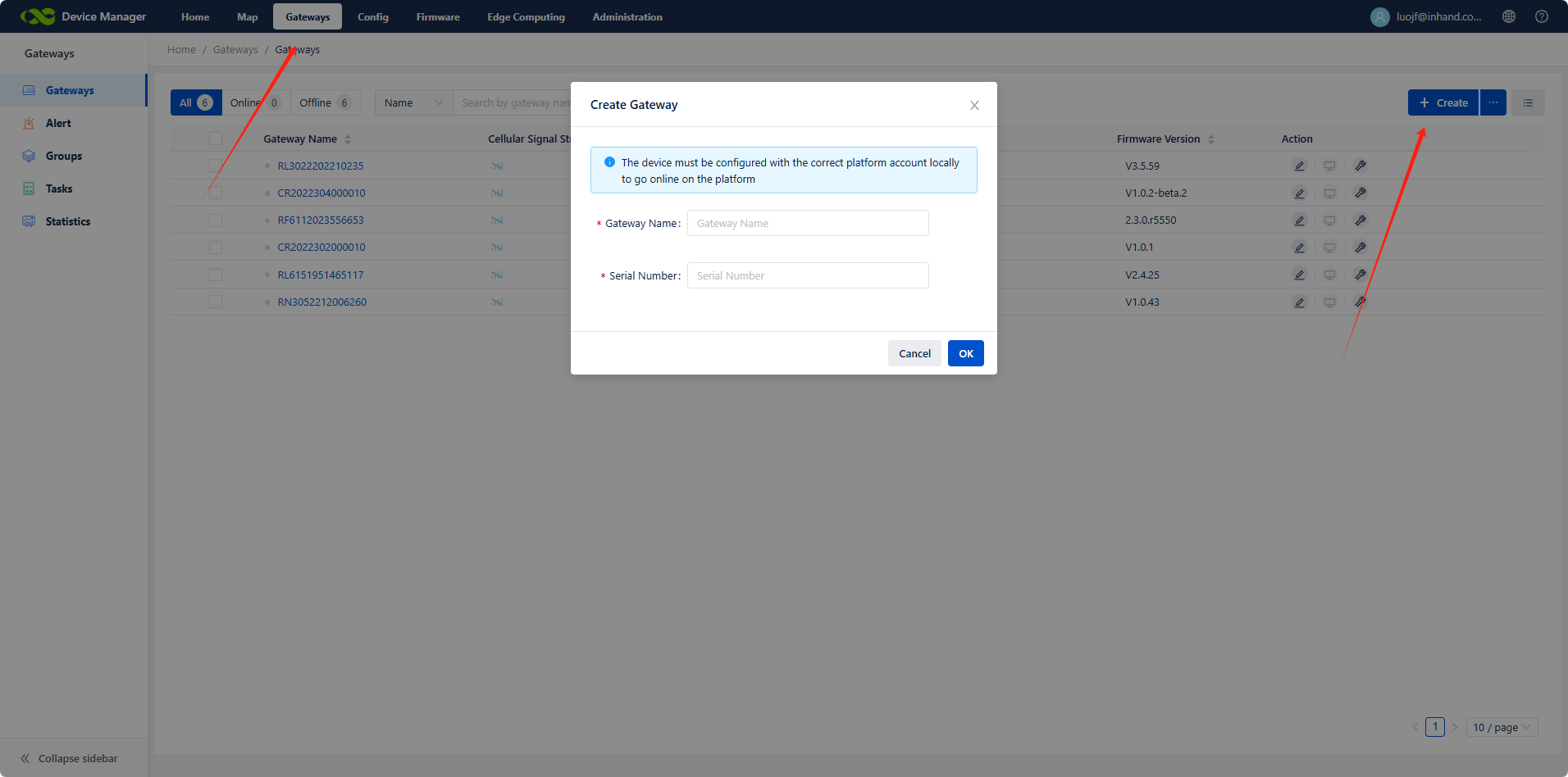

Log in to the DM platform and click Gateway >> Create to add the device. Name the device and fill in the serial number to add the device to the cloud platform.

Fig. 3-11 Add Device to Platform

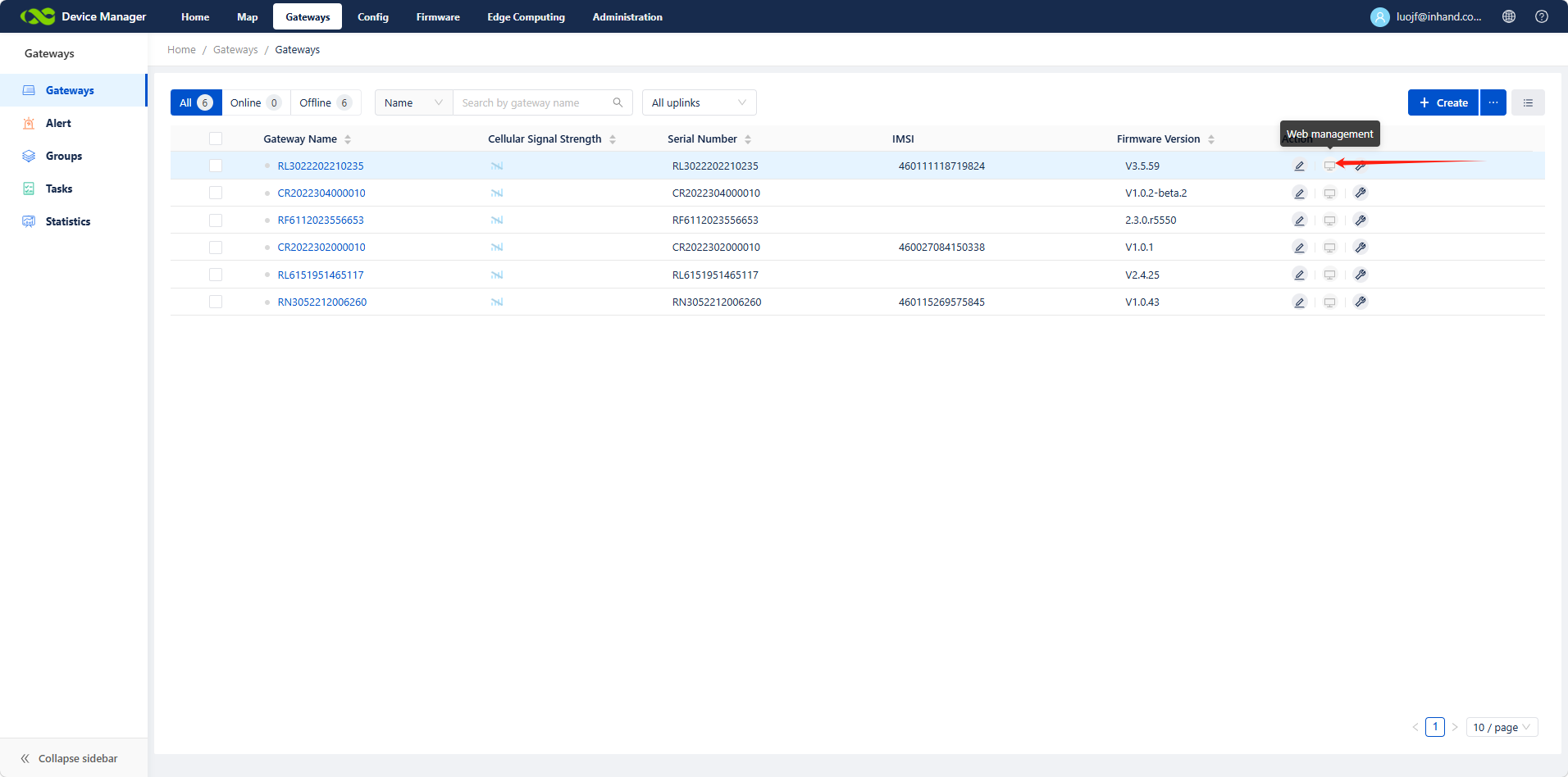

After adding the device and successfully connecting it to the platform, select the corresponding device from the Gateways list, then click Web management under Action to remotely access the device configuration page.

Fig. 3-12 Remotely Access the Device Configuration Page

Verification Method:

On the Status >> Device Manager page, check whether the connection status between the router and the Device Manager is normal.
On the DM Cloud Platform, confirm that the device is online and data is being reported.

Common Issues:

Device cannot connect to the platform: Check whether the device has Internet access and whether the server address is correctly configured.
Device shows offline on the platform: Check whether the registered account is correct and whether the serial number matches.

Chapter 4 Function Description and Parameter Reference¶

This chapter describes the functional modules of the ODU302 and provides detailed parameter references for each configuration page. Users can navigate to the corresponding pages via the Web interface navigation tree.

4.1 System¶

4.1.1 Basic Setup¶

Path: Navigation tree >> System >> Basic Setup

Function Description: Select the display language of the router configuration interface and set a personalized host name.

Table 4-1-1 Basic Setup Parameters

Parameters	Description	Default
Language	Configure the language of the Web configuration interface	English
Host Name	Set a name for the host or device connected to the router for identification	Router

4.1.2 Time¶

Path: Navigation tree >> System >> Time

Function Description: Set the local time zone and automatic time update via NTP.

Table 4-1-2 System Time Parameters

Parameters	Description	Default
Time of Router	Display the present time of the router	8:00:00 AM, 12/12/2015
PC Time	Display the present time of the PC	Present time
Timezone	Set the time zone of the router	Custom
Custom TZ String	Set the TZ string of the router	CST-8
Auto update Time	Select whether to automatically update the time; options include on startup or every 1/2/...hours	On startup
NTP Time Servers	Set the NTP server to synchronize time via the network	114.80.81.1

4.1.3 Admin Access¶

Path: Navigation tree >> System >> Admin Access

Function Description: Modify the username and password of the router. The router may be accessed via HTTP, HTTPS, Telnet, SSHD, and Console. Set the login timeout.

Table 4-1-3 Admin Access Parameters

Parameters	Description	Default
Username/Password
Username	Set the name of the user who logs into the Web configuration	adm
Old Password	Previous password for accessing the Web configuration	N/A
New Password	New password for accessing the Web configuration	N/A
Confirm New Password	Reconfirm the new password	N/A
Admin Functions
Service Port	Service port of HTTP/HTTPS/TELNET/SSHD/Console	80/443/23/22
Local Access	Enable — Allow local LAN to administrate the router with the corresponding service (e.g., HTTP). Disable — Local LAN cannot administrate the router with the corresponding service.	Enable
Remote Access	Enable — Allow remote hosts to administrate the router with the corresponding service. Disable — Remote hosts cannot administrate the router with the corresponding service.	Enable
Allowed Access from WAN (Optional)	Set allowed access from WAN (only HTTP/HTTPS/TELNET/SSHD). The host controlling the service at this moment can be set, e.g., 192.168.2.1/30 or 192.168.2.1-192.168.2.10.	N/A
Description	For recording the significance of various parameters of admin functions (without influencing router configuration)	N/A
Other Parameters
Log Timeout	Set the login timeout (the router will automatically disconnect the configuration interface after login timeout)	500 seconds

4.1.4 System Log¶

Path: Navigation tree >> System >> System Log

Function Description: Configure the IP address and port number of the remote log server which will record router logs.

Table 4-1-4 System Log Parameters

Parameters	Description	Default
Log to Remote System	Enable the log server	Disable
Log server address and port (UDP)	Set the address and port of the remote log server	N/A: 514
Log to Console	Output device log via serial port	Disable

4.1.5 Configuration Management¶

Path: Navigation tree >> System >> Config Management

Function Description: Import, export, and restore router configuration parameters.

Table 4-1-5 Configuration Management Parameters

Parameters	Description	Default
Browse	Choose the configuration file	N/A
Import	Import the configuration file to the router	N/A
Backup	Back up the configuration file to the host	N/A
Restore default configuration	Select to restore the default configuration (effective after rebooting)	N/A
Modem drive program	For configuring the drive program of the module	N/A
Network Provider (ISP)	For configuring APN, username, password, and other parameters of network providers across the world	N/A

Note: The validity and order of imported configurations should be ensured. Valid configurations will be executed sequentially in order after the system reboots. If the configuration files are not arranged according to an effective order, the system will not enter the desired state.

Note: In order not to affect the operation of the current system, when performing an import configuration or restoring the default configuration, users need to restart the device for the new configuration to take effect.

4.1.6 Schedule¶

Path: Navigation tree >> System >> Schedule

Function Description: Set a scheduler for system reboot.

Table 4-1-6 Scheduler Parameters

Parameters	Description	Default
Enable	Enable/disable this function	Disable
Time	Select the reboot time	0:00
Days	Reboot the router every day	Everyday
Show advanced options	Enable more detailed schedule rules, allowing multiple rules to be set to reboot the router at specific times or intervals. Enabling this feature will disable the everyday reboot feature above.	Disable
Reboot after dialed	The router will reboot after dial-up is successful. This will not take effect if this parameter is blank.	N/A

4.1.7 Upgrade¶

Path: Navigation tree >> System >> Upgrade

Function Description: Upgrade the router firmware.

The upgrading process can be divided into two steps. In the first step, firmware will be written to the backup file zone. In the second step, firmware in the backup file zone will be copied to the main firmware zone, which should be carried out during system restart. During software upgrading, any operation on the web page is not allowed; otherwise, the software upgrading may be interrupted.

To upgrade the system, first click <Browse> to choose the upgrade file, then click <Upgrade> and click <OK> to begin the upgrade. After the firmware upgrade succeeds, click <Reboot> to restart the device.

4.1.8 Reboot¶

Path: Navigation tree >> System >> Reboot

Function Description: Reboot the router.

Please save the configurations before rebooting; otherwise, the configurations that are not saved will be lost after the reboot.

To reboot the system, click System >> Reboot, then click <OK>.

4.1.9 Logout¶

Path: Navigation tree >> System >> Logout

Function Description: Log out of the Web management interface.

To log out, click System >> Logout, and then click <OK>.

4.2 Network¶

4.2.1 Cellular¶

Path: Navigation tree >> Network >> Cellular

Function Description: Configure parameters of PPP dial-up. Generally, users only need to set the basic configuration instead of advanced options.

Table 4-2-1-1 Dialup/Cellular Parameters

Parameters	Description	Default
Enable	Enable cellular dial-up	Enable
Time Schedule	Set time schedule	ALL
Force Reboot	Router will reboot if it cannot dial up for a long time and reaches the maximum retry count	Enable
Shared connection (NAT)	Enable — Local devices connected to the router can access the Internet via the router. Disable — Local devices connected to the router cannot access the Internet via the router.	Enable
Default Route	Enable default route	Enable
SIM1 Network Provider	Select the network provider profile for SIM1	Profile 1
Network Type	Select the network type; the router will try 4G, 3G, and 2G in proper order if Auto is selected	Auto
Connection Mode	Options include Always Online, Connect On Demand, and Manual. Triggered by SMS can be configured if Connect On Demand mode is selected.	Always Online
Redial Interval	Set the redialing time when login fails	30 s
Show Advanced Options
Dual SIM Enable	Enable Dual SIM card function	Disable
SIM2 Network Provider	Select the network provider for SIM2 card	Profile 1
SIM2 Blinding ICCID	Set the ICCID of SIM2	N/A
SIM2 PIN Code	For setting the SIM2 PIN code	N/A
SIM2 SIM Card Operator	Set the ISP that the SIM2 card connects to	Auto
Main SIM	Set the SIM card that is used for dial-up first	SIM1
Max Number of Dial	Set the maximum number of dial attempts; if dial-up is not successful after this number, the router will switch SIM cards	5
CSQ Threshold	Set the signal threshold; if the current signal level is lower than this value, the router will switch SIM cards	0 (Disable)
Min Connect Time	Set the minimum connection time for each dial-up attempt	0 (Disable)
Initial Commands	Set customized initial AT commands which will be executed at the beginning of dial-up	AT
Blinding ICCID	Set the ICCID of the SIM card	N/A
PIN Code	For setting the PIN code of the SIM card	N/A
MTU	Set the maximum transmission unit after enabling	1500
Use Peer DNS	Click to receive the peer DNS assigned by the ISP	Enable
Link detection interval	Set the link detection interval	55 s
Debug	Enable debug mode; print debug log in the system log	Disable
Debug Modem*	Send modem debug data to the console	Disable
ICMP Detection Mode	Set the ICMP detection mode. Ignore Traffic: The router will send ICMP packets regardless of whether there is traffic on the cellular interface. Monitor Traffic: The router will not send ICMP packets if there is traffic on the cellular interface.	Ignore Traffic
ICMP Detection Server	Set the ICMP Detection Server. N/A represents that ICMP detection is not enabled.	N/A
ICMP Detection Interval	Set the ICMP Detection Interval	30 s
ICMP Detection Timeout	Set the ICMP Detection Timeout (the link will be regarded as down if ICMP times out)	20 s
ICMP Detection Retries	Set the maximum number of retries if ICMP fails (the router will redial if the maximum is reached)	5

Table 4-2-1-2 Dialup/Cellular Schedule Parameters

Parameters	Description	Default
Name of Schedule	Schedule name	schedule1
Sunday ~ Saturday	Click to enable
Time Range 1	Set time range 1	9:00-12:00
Time Range 2	Set time range 2	14:00-18:00
Time Range 3	Set time range 3	0:00-0:00
Description	Set description content	N/A

4.2.2 WAN/LAN Switch¶

Path: Navigation tree >> Network >> WAN/LAN Switch

Function Description: The WAN/LAN1 Port supports two types of work modes: WAN and LAN.

WAN supports three types of wired access: static IP, dynamic address (DHCP), and ADSL (PPPoE) dialing.

Table 4-2-2-1 WAN Static IP Parameters

Parameters	Description	Default
Shared connection (NAT)	Enable — Local devices connected to the router can access the Internet via the router. Disable — Local devices connected to the router cannot access the Internet via the router.	Enable
Default route	Enable default route	Enable
MAC Address	MAC Address of the device	Device's MAC address
IP Address	Set the IP address of the WAN	192.168.1.29
Subnet mask	Set the subnet mask of the WAN	255.255.255.0
Gateway	Set the gateway of the WAN	192.168.1.1
MTU	Maximum transmission unit, default/manual settings	default (1500)
Multiple IP support (at most 8 additional IP addresses can be set)
IP Address	Set the additional IP address of the WAN	N/A
Subnet mask	Set the subnet mask	N/A
Description	For recording the significance of the additional IP address	N/A

Table 4-2-2-2 WAN Dynamic Address (DHCP) Parameters

Parameters	Description	Default
Shared connection (NAT)	Enable — Local devices connected to the router can access the Internet via the router. Disable — Local devices connected to the router cannot access the Internet via the router.	Enable
Default route	Enable default route	Enable
MAC Address	MAC Address of the device	Device's MAC address
MTU	Maximum transmission unit, default/manual settings	default (1500)

Table 4-2-2-3 WAN ADSL Dialing (PPPoE) Parameters

Parameters	Description	Default
Shared connection	Enable — Local devices connected to the router can access the Internet via the router. Disable — Local devices connected to the router cannot access the Internet via the router.	Enable
Default route	Enable default route	Enable
MAC Address	MAC Address of the device	Device's MAC address
MTU	Maximum transmission unit, default/manual settings	default (1492)
WAN - ADSL Dialing (PPPoE)
Username	Set the name of the dialing user	N/A
Password	Set the dialing password	N/A
Static IP	Click to enable static IP	Disable
Connection Mode	Set the dialing connection method (Always Online, Dial On Demand, Manual Dialing)	Always Online
Advanced Options Parameters
Service Name	Set the service name	N/A
Set length of transmit queue	Set the length of the transmit queue	3
Enable IP header compression	Click to enable IP header compression	Disable
Use Peer DNS	Click to enable the use of peer DNS	Enable
Link detection interval	Set the link detection interval	55 s
Link detection Max. Retries	Set the link detection maximum retries	10
Enable Debug	Click to enable debug mode	Disable
Expert Option	Set expert options	N/A
ICMP Detection Server	Set the ICMP detection server	N/A
ICMP Detection Interval	Set the ICMP Detection Interval	30 s
ICMP Detection Timeout	Set the ICMP detection timeout	20 s
ICMP Detection Retries	Set the ICMP detection maximum retries	3

4.2.3 LAN¶

Path: Navigation tree >> Network >> LAN

Function Description: Devices in the LAN use a static IP to connect to the network.

Table 4-2-3 LAN Parameters

Parameters	Description	Default
MAC Address	MAC Address of the router's LAN gateway	Router's LAN MAC address
IP Address	IP Address of the router's LAN gateway	192.168.2.1
Netmask	Subnet mask of the LAN gateway	255.255.255.0
MTU	Maximum transmission unit, default/manual settings	default (1500)
LAN Mode	Set the transport mode on the LAN interface	Auto Negotiation
Multi-IP Settings (at most 8 additional IP addresses can be set)
IP Address	Set the additional IP address of the LAN	N/A
Subnet mask	Set the subnet mask	N/A
Description	For recording the significance of the additional IP address	N/A
LAN Port Enable
port1/port2	Enable the corresponding LAN port	Enable
GARP
Enable	The router will send ARP broadcasts to LAN devices automatically	Disable
Broadcast Count	Set the ARP broadcast times	5
Broadcast Timeout	Set the ARP broadcast timeout time	10

4.2.4 Switch WLAN Mode¶

Path: Navigation tree >> Network >> Switch WLAN Mode

Function Description: The ODU302-WLAN supports two types of WLAN modes: AP and STA. After changing and saving the configuration, reboot the device for the configuration to take effect.

4.2.5 WLAN Client (AP Mode)¶

Path: Navigation tree >> Network >> WLAN

Function Description: When working in AP mode, the ODU302 WLAN will provide a network access point for other wireless network devices. Ensure that the ODU302 has already connected to the Internet via WAN or cellular dial-up.

Table 4-2-5 WLAN Access Port Parameters

Parameters	Description	Default
SSID broadcast	After enabling, users can search for the WLAN via the SSID name	Enable
Mode	Six types for selection: 802.11g/n, 802.11g, 802.11n, 802.11b, 802.11b/g, 802.11b/g/n	802.11b/g/n
Channel	Select the channel	11
SSID	SSID name defined by the user	inhand
Authentication method	Supports Open type, Shared type, Auto selection of WEP, WPA-PSK, WPA, WPA2-PSK, WPA2, WPA/WPA2, WPAPSK/WPA2PSK	Open type
Encryption	Supports NONE, WEP	NONE
Wireless bandwidth	Both 20MHz and 40MHz for selection	20MHz
Enable WDS	Click to enable WDS	Disable
Default Route	Click to enable Route	Disable
Bridged SSID	Set the bridged SSID	None
Bridged BSSID	Set the bridged BSSID	None
Scan	Click "Scan" to scan for available APs nearby
Auth Mode	Open type, Shared type, WPA-PSK, WPA2-PSK	Open type
Encryption Method	Supports NONE, WEP	None

4.2.6 WLAN Client (STA Mode)¶

Path: Navigation tree >> Network >> WLAN Client

Function Description: When working in STA mode, the router can access the Internet by connecting to other APs.

Table 4-2-6 WLAN Client Parameters

Parameters	Description	Default
Mode	Supports multiple modes including 802.11b/g/n	802.11b/g/n
SSID	Name of the SSID to be connected	inhand
Authentication method	Keep consistent with the access point to be connected	Open type
Encryption	Keep consistent with the access point to be connected	NONE

4.2.7 Link Backup¶

Path: Navigation tree >> Network >> Link Backup

Function Description: When the system is running, the main link will first be enabled for communication. However, when the main link is disconnected, the system will automatically switch to the backup link to ensure communication continuity.

Table 4-2-7-1 Link Backup Parameters

Parameters	Description	Default
Enable	Click to enable link backup	Disable
Backup mode	Options include Hot Failover, Cold Failover, or Load Balance	Hot failover
Main Link	Optional WAN or dialing interface	WAN
ICMP Detection Server	Set the ICMP detection server	N/A
Backup Link	Optional cellular or WAN	Cellular 1
ICMP Detection Interval	Set the ICMP Detection Interval	10 s
ICMP Detection Timeout	Set the ICMP detection timeout	3 s
ICMP Detection Retries	Set the ICMP detection maximum retries	3
Restart Interface When ICMP Failed	Restart the main link when ICMP fails	Disable

Table 4-2-7-2 Link Backup - Backup Mode Parameters

Parameters	Description
Hot failover	Main link and backup link remain online simultaneously; switching occurs if the current link goes offline.
Cold failover	The backup link will only come online when the main link is disconnected.
Load balance	Transfer data via the corresponding route after ICMP detection succeeds.

4.2.8 VRRP¶

Path: Navigation tree >> Network >> VRRP

Function Description: VRRP (Virtual Router Redundancy Protocol) adds a set of routers that can undertake gateway functions into a backup group to form a virtual router.

Table 4-2-8 VRRP Parameters

Parameters	Description	Default
Enable VRRP-I	Click to enable the VRRP function	Disable
Group ID	Select the ID of the router group (range: 1-255)	1
Priority	Select a priority (range: 1-254)	20 (the larger the numerical value, the higher the priority)
Advertisement Interval	Set an advertisement interval	60 s
Virtual IP	Set a virtual IP	N/A
Authentication method	Select "None" or "Password" type	None (a password is required when the password type is selected)
Monitor	Set the monitor	N/A
VRRP-II	Set as above	Disable

4.2.9 IP Passthrough¶

Path: Navigation tree >> Network >> IP Passthrough

Function Description: The LAN port device obtains the WAN port address; used for external access to router downstream devices.

Table 4-2-9 IP Passthrough Parameters

Parameters	Description	Default
IP Passthrough	Enable IP Passthrough	Disable
IP Passthrough Mode	Select the work mode (DHCP Dynamic / DHCP Fix MAC)	DHCP Dynamic
Fix MAC Address	Set the fixed MAC address if in DHCP Fix MAC mode	00:00:00:00:00:00
DHCP lease	Set the DHCP lease time; the address will be reacquired after expiration	120S

4.2.10 Static Route¶

Path: Navigation tree >> Network >> Static Route

Function Description: Add/delete additional static routes of the router. Generally, it is unnecessary for users to set this.

Table 4-2-10 Static Route Parameters

Parameters	Description	Default
Destination Address	Set the IP address of the destination	0.0.0.0
Netmask	Set the subnet mask of the destination	255.255.255.0
Gateway	Set the gateway of the destination	N/A
Interface	Select the LAN/CELLULAR/WAN/WAN(STA) interface of the destination	N/A
Description	For recording the significance of the static route address (Chinese characters are not supported)	N/A

4.3 Service¶

4.3.1 DHCP Service¶

Path: Navigation tree >> Services >> DHCP Service

Function Description: If the host connected to the router chooses to obtain an IP address automatically, this service must be activated. Static designation of DHCP allocation can help certain hosts obtain specified IP addresses.

Table 4-3-1 DHCP Service Parameters

Parameters	Description	Default
Enable DHCP	Enable the DHCP service and dynamically allocate IP addresses	Enable
IP Pool Starting Address	Set the starting IP address of dynamic allocation	192.168.2.2
IP Pool Ending Address	Set the ending IP address of dynamic allocation	192.168.2.100
Lease	Set the lease of the dynamically allocated IP	60 minutes
DNS	Set the DNS Server	192.168.2.1
Windows Name Server	Set the Windows name server	N/A
Static Designation of DHCP Allocation (at most 20 DHCP static allocations can be set)
MAC Address	Set a statically specified DHCP MAC address (must be different from other MACs to avoid conflicts)	N/A
IP Address	Set a statically specified IP address	192.168.2.2
Host	Set the hostname	N/A

4.3.2 DNS¶

Path: Navigation tree >> Service >> Domain Name Service

Function Description: Configure parameters of DNS.

Table 4-3-2 DNS Parameters

Parameters	Description	Default
Primary DNS	Set the Primary DNS	0.0.0.0
Secondary DNS	Set the Secondary DNS	0.0.0.0
Disable local DNS server	Do not transfer the local DNS server address	Disable

4.3.3 DNS Relay¶

Path: Navigation tree >> Service >> DNS Relay

Function Description: If the host connected to the router chooses to obtain a DNS address automatically, this service must be activated.

Table 4-3-3 DNS Relay Parameters

Parameters	Description	Default
Enable DNS Relay service	Click to enable the DNS service	Enable (DNS will be available when the DHCP service is enabled.)
Designate [IP address <=> domain name] pair (20 IP address <=> domain name pairs can be designated)
IP Address	Set the IP address of the designated IP address <=> domain name pair	N/A
Host	Domain Name	N/A
Description	For recording the significance of the IP address <=> domain name pair	N/A

Note: When enabling DHCP, the DNS relay is also enabled automatically. The relay cannot be disabled without disabling DHCP.

4.3.4 DDNS¶

Path: Navigation tree >> Service >> Dynamic Domain Name

Function Description: Set dynamic domain name binding.

Table 4-3-4-1 Dynamic Domain Name Parameters

Parameters	Description	Default
Current Address	Display the present IP of the router	N/A
Service Type	Select the domain name service provider	Disable

Table 4-3-4-2 Dynamic Domain Name Main Parameters

Parameters	Description	Default
Service Type	QDNS (3322)-Dynamic	Disable
URL	http://www.3322.org/	http://www.3322.org/
Username	Username assigned during the application for a dynamic domain name	N/A
Password	Password assigned during the application for a dynamic domain name	N/A
Host Name	Host name assigned during the application for a dynamic domain name	N/A
Wildcard	Enable wildcard character	Disable
MX	Set MX	N/A
Backup MX	Enable backup MX	Disable
Force Update	Enable force update	Disable

4.3.5 Device Manager¶

Path: Navigation tree >> Service >> Device Manager

Function Description: Connect the router to the platform for cloud management.

Table 4-3-5 Device Remote Management Platform Parameters

Parameters	Description	Default
Enable	Enable the Device Manager	Disable
Service Type	Platform work mode: Device Manager, InConnect, or Custom	Device Manager
Server	Select the cloud platform address. DM: iot.inhand.com.cn (China), iot.inhandnetworks.com (Global). InConnect: ics.inhandiot.com (China), ics.inhandnetworks.com (Global).	iot.inhandnetworks.com
Secure Channel	Use an encryption protocol for secure data transmission between the router and the platform	Enable
Registered Account	Account registered in the Device Manager	N/A
LBS Info Upload Interval	Cellular information upload interval	1 Hour
Series Info Upload Interval	Traffic information upload interval	1 Hour
Channel Keepalive	Keep-alive packet interval	30 Seconds

4.3.6 SNMP¶

Path: Navigation tree >> Service >> SNMP

Function Description: Configure the Simple Network Management Protocol for remote device management.

Fig. 4-1 SNMP Topology

Table 4-3-6-1 SNMPv1 and SNMPv2c Parameters

Parameters	Description	Default
Enable	Enable/disable the SNMP function.	Disabled
Version	Set the version of the SNMP protocol used to manage the router. SNMPv1 is applicable to small-sized networks with simple networking and low security requirements. SNMPv2c is applicable to medium- and large-sized networks with low security requirements. SNMPv3 is applicable to networks of various sizes with strict security requirements.	v1
Contact Information	Fill in the contact information.	Empty
Location Information	Fill in the location.	Empty
Community Management
Community Name	User-defined community name. The community names of SNMPv1 and SNMPv2c are the passwords used by the NMS to read and write data on agents.	public and private
Access Limit	Access limit includes the MIB objects that can be read only or read/written by the NMS.	Read-Only
MIB View	Select the MIB objects that can be monitored and managed by the NMS. Only the default view is supported currently.	defaultView

Table 4-3-6-2 SNMPv3 Parameters

Parameters	Description	Default
User Group Management
Groupname	User-defined user group name. The length is 1 to 32 characters.	None
Security Level	Select a security level for the group. The values include NoAuth/NoPriv, Auth/NoPriv, and Auth/Priv.	NoAuth/NoPriv
Read-only View	Select the SNMP read-only view. Only the default view is supported currently.	defaultView
Read-write View	Select the SNMP read-write view. Only the default view is supported currently.	defaultView
Inform View	Select the SNMP inform view. Only the default view is supported currently.	defaultView
Usm Management
Username	User-defined username. The length is 1 to 32 characters.	None
Groupname	The group to which a user is added must have been configured in the user group management table.	None
Authentication	Select an authentication mode. Three authentication modes are available: MD5, SHA, and None. If None is selected, authentication is disabled.	None
Authentication Password	This parameter is available only when the authentication mode is not None. The length is 8 to 32 characters.	None
Encryption	Select the encryption mode. The values are None, AES, and DES.	None
Encryption Password	This parameter is available only when the authentication mode is not None. The length is 8 to 32 characters.	None

4.3.7 SNMP Trap¶

Path: Navigation tree >> Service >> SNMP Trap

Function Description: Configure SNMP trap reporting to the NMS.

Table 4-3-7 SNMP Trap Configuration Parameters

Parameters	Description	Default
Trap SigLevel	Set the trap signal threshold. When this threshold is reached, the agent outputs logs to the NMS.	10
Destination Address	Fill in the IP address of the NMS.	None
Security Name	Fill in the community name for SNMPv1 or SNMPv2c, and fill in the username for SNMPv3. The length is 1 to 32 characters.	None
UDP Port	Fill in the UDP port number, ranging from 1 to 65535.	162

4.3.8 I/O¶

Path: Navigation tree >> Service >> I/O

Function Description: Configure the I/O mode and relay of the device.

Voltage range:

DI: 0~30V, 0~3V means low, 10~30V means high, and the maximum input voltage is 30V.
DO: Wet contact, low means 0V, high means 13V (pull-up, cannot be used as a power supply for other devices directly).

Only the ODU302-IO supports this feature.

Table 4-3-8 I/O Parameters

Parameters	Description	Default
I/O mode	Set the I/O mode, input or output	Output
I/O default output level	Set the I/O output level when the I/O mode is output, low or high	low
Dry/Wet contact	Set the I/O input type when the I/O mode is input, Dry or Wet contact	Dry
Input triggered report	Report when input triggers in certain situations	Disable
Trigger edge	Set the trigger edge of the relay	Falling edge

4.3.9 SMS¶

Path: Navigation tree >> Service >> SMS

Function Description: Configure the SMS function to manage the router in the form of SMS.

Table 4-3-9 SMS Parameters

Parameters	Description	Default
Enable	Click to enable the SMS function	Disable
Status Query	Users define the English query instruction to inquire about the current working status of the router.	N/A
Reboot	Users define the English query instruction to reboot the router.	N/A
SMS Access Control
Default Policy	Select the manner of access processing.	Accept
Phone Number	Fill in the accessible mobile number	N/A
Action	Accept or block	Accept
Description	Describe SMS control.

4.3.10 Traffic Manager¶

Path: Navigation tree >> Services >> Traffic Manager

Function Description: Monitor and manage the traffic usage of the router.

Table 4-3-10 Traffic Manager - Basic Configuration Parameters

Parameters	Description	Default
Enable	Click to enable the traffic manager function.	Disable
Start Day	The day to start counting data traffic every month	1
Monthly Threshold	Data traffic threshold every month	0MB
When Over Monthly Threshold	Operation when data traffic used within a month reaches the threshold: Only Reporting, Block Except Management (will not influence DM and management requirements), Shutdown Interface	Only Reporting
Last 24-Hours Threshold	Data traffic threshold in the last 24 hours	0KB
When Over 24-Hours Threshold	Operation when data traffic used within 24 hours reaches the threshold	Only Reporting
Advance	Custom statistics and operations for the last several hours	Disable

4.3.11 Alarm Settings¶

Path: Navigation tree >> Services >> Alarm Manager

Function Description: Configure alarm notification settings for system events.

When an abnormality occurs, the router will report an alarm according to the settings. Currently, the router supports sending alarms in the following situations: System Service Fault, Memory Low, WAN/LAN1 Link-Up/Down, LAN2 Link-Up/Down, Cellular Up/Down, Traffic Alarm, Traffic Disconnect Alarm, SIM/UIM Card Switch, Active Link Switch, SIM/UIM Card Fault, Signal Quality Fault.

In the Alarm Manager interface, the following operations can be performed:

Select alarm types in the "Alarm Input" area.
Set the alarm notification method of the console in the "Alarm Output" area.

4.3.12 User Experience Plan¶

Path: Navigation tree >> Services >> User Experience Plan

Function Description: Enable or disable the User Experience Plan to help improve product user experience and customer service quality.

Users can disable or enable the User Experience Plan in Services >> User Experience Plan.

4.4 Firewall¶

4.4.1 Basic Setup¶

Path: Navigation tree >> Firewall >> Basic Setup

Function Description: Set basic firewall rules.

Table 4-4-1 Firewall - Basic Setup Parameters

Parameters	Description	Default
Default Filter Policy	Select accept/block	Accept
Filter PING detection from Internet	Select to filter PING detection	Disable
Filter Multicast	Select to filter multicast function	Enable
Defend DoS Attack	Select to defend DoS attack	Enable
SIP ALG	Select to enable SIP ALG	Disable

4.4.2 Filtering¶

Path: Navigation tree >> Firewall >> Filtering

Function Description: Control the protocol, source/destination address, and source/destination port of network packets passing through the router to provide a secure intranet.

Table 4-4-2 Filtering Parameters

Parameters	Description	Default
Enable	Check to enable filtering.	Enable
Protocol	Select ALL/TCP/UDP/ICMP	ALL
Source address	Set the source address of access control	0.0.0.0/0
Source Port	Set the source port of access control	Not available
Destination Address	Set the destination address	N/A
Destination Port	Set the destination port of access control	Not available
Action	Select accept/block	Accept
Log	Click to enable log and the log about access control will be recorded in the system.	Disable
Description	Convenient for recording parameters of access control	N/A

4.4.3 Device Access Filtering¶

Path: Navigation tree >> Firewall >> Device Access Filtering

Function Description: Control the protocol, source/destination address, and source/destination port of access to the router.

Table 4-4-3 Device Access Filtering Parameters

Parameters	Description	Default
Enable	Check to enable device access filtering.	Enable
Protocol	Select ALL/TCP/UDP/ICMP	ALL
Source	Set the source address of network access	0.0.0.0/0
Source Port	Set the source port of network access	Not available
Destination	Set the destination address	N/A
Destination Port	Set the destination port of network access	Not available
Interface	Set the interface of network access	All WANs
Action	Select Accept/Block	Accept
Log	Click to enable log and the log about access control will be recorded in the system.	Disable
Description	Convenient for recording parameters of access control	N/A

4.4.4 Content Filtering¶

Path: Navigation tree >> Firewall >> Content Filtering

Function Description: Set firewall settings related to filtering; generally used to set forbidden URLs.

Table 4-4-4 Content Filtering Parameters

Parameters	Description	Default
Enable	Click to enable filtering	Enable
URL	Set the URL that needs to be filtered	N/A
Action	Select accept/block	Accept
Log	Click to write log and the log about filtering will be recorded in the system.	Disable
Description	Record the meanings of various parameters of filtering	N/A

4.4.5 Port Mapping¶

Path: Navigation tree >> Firewall >> Port Mapping

Function Description: Configure parameters of port mapping. At most 50 port mappings can be set.

Table 4-4-5 Firewall - Port Mapping Parameters

Parameters	Description	Default
Enable	Check to enable port mapping.	Enable
Protocol	Select TCP/UDP/ICMP	TCP
Source address	Set the source address of port mapping	0.0.0.0/0
Service Port	Set the service port number of port mapping	8080
Internal Address	Set the internal address of port mapping	N/A
Internal Port	Set the internal port of port mapping	8080
Log	Click to enable log and the log about port mapping will be recorded in the system.	Disable
External address (optional)	Set the external address/tunnel name of port mapping	N/A
Description	For recording the significance of each port mapping rule	N/A

4.4.6 Virtual IP Mapping¶

Path: Navigation tree >> Firewall >> Virtual IP Mapping

Function Description: Configure parameters of virtual IP address.

Table 4-4-6 Firewall - Virtual IP Mapping Parameters

Parameters	Description	Default
Virtual IP address of router	Set the virtual IP address of the router	N/A
Range of source address	Set the range of the external source IP addresses	N/A
Enable	Click to enable the virtual IP address	Enable
Virtual IP	Set the virtual IP address of virtual IP mapping	N/A
Real IP	Set the real IP address of virtual IP mapping	N/A
Log	Click to enable log and the log about virtual IP address will be recorded in the system.	Disable
Description	For recording the significance of each virtual IP address rule	N/A

4.4.7 DMZ¶

Path: Navigation tree >> Firewall >> DMZ

Function Description: Configure DMZ settings.

Table 4-4-7 Firewall - DMZ Parameters

Parameters	Description	Default
Enable DMZ	Check to enable the DMZ.	Disable
DMZ Host	Set the address of the DMZ Host	N/A
Range of Source Address	Enter the range of the source address	N/A
Interface	Select the interface as DMZ: CELLULAR/WAN/VPN Interface	N/A

4.4.8 MAC-IP Binding¶

Path: Navigation tree >> Firewall >> MAC-IP Binding

Function Description: Configure MAC-IP parameters. At most 20 MAC-IP Bindings can be set.

Table 4-4-8 Firewall - MAC-IP Binding Parameters

Parameters	Description	Default
MAC Address	Set the binding MAC address	00:00:00:00:00:00
IP Address	Set the binding IP address	192.168.2.2
Description	For recording the significance of each MAC-IP binding configuration	N/A

4.4.9 NAT¶

Path: Navigation tree >> Firewall >> NAT

Function Description: Configure parameters of NAT.

Table 4-4-9 NAT Parameters

Parameters	Description	Default
Enable	Enable NAT	Enable
Type	Set the conversion type	SNAT
Proto	Select the protocol	TCP
Source IP	Set the source IP of the NAT rule	0.0.0.0/0
Source Port	Set the source port of the NAT rule	N/A
Destination	Set the destination IP of the NAT rule	0.0.0.0/0
Destination Port	Set the destination port of the NAT rule	0.0.0.0/0
Interface	Set the interface of the NAT rule	N/A
Translated Address	Translate the IP address if it matches the rule	0.0.0.0
Translated Port	Translate the port if it matches the rule	N/A

4.5 QoS¶

4.5.1 IP Bandwidth Limit¶

Path: Navigation tree >> QoS >> Bandwidth Control

Function Description: Configure parameters of IP bandwidth limit.

Table 4-5-1 IP Bandwidth Limit Parameters

Parameters	Description	Default
Enable	Click to enable IP bandwidth limit	Disable
Download bandwidth	Set the total download bandwidth	1000kbit/s
Upload bandwidth	Set the total upload bandwidth	1000kbit/s
Control port of flow	Select CELLULAR/WAN	CELLULAR
Host Download Bandwidth
Enable	Click to enable	Enable
IP Address	Set the IP address	N/A
Guaranteed Rate (kbit/s)	Set the rate	1000kbit/s
Priority	Select the priority	Medium
Description	Describe the IP bandwidth limit	N/A

4.6 VPN¶

4.6.1 IPSec Settings¶

Path: Navigation tree >> VPN >> IPSec Settings

Function Description: Select the log level of IPSec.

Table 4-6-1 IPSec Settings Parameters

Parameters	Description	Default
Log level	Click to select the log level. Normal: Only key logs will be printed into the system log. Debug: More logs in debug level will be printed. Data: All logs of IPSec will be printed.	Normal

4.6.2 IPSec Tunnels¶

Path: Navigation tree >> VPN >> IPSec Tunnels

Function Description: Configure IPSec tunnels.

Table 4-6-2 IPSec Tunnels Parameters

Parameters	Description	Default
Show Advanced Options	Click to enable advanced options	Disable (open advanced options after enabling)
Basic Parameters
Tunnel Name	User-defined tunnel name	IPSec_tunnel_1
Destination Address	Set the destination IP address or domain name	0.0.0.0
IKE Version	Set the IKE version: IKEv1/IKEv2	IKEv1
Startup Modes	Select Auto Activated/Triggered by Data/Passive/Manually Activated	Auto Activated
Restart WAN when failed	Click to enable	Enable
Negotiation Mode (IKEv1)	Select main mode or aggressive mode	Main Mode
IPSec Protocol (Advanced Option)	Select ESP/AH	ESP
IPSec Mode (Advanced Option)	Select tunnel mode/transmission mode	Tunnel Mode
VPN over IPSec (Advanced Option)	Select L2TP over IPSec/GRE over IPSec/None	None
Tunnel Type	Select Host-Host/Host-Subnet/Subnet-Host/Subnet-Subnet	Subnet-Subnet
Local subnet address	Set the local subnet IP address	192.168.2.1
Local Subnet Mask	Set the local subnet mask	255.255.255.0
Peer Subnet Address	Set the peer subnet IP address	0.0.0.0
Peer Subnet Mask	Set the remote netmask	255.255.255.0
Phase I Parameters
IKE Strategy	Multiple strategies available	3DES-MD5-DH2
IKE Life Cycle	Set the IKE life cycle	86400 s
Local ID Type	Select IP address/User FQDN/FQDN. Fill in the ID according to the ID type (USERFQDN is standard email format).	IP Address
Peer ID Type	Select IP address/User FQDN/FQDN	IP Address
Authentication method	Select shared key/digital certificate	Shared key
Key	Set the IPSec VPN key	N/A
XAUTH Parameters (Advanced Option)
XAUTH Mode	Click to enable XAUTH mode	Disable
XAUTH username	User-defined XAUTH username	N/A
XAUTH password	User-defined XAUTH password	N/A
MODECFG	Click to enable MODECFG	Disable
Phase II Parameters
IPSec Strategy	Multiple strategies available	3DES-MD5-96
IPSec Life Cycle	Set the IPSec life cycle	3600 s
Perfect Forward Secrecy (PFS) (Advanced Option)	Select disable/Group 1/Group 2/Group 5	Disable (this needs to match the server)
Link Detection Parameters (Advanced Option)
DPD Interval	Set the time interval	60 s
DPD Timeout	Set the timeout for dropped packets	180 s
ICMP Detection Server	Set the ICMP detection server	N/A
ICMP Detection Local IP	Set the ICMP detection local IP	N/A
ICMP Detection Interval	Set the ICMP Detection Interval	60 s
ICMP Detection Timeout	Set the ICMP detection timeout	5 s
ICMP Detection Retries	Set the ICMP detection maximum retries	10

Note: The security level of the three encryption algorithms ranks successively: AES, 3DES, DES. The implementation mechanism of the encryption algorithm with stricter security is complex and has a slower arithmetic speed. The DES algorithm can satisfy ordinary safety requirements.

4.6.3 GRE Tunnels¶

Path: Navigation tree >> VPN >> GRE Tunnels

Function Description: Configure GRE tunnels.

Table 4-6-3 GRE Tunnels Parameters

Parameters	Description	Default
Enable	Click to enable GRE	Enable
Name	User-defined name of the GRE tunnel	tun0
Local visual IP	Set the local virtual IP	0.0.0.0
Destination Address	Set the remote IP address	0.0.0.0
Peer visual IP	Set the peer virtual IP	0.0.0.0
Peer Subnet Address	Set the peer subnet IP address	0.0.0.0
Peer Subnet Mask	Set the remote netmask	255.255.255.0
Key	Configure the key of the GRE tunnel	N/A
NAT	Click to enable NAT	Disable
Description	For recording the significance of each GRE tunnel configuration	N/A

4.6.4 L2TP Client¶

Path: Navigation tree >> VPN >> L2TP Client

Function Description: Configure parameters of the L2TP client.

Table 4-6-4 L2TP Client Parameters

Parameters	Description	Default
Enable	Click to enable the L2TP client	Disable
Tunnel Name	User-defined tunnel name of the L2TP client	L2TP_tunnel_1
L2TP Server	Set the L2TP Server address	N/A
Username	Set the server's username	N/A
Password	Set the server's password	N/A
Server Name	Set the server name	l2tpserver
Startup Modes	Select Auto Activated/Triggered by Data/Passive/Manually Activated/L2TPOverIPSec	Auto Activated
Authentication Method	Select CHAP/PAP	CHAP
Enable Challenge secrets	Click to enable challenge secrets	Disable
Challenge secret (after enabling)	Set the challenge secret	N/A
Local IP Address	Set the local IP address	N/A
Remote IP Address	Set the remote IP address	N/A
Remote Subnet	Set the remote subnet address	N/A
Remote Netmask	Set the remote subnet mask	255.255.255.0
Link Detection Interval	Set the link detection interval	60 s
Max. Retries for Link Detection	Set the maximum number of retries	5
Enable NAT	Click to enable NAT	Disable
MTU	Set the maximum transmission unit	1500
MRU	Set the maximum receiving unit	1500
Enable Debug	Enable debug mode.	Disable
Expert Option (not recommended)	Set the expert option; not recommended	N/A

4.6.5 PPTP Client¶

Path: Navigation tree >> VPN >> PPTP Client

Function Description: Configure parameters of the PPTP client.

Table 4-6-5 PPTP Client Parameters

Parameters	Description	Default
Enable	Click to enable the PPTP client	Disable
Tunnel Name	User-defined tunnel name	PPTP_tunnel_1
PPTP Server	Set the PPTP Server address	N/A
Username	Set the username of the PPTP server	N/A
Password	Set the password of the PPTP server	N/A
Startup Modes	Select Auto Activated/Triggered by Data/Passive/Manually Activated	Auto Activated
Authentication method	Select Auto/CHAP/PAP/MS-CHAPv1/MS-CHAPv2	Auto
Local IP Address	Set the local IP address	N/A
Remote IP Address	Set the remote IP address	N/A
Remote Subnet	Set the remote subnet address	N/A
Remote Netmask	Set the remote subnet mask	255.255.255.0
Link Detection Interval	Set the link detection interval	60 s
Max. Retries for Link Detection	Set the maximum number of retries	5
Enable NAT	Click to enable NAT	Disable
Enable MPPE	Click to enable MPPE	Disable
Enable MPPC	Click to enable MPPC	Disable
MTU	Set the maximum transmission unit	1500
MRU	Set the maximum receiving unit	1500
Enable Debug	Enable debug mode.	Disable
Set expert option (not recommended)	Set the expert option; not recommended	N/A

4.6.6 OpenVPN¶

Path: Navigation tree >> VPN >> OpenVPN

Function Description: Configure OpenVPN parameters.

Table 4-6-6 OpenVPN Parameters

Parameters	Description	Default
Tunnel Name	OpenVPN tunnel name; cannot be changed by the system	OpenVPN_T_1
Enable	Click to enable	Enable
Mode	Client/Server	Client
Protocol	UDP/ICMP	UDP
Port	Set the port	1194
OPENVPN Server	Set the OPENVPN Server address	N/A
Authentication method	N/A, pre-shared key, username/password, digital certificate (multiple clients), digital certificate, username+digital certificate	N/A
Local IP Address	Set the local IP address	N/A
Remote IP Address	Set the remote IP address	N/A
Remote Subnet	Set the remote subnet address	N/A
Remote Netmask	Set the remote subnet mask	255.255.255.0
Link Detection Interval	Set the link detection interval	60 s
Link Detection Timeout	Set the link detection timeout	300 s
Enable NAT	Click to enable NAT	Enable
Enable LZO	Click to enable LZO compression	Enable
Encryption Algorithms	Blowfish(128)/DES(128)/3DES(192)/AES(128)/AES(192)/AES(256)	Blowfish(128)
MTU	Set the maximum transmission unit	1500
Max. Fragment Size	Set the maximum fragment size	N/A
Debug Level	Error/warning/information/debug	Warning
Interface Type	TUN/TAP	TUN
Expert Option (not recommended)	Set the expert option; not recommended	N/A

4.6.7 OpenVPN Advanced¶

Path: Navigation tree >> VPN >> OpenVPN Advanced

Function Description: Configure parameters of OpenVPN Advanced.

Table 4-6-7 OpenVPN Advanced Parameters

Parameters	Description	Default
Enable Client-to-Client (Server Mode Only)	Click to enable	Disable
Client Management
Enable	Click to enable client management	Enable
Tunnel Name	Set the tunnel name	OpenVPN_T_1
Username/CommonName	Set the username/common name	N/A
Password	Set the client password	N/A
Client IP (4th byte must be 4n+1)	Set the client IP address	N/A
Local Static Route	Set the local static route	N/A
Remote Static Route	Set the remote static route	N/A

4.6.8 WireGuard Tunnels¶

Path: Navigation tree >> VPN >> WireGuard Tunnels

Function Description: Configure WireGuard VPN.

Table 4-6-8 WireGuard Configuration Parameters

Parameters	Description	Default
Tunnel Name	Set the name of the WireGuard tunnel	WireGuard_tun_1
Enable	Enable/Disable the tunnel	Enable
Address	Local virtual IP address and mask in CIDR format, for example 192.168.2.1/24	N/A
Shared Connection (NAT)	Enable — Local devices connected to the router can access the Internet via this tunnel. Disable — Local devices connected to the router cannot access the Internet via this tunnel.	Enable
Listening Port	VPN port; the system will listen to the default port (51820) if this parameter is blank. Different tunnels need to use different listening ports.	51820
Private Key	Private key generated by WireGuard	N/A
MTU	MTU of the VPN packet	1500
Peer Parameters
Name	Name of the VPN peer side	N/A
End Point	IP address and port of the remote side, for example 1.2.3.4:51820	N/A
Allowed IPs	Limit the local address that can access via this tunnel	0.0.0.0/0 (all)
Public Key	Generated by WireGuard; corresponds to the local private key	N/A
Pre-shared Key (Optional)	Generated by WireGuard; can increase the security of the tunnel	N/A
Persistent Keepalive	Keep-alive interval when NAT is enabled; 0 means disabled	25
WireGuard Key Generator
Click the Generate button to create a private key, public key, or pre-shared key via WireGuard. It also supports creating a public key after entering a private key. The private key is used in local tunnel parameters; the public key is used in the peer public key.

4.6.9 ZeroTier VPN¶

Path: Navigation tree >> VPN >> ZeroTier VPN

Function Description: Configure parameters of ZeroTier VPN.

Table 4-6-9 ZeroTier VPN Parameters

Parameters	Description	Default
Enable	Click to enable/disable ZeroTier VPN	Disable
Tunnel Name	Set the local VPN tunnel name to identify the tunnel	N/A
Network Type	Select the network type: planet or moon	planet
Network ID	Set the network ID (16 characters) to connect to the VPN server	N/A

4.6.10 Certificate Management¶

Path: Navigation tree >> VPN >> Certificate Management

Function Description: Configure parameters of certificate management.

Table 4-6-10 Certificate Management Parameters

Parameters	Description	Default
Enable SCEP (Simple Certificate Enrollment Protocol)	Click to enable	Disable
Protect Key	Set the protect key	N/A
Protect Key Confirm	Confirm the protect key	N/A
Enable SCEP (Simple Certificate Enrollment Protocol)
Force to Re-enroll	Click to enable force to re-enroll	Disable
Request Status	The system is "ready to refile an enrollment"; cannot be changed	Ready to refile an enrollment
Server URL	Set the server URL	N/A
Common Name	Set the common name	N/A
FQDN	Set the FQDN	N/A
Unit 1	Set unit 1	N/A
Unit 2	Set unit 2	N/A
Domain	Set the domain	N/A
Serial Number	Set the serial number	N/A
Challenge	Set the challenge	N/A
Challenge Confirm	Challenge confirm	N/A
Protect Key	Set the protect key	N/A
Protect Key Confirm	Confirm the protect key	N/A
Unstructured address	Set the unstructured address	N/A
RSA Key Length	Set the RSA key length	1024
Poll Interval	Set the poll interval	60 s
Poll Timeout	Set the poll timeout	3600 s
Import/Export Certificate
Import CA Certificate	Manually import the local CA to the router	N/A
Export CA Certificate	Manually export the CA to the local computer	N/A
Import CRL	Manually import the CRL to the router	N/A
Export CRL	Manually export the CRL to the local computer	N/A
Import Public Key Certificate	Manually import the Public Key Certificate to the router	N/A
Export Public Key Certificate	Manually export the Public Key Certificate to the local computer	N/A
Import Private Key Certificate	Manually import the Private Key Certificate to the router	N/A
Export Private Key Certificate	Manually export the Private Key Certificate to the local computer	N/A
Import PKCS12	Manually import PKCS12 to the router	N/A
Export PKCS12	Manually export PKCS12 to the local computer	N/A

Note: When using certificates, please ensure that the time of the router is synchronized with the real time.

4.7 Tools¶

4.7.1 PING¶

Path: Navigation tree >> Tools >> Ping Detection

Function Description: PING an outside network.

Table 4-7-1 PING Detection Parameters

Parameters	Description	Default
Host	Address of the destination host for PING detection is required.	N/A
PING Count	Set the PING count	4
Packet Size	Set the size of the PING detection	32 bytes
Expert Option	Advanced parameters of PING are available.	N/A

4.7.2 Traceroute¶

Path: Navigation tree >> Tools >> Traceroute

Function Description: Applied for network routing failure detection.

Table 4-7-2 Traceroute Parameters

Parameters	Description	Default
Host	Address of the destination host to be detected is required.	N/A
Max. Hops	Set the maximum hops for traceroute	20
Timeout	Set the timeout of traceroute	3 s
Protocol	ICMP/UDP	UDP
Expert Option	Advanced parameters for traceroute are available.	N/A

4.7.3 Link Speed Test¶

Path: Navigation tree >> Tools >> Link Speed Test

Function Description: Test the upload and download speed of the network link.

Select a file locally and click upload/download, then check the network speed in the log.

4.7.4 TCPDUMP¶

Path: Navigation tree >> Tools >> TCPDUMP

Function Description: Capture packets transferring through a specific interface.

Table 4-7-4 TCPDUMP Parameters

Parameters	Description	Default
Interface	Select the interface to capture packets	ANY
Capture number	Stop TCP dump after capturing this number of packets	10
Expert Option	Advanced parameters for TCPDUMP	N/A

4.8 Application¶

4.8.1 Smart ATM¶

Path: Navigation tree >> Application >> Smart ATM

Function Description: Configure parameters for docking the intelligent ATM cloud platform.

Table 4-8-1 Smart ATM Parameters

Parameters	Description	Default
Smart ATM	Enable Smart ATM	disable
Server	Configure parameters of the server; click Edit to show more information	iot.inhand.com.cn
Enable SSL proxy	Enable the proxy of SSL	disable
Multi Server	Click Add to set multiple servers	N/A
Protocol	Configure the listener protocol type: Standard 1/3, Visa Standard 3	Standard 1/3
TLS Encryption	Enable TLS encryption	Enable
Get TID	Matching TID	Disable
Incoming TCP Port	Set the TCP Port of the inbound direction	N/A
Outgoing IP/Host	Set the IP/Host name of the outbound direction	N/A
Outgoing TCP Port	Set the TCP Port of the outbound direction	N/A
Outgoing Backup TCP Port	Set the backup TCP Port of the outbound direction	N/A
Outgoing TCP Source Port	Set the TCP Source port of the outbound direction	0 (All)

4.8.2 Status Report¶

Path: Navigation tree >> Application >> Status Report

Function Description: Monitor device status and report to the cloud platform.

Table 4-8-2 Status Report Parameters

Parameters	Description	Default
Status Report	Enable the status upload service	Disable
Server	Set the server name	N/A
Server Port	Set the server port	N/A
Username	Set the username	test
User Password	Set the user password	test
Status Info Upload Interval	Time of the upload interval	60 seconds
Protocol	Monitor protocol type	TCP
Log Enable	Enable log	Close
HTTP API	Enable HTTP API	OPEN
Show router report args setting	Setting status upload message	Disable
Router hostname	Show router name	Disable
Router serial number	Show router serial number	Enable
Cellular IP address	Show cellular IP address	Enable
Signal strength	Show signal strength	Enable
Terminal ID	Show terminal ID	Disable
MNC, MCC, Cell ID, LAC, Uptime	Show MNC, MCC, Cell ID, LAC, Uptime	Disable
Current firmware version	Show current firmware version	Disable
Timestamp	Show timestamp	Disable
Advice config	Set advanced config	N/A

4.8.3 Smart-EMS¶

Path: Navigation tree >> Application >> Smart-EMS

Function Description: Configure parameters for docking the intelligent Smart-EMS cloud platform.

Table 4-8-3 Smart-EMS Parameters

Parameters	Description	Default
Server URL	Fill in the server address	N/A
Username	Fill in the username	N/A
Password	Fill in the user password	N/A
Contact interval	Set the time of the contacting interval	N/A
Send running config	Enable sending the running configuration	Disable
Write startup	Enable write startup	Disable

4.9 Status¶

4.9.1 System¶

Path: Navigation tree >> Status >> System

Function Description: Display system statistics.

This page displays system statistics, including name, model, serial number, description, current version, current Bootloader version, router time, PC time, uptime, CPU load, and memory consumption. Technicians may click the <Sync Time> button to synchronize the router with the system time of the host.

4.9.2 Modem¶

Path: Navigation tree >> Status >> Modem

Function Description: Display the basic information of dial-up.

This page displays the basic information of dial-up, including status, signal level, register status, IMEI (ESN) code, IMSI code, LAC, and cell ID.

4.9.3 Traffic Statistics¶

Path: Navigation tree >> Status >> Traffic Statistics

Function Description: Query traffic statistics.

This page displays the traffic statistics on the dialing interface, including the statistics on traffic received in the latest month, traffic transmitted in the latest month, traffic received on the last day, traffic transmitted on the last day, traffic received in the last hour, and traffic transmitted in the last hour.

4.9.4 Alarm¶

Path: Navigation tree >> Status >> Alarm

Function Description: View and manage system alarms.

This page displays all alarms generated in the system since power-on. Users can clear or confirm the alarms.

The alarms have the following states:

Raise: Indicates that the alarm has been generated but not been confirmed.
Confirm: Indicates that the alarm cannot be solved currently.
All: Indicates all generated alarms.

The alarms are classified into the following levels:

EMERG: The device undergoes a serious error that causes a system reboot.
CRIT: The device undergoes an unrecoverable error.
WARN: The device undergoes an error that affects system functions.
NOTICE: The device undergoes an error that affects system performance.
INFO: A normal event occurs.

4.9.5 WLAN Status¶

Path: Navigation tree >> Status >> WLAN

Function Description: Query the WLAN connection status.

This page displays the WLAN connection information, including channel, SSID, BSSID, security, signal (%), mode, and status.

4.9.6 Network Connections¶

Path: Navigation tree >> Status >> Network Connections

Function Description: View the connection status of dial-up and LAN.

WAN: Includes MAC address, connection type, IP address, netmask, gateway, DNS, MTU, status, etc.
Dial-up: Includes connection type, IP address, netmask, gateway, DNS, MTU, status, and connection time.
LAN: Includes connection type, MAC address, IP address, netmask, gateway, MTU, and DNS.

4.9.7 Device Manager¶

Path: Navigation tree >> Status >> Device Manager

Function Description: Check the connection status between the router and the Device Manager.

4.9.8 Route Table¶

Path: Navigation tree >> Status >> Route Table

Function Description: View the active route table.

This page displays the active route table, including destination, netmask, gateway, metric, and interface.

4.9.9 Device List¶

Path: Navigation tree >> Status >> Device List

Function Description: Inquire about the device list.

This page displays the device list, including interface, MAC address, IP address, host, and lease (click the MAC address to link to IEEE to inquire about the validity of the address).

4.9.10 Log¶

Path: Navigation tree >> Status >> Log

Function Description: View and download system logs.

This page displays the logs, including the option to select the number of log lines to view (20/50/....../all), log level (information, debug, and warning), time, module, and content. Users can clear the log, download the log file, and download the system diagnosis record (the refresh rate of this page is 5/10/…/1 min by default).

4.9.11 Third Party Software Notices¶

Path: Navigation tree >> Status >> Third Party Software Notices

Function Description: Check the third-party software used in the router system.

Appendix A Troubleshooting¶

A.1 Network Connection Issues¶

Phenomenon	Possible Cause	Troubleshooting Steps	Reference Chapter
Cannot access the Internet via cellular	SIM card not inserted or poor contact	1. Check whether the SIM card is correctly inserted. 2. Reinsert the SIM card.	SIM Card Installation
Cannot access the Internet via cellular	APN parameters configured incorrectly	1. Verify whether the APN parameters are correct. 2. Contact the operator to obtain the correct APN.	Cellular Internet Access
Cannot access the Internet via cellular	Weak or no signal	1. Check whether the antenna is connected. 2. Adjust the device position.	Antenna Installation
Cannot access the Internet via wired connection	WAN port not switched to WAN mode	1. Check Network >> WAN/LAN Switch. 2. Set the interface to WAN mode.	Wired Internet Access
Cannot access the Internet via wired connection	Upstream network failure	1. Check whether the upstream router is working. 2. Verify the WAN IP configuration.	WAN/LAN Switch
Wi-Fi not found	Wi-Fi antenna not connected	1. Check whether the Wi-Fi antenna is connected to the WLAN interface. 2. Check whether the Wi-Fi function is enabled.	Wi-Fi Internet Access

A.2 Web Interface Access Issues¶

Phenomenon	Possible Cause	Troubleshooting Steps	Reference Chapter
Cannot open the Web interface	IP address incorrect	1. Confirm that the PC and the device are in the same subnet. 2. Check the device default IP (192.168.2.1).	Logging into the Router
Cannot open the Web interface	Browser compatibility issue	1. Change the browser (Chrome is recommended). 2. Clear the browser cache.	Logging into the Router
Forgot the login password	Password lost	1. Restore the device to factory settings via the RESET button. 2. Log in with the default password.	Restoring Factory Settings

A.3 VPN Connection Issues¶

Phenomenon	Possible Cause	Troubleshooting Steps	Reference Chapter
VPN tunnel cannot be established	Incorrect peer address	1. Check whether the destination address is correct. 2. Verify whether the peer device is reachable.	IPSec Tunnels
VPN tunnel cannot be established	Inconsistent pre-shared key	1. Verify that the keys on both ends are consistent. 2. Reconfigure the key.	IPSec Tunnels
VPN connected but data cannot pass through	Firewall blocking	1. Check the firewall rules. 2. Add allow rules for VPN traffic.	Firewall

A.4 Device Hardware Issues¶

Phenomenon	Possible Cause	Troubleshooting Steps	Reference Chapter
Power LED not illuminated	Fuse burnt out	1. Check whether the protective tube is burnt out. 2. Check the power supply voltage range and polarity.	Power Connection
Frequent auto-restart	Unstable power supply	1. Check whether the power supply voltage is within the rated range. 2. Check whether the module is working normally.	Installation Environment
Device overheating	Poor heat dissipation	1. Ensure the device is installed in a well-ventilated environment. 2. Avoid direct sunlight and heat sources.	Installation Environment

Appendix B Safety Precautions¶

B.1 General Safety¶

The ODU302 router must be used in compliance with any and all applicable national and international laws and with any special restrictions regulating the utilization of the communication module in prescribed applications and environments.

B.2 RF Exposure¶

This device meets the official requirements for exposure to radio waves. This device is designed and manufactured not to exceed the emission limits for exposure to radio frequency (RF) energy set by authorized agencies. The device must be used with a minimum separation of 20 cm from a person's body to ensure compliance with RF exposure guidelines.

B.3 Operating Conditions¶

Operating temperature: -30℃ to +70℃.
Humidity should be in the range of 5% to 95% (non-condensing).
Only use the device in dry environments.
Keep out of direct sunlight.
Keep away from heat sources, corrosive substances, salts, and flammable gases.

Attention: Operation outside the permissible range can considerably shorten the service life of the device.

B.4 Faulty and Damaged Products¶

Do not attempt to disassemble the device or its accessories.
Only qualified personnel must service or repair the device or its accessories.
If the device or its accessories have been submerged in water, punctured, or subjected to a severe fall, do not use them until they have been checked at an authorized service center.

B.5 Electrical Safety¶

Only use approved accessories.
Do not connect with incompatible products or accessories.
Ensure that the voltage and the rated current of the power source match the device's requirements.
During a thunderstorm, no operations should be carried out on the device and cables.

B.6 Product Handling¶

Do not expose the device or its accessories to open flames, lit tobacco products, liquid, moisture, or high humidity.
Do not drop, throw, or try to bend the device or its accessories.
Do not use harsh chemicals, cleaning solvents, or aerosols to clean the device or its accessories.
Do not paint the device or its accessories.
Do not attempt to disassemble the device or its accessories: it does not contain any user-serviceable parts.
Do not use the device in an enclosed environment where heat dissipation is poor.
Do not operate the device where ventilation is restricted.
Do not use or install this product near water to avoid fire or shock hazards.
Avoid exposing the equipment to rain or damp areas.
Arrange power and Ethernet cables so that they are not likely to be stepped on or have items placed on them.

Appendix C Command Line Reference¶

C.1 Help Command¶

Command: help [<cmd>]

Function: Get help from a command.

View: All views

Parameters:

<cmd> — Command name

Example:

Enter: help

Get the list of all currently available commands.

Enter: help show

Display all the parameters of the show command and usage instructions.

C.2 View Switchover Commands¶

Enable¶

Command: enable [15 [<password>]]

Function: Switch over to the privileged user level.

View: Ordinary user view.

Parameters:

15 — User right limit level; only supports right limit 15 (super users) at present.
<password> — Password corresponding to the privileged user limit level.

Example:

Enter in the ordinary user view: enable 123456

Switch over to super users with the password 123456.

Disable¶

Command: disable

Function: Exit the privileged user level.

View: Super user view, configure view

Example:

Enter in the super user view: disable

Return to the ordinary user view.

End and !¶

Command: end or !

Function: Exit the current view and return to the last view.

View: Configure view.

Example:

Enter in the configured view: end

Return to the super user view.

Exit¶

Command: exit

Function: Exit the current view and return to the last view (exit the console if it is the ordinary user view).

Function: Display the system time of the router.

View: All views

Example:

Enter: show clock

Example output: Sat Jan 1 00:01:28 UTC 2000

Show Modem¶

Command: show modem

Function: Display the modem state of the router.

View: All views

Example:

Enter: show modem

Display the following information:

Modem type
State
Manufacturer
Product name
Signal level
Register state
IMSI number
Network Type

Show Log¶

Command: show log [lines <n>]

Function: Display the log of the router system and display the latest 100 logs by default.

View: All views

Parameters:

lines <n> — Limits the number of logs displayed. If n is a positive integer, it indicates the latest n logs. If n is a negative integer, it indicates the earliest n logs. If n is 0, it indicates all logs.

Example:

Enter: show log

Display the latest 100 log records.

Show Users¶

Command: show users

Function: Display the user list of the router.

View: All views

Example:

Enter: show users

The displayed user list of the system is as follows:

User:
-------------------------------------------------
* adm
------

Wherein, the user marked with * is the super user.

Show Startup-Config¶

Command: show startup-config

Function: Display the starting configuration of the router.

View: Super user view and configuration view

Example:

Enter: show startup-config

Display the starting configuration of the system.

Show Running-Config¶

Command: show running-config

Ping¶

Command: ping <hostname> [count <n>] [size <n>] [source <ip>]

Function: Apply ICMP testing for the appointed host.

View: All views

Parameters:

<hostname> — The address or domain name of the host to be tested.
count <n> — Testing times.
size <n> — The size of the test data packet (bytes).
source <ip> — The IP address of the appointed testing source.

Example:

Enter: ping www.g.cn

Test www.g.cn and display the testing results.

Telnet¶

Command: telnet <hostname> [<port>] [source <ip>]

Function: Telnet logs in to the appointed host.

View: All views

Parameters:

<hostname> — The address or domain name of the host to be logged in to.
<port> — Telnet port.
source <ip> — Appoints the IP address for Telnet login.

Example:

Enter: telnet 192.168.2.2

Telnet logs in to 192.168.2.2.

Traceroute¶

Command: traceroute <hostname> [maxhops <n>] [timeout <n>]

Function: Test the acting routing of the appointed host.

View: All views

Parameters:

<hostname> — The address or domain name of the host to be tested.
maxhops <n> — The maximum routing hops for the test.
timeout <n> — The timeout of each hop testing (seconds).

Example:

Enter: traceroute www.g.cn

Apply the routing test of www.g.cn and display the testing results.

C.6 Configuration Commands¶

Configure¶

Command: configure terminal

Function: Switch over to the configuration view.

View: Super user view

Example:

Enter in the super user view: configure terminal

Switch over to the configuration view.

Hostname¶

Command: hostname [<hostname>], default hostname

Function: Display or set the host name of the router.

View: Configure view.

Parameters:

<hostname> — New host name.

Example:

Enter in the configured view: hostname

Display the host name of the router.

Enter in the configured view: hostname MyRouter

Set the host name of the router to MyRouter.

Enter in the configured view: default hostname

Recover the host name of the router to the factory setting.

Clock Timezone¶

Command: clock timezone <timezone><n>, default clock timezone

Function: Set the time zone information of the router.

View: Configure view.

Parameters:

<timezone> — Time zone name, 3 capitalized English letters.
<n> — Time zone deviation value, -12 to +12.

Example:

Enter in the configured view: clock timezone CST -8

The time zone of the router is east eighth zone and the name is CST (China Standard Time).

Enter in the configured view: default clock timezone

Recover the time zone of the router to the factory setting.

NTP Server¶

Command:

ntp server <hostname>
no ntp server
default ntp server

Function: Set the client end of the Internet time server.

View: Configure view.

Parameters:

<hostname> — Address or domain name of the time server host.

Example:

Enter in the configured view: ntp server pool.ntp.org

Set the address of the Internet time server to pool.ntp.org.

Enter in the configured view: no ntp server

Disable the router from getting system time via the network.

Enter in the configured view: default ntp server

Recover the network time server of the router to the factory setting.

Config Export¶

Command: config export

Function: Export the configuration.

View: Configure view.

Example:

Enter in the configured view: config export

The current configuration is exported.

Config Import¶

Command: config import

Function: Import the configuration.

View: Configure view.

Example:

Enter in the configured view: config import

The configuration is imported.

C.7 System Management Commands¶

Reboot¶

Command: reboot

Function: The system restarts.

View: Super user view and configuration view

Example:

Enter in the super user view: reboot

The system restarts.

Enable Username¶

Command: enable password [<name>]

Function: Modify the username of the super user.

View: Configure view.

Parameters:

<name> — New super user username.

Example:

Enter in the configured view: enable username admin

The username of the super user is changed to admin.

Enable Password¶

Command: enable password [<password>]

Function: Modify the password of the super user.

View: Configure view.

Parameters:

<password> — New super user password.

Example:

Enter in the configured view: enable password

Enter the password according to the hint.

Username¶

Command: username <name> [password [<password>]], no username <name>, default username

Function: Set the username and password.

View: Configure view.

Example:

Enter in the configured view: username abc password 123Add an ordinary user; the name is abc and the password is 123.
Enter in the configured view: no username abcDelete the ordinary user with the name abc.
Enter in the configured view: default usernameDelete all ordinary users.

Appendix D Frequently Asked Questions¶

Question 1: What is the difference between the ODU302 and a regular home router?¶

The ODU302 is an outdoor router, with an IP65 and operating temperature range of -30℃ to +70℃.
It supports multiple Internet access methods including 4G LTE, wired WAN, and Wi-Fi STA mode.
It supports industrial VPN protocols (IPSec, GRE, L2TP, PPTP, OpenVPN, WireGuard) for secure remote access.
It supports remote cloud management via the InHand Device Manager platform.

Question 2: The 4G/3G network cannot connect. How to troubleshoot?¶

Physical environment: Check whether the SIM card is inserted into the correct slot and whether the cellular antennas are fully installed.
APN settings: Ensure that the APN configuration information is consistent with what the operator provided.
Check device connectivity: Log in to the device local interface and use the built-in ICMP tool to ping 8.8.8.8 to test connectivity. If it is reachable, check the connectivity between the terminal device (such as a PC or mobile phone) and the router.
Check SIM card status: Remove the SIM card and install it in a mobile phone to check whether it can access the Internet normally.
Restart: Try powering off the router, waiting a few seconds, and then reconnecting the power to retry the network connection.
Restore factory settings: Restore the router to factory settings and then retry.

Question 3: How to restore the InRouter to factory default settings?¶

To restore the device to default settings using the reset button, follow these steps:

When the router power on, press and hold the reset button for 10 seconds, the system LED will change from solid blue to blinking blue. The unit has been restored to default settings and will start up normally later.

Alternatively, log in to the Web interface, go to System >> Configuration Management, and click Restore Factory Settings.

Question 4: After modifying the IP address, the settings are forgotten and the InRouter cannot be configured. What should I do?¶

Method 1: Connect the InRouter with a serial cable and configure it through the console port.
Method 2: Within 5 seconds after the InRouter is powered on, press and hold the reset button for 10 seconds, the system LED will change from solid blue to blinking blue. The unit has been restored to default settings and will start up normally later.

Question 5: The InRouter is powered on, but the Power LED is not illuminated. What should I check?¶

Check if the protective tube is burnt out.
Check the power supply voltage range and whether the positive and negative electrodes are correctly connected.
Ensure the power supply is within the rated range of 9~36V DC.

Question 6: The InRouter is powered on, but the Network LED is not illuminated when connected to the PC. What should I check?¶

When the PC and the InRouter are connected with a network cable, check whether a standard straight-through or crossover cable is used correctly.
Check if the network cable is in good condition.
Set the network card of the PC to 10/100M and full duplex.

Question 7: Why does upgrading the firmware of the InRouter always fail?¶

When upgrading locally, check if the local PC and the InRouter are in the same network segment.
When upgrading remotely, first ensure that the InRouter can access the Internet.
Ensure the firmware file is correct for the device model.

Question 8: After the InRouter establishes a VPN with the VPN server, the PC under the InRouter cannot connect to the server via ping. What should I check?¶

Please ensure that "Shared Connection" on Network >> WAN or Network >> Dial-up is enabled in the configuration of the InRouter.

Question 9: The InRouter frequently auto-restarts. Why does this happen?¶

Check the following:

Whether the module works normally.
Whether the InRouter has a SIM card inserted.
Whether the SIM card is enabled with data service and whether the service is suspended due to overdue charges.
Whether the dial-up parameters, e.g., APN, dial-up number, username, and password, are correctly configured.
Whether the signal is normal.
Whether the power supply voltage is normal.

Question 10: The InRouter dial-up always fails. What should I do?¶

Please restore the InRouter to factory default settings and configure the parameters again. If the issue persists, check the SIM card status, signal strength, and APN parameters.

End of Document
