EC Series API Documentation V1.0

API usage instructions

  • IEOS provides a set of HTTP APIs for network management and system management. Users can use tools such as curl and Postman or use code to build and send HTTP requests to manage devices.
  • The API uses the HTTPS protocol. Because a self-signed certificate is used, the client does not need to verify the certificate. The method of not verifying the certificate is as follows:
  • curl Command plus -kparameters

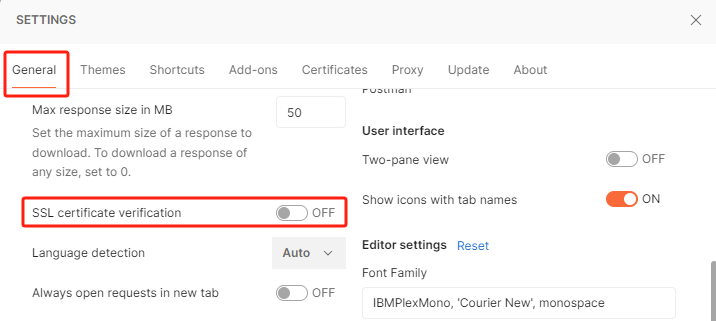

  • Postman needs to close SSL certificate verification
  • 1742178463272-bac06fda-8921-4a71-ae8f-8f1f0bd8dab5.png
  • HTTP API Port fixed 9100, the URL needs to be prefixed when used: https://<IP>:9100
  • under Linux system, you can use curl Command to call API, for more curl Command usage: https://curl.se/docs/
  • under Windows system, you can use Postman software to call API,Postman uses the document: https://learning.postman.com/docs/introduction/overview/

obtain authentication

  • before using all APIs, you need to log on to the device by using the user name and password to obtain the authentication token.
  • URL: POST /api/v1/login
  • request parameter: Json string
  • when calling the logon API outside the device, you need to perform RSA encryption on the user name and password, and then use base64 encoding after encryption.
  • RSA public key:
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
-----BEGIN PUBLIC KEY-----
MIICIjANBgkqhkiG9w0BAQEFAAOCAg8AMIICCgKCAgEAqHZd9ULLjVoU2BDkxH/7
HmeVUlEkZrHWPpWHPlBT9prXUk1iNJcPK85OIH2aQDz2GbNIdES7rqOZY/zObHj+
6g/QycW4IhLpAK/zYtvECFW89p/+O58zcM8C66NAbpOCTOnod/nPG0wafd4udJdp
c2Pfo9DQ5A5v4T+K/eyVisKu/gVYsorS3/gDROqlH+VrwnbCWBUZJwWe5I2FIQxb
RSLhhdKeUsrp/T8M+K73rincBWAksCTAYFf+Upn0ufskI/tf8Wn0gNzSuvIAbeo0
YF8+m95jqKMJooI2Zx1SNKS2Dv/3TKLsXiP7D/P0qCvIEREHNr0wWOkixE85Eu4F
8Vn3VWgOzK2Gimq6RJ3HmKxQm/zVcy/weg9/rPSuQ1zF7v9nOsmQc1Taup3pdmSi
osnyHTZDl+feoa0jgQmU5Kb9yojhO/awUlrgTvv/CgLLGCKUyPSgDlf6yHB63N9F
U09PEwu5iRt+M+u2W/69DebfBul1fSLBkt11RbuE5aF3OpbWg5TpqMQbPUzxkZYn
pnbKpX5ut6/66KiE12G5IERUyw7cpZ3qD856VnMmXMZfAFLETEwCPOg+mx92DTSM
dbI5MJM2wTiDEQJjUtfgwoY9zLjbe4HEJP1z7Mn08FHQlu9mu7jTpZHYVRhiVk81
CKanrySex3DNLC9ljlCaGakCAwEAAQ==
-----END PUBLIC KEY-----

1
2
3
4
{
  "username":"base64(RSA(username))",
  "password":"base64(RSA(password))"
}
**Attribute ** **In ** **Type ** **Required ** **Description **
username body string true user name for web login
password body string true password for web login
  • note: The following firmware versions use the original username and password when calling the login API:
  • EC5000 Series Less Than V2.0.12
  • EC3320 Less than V2.0.4
  • EC312 Less Than V2.0.17
  • EC954 is less V2.1.9
  • EC942 is less than V2.0.15
  • Response
  • login succeeded
1
2
3
4
5
{
    "result":{
        "token":"84c1760b-e7a9-43aa-9012-27e8d2a36816"
    }
}

1
- login failed

1
2
3
4
{
  "error":"invalid_parameter",
  "message":"Username or password error"
}
  • example
  • in the example, the device IP is 192.168.3.100, the user name is adm, and the password is 123456.

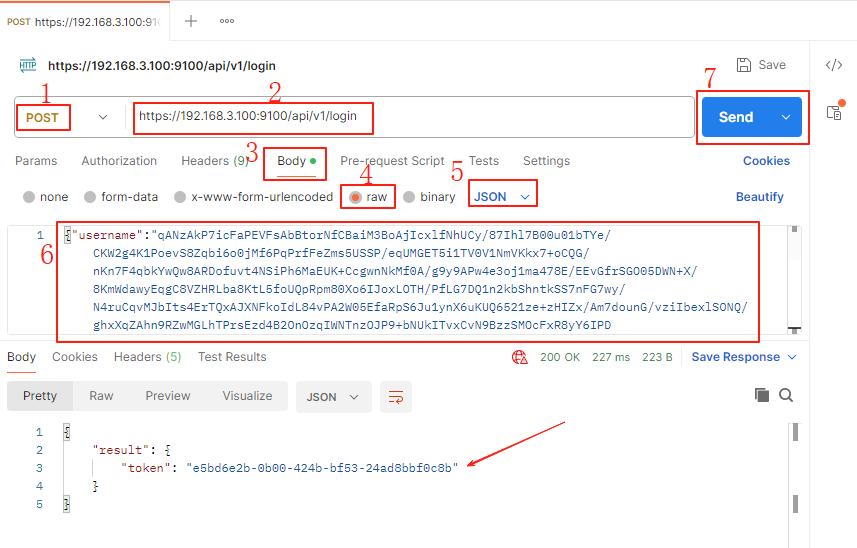

  • Postman
    • open Postman and create a new request
    • select POST mode and enter URL https://192.168.3.100:9100/api/v1/login
    • click Body-raw-JSON, enter{"username":"IR56j9l1jOwBwbTkqEnbYINSyF5cI9zAArBeYmtHgFyiYeD7lAr5ohG1IB+uUiShz1uYoEmS0tKnE7c0QMFkO60KTcHq02oSQy9rMBRF9gLP7lxL+Lg/RKL5dRtR7ZsT6CCi460TI1jFISA77wojlyRM4sd1ewlxnXiE/d6tfxqo9x0fk6sT6dFKsjLnEvJ81Rd8rPWTfhWqA54BL9S+Vmlr0UGrn3DBrBqmyGHgtt3GycaemJfbnhLjJ0NEyVuAz2JhAhzooaqRZtj7yTtC2ioD+keIfPH5SG2njDVI/elPy3BEVgbPO09EzyKP3+d/CGfxBvoYRWwlE3M5IRULQD2Sq0WChTK81OYA9wI8lwD4ymHXVPkJtqKk7IyDACot1j0ilH/7YVkRxC7wc0rUfsv1KCVp2En/ADr1iMCSl5rxH/vdJLG8FB+cTLnQdVM4T/T3XiD2tUwatIc1xrPczJ6W0dxHov+sxz+T/e1MC3WidgoIgS7J9lvfERKge4whXOEB3BkTfIkuLrFHlwn9KH7LP0IR3XslTPcxH6wT1W4wGPRcsaPleGiS58IBD+g3//dLkt84RExidMYCErgqHgUiB2Ja3Hn7SvySftop/OpWsub7/k0d8urh1yhvlhOf6XkA6IexsPbuTOGn6GwGPVDZ91Vslm69LwpXVmn8RDE=","password":"SIjEk3z8FG0YtgvzvB7Cs7ceDnR1YZiRYl3fVnB9b84gwTAKZ3GGK5Uqz2KA0AU8eT1qBNiyn2pTm48IQLUTg2Kz5DWDv6sFwvFara36iNJxlfxNLGW7XcbUuFHeP2zLnrRLUx+XDMvYNk4naCtF1hHNzBQqGQ9oUMAELChchZlfYJIBM9Du8OpjH7zKkA2wdIZsNtCN4Ld9LME7GeQufGWTTuSoP4FZb74qgmnvplv8/MO0fWlrtwj0j15BSY98GO8+b2teaJLpXdYoUiLwQj12apKMHNJEI7pEEE/0XJ1mee5Adag6tWEh+wfvBr0YEWr1jzT+R3McjvnqdMH7h5f7imRLaDvrxgNTm+ZJ3kb+14+Y4wZMqsI7sTpPO8T1bfCa3u/4ZvG8Q4HReXu74Li5Zk1qpHnXwQYoHSzZsSO0URByDE/jSqbPhsoMLEmJuuMK3xJZsY1msTR0PiKcp5oOKZhbkEGpuxe9xN8neZWDAp04aaMv69Kzm9mGixzqUeDDTt2DTiH8lOq1Fxd9GMxgkt7KYzRTQ9mNTd+fKnTl27fnrm7YgxPXJhlkd2iT0kZojL7RIVkWUnl4lqd5m4MEuVq8CGA2ZdN/KKnEPJRha0lr6FVAzc8HwZyAgarLUbhty9i2h5cfJfGdoWM89VNIGUEa/FjnutMJsRLumkg="}
    • Click Send, and if the token is displayed in the Response, the login is successful.
    • 1746585849773-98383fef-8527-45c9-87c7-d6a106699ef2.png
  • curl
1
2
3
4
curl -k -X POST \
-H "Content-Type: application/json" \
-d '{"username":"IR56j9l1jOwBwbTkqEnbYINSyF5cI9zAArBeYmtHgFyiYeD7lAr5ohG1IB+uUiShz1uYoEmS0tKnE7c0QMFkO60KTcHq02oSQy9rMBRF9gLP7lxL+Lg/RKL5dRtR7ZsT6CCi460TI1jFISA77wojlyRM4sd1ewlxnXiE/d6tfxqo9x0fk6sT6dFKsjLnEvJ81Rd8rPWTfhWqA54BL9S+Vmlr0UGrn3DBrBqmyGHgtt3GycaemJfbnhLjJ0NEyVuAz2JhAhzooaqRZtj7yTtC2ioD+keIfPH5SG2njDVI/elPy3BEVgbPO09EzyKP3+d/CGfxBvoYRWwlE3M5IRULQD2Sq0WChTK81OYA9wI8lwD4ymHXVPkJtqKk7IyDACot1j0ilH/7YVkRxC7wc0rUfsv1KCVp2En/ADr1iMCSl5rxH/vdJLG8FB+cTLnQdVM4T/T3XiD2tUwatIc1xrPczJ6W0dxHov+sxz+T/e1MC3WidgoIgS7J9lvfERKge4whXOEB3BkTfIkuLrFHlwn9KH7LP0IR3XslTPcxH6wT1W4wGPRcsaPleGiS58IBD+g3//dLkt84RExidMYCErgqHgUiB2Ja3Hn7SvySftop/OpWsub7/k0d8urh1yhvlhOf6XkA6IexsPbuTOGn6GwGPVDZ91Vslm69LwpXVmn8RDE=","password":"SIjEk3z8FG0YtgvzvB7Cs7ceDnR1YZiRYl3fVnB9b84gwTAKZ3GGK5Uqz2KA0AU8eT1qBNiyn2pTm48IQLUTg2Kz5DWDv6sFwvFara36iNJxlfxNLGW7XcbUuFHeP2zLnrRLUx+XDMvYNk4naCtF1hHNzBQqGQ9oUMAELChchZlfYJIBM9Du8OpjH7zKkA2wdIZsNtCN4Ld9LME7GeQufGWTTuSoP4FZb74qgmnvplv8/MO0fWlrtwj0j15BSY98GO8+b2teaJLpXdYoUiLwQj12apKMHNJEI7pEEE/0XJ1mee5Adag6tWEh+wfvBr0YEWr1jzT+R3McjvnqdMH7h5f7imRLaDvrxgNTm+ZJ3kb+14+Y4wZMqsI7sTpPO8T1bfCa3u/4ZvG8Q4HReXu74Li5Zk1qpHnXwQYoHSzZsSO0URByDE/jSqbPhsoMLEmJuuMK3xJZsY1msTR0PiKcp5oOKZhbkEGpuxe9xN8neZWDAp04aaMv69Kzm9mGixzqUeDDTt2DTiH8lOq1Fxd9GMxgkt7KYzRTQ9mNTd+fKnTl27fnrm7YgxPXJhlkd2iT0kZojL7RIVkWUnl4lqd5m4MEuVq8CGA2ZdN/KKnEPJRha0lr6FVAzc8HwZyAgarLUbhty9i2h5cfJfGdoWM89VNIGUEa/FjnutMJsRLumkg="}' \
https://192.168.3.100:9100/api/v1/login

1
    * ![1746586458572-92b48025-dbd5-400b-baab-10e2ac405414.png](./img/O-PDu4iRRdZrb15a/1746586458572-92b48025-dbd5-400b-baab-10e2ac405414-489538.png)
  • authentication Usage
  • save the token value in the response and add the request header to other HTTP API requests: Authorization: Bearer <token>
  • curl add method: plus parameters -H "Authorization: Bearer <token>"

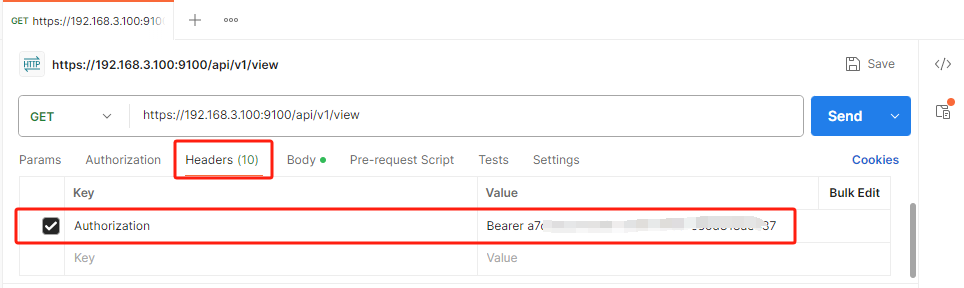

  • how to add Postman:
    • 1742195301510-d98ae5f3-5417-4b49-9568-fc7f879a8790.png

internal acquisition authentication

  • if you access the API from within the device, you can directly log on to the API without a username and password:
  • GET http://127.0.0.1:9102/api/v1/internal/login
  • 1746586599437-9c3b15fd-fc8b-480a-b014-87189879bdfe.png
  • note: the following firmware versions do not have this feature:
  • EC5000 Series Less Than V2.0.15
  • EC3320 Less than V2.0.7
  • EC312 Less than V2.0.22
  • EC954 is less V2.1.10
  • EC942 is less than V2.0.16

**system Management **

response Description

  • the following are some common response instructions for calling API
  • Success will generally return result as OK, failure will return failure type errorand failure details message
  • request successful

CODE_BLOCK_PLACEHOLDER7CODE_BLOCK_PLACEHOLDER

  • Token failed, need to login again

CODE_BLOCK_PLACEHOLDER8CODE_BLOCK_PLACEHOLDER

  • wrong input parameter for request

CODE_BLOCK_PLACEHOLDER9CODE_BLOCK_PLACEHOLDER

  • server Error

CODE_BLOCK_PLACEHOLDER10CODE_BLOCK_PLACEHOLDER

change Password

change the password through API

CODE_BLOCK_PLACEHOLDER11CODE_BLOCK_PLACEHOLDER

  • request parameters: Json

CODE_BLOCK_PLACEHOLDER12CODE_BLOCK_PLACEHOLDER

**Attribute ** **In ** **Type ** **Required ** **Description **
old body string true current password, encoded in base64
new body string true the new password is encoded in base64. The password is 8 to 128 characters in length and contains at least three types of letters, lowercase letters, numbers, and symbols.

CODE_BLOCK_PLACEHOLDER13CODE_BLOCK_PLACEHOLDER

Model version Number
EC5000 Series V2.0.12
EC3320 V2.0.4
EC312 V2.0.17
EC954 V2.1.9
EC942 V2.0.15
  • response
  • success

CODE_BLOCK_PLACEHOLDER14CODE_BLOCK_PLACEHOLDER

  • example

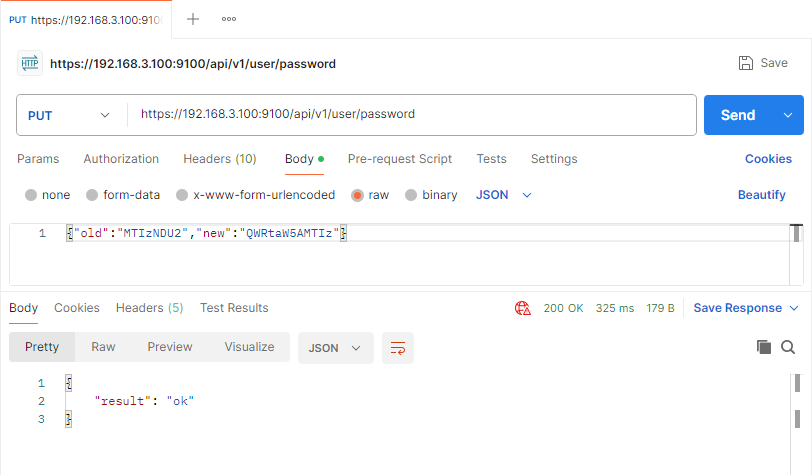

  • Postman
    • 1742200481920-b34b24c7-e7d2-402c-87a2-e4f87415eed7.png
  • curl

CODE_BLOCK_PLACEHOLDER15CODE_BLOCK_PLACEHOLDER

CODE_BLOCK_PLACEHOLDER16CODE_BLOCK_PLACEHOLDER

change password through configuration file

  • export Configuration File
  • generate password hash
  • install the htpasswd tool: apt install apache2-utils
  • generate password hash: htpasswd -bnBC 10 "" "password" | tr -d ':'
  • replace passwordparameters
  • import Configuration File

status Query

CODE_BLOCK_PLACEHOLDER17CODE_BLOCK_PLACEHOLDER

  • request Parameters
  • None
  • **response **

CODE_BLOCK_PLACEHOLDER18CODE_BLOCK_PLACEHOLDER

  • **response parameter description **
parameter Name type description
hostname String host name of the system
model String equipment Model
sn String device Serial Number
bootLoader String bootLoader version number
kernel String kernel version number
version String software version number
cpuLoad String average of the available system load over the past 1, 5, and 15 minutes, respectively
startedAt String system startup time
time String System Time
rates Array resource Usage
rates.total Number total
rates.usage Number used
rates.rate Number utilization rate
rates.name String resource Name
memory: memory
cpu:CPU
user: user Flash space
OS String system version number
  • **example **

CODE_BLOCK_PLACEHOLDER19CODE_BLOCK_PLACEHOLDER

CODE_BLOCK_PLACEHOLDER20CODE_BLOCK_PLACEHOLDER

restart device

CODE_BLOCK_PLACEHOLDER21CODE_BLOCK_PLACEHOLDER

  • **request Parameters **
  • none
  • **response **

CODE_BLOCK_PLACEHOLDER22CODE_BLOCK_PLACEHOLDER

  • **description **
  • the device restarts immediately after the response data is returned

restore factory

CODE_BLOCK_PLACEHOLDER23CODE_BLOCK_PLACEHOLDER

  • **request Parameters **
  • **none **
  • response

CODE_BLOCK_PLACEHOLDER24CODE_BLOCK_PLACEHOLDER

  • **Description **
  • restores parameters configured through IEOS, does not delete data such as software installed by the user

reset the system

CODE_BLOCK_PLACEHOLDER25CODE_BLOCK_PLACEHOLDER

  • **request Parameters **
  • **none **
  • **response **

CODE_BLOCK_PLACEHOLDER26CODE_BLOCK_PLACEHOLDER

  • **description **
  • all user data will be deleted and the system will be restored to its initial state.

Export Configuration

CODE_BLOCK_PLACEHOLDER27CODE_BLOCK_PLACEHOLDER

  • request parameters:
  • none
  • response
  • profile Contents
  • example
  • get the configuration file and save it to config.json

CODE_BLOCK_PLACEHOLDER28CODE_BLOCK_PLACEHOLDER

CODE_BLOCK_PLACEHOLDER29CODE_BLOCK_PLACEHOLDER

  • description
  • export the parameters configured by the user through IEOS, in the format of json

import Configuration

CODE_BLOCK_PLACEHOLDER30CODE_BLOCK_PLACEHOLDER

  • request parameters:
**Attribute ** **In ** **Type ** **Required ** **Description **
file body file true profile
  • response

CODE_BLOCK_PLACEHOLDER31CODE_BLOCK_PLACEHOLDER

  • example

CODE_BLOCK_PLACEHOLDER32CODE_BLOCK_PLACEHOLDER

CODE_BLOCK_PLACEHOLDER33CODE_BLOCK_PLACEHOLDER

  • description
  • After the import configuration is successful, the device will automatically restart

get Configuration

CODE_BLOCK_PLACEHOLDER34CODE_BLOCK_PLACEHOLDER

  • request Parameters
**Attribute ** **In ** **Type ** **Required ** **Description **
fields query string arrays false the field to be queried, supporting multiple fields, using the symbol ","
supported formats:
baseSystem
baseSystem.setting
networkServices.dhcp
networkServices.wifi_config,networkServices.dhcp
  • response

CODE_BLOCK_PLACEHOLDER35CODE_BLOCK_PLACEHOLDER

  • example

CODE_BLOCK_PLACEHOLDER36CODE_BLOCK_PLACEHOLDER

CODE_BLOCK_PLACEHOLDER37CODE_BLOCK_PLACEHOLDER

update Configuration

CODE_BLOCK_PLACEHOLDER38CODE_BLOCK_PLACEHOLDER

  • request Parameters
  • Json string, format reference Obtaining System Configuration Response Data
  • response

CODE_BLOCK_PLACEHOLDER39CODE_BLOCK_PLACEHOLDER

  • example
  • take modifying hostname as an example

CODE_BLOCK_PLACEHOLDER40CODE_BLOCK_PLACEHOLDER

CODE_BLOCK_PLACEHOLDER41CODE_BLOCK_PLACEHOLDER

cloud Services

start Cloud Service

CODE_BLOCK_PLACEHOLDER42CODE_BLOCK_PLACEHOLDER

  • Request Parameters
**Attribute ** **In ** **Type ** **Required ** **Description **
region url String true can only be cn or us
cn: domestic platform
us: Overseas Platform
  • response

CODE_BLOCK_PLACEHOLDER43CODE_BLOCK_PLACEHOLDER

stop Cloud Service

CODE_BLOCK_PLACEHOLDER44CODE_BLOCK_PLACEHOLDER

  • request parameters:
  • none
  • response

CODE_BLOCK_PLACEHOLDER45CODE_BLOCK_PLACEHOLDER

querying Cloud Service Status

CODE_BLOCK_PLACEHOLDER46CODE_BLOCK_PLACEHOLDER

  • request parameters:
  • none
  • response

CODE_BLOCK_PLACEHOLDER47CODE_BLOCK_PLACEHOLDER

  • parameter Description
  • enabled: function on state
  • region: connected cloud platform
  • status:online, offline: offline

plug-in Management

plug-in installation

CODE_BLOCK_PLACEHOLDER48CODE_BLOCK_PLACEHOLDER

  • request parameters:
**Attribute ** **In ** Type **Required ** **Description **
file body file true plugin installation package, ending with .tar.gz
  • response

CODE_BLOCK_PLACEHOLDER49CODE_BLOCK_PLACEHOLDER

plugin Uninstall

CODE_BLOCK_PLACEHOLDER50CODE_BLOCK_PLACEHOLDER

  • request parameters: Json
**Attribute ** **In ** **Type ** **Required ** **Description **
name url string true plug-in name
retain body boolen true whether to retain data, by default
true-reserved
false-do not reserve
  • response

CODE_BLOCK_PLACEHOLDER51CODE_BLOCK_PLACEHOLDER

plug-in List

CODE_BLOCK_PLACEHOLDER52CODE_BLOCK_PLACEHOLDER

  • request parameters:
  • none
  • response

CODE_BLOCK_PLACEHOLDER53CODE_BLOCK_PLACEHOLDER

CODE_BLOCK_PLACEHOLDER54CODE_BLOCK_PLACEHOLDER

plugin running

CODE_BLOCK_PLACEHOLDER55CODE_BLOCK_PLACEHOLDER

  • request parameters:
  • name: plug-in name
  • response
  • success

CODE_BLOCK_PLACEHOLDER56CODE_BLOCK_PLACEHOLDER

CODE_BLOCK_PLACEHOLDER57CODE_BLOCK_PLACEHOLDER

CODE_BLOCK_PLACEHOLDER58CODE_BLOCK_PLACEHOLDER

plug-in Stop

CODE_BLOCK_PLACEHOLDER59CODE_BLOCK_PLACEHOLDER

  • request parameters:
  • name: plug-in name
  • response

CODE_BLOCK_PLACEHOLDER60CODE_BLOCK_PLACEHOLDER

network Management

querying Network Port Configuration

CODE_BLOCK_PLACEHOLDER61CODE_BLOCK_PLACEHOLDER

  • **response **

CODE_BLOCK_PLACEHOLDER62CODE_BLOCK_PLACEHOLDER

CODE_BLOCK_PLACEHOLDER63CODE_BLOCK_PLACEHOLDER

update network port configuration

CODE_BLOCK_PLACEHOLDER64CODE_BLOCK_PLACEHOLDER

  • **request parameter example **

CODE_BLOCK_PLACEHOLDER65CODE_BLOCK_PLACEHOLDER

**parameter Description **

  • networkServices, network, interface, config_id (that is, the 0002000000000000 in the example), config-nameand ifnameThey are fixed fields, and their values are maintained by the vendor. Before calling the update port configuration API, you need to call the query port configuration API to obtain the values of these fields. proto, ipaddrand netmaskfields are maintained by the customer.
**Attribute ** **Type ** **Required ** **Range ** **Description **
proto string true protocol Type; Available value: static
, dhcp
ipaddr string true interface IP address; When proto
for dhcp
when, will ipaddr
set ""
netmask string true network mask; When proto
for dhcp
when, will netmask
set ""

query cellular configuration

CODE_BLOCK_PLACEHOLDER66CODE_BLOCK_PLACEHOLDER

  • **response **

CODE_BLOCK_PLACEHOLDER67CODE_BLOCK_PLACEHOLDER

CODE_BLOCK_PLACEHOLDER68CODE_BLOCK_PLACEHOLDER

update cellular configuration

CODE_BLOCK_PLACEHOLDER69CODE_BLOCK_PLACEHOLDER

  • **request parameter example **

CODE_BLOCK_PLACEHOLDER70CODE_BLOCK_PLACEHOLDER

  • **parameter Description **
**Attribute ** **Type ** **Required ** **Range ** **Description **
enable int true [0,1] cellular function enable switch
sim_profiles array true 10 Cellular network configuration candidates, up to 10; Each candidate contains information such as apn/user/password; Select one when dialing; Non-private network environment can be configured, and the default configuration can be retained. Configure up to 10 group members
index int true [1, 10] configure the index value of the candidate
apn string true [1,128] characters apn configuration item
username string true [1,128] characters user name configuration item
password string true [1,128] characters password Configuration Item
auth_type int true [0,3] authentication method; 0: No authentication; 1:pap,2:chap;3:auto(pap or chap, device auto selection)
sim1_profile_id int true [0,10] the index value of the configuration candidate selected by the SIM1 card; 0 indicates that automatic configuration is used; Other values correspond to indexes in sim_profiles.
sim2_profile_id int true [0,10] the index value of the configuration candidate selected by the SIM2 card; 0 indicates that automatic configuration is used; Other values correspond to indexes in sim_profiles.
enable_infinitely_redial int true [0,1] infinite redial enable switch; Closed by default; When dialing fails 120 times in a row, the system will be restarted to try to solve the problem of dialing failure. For devices without SIM card, this option can be turned on. After it is turned on, the system will not be restarted no matter how many times dialing fails.
enable_dualsim int true [0,1] dual card enable switch; Off by default and use SIM1 card for dialing
main_sim int true [0,1] after the dual card is turned on, the SIM card selected for dialing is preferred; It is only valid when the dual card is turned on; 0:SIM1 card; 1:SIM2
dualsim_config.retries int true [1, 10] after opening dual cards, switch to another SIM card for dialing when the current SIM card fails to dial for the number of times set by retires; Default value 3
network_mode int true [0, 13] network system; 0: automatic; 1:GSM;2:WCDMA;3:LTE;4:TD-SCDMA;5:UMTS;6:CDMA;7:HDR;8:CDMA and HDR;9: reserved; 10: reserved; 11:5g; 12:5g SA;13:5g NSA; The network system here is for all modules supported by inhand, specific modules only support some of these options
enable_default_route int true [0,1] cellular Port default route enable switch; After opening, a default route based on cellular network will be automatically created after successful dialing
route_metric int true [2, 255] priority of default route for cellular network
dial_interval int true [1, 3600]s redial interval; When the current dialing fails, the interval of the next dialing automatically starts; The default is 10s.
signal_interval int true [1, 3600]s signal query interval; Default 120s
addr array false 2 imp detection address, that is, ICMP detection enable switch; Closed by default; Turning on detection helps to solve the problem of fake connection in cellular network, and it is recommended that customers turn it on. The opening method is to configure at least one address that can be reached by ICMP messages. However, only 2 probe addresses can be configured at most. The shutdown method is to delete all probe addresses; When two addresses are configured, the first address is detected first, will not detect the second address;
interval int true [1, 86400]s detection interval; Sending an ICMP detection packet every interval
timeout int true [1, 60]s the timeout time of the probe message; When the probe message is still not received after waiting for the timeout time, the next probe is triggered.
netwatcher.retries int true [1, 5] how many times after the probe fails, the redial is triggered; If two probe addresses are configured, each probe address needs to fail reattempts before The redial is triggered.
is_strict_detect int true [0,1] ICMP strictly detects the enable switch; The default is off; In order to save the user's cellular traffic, the program will regularly check whether the number of messages received by the cellular port has changed. When the message received by the cellular port changes, it means that there is no false connection in the network. ICMP detection is not triggered; However, if ICMP strict detection is turned on, ICMP detection will be carried out according to the detection strategy regardless of whether the Interface Message changes.

Query cellular status

CODE_BLOCK_PLACEHOLDER71CODE_BLOCK_PLACEHOLDER

  • **response **

CODE_BLOCK_PLACEHOLDER72CODE_BLOCK_PLACEHOLDER

  • **parameter Description **
**Attribute ** **Type ** **Description **
asu int signal strength
band int band
carrierCode int plmn
carrierString string network Operator Name
cellid string cell ID
currentSim int the SIM card currently in use, 0 means to use sim1;1 means to use sim2
dbm int power Information
generation string generation cellular technology, possible values are 2G,3G,4G and 5G
iccid string iccid
imei string imei
imsi string imsi
lac string location Area Code
modemVersion string the firmware version of the module
netType string network Type
pci int pci
regStatus int note network status; 0: unregistered, 1: Network registration successful, 2: Network registration being, 3: Network registration rejected, 4. Network registration failed, reason unknown, 5: roaming successful; 6: dial-up closed, do not display status
rsrp int rsrp
rsrq int rsrq
rssi int rssi
sigLevel int signal level, program Internal use
sigbar int number of signals; Minimum 0 signals, maximum 5 signals
sinr int sinr
connDuration int length of cellular connection; Unit s
connStatus int cellular Connection Status; 3: Connected; Other Values: Not Connected
dns string dns information of cellular network
ip string IP address of the cellular interface
netmask string network mask for the cellular interface
gateway string gateway for Cellular Interface
ifaceName string name of the cellular interface
mtu int mtu value for cellular interface

query GPS configuration

CODE_BLOCK_PLACEHOLDER73CODE_BLOCK_PLACEHOLDER

  • **response **

CODE_BLOCK_PLACEHOLDER74CODE_BLOCK_PLACEHOLDER

  • parameter Description
**Attribute ** Type **Description **
enable int open GPS 1: Start 0: Close

update GPS configuration

CODE_BLOCK_PLACEHOLDER75CODE_BLOCK_PLACEHOLDER

  • request parameter example

CODE_BLOCK_PLACEHOLDER76CODE_BLOCK_PLACEHOLDER

  • response

CODE_BLOCK_PLACEHOLDER77CODE_BLOCK_PLACEHOLDER

query GPS status

CODE_BLOCK_PLACEHOLDER78CODE_BLOCK_PLACEHOLDER

  • response

CODE_BLOCK_PLACEHOLDER79CODE_BLOCK_PLACEHOLDER

querying Wi-Fi Configuration

CODE_BLOCK_PLACEHOLDER80CODE_BLOCK_PLACEHOLDER

  • **response **

CODE_BLOCK_PLACEHOLDER81CODE_BLOCK_PLACEHOLDER

CODE_BLOCK_PLACEHOLDER82CODE_BLOCK_PLACEHOLDER

update Wi-Fi configuration

CODE_BLOCK_PLACEHOLDER83CODE_BLOCK_PLACEHOLDER

  • **request parameter example **
  • turn off WIFI:

CODE_BLOCK_PLACEHOLDER84CODE_BLOCK_PLACEHOLDER

CODE_BLOCK_PLACEHOLDER85CODE_BLOCK_PLACEHOLDER

CODE_BLOCK_PLACEHOLDER86CODE_BLOCK_PLACEHOLDER

CODE_BLOCK_PLACEHOLDER87CODE_BLOCK_PLACEHOLDER

CODE_BLOCK_PLACEHOLDER88CODE_BLOCK_PLACEHOLDER

  • **request Parameters **
**Attribute ** **Type ** **Required ** **Range ** **Description **
enable int true [0,1] Wi-Fi Station enable switch
interface string true wlan0 interface Name
station_role int true [0,1] 0 means AP 1 for STA
ssid string true SSID to be connected
key_mgmt int true [0,3] encryption mode; 0: No authentication; 1:WPA-PSK;2:WPA2-PSK; 3. WPA-PSK/WPA2-PSK Mixed
algorithm int true [0,2] encryption algorithm; 0:CCMP;1:TKIP;2:CCMP and TKIP
psk string true password of the SSID to be connected
enable_default_route int true [0,1] Wi-Fi interface default route enable switch; When enabled, a default route based on the Wi-Fi interface is automatically created after the Wi-Fi is successfully connected.
route_metric int true [2,255] Wi-Fi the priority of the default route
ap_ssid_broadcast int true [0,1] whether SSID broadcast is enabled
ap_frequency int true [0,1] 0 2.4g 1 5.8g
ap_radio_type int true 0/1/2/4/6/7/8/9 0 802.11B/G 1 802.11B 2 802.11A 4 802.11G
6 802.11N
7 802.11G/N
8 802.11GA/N/AC
9 802.11B/G/N
ap_channel int true 2.4G:1-11 5.8G:36/40/44/48/149/153/157/161 channel
ap_ssid string true AP SSID
wpa_psk_key string true AP password
auth_method int true [0-3] NONE: 0
WPA-PSK: 1
WPA2-PSK: 2
MIXED: 3
encrypt_mode int true [3,4] 3: TKIP 4: AES
ap_bandwidth int true [0-2] 0: 20m
1:40 m 2: 80m
ap_max_associations int true [1-128] maximum number of client connections
ip_addr string true xx.xx.xx.xx AP IPV4 address
netmask string true xx.xx.xx.xx mask
  • response

CODE_BLOCK_PLACEHOLDER89CODE_BLOCK_PLACEHOLDER

set DHCP interface address

  • DHCP information needs to be issued after opening AP

CODE_BLOCK_PLACEHOLDER90CODE_BLOCK_PLACEHOLDER

  • request parameter example

CODE_BLOCK_PLACEHOLDER91CODE_BLOCK_PLACEHOLDER

  • **request Parameters **
**Attribute ** Type **Required ** **Range ** **Description **
ipaddr string true xx.xx.xx.xx AP IPV4 address
netmask string true xx.xx.xx.xx mask
  • please send this interface after updating the WIFI configuration and returning OK. Only the ip and netmask parameters are modified, and the other parameters remain unchanged
  • response

CODE_BLOCK_PLACEHOLDER92CODE_BLOCK_PLACEHOLDER

perform a Wi-Fi scan

CODE_BLOCK_PLACEHOLDER93CODE_BLOCK_PLACEHOLDER

  • **response **

CODE_BLOCK_PLACEHOLDER94CODE_BLOCK_PLACEHOLDER

  • **parameter Description **
**Attribute ** Type **Description **
bssid string bssid information
channel int channel information
encryption string encryption Method
signal string signal value
ssid string ssid information

query Wi-Fi Status

CODE_BLOCK_PLACEHOLDER95CODE_BLOCK_PLACEHOLDER

  • **response **
  • STA:

CODE_BLOCK_PLACEHOLDER96CODE_BLOCK_PLACEHOLDER

CODE_BLOCK_PLACEHOLDER97CODE_BLOCK_PLACEHOLDER

CODE_BLOCK_PLACEHOLDER98CODE_BLOCK_PLACEHOLDER

  • **parameter Description **
**Attribute ** Type **Description **
connDuration int Wi-Fi connection duration, unit s
connStatus int Wi-Fi status information; 3: connected; Other values: not connected
ifaceName string Wi-Fi interface name
ip string Wi-Fi interface IP address
netmask string Wi-Fi Interface Network Mask
gateway string Gateway Information
mtu int interface MTU value
signal string Wi-Fi signal strength
  • AP partial response see update WIFI configuration

query Routing configuration

CODE_BLOCK_PLACEHOLDER99CODE_BLOCK_PLACEHOLDER

  • **response **

CODE_BLOCK_PLACEHOLDER100CODE_BLOCK_PLACEHOLDER

  • please refer to the parameter description update routing configuration

update routing configuration

CODE_BLOCK_PLACEHOLDER101CODE_BLOCK_PLACEHOLDER

  • **request parameter example **

CODE_BLOCK_PLACEHOLDER102CODE_BLOCK_PLACEHOLDER

  • **request Parameters **
  • configuration id 0000657fa834ceaneeds to be generated based on the following rules:
  • 4-digit hexadecimal index value, 1-65535 increment. The hexadecimal character is expressed by writing
  • 8-bit hexadecimal timestamp
  • 4-digit hexadecimal random value
**Attribute ** **Type ** **Required ** **Range ** **Description **
interface string true [0,1] Wi-Fi Station enable switch
target string true SSID to be connected
netmask string true [0,3] encryption mode; 0: No authentication; 1:WPA-PSK;2:WPA2-PSK; 3. WPA-PSK/WPA2-PSK Mixed
gateway string true [0,2] encryption algorithm; 0:CCMP;1:TKIP;2:CCMP and TKIP
metric int true password of the SSID to be connected

querying Routing Status

CODE_BLOCK_PLACEHOLDER103CODE_BLOCK_PLACEHOLDER

  • response

CODE_BLOCK_PLACEHOLDER104CODE_BLOCK_PLACEHOLDER

  • **parameter Description **
**Attribute ** Type **Description **
kan string Which interface does the neighbor belong to in the IPv4 network neighbor information
kan string IP address of the neighbor device in the IPv4 network neighbor information
kan string MAC address of neighbor device in IPv4 network neighbor information
ipv4_route_table.interface string interface information in the IPv4 routing table
ipv4_route_table.target string target network in IPv4 routing table
ipv4_route_table.gateway string next hop IP address in IPv4 routing table
ipv4_route_table.protocol string routing protocol used by IPv4 routing table entries
ipv4_route_table.table string which routing table belongs to under the IPv4 routing table
ipv4_route_table.metric string IPv4 routing table metrics

query DNS configuration

CODE_BLOCK_PLACEHOLDER105CODE_BLOCK_PLACEHOLDER

  • **response **

CODE_BLOCK_PLACEHOLDER106CODE_BLOCK_PLACEHOLDER

  • **parameter Description **
  • you only need to configure the server. Other values are the default values and are not recommended to be modified.
**Attribute ** Type **Description **
server array DNS server address, configure up to 5

UPDATE DNS configuration

CODE_BLOCK_PLACEHOLDER107CODE_BLOCK_PLACEHOLDER

  • **request parameter example **

CODE_BLOCK_PLACEHOLDER108CODE_BLOCK_PLACEHOLDER

  • **parameter Description **
**Attribute ** **Type ** **Required ** **Range ** **Description **
server array true DNS server address, configure up to 5

query domain name hijacking

CODE_BLOCK_PLACEHOLDER109CODE_BLOCK_PLACEHOLDER

  • **response **

CODE_BLOCK_PLACEHOLDER110CODE_BLOCK_PLACEHOLDER

  • **parameter Description **
  • 0000657fb450e3cconfig-id is, the generation rules are as follows:
  • 4-digit hexadecimal index value, 1-65535 increment. The hexadecimal character is expressed by writing
  • 8-bit hexadecimal timestamp
  • 4-digit hexadecimal random value
**Attribute ** Type **Description **
name string domain name to be hijacked
ip sring hijack the domain name to this IP address

update domain name hijacking

CODE_BLOCK_PLACEHOLDER111CODE_BLOCK_PLACEHOLDER

  • **request parameter example **

CODE_BLOCK_PLACEHOLDER112CODE_BLOCK_PLACEHOLDER

  • **parameter Description **
**Attribute ** **Type ** **Required ** **Range ** **Description **
name string true domain name to be hijacked
ip string true hijacking domain names to IP addresses
comments string false remarks on domain name hijacking records

query the DHCP Server configuration

CODE_BLOCK_PLACEHOLDER113CODE_BLOCK_PLACEHOLDER

  • **Response **

CODE_BLOCK_PLACEHOLDER114CODE_BLOCK_PLACEHOLDER

  • for parameter descriptions, see update DHCP Server configuration

update DHCP Server configuration

CODE_BLOCK_PLACEHOLDER115CODE_BLOCK_PLACEHOLDER

  • **request parameter example **

CODE_BLOCK_PLACEHOLDER116CODE_BLOCK_PLACEHOLDER

  • **parameter Description **
  • config-idthe value 0003000000000000generated by the vendor program. Before updating the DHCP Server configuration, query the current configuration. You can go to config-idvalue.
**Attribute ** **Type ** **Required ** **Range ** **Description **
config-name string true the interface name does not need to be changed.
interface string true The corresponding physical interface under the interface name does not need to be changed.
ignore string true whether to enable the DHCP Server function; It is turned off when "1"; And it is turned on when.
start int true start allocation mechanism; Interface Network segment + start = start address of DHCP server address pool;
limit int true maximum number of addresses in the address pool
leasetime string true lease time; Support 1h,6h,12h and 24h.

Querying Custom Firewall Configuration

CODE_BLOCK_PLACEHOLDER117CODE_BLOCK_PLACEHOLDER

  • **response **

CODE_BLOCK_PLACEHOLDER118CODE_BLOCK_PLACEHOLDER

update custom firewall configuration

CODE_BLOCK_PLACEHOLDER119CODE_BLOCK_PLACEHOLDER

  • **request parameter example **

CODE_BLOCK_PLACEHOLDER120CODE_BLOCK_PLACEHOLDER

  • **request Parameters **
**Attribute ** **Type ** **Required ** **Range ** **Description **
rules array true firewall Rules

system Upgrade

upgrade Image Preprocessing

  • use the md5sum command to calculate the md5 of a file:
  • md5sum EC312-V2.0.0.img
  • 1741675594901-b46059b9-8a6d-454e-bf06-2a23bb5a3660.png

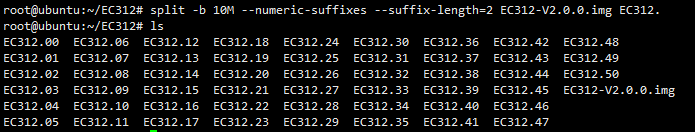

  • split a file into chunks of 10m size using the split command
  • split -b 10M --numeric-suffixes --suffix-length=2 EC312-V2.0.0.img EC312.
  • 1741675635291-297fba99-2059-4a2b-81c5-610a95cf299d.png

Prepare to Upload

  • URL: POST /api/v1/upgrade/prepare/upload
  • request parameters:
**Attribute ** **In ** **Type ** **Required ** **Description **
md5 body string true upgrade package md5
name body string true Upgrade package name
upgradeBoot body bool true whether to upgrade bootloader
  • response

CODE_BLOCK_PLACEHOLDER121CODE_BLOCK_PLACEHOLDER

  • example:
  • curl -k -X POST -H "Authorization: Bearer 7327088e-c3c3-479d-b399-384f808d55d4" -H "Content-Type: application/json" -d '{"md5":"b252322b8d1700fcfb423094e3ed5b26","name":"EC312-V2.0.0.img","upgradeBoot":false}' https://10.5.30.191:9100/api/v1/upgrade/prepare/upload
  • 1741677611824-46e4af62-5357-4e5e-8b93-23f7e48ae308.png

chunked Upload

  • URL: POST /api/v1/upgrade/chunk/upload
  • request parameters:
**Attribute ** **In ** **Type ** **Required ** **Description **
md5 query string true upgrade package md5
name query string true upgrade package name
chunks query int true total number of blocks
chunk query int true number of blocks
file body binary ture chunk content
  • response

CODE_BLOCK_PLACEHOLDER122CODE_BLOCK_PLACEHOLDER

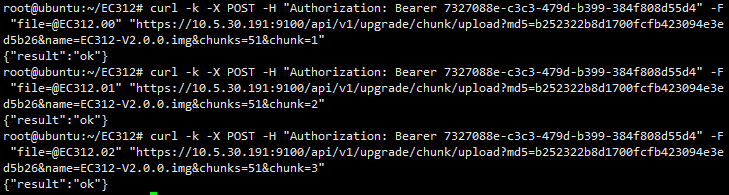

  • example:
  • curl -k -X POST -H "Authorization: Bearer 7327088e-c3c3-479d-b399-384f808d55d4" -F "[email protected]" "https://10.5.30.191:9100/api/v1/upgrade/chunk/upload? md5=b252322b8d1700fcfb423094e3ed5b26&amp;name=EC312-V2.0.0.img&amp;chunks=51&amp;chunk=1"
  • 1741677723727-7fcab78c-8330-492a-813b-0a6918763064.png
  • note: All block files need to be transferred in sequence. Do not miss or repeat the upload. Otherwise, the upgrade will fail and you need to upgrade again.

Upload complete

  • URL: PUT /api/v1/upgrade/finish/upload
  • request parameters:
**Attribute ** **In ** **Type ** **Required ** **Description **
md5 body string true upgrade package md5
name body string true Upgrade package name
  • response

CODE_BLOCK_PLACEHOLDER123CODE_BLOCK_PLACEHOLDER

  • example:
  • curl -k -X PUT -H "Authorization: Bearer 7327088e-c3c3-479d-b399-384f808d55d4" -H "Content-Type: application/json" -d '{"md5":"b252322b8d1700fcfb423094e3ed5b26","name":"EC312-V2.0.0.img"}' "https://10.5.30.191:9100/api/v1/upgrade/finish/upload"
  • 1741678587788-37a9c035-b5b8-4cb1-9ff9-703f3f8876ca.png
  • note: The system will not restart automatically after the upgrade is completed. You need to call the restart API or execute the reboot command to restart.
