Industrial Router IR925 User manual

First and foremost, thank you for choosing our company's product. Before use, carefully read this user manual. Compliance with the following statements helps maintain intellectual property rights and legal compliance, ensuring that the user experience aligns with the latest product information. If there are any questions or if written permission is needed, contact the technical support team at any time.

• Copyright Statement

This user manual contains copyrighted content. The copyright belongs to InHand Networks Technology Co., Ltd. and its licensors. Without written permission, no organization or individual may excerpt, copy any part of the content of this manual, or distribute it in any form.

• Disclaimer

Due to ongoing updates in product technology and specifications, the company cannot guarantee that the information in the user manual is entirely consistent with the actual product. Therefore, the company does not accept any disputes arising from discrepancies between the actual technical parameters and the user manual. Any changes to the product will not be notified in advance. The company reserves the right to make final changes and interpretations.

• Copyright Information

The content of this user manual is protected by copyright law. The copyright belongs to InHand Networks Technology Co., Ltd. and its licensors. All rights reserved. Without written permission, no one may use, copy, or distribute the content of this manual.

Graphical Interface Conventions

The following symbols are used throughout this manual.

Figure 1 Graphical Interface Conventions

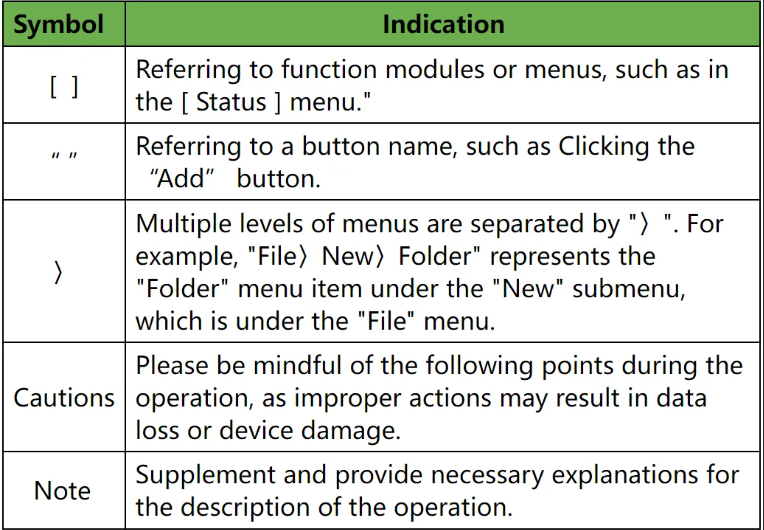

Symbol	Meaning	Example
< >	Indicates a variable or parameter to be replaced with an actual value	<IP Address> means enter a specific IP address
" "	Indicates a text label on the interface	Click the "Save" button
→	Indicates menu hierarchy or operation sequence	【Network】→【Cellular】
【 】	Indicates a menu or page name	Enter the 【System Settings】page

Technical Support

Email: [email protected]

URL: www.inhand.com

How to Use This Manual

Choose Your Path

• First-time users: Read in sequence: "Device Overview" → "Installation and First Use" → "Common Scenario Configuration" → "Function Description and Parameter Reference"
• Existing device users: Directly refer to "Function Description and Parameter Reference" or "Appendix A Troubleshooting"
• Cloud platform management users: Refer to "Common Scenario Configuration" for device remote management platform content (if applicable)

Quick Task Navigation:

Task	Chapter	Estimated Time
Get to know the device appearance and LED indicators	Getting to Know the Device	About 5 minutes
Install the device and connect to the network for the first time	Installation and First-Time Use	About 10 minutes
Configure cellular network access	Common Scenario Configurations	About 5 minutes
Configure DeviceLive cloud management	Common Scenario Configurations	About 10 minutes
View device parameters and status	Feature Descriptions and Parameter Reference	As needed
Troubleshoot device issues	Troubleshooting	As needed

---

Chapter 1 Getting to Know the Device

1.1 Overview

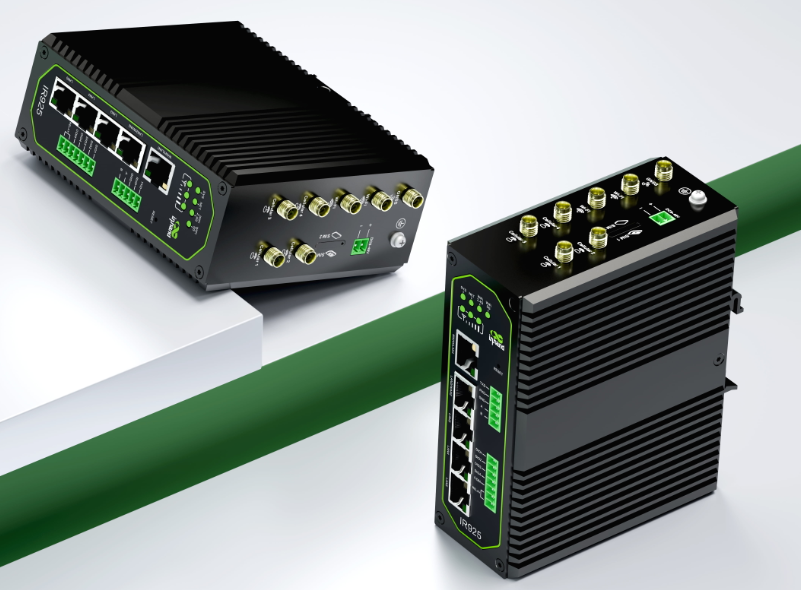

The IR925 series industrial cellular router is an IoT-dedicated device that integrates core technologies such as high-speed 5G, Wi-Fi 6, and Virtual Private Network (VPN). It provides uninterrupted network access and comprehensive security features to build secure and reliable business data links, and is equipped with a hardware watchdog and a multi-layer link detection mechanism to ensure reliable and stable communication. In addition, the IR925 features intelligent software services tailored for IoT industry applications, enabling flexible adaptation to various deployment scenarios. The series is deeply integrated with the InHand DeviceLive cloud platform, allowing users to centrally manage devices via the cloud and monitor their operating status in real time. This significantly reduces deployment and maintenance costs while improving management efficiency, and is particularly suited to networking scenarios involving unattended devices and sites. It delivers a one-stop, highly reliable connectivity solution for enterprise digital transformation and large-scale IoT deployments.

图 1-1 IR925 Device Overview

Item	Quantity	Description
IR925 Industrial Router	1	-
Power Adapter	1	Use only the original power adapter.
Cellular Antenna(s)	As configured	Depending on the model.
Wi-Fi Antenna(s)	As configured	Depending on the model.
Quick Start Guide	1	-

1.2 Appearance and Interfaces

Interface	Description
LAN Port	Connects to LAN devices.
WAN/LAN Port	Supports WAN/LAN switching.
SIM Card Slot	Insert a SIM card.
Power Connector	Connect the power adapter.
Antenna Connector	Connect the cellular/Wi-Fi antenna.
Reset Button	Restores factory default settings.
Serial Port	For RS232/RS485 communication.

1.3 LED Indicators

LED Indicator	Status	Meaning
SYS	Off	Power off
	Steady red	Device starting
	Blink red	System error
	Steady green	Working properly
	Blink red	Firmware updating
NET	Off	The WAN port is not connected
	Steady green	The WAN port is connected normally
	Blink green	Data transferring
Cellular	Steady green with one indicator	Poor cellular signal
	Steady green with two indicators	Medium cellular signal
	Steady green with three indicators	Good cellular signal
Wi-Fi 2.4G	Off	AP&STA is disabled
	Blink green	Working properly
	Steady green	Work as STA and AP is not associated
Wi-Fi 5G	Off	AP&STA is disabled
	Blink green	Working properly
	Steady green	Work as STA and AP is not associated
	Steady green	Other abnormalities

1.4 Restore Factory Defaults

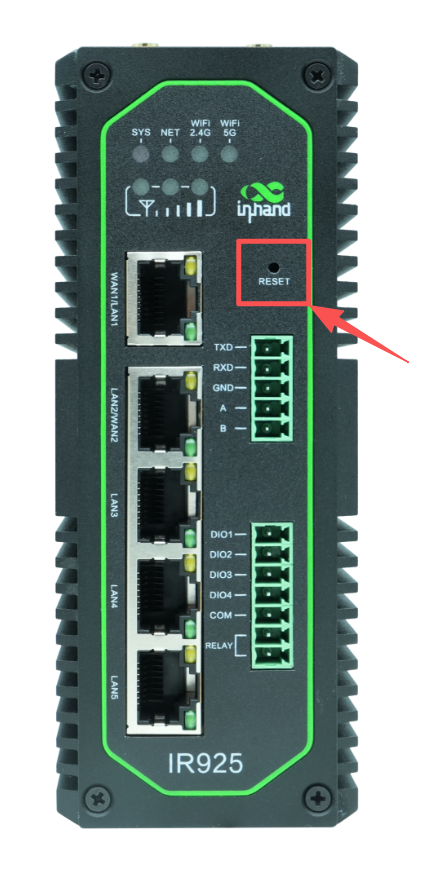

Figure 1-1 Reset Button

To reset to factory default settings using the Reset button:

1. Power on the device. As soon as the SYS indicator light goes out, press and hold the Reset button for 5 to 10 seconds, then release it promptly. The SYS indicator light will then start flashing.
2. While the SYS indicator light is flashing, press and hold the SYS indicator until the light stays on, and then release the button. At this time, the factory reset operation of the device is successful.

1.5 Default Settings

No.	Feature	Default Configuration
1	Cellular Dial-up	SIM1 only
2	Wi-Fi Default Configuration	Wi-Fi 2.4G access point enabled. SSID: prefixed with "IR925-" followed by the last 6 digits of the wireless MAC address. Wi-Fi 5G access point enabled. SSID: prefixed with "IR925-5G-" followed by the last 6 digits of the wireless MAC address. Authentication method: WPA2-PSK. Password: last 8 digits of the device SN (serial number).
3	Ethernet Default Configuration	4 LAN ports enabled. IP address: 192.168.2.1. subnet mask: 255.255.255.0. DHCP server enabled, with an address pool of 192.168.2.2–192.168.2.254, automatically assigning IP addresses to downstream devices.
4	Network Access Control	Local HTTP and HTTPS enabled, using ports 80 and 443 respectively.
5	Username and Password	Refer to the nameplate on the device body for the credentials.

Chapter 2 Installation and First-Time Use

2.1 Pre-installation Preparation

Before installing the IR925, the following items must be prepared:

Item	Requirement
Power Supply	Use the original power adapter.
Environment Temperature	Must meet the temperature range specified in the datasheet.
Environment Humidity	Must meet the humidity range specified in the datasheet.
Network Environment	Prepare an available cellular/wired/Wi-Fi network.
SIM Card	Prepare an operator SIM card if using the cellular network.
Ethernet Cable	Prepare a standard Ethernet cable if using a wired network.
PC	Used to access the device's web management interface.

Note: Use the original power adapter to avoid device damage caused by mismatched power adapters.

Note: The device should not be placed in an environment with strong electromagnetic interference. Keep it at a safe distance from high-power equipment.

2.2 Installation Guide

2.2.1 Antenna Installation and SIM Card Insertion

1. Install the 4G/5G and Wi-Fi antennas onto the corresponding antenna connectors on the device.
2. Insert the SIM card into the SIM card slot (for cellular models).

Warning: Disconnect the power supply before inserting or removing the SIM card to avoid data loss or device damage.

2.2.2 Power and Network Connection

1. Connect the power cable to the device and power it on.

2.2.3 PC Network Configuration

Set the PC's IP address to be on the same subnet as the industrial router.

• The LAN port of the device has the DHCP Server function enabled by default. Set the PC to Obtain an IP address automatically, and the PC will obtain an IP address from the IR925. Verify that the address falls within the 192.168.2.0 subnet.

• If the PC fails to obtain an IP address automatically via DHCP, manually configure the PC's IP address to any address within 192.168.2.2–192.168.2.254, with the default gateway set to 192.168.2.1 and the subnet mask set to 255.255.255.0. Set the DNS server to 8.8.8.8 or the DNS address obtained from the operator.

2.2.4 Access the Web Management Interface

1. Enter the default device address 192.168.2.1 in the browser's address bar.
2. Enter the username and password (the login credentials are printed on the nameplate at the bottom of the device).
3. Access the device's web management interface. If the page shows a security warning, click the "Hide" or "Advanced" button and select "Proceed" to continue.

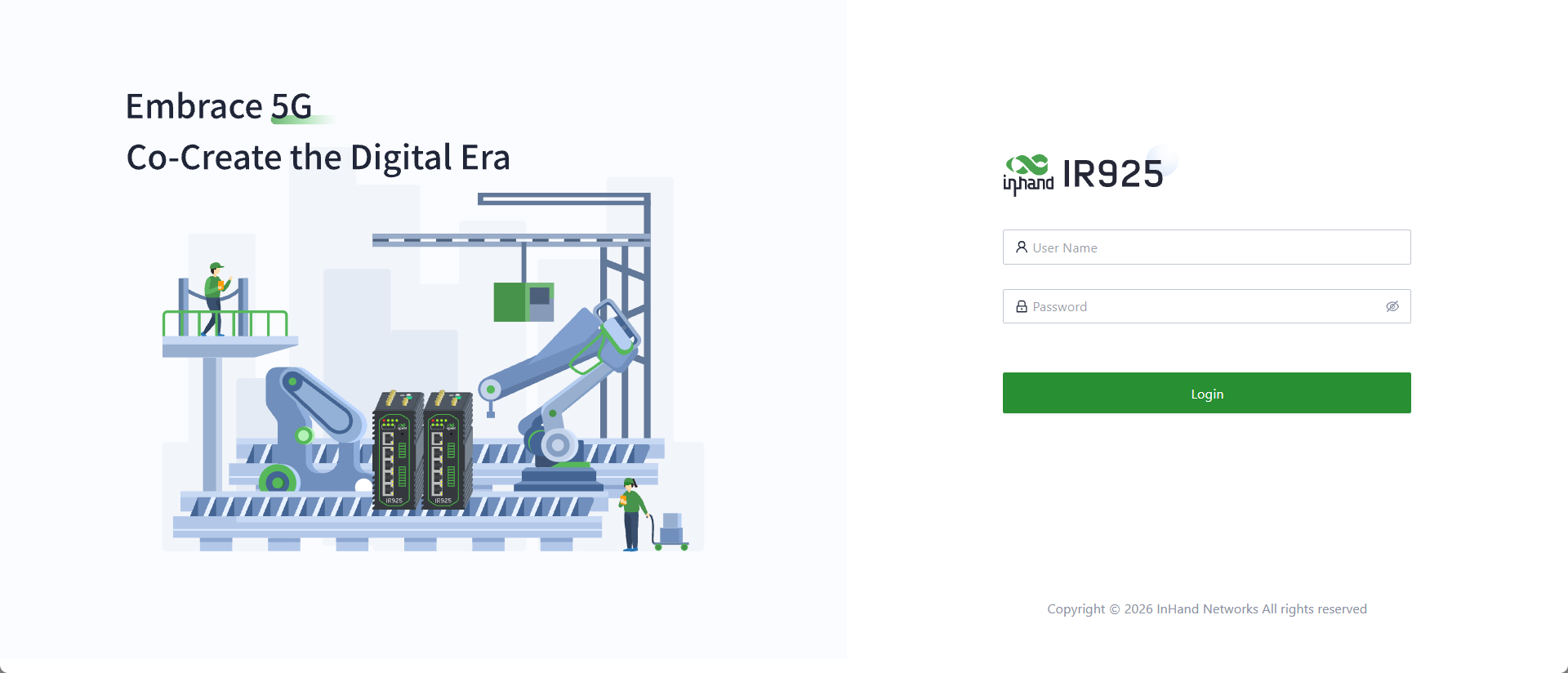

Figure 2-1 Web Login Interface

2.3 Quick Check

After installation, perform the following checks:

• The device is powered on and the system status LED displays normally.
• The cellular/Wi-Fi antennas are correctly installed.
• The SIM card is correctly inserted (if using the cellular network).
• The PC is connected to a LAN port via an Ethernet cable.
• The PC has obtained an IP address in the 192.168.2.0 subnet.
• The Web management interface can be accessed by opening 192.168.2.1 in a browser.

Chapter 3 Common Scenario Configurations

Scenario 1: Cellular Networking

Objective: Access the internet via 4G/5G cellular network.

Prerequisites: SIM card inserted and antennas installed, device powered on.

Estimated Time: About 5 minutes.

Operation Steps: 1. Insert the SIM card and install the cellular antennas. 2. Power on the device. The IR925 router will automatically establish a dial-up connection and connect to the network. 3. To configure APN (Access Point Name, which can be understood as the "address" of the operator's network) parameters, navigate to 【Internet】→【Cellular】 and click the "Edit" button.

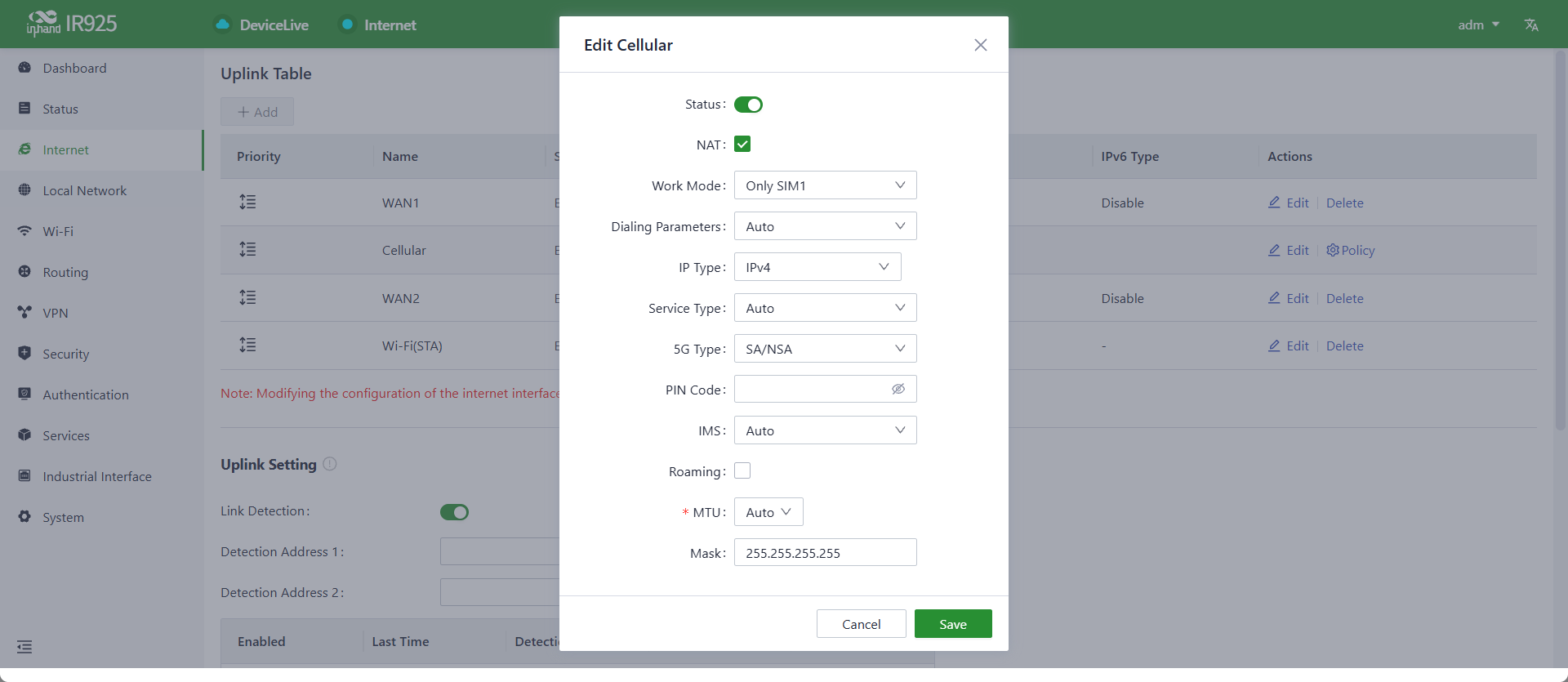

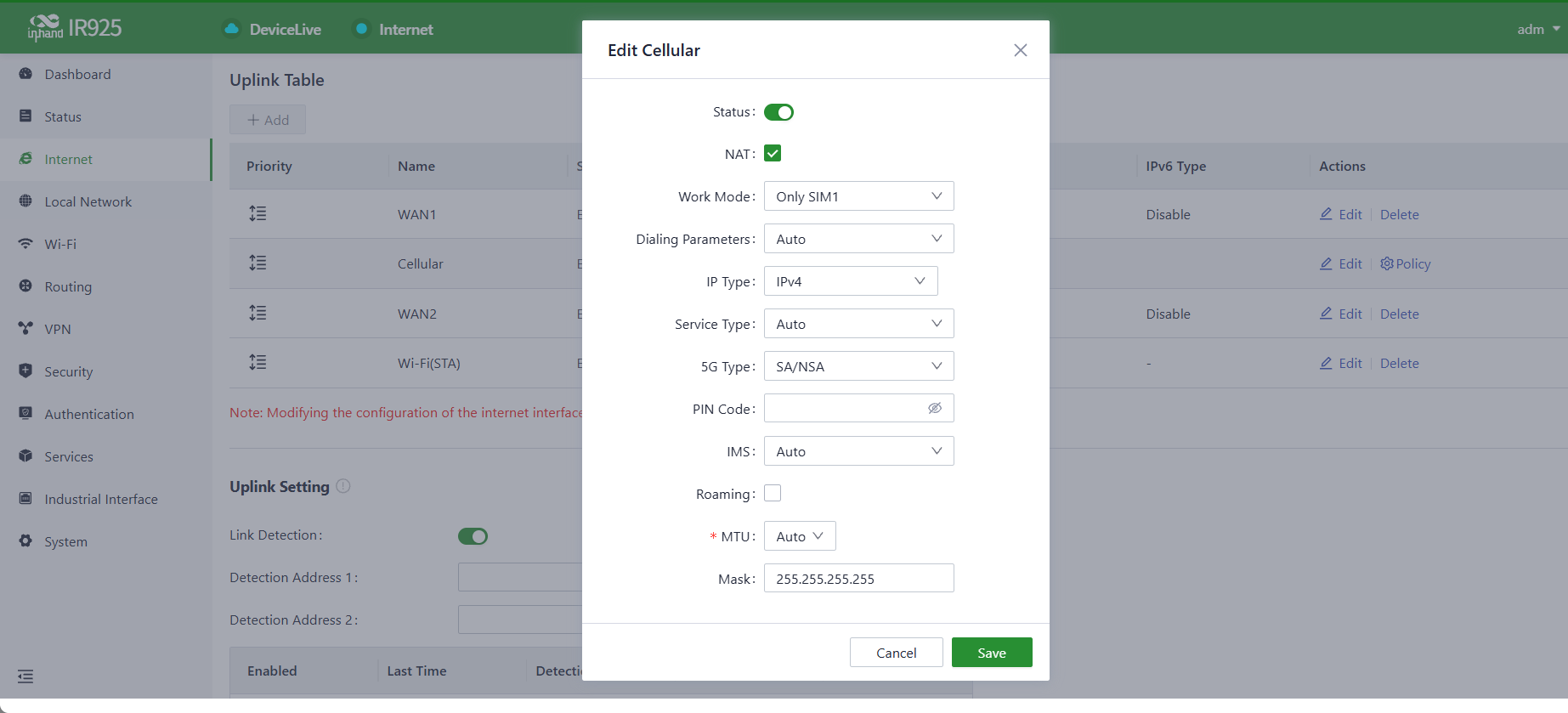

Figure 3-1 Cellular APN Configuration

1. Enter the APN parameters provided by the carrier and click "Save."

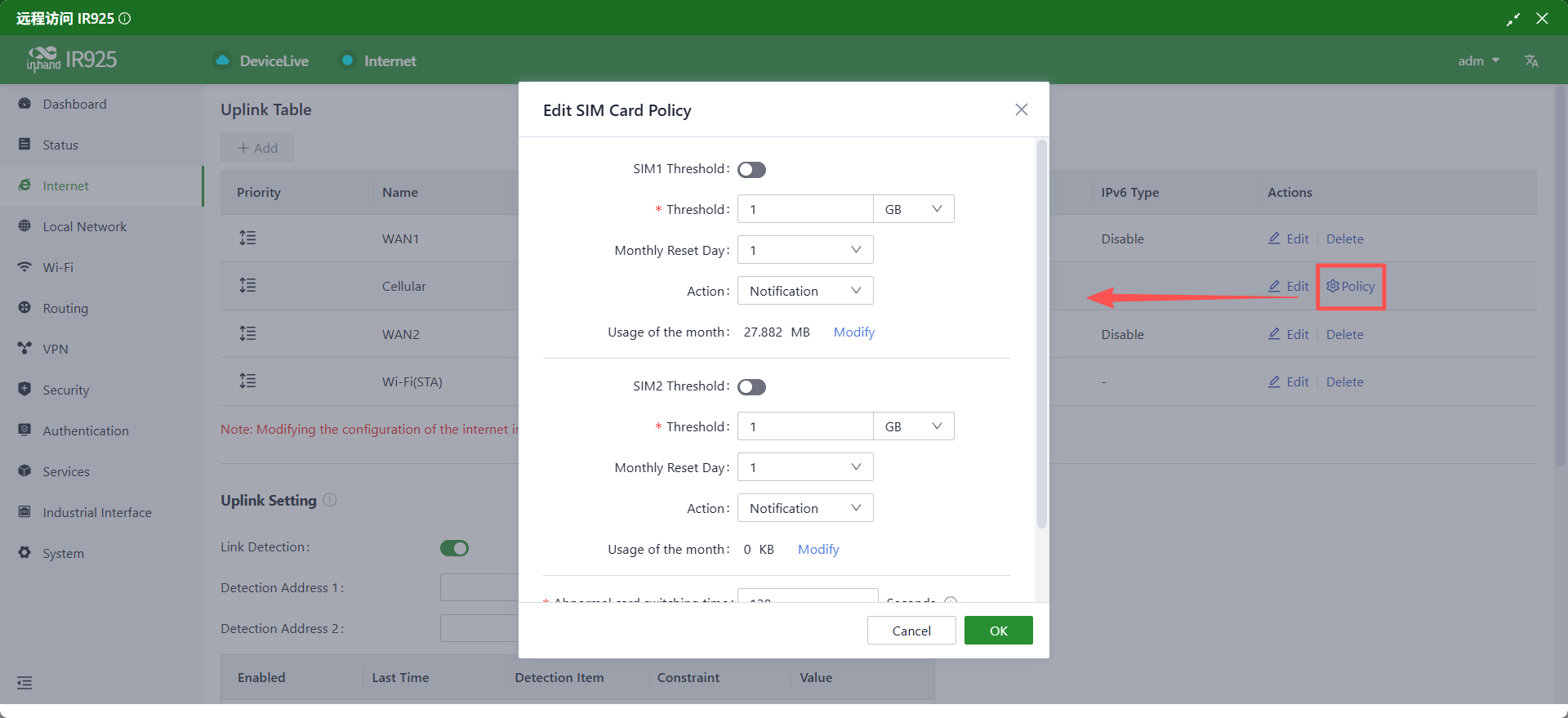

2. (Optional) To configure a traffic policy, navigate to 【Internet】→【Cellular】 and click the "Policy" button.

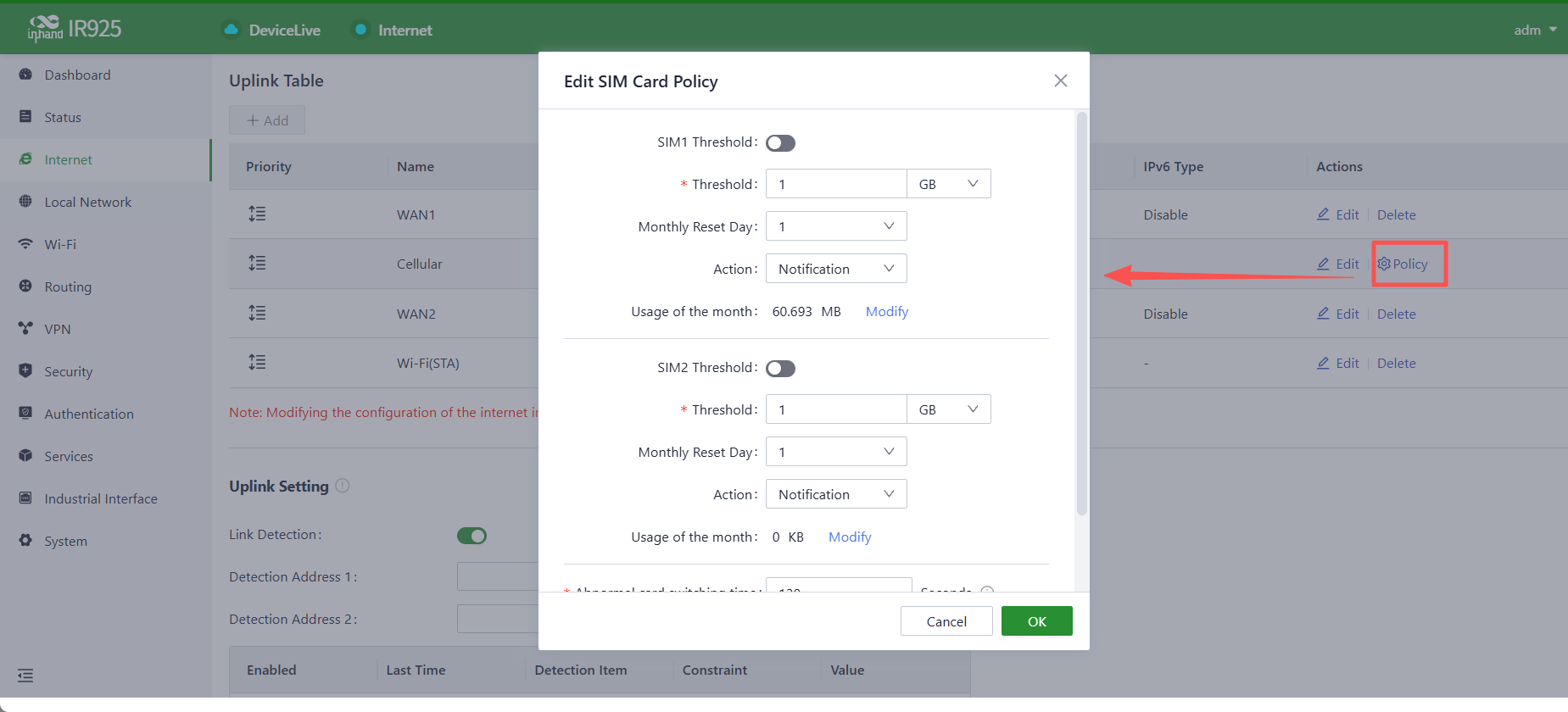

Figure 3-2 Cellular Traffic Policy

Action	Description
Notification	Generates an event when traffic reaches the threshold but does not stop forwarding regular business traffic
Cloud Management Only	Generates an event when traffic reaches the threshold, allowing only cloud-based management traffic while blocking regular business internet access
Switch the SIM Card	Generates an event when traffic reaches the threshold and switches to another SIM card for internet access

Verification Methods: 1. Check the NET indicator light. A steady green light indicates the WAN port is connected normally. 2. Navigate to 【Status】→【Link Monitor】 to verify the cellular link status.

Common Issues: - Unable to connect to cellular network: Verify the SIM card is properly inserted and the APN parameters are correct. - Poor signal: Check antenna connections and adjust the device position.

Cautions: 1. In certain dedicated network scenarios, it may be necessary to manually disable the "Link Detection" function under the 【Internet】 menu to prevent cellular connectivity issues caused by unsuccessful detection. 2. In some cases, manual configuration of the subnet mask for the cellular interface may be required to ensure the proper functioning of the ARP (Address Resolution Protocol, which can be understood as a network "directory inquiry" service) feature. 3. When inserting or removing a SIM card, it is essential to disconnect the power to prevent data loss or damage to the device.

Scenario 2: Wired Networking

Objective: Connect the IR925 to the internet via a wired Ethernet connection.

Prerequisites: An Ethernet cable is available, and the upstream network device is functioning properly.

Estimated Time: About 5 minutes.

Operation Steps： 1. Use an Ethernet cable to connect the IR925's WAN1/LAN1 port to the uplink device. 2. To configure a second wired link, manually add a WAN link under Internet > Uplink List and select the appropriate connection mode (this port supports three wired access modes: DHCP, Static IP, and PPPoE). 3. After completing the settings, use an Ethernet cable to connect the IR925's LAN2/WAN2 port to the uplink device.

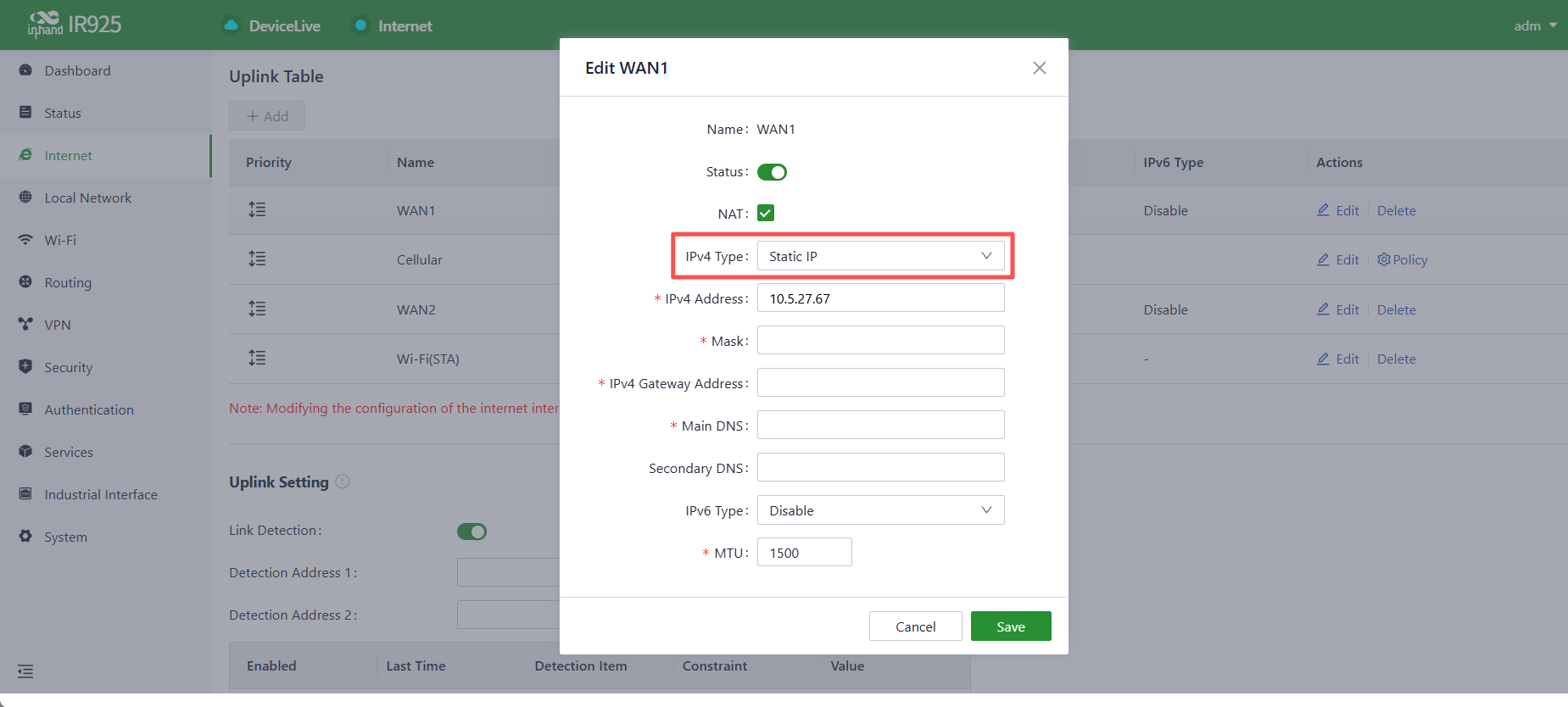

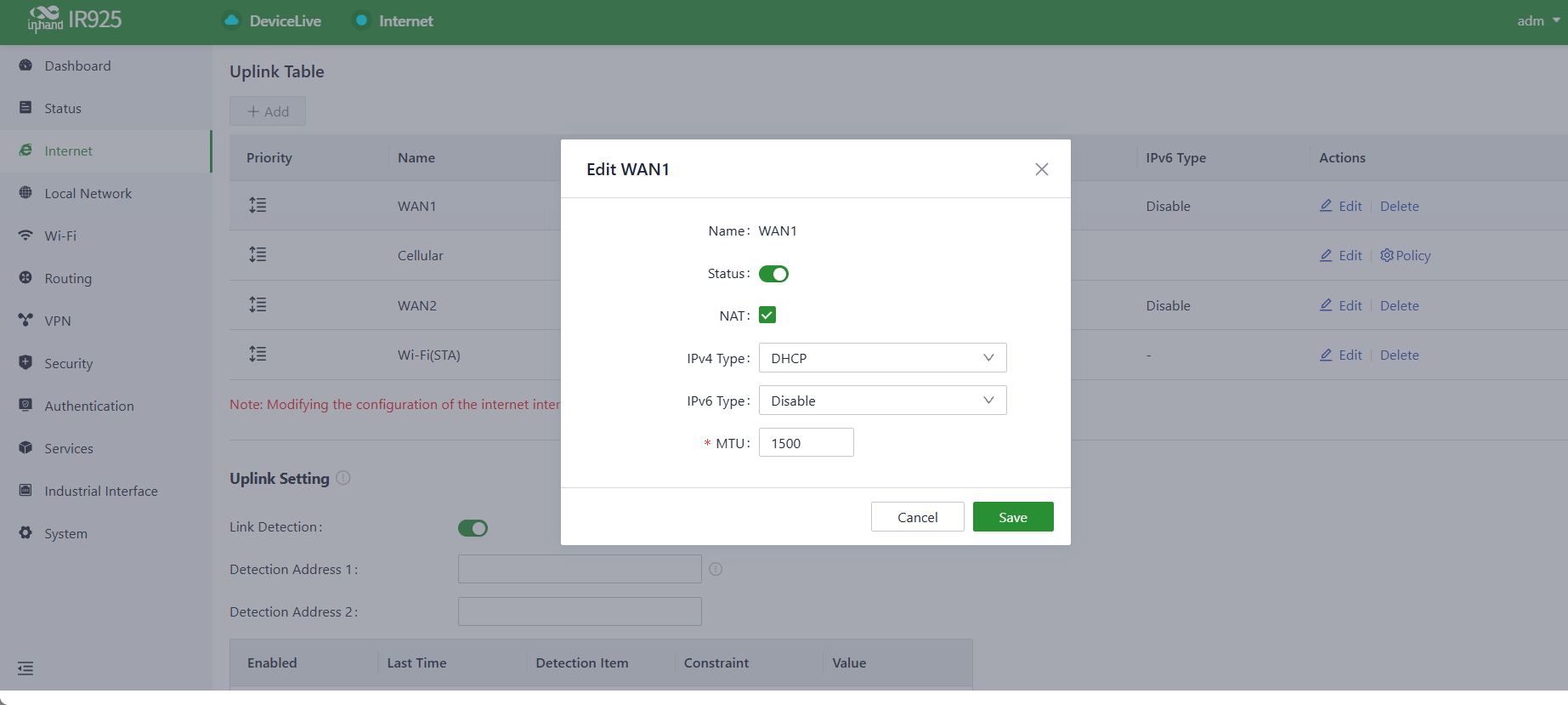

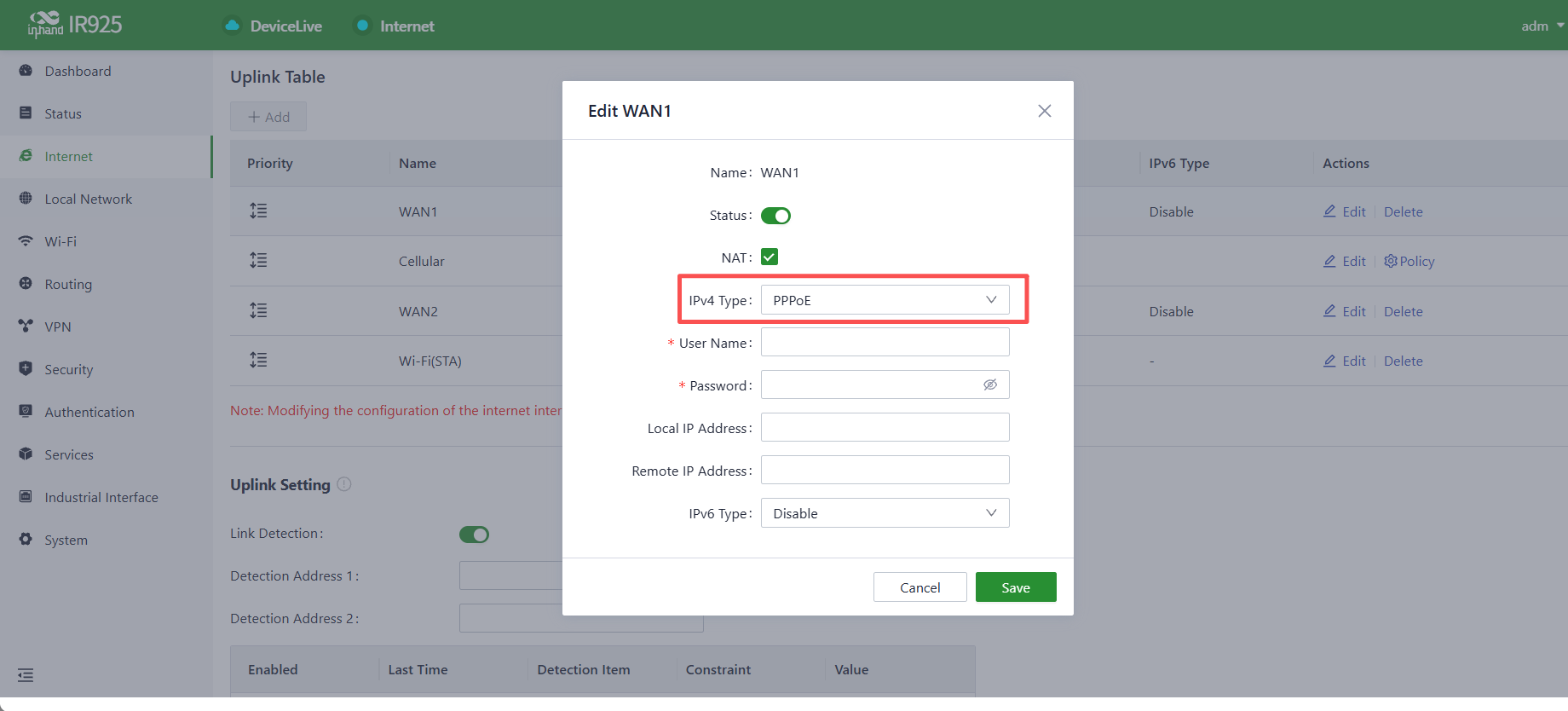

Figure 3-3 Wired Connection

Verification Methods： 1. Check the WAN interface status under Dashboard > Interface Status. 2. Check the link health status under Status > Link Monitoring.

Common Issues

• Unable to obtain an IP address: Check the Ethernet cable connection and confirm that the DHCP server is functioning properly.
• PPPoE dial-up fails: Check whether the username and password are correct.

Scenario 3: Wi-Fi STA Networking

Objective: Connect the IR925 to an existing Wi-Fi network as a client (STA).

Prerequisites: The target Wi-Fi network (SSID) is within range, and the SSID name and password are known.

Estimated Time: About 5 minutes.

Operation Steps

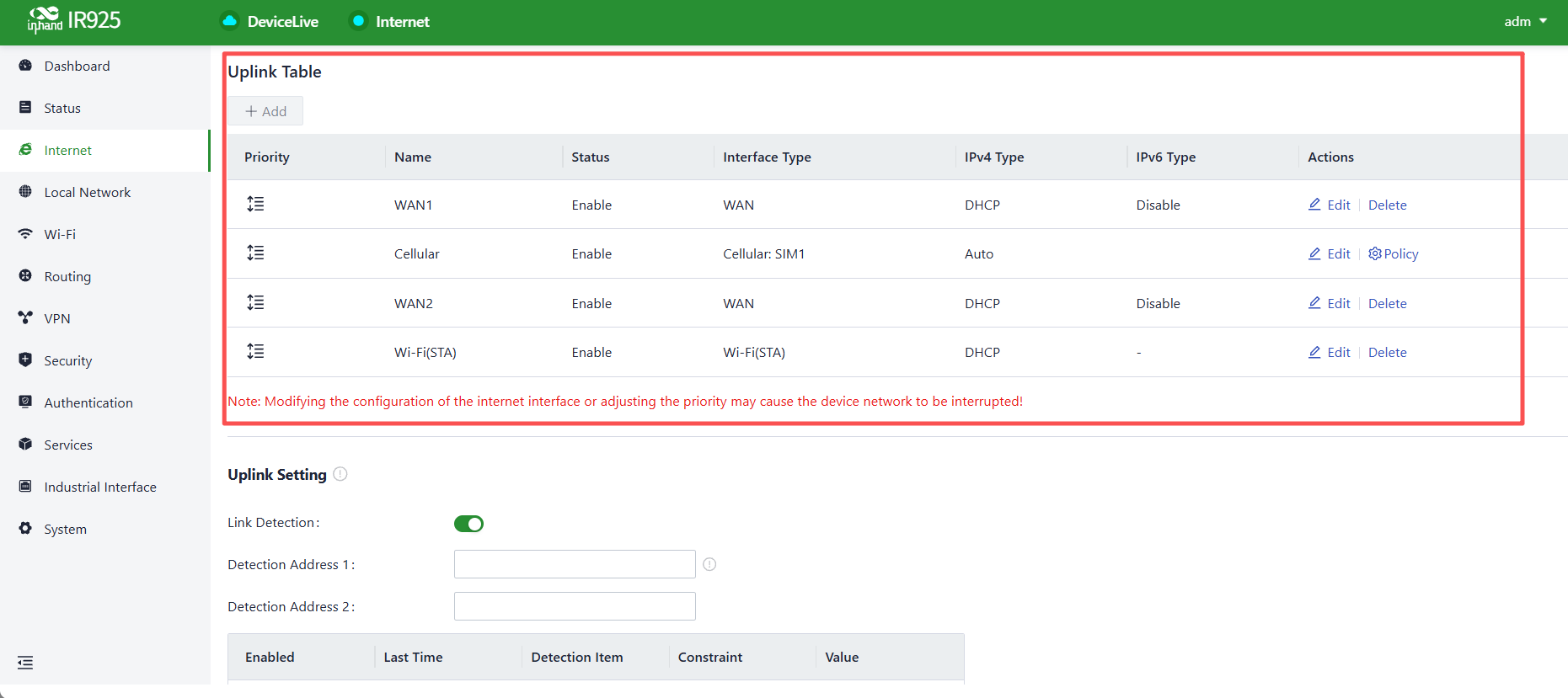

1. Go to Internet > Uplink List and click the Add button.
2. Select Wi-Fi (STA), choose the appropriate frequency band, and enter the SSID and password of the AP to connect to.
3. To ensure a valid connection, verify that the AP's authentication and encryption policies match those configured on the IR925.
4. After completing the settings, the IR925 will actively initiate a connection to the AP.

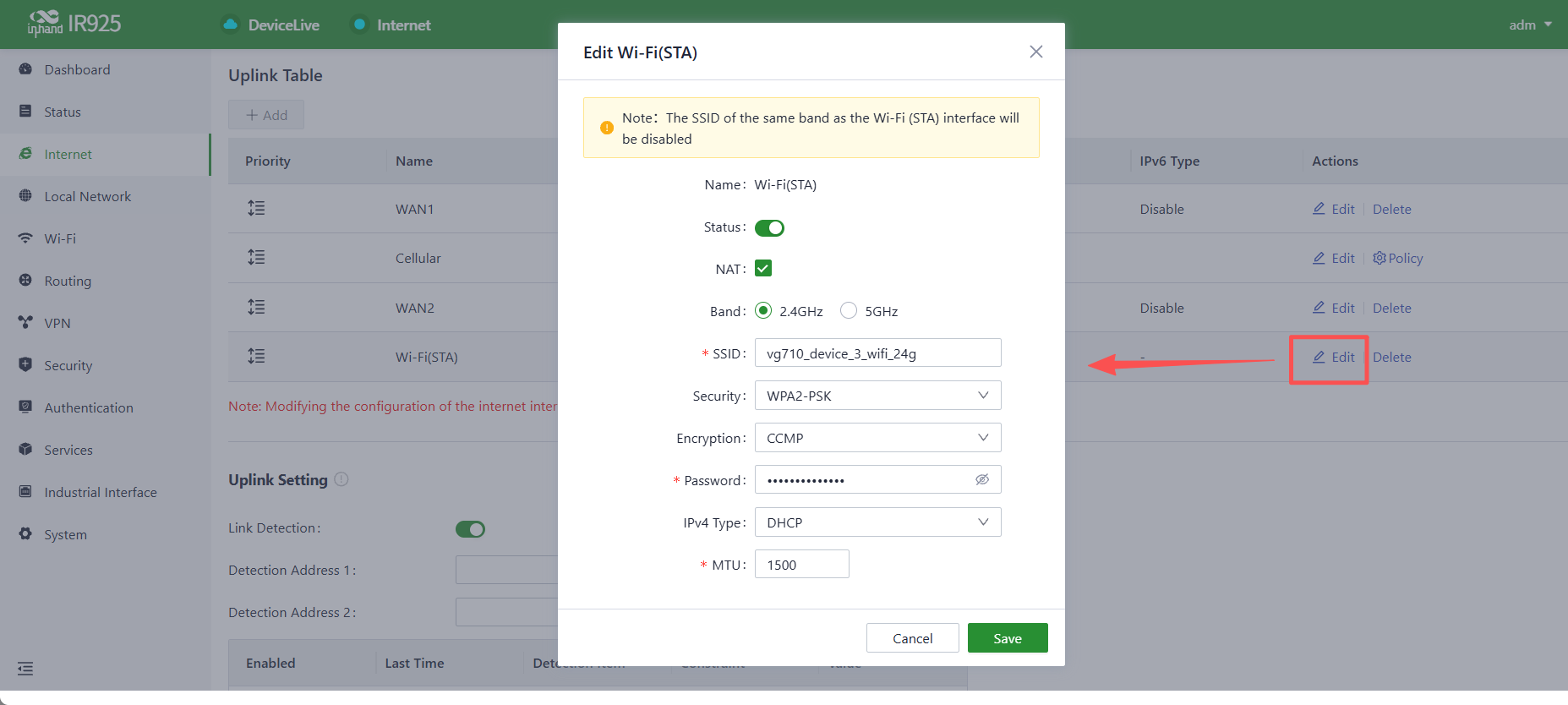

图 3-2 Wi-Fi(STA) Configuration

Verification

1. Check the Wi-Fi (STA) interface status under Dashboard > Interface Status.
2. Check the link health status under Status > Link Monitoring.

Troubleshooting

• Unable to connect to the AP: Check whether the SSID and password are correct, and confirm the AP's signal strength.
• Authentication failure: Verify that the AP's authentication and encryption policies match the IR925 configuration.

Scenario 4: Connect to DeviceLive Cloud Platform

Objective: Connect the device to the DeviceLive Platform to enable remote management and monitoring.

Prerequisites: The device has Internet access. The device serial number and MAC address are available.

Estimated Time: About 10 minutes.

Operation Steps： 1. Open a web browser (Google Chrome recommended) and navigate to [https://device.inhandcloud.com]to access the DeviceLive login/registration page. Click Create Now to create a platform account.

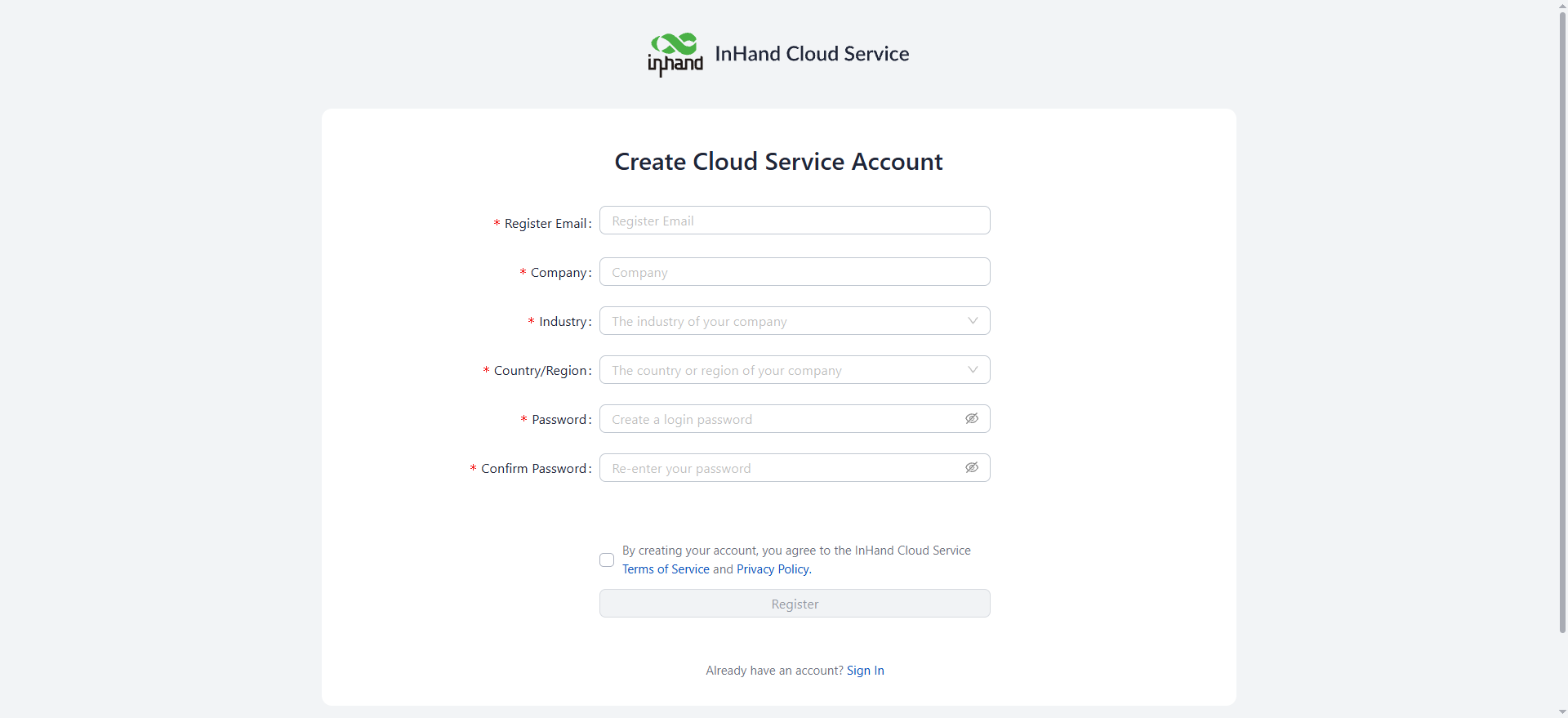

Figure 3-4 DeviceLive Register

1. After completing account registration, log in to the InHand Cloud Service Platform with your username and password, then select the DeviceLive service.

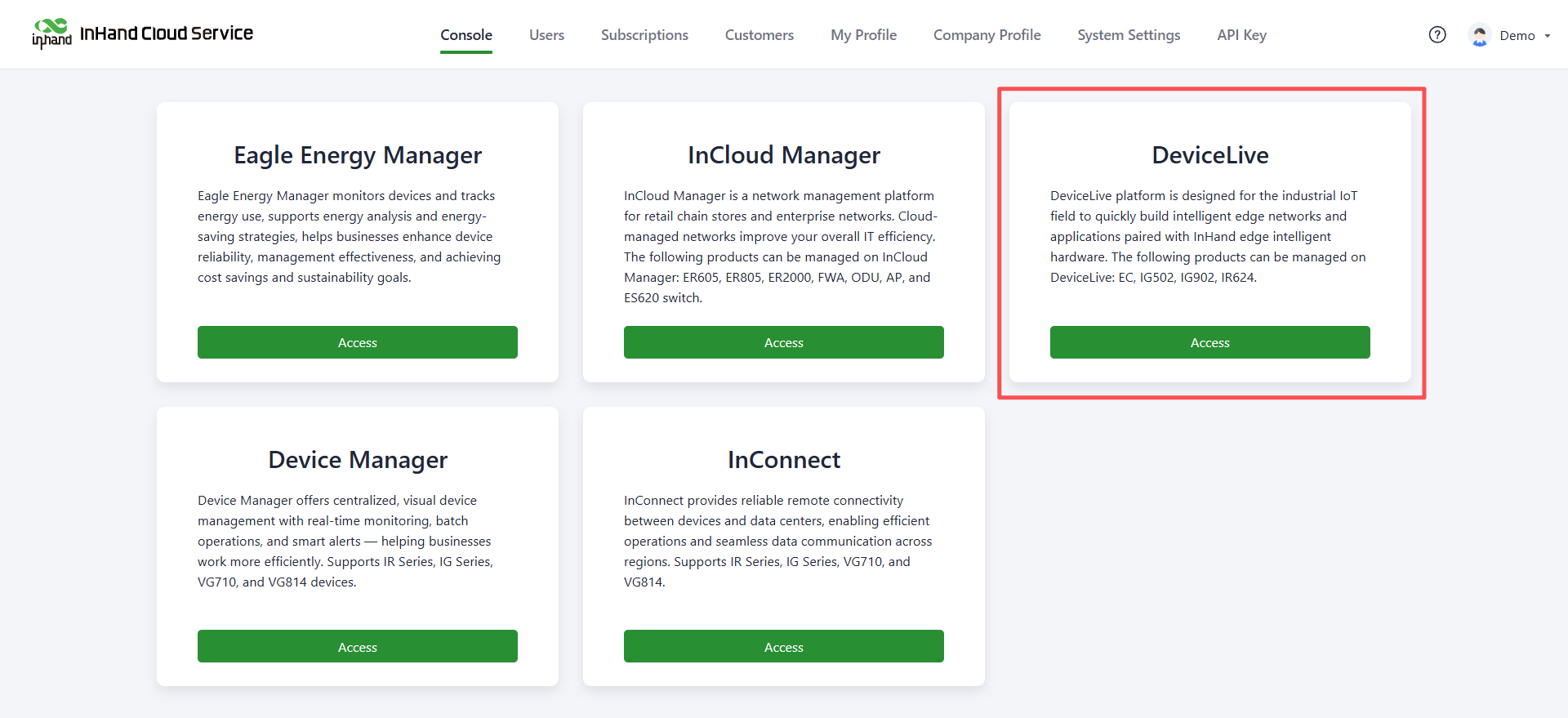

Figure 3-5 DeviceLive Login

1. Once inside the DeviceLive platform, go to the Devices menu and click the Add button. Fill in the device name, serial number and MAC address, then click Finish.

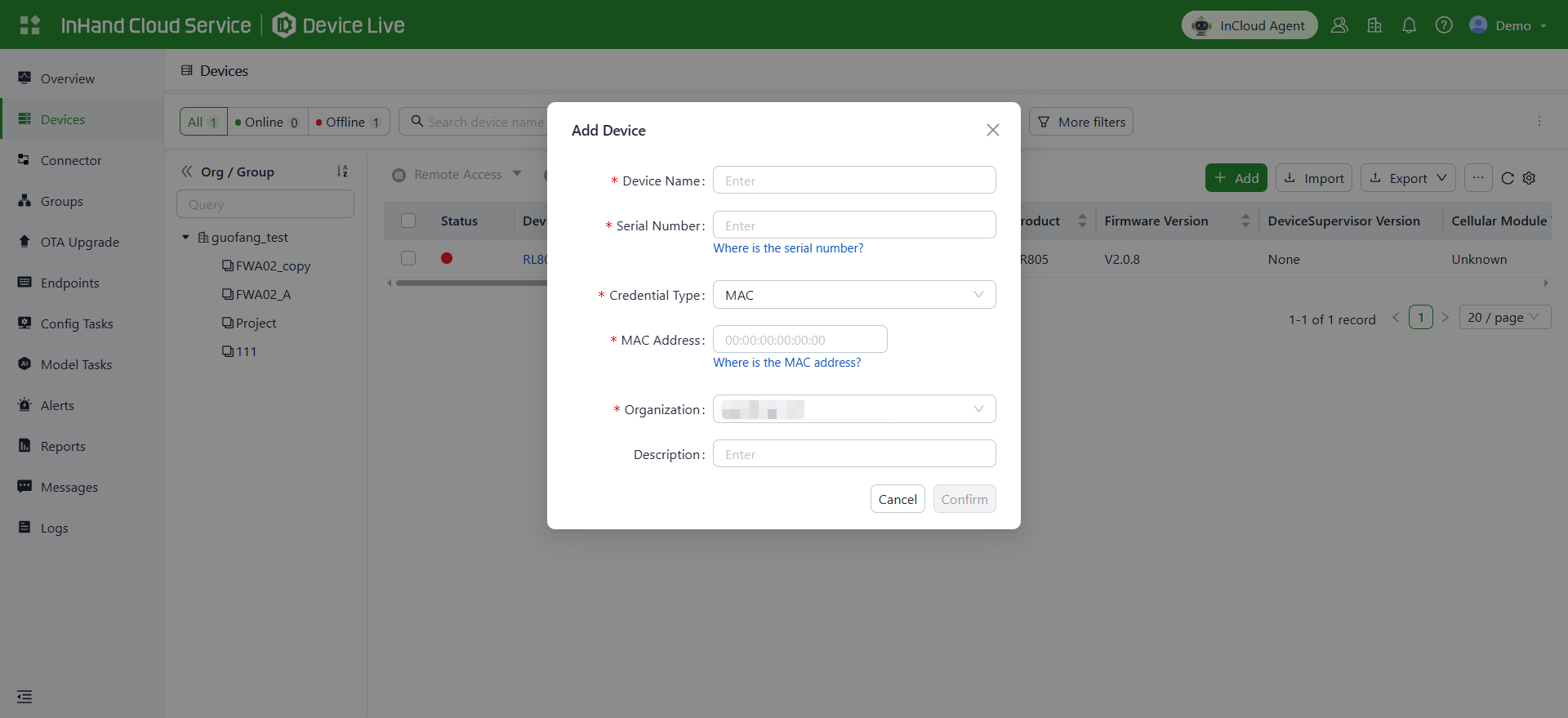

Figure 3-6 Add Device

Verification Methods： 1. Check the device online status in the Devices list on the DeviceLive platform. 2. Click the Device Name to view detailed device information.

Common Issues： - Device shows offline: Verify that the device has normal Internet connectivity and confirm the serial number and MAC address are entered correctly. - The IR925 applies a license policy with free basic features and paid advanced features. Standard device management and monitoring functions are available for free. To use features such as cloud connectivity, purchase an advanced license under Subscriptions > Licenses.

Chapter 4 Feature Descriptions and Parameter Reference

4.1 Device Monitoring

After the device is added to the DeviceLive platform, you can manage and monitor the network via the cloud platform. Remote access to the device’s local Web UI through the cloud platform is also supported.

4.1.1 Device Overview

Overview

In the Devices list, click the Device Name to view detailed device information, including basic device information, interface status, traffic statistics, cellular signal strength, and the number of Wi‑Fi connected client devices.

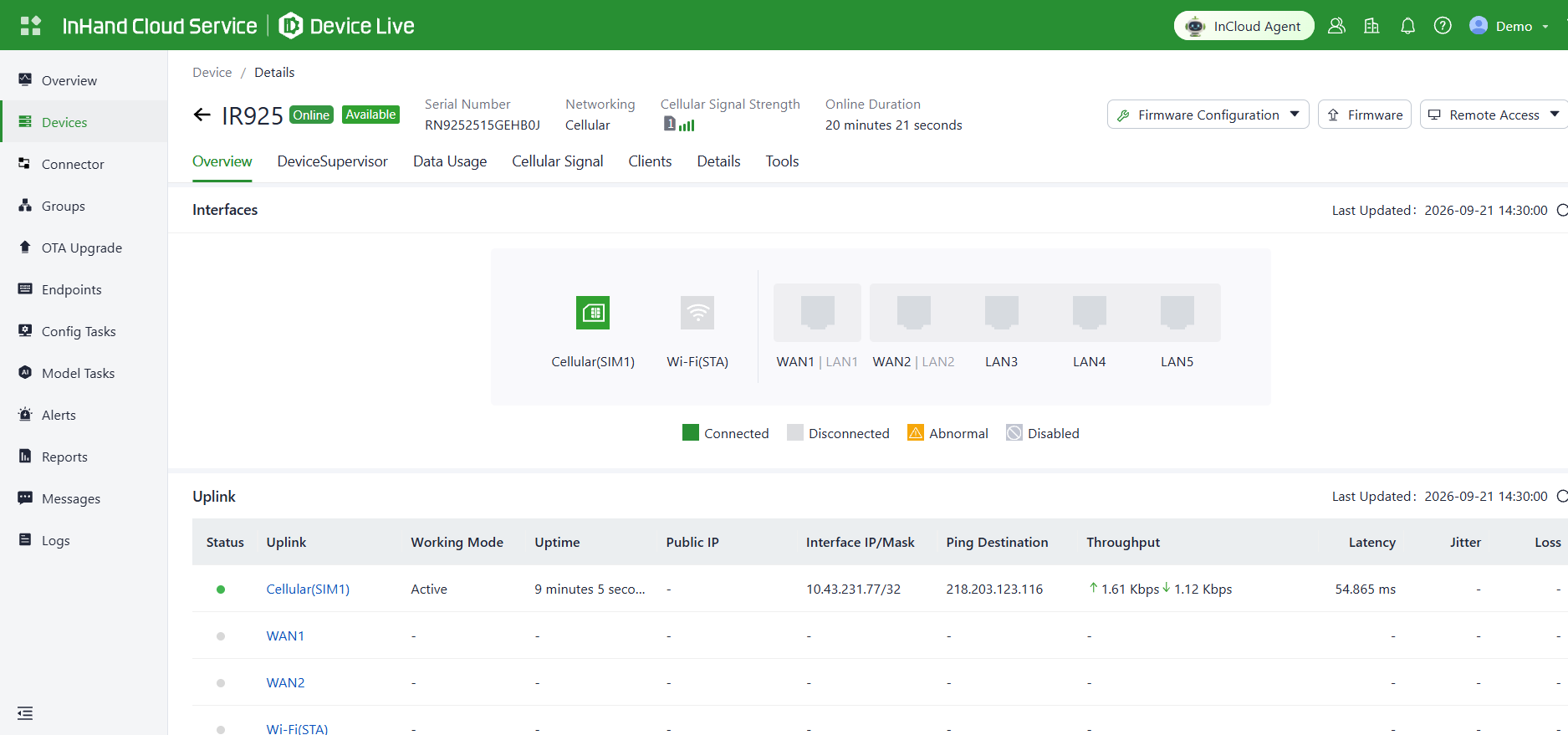

Figure 4-1 Overview

Traffic Usage

On the Device > Data Usage page, you can view historical traffic data for each uplink port.

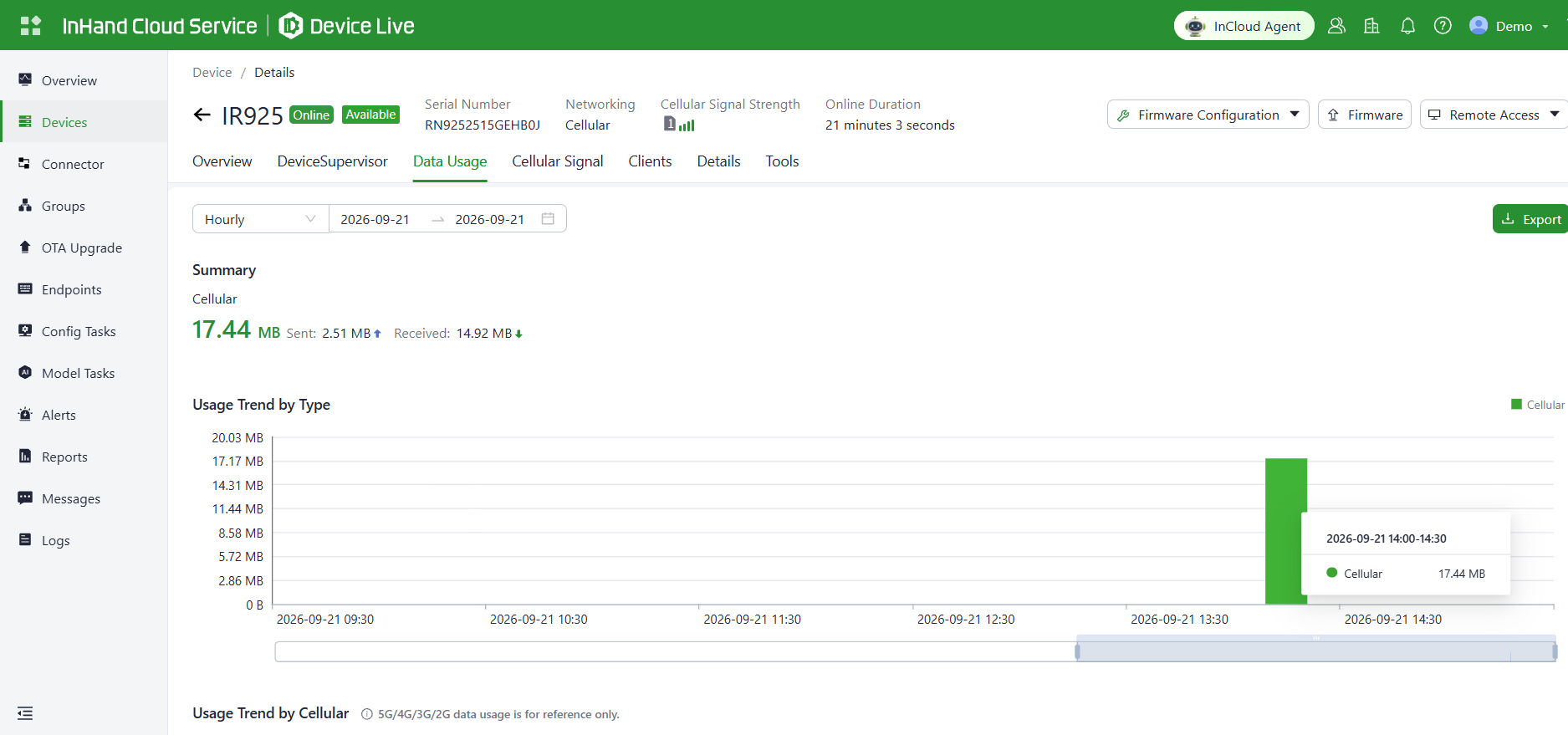

Figure 4-2 Data Usage

Cellular Signal

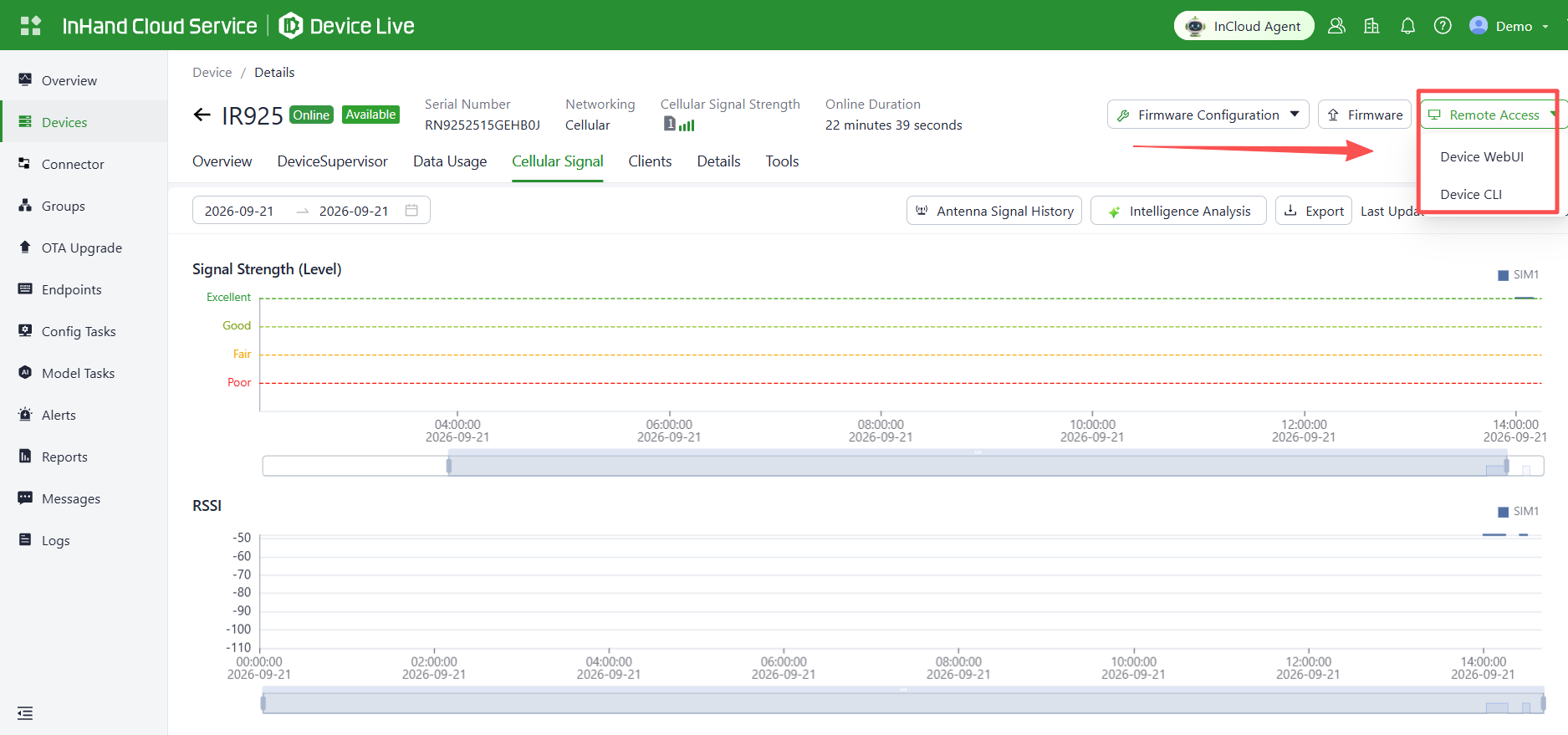

On the Device > Cellular Signal page, you can view historical data of various cellular signal parameters, including signal strength, RSSI, RSRP, RSRQ and SINR.

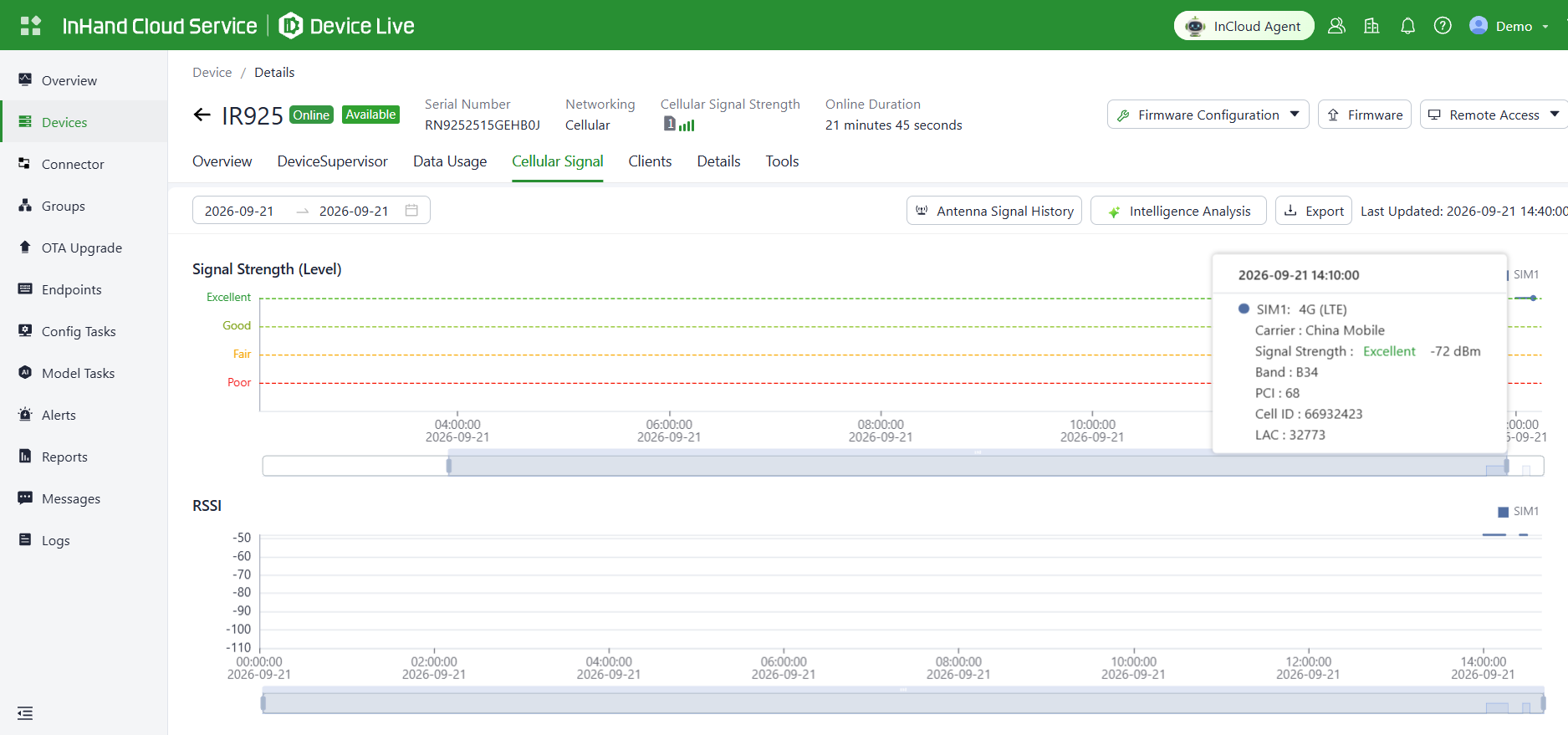

Figure 4-3 Cellular Signal

4.1.2 Device Information

With the Remote Access feature of DeviceLive, you can view and configure the device in real time. Check the target device and click Remote Access to open the local login page of the device.

Figure 4-4 Remote Access

Device Information

In the 【Dashboard】 interface, basic device information is displayed at the top, including the device name, model, serial number, MAC address, online duration, and upstream interface address.

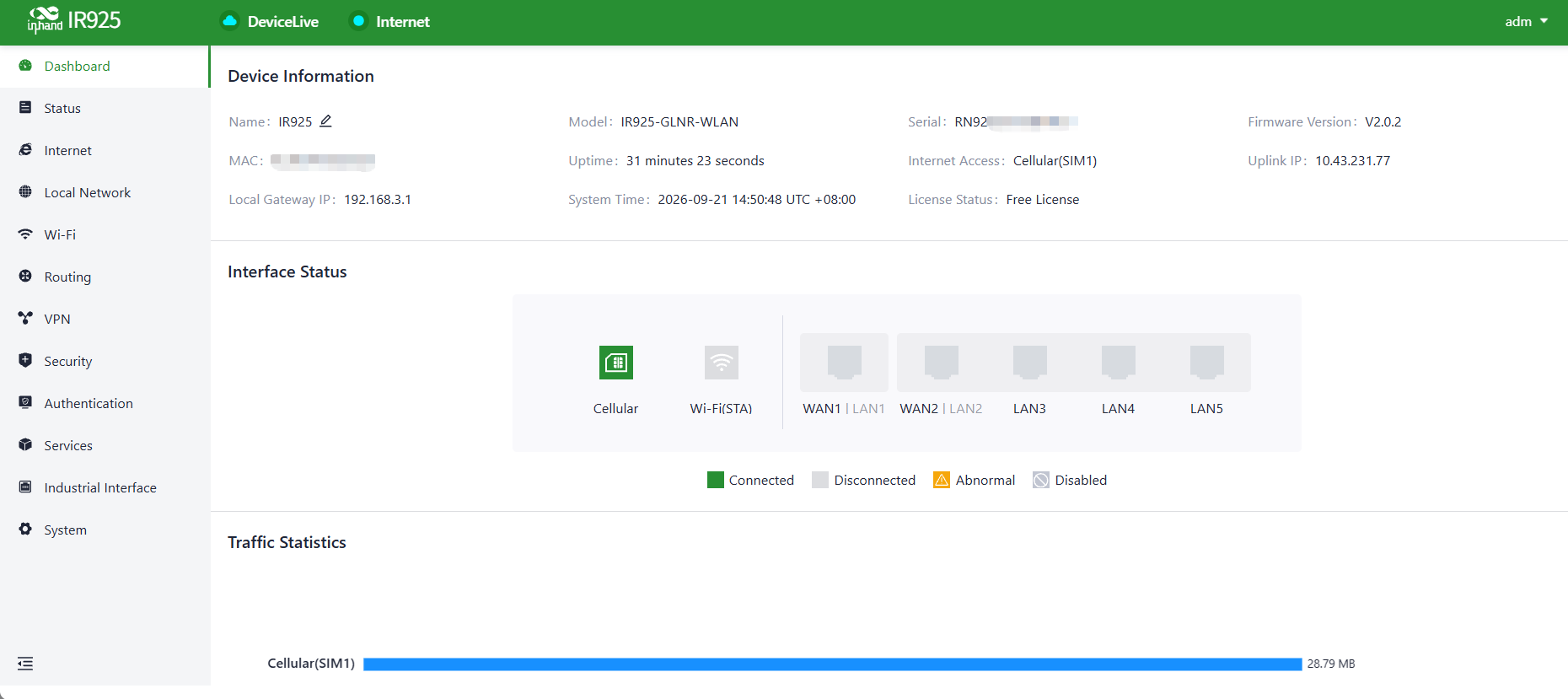

Figure 4-5 Dashboard Device Information

Parameter	Description
Name	Identifies the device's name, initially set to "IR925" but can be customized
MAC Address	Identifies the device's physical MAC address
Local Gateway Address	The default gateway address of the device's subnet
Model	Specifies the device's specific model, which can help determine if it supports cellular and WLAN features
Uptime	Reflects the device's running time since it was powered on
System Time	Displays the device's time zone and system time
Serial	A unique code that serves as an identifier for the device and can be used for indexing or adding the device to a platform account
Internet Access	The upstream interface used by the device for internet connectivity
License Status	Information about the applied license on the device, distinguishing between Small Star Cloud Manager Basic and Small Star Cloud Manager Professional
Firmware Version	Shows the device's current software version
Uplink IP	The IP address of the upstream interface used for device internet connectivity

Interface Status

In the Dashboard > Interface Status feature, the operational status of each interface can be visually inspected. By clicking the "Interface Icon," detailed information for each interface can be accessed in a pop-up box on the right-hand side of the interface.

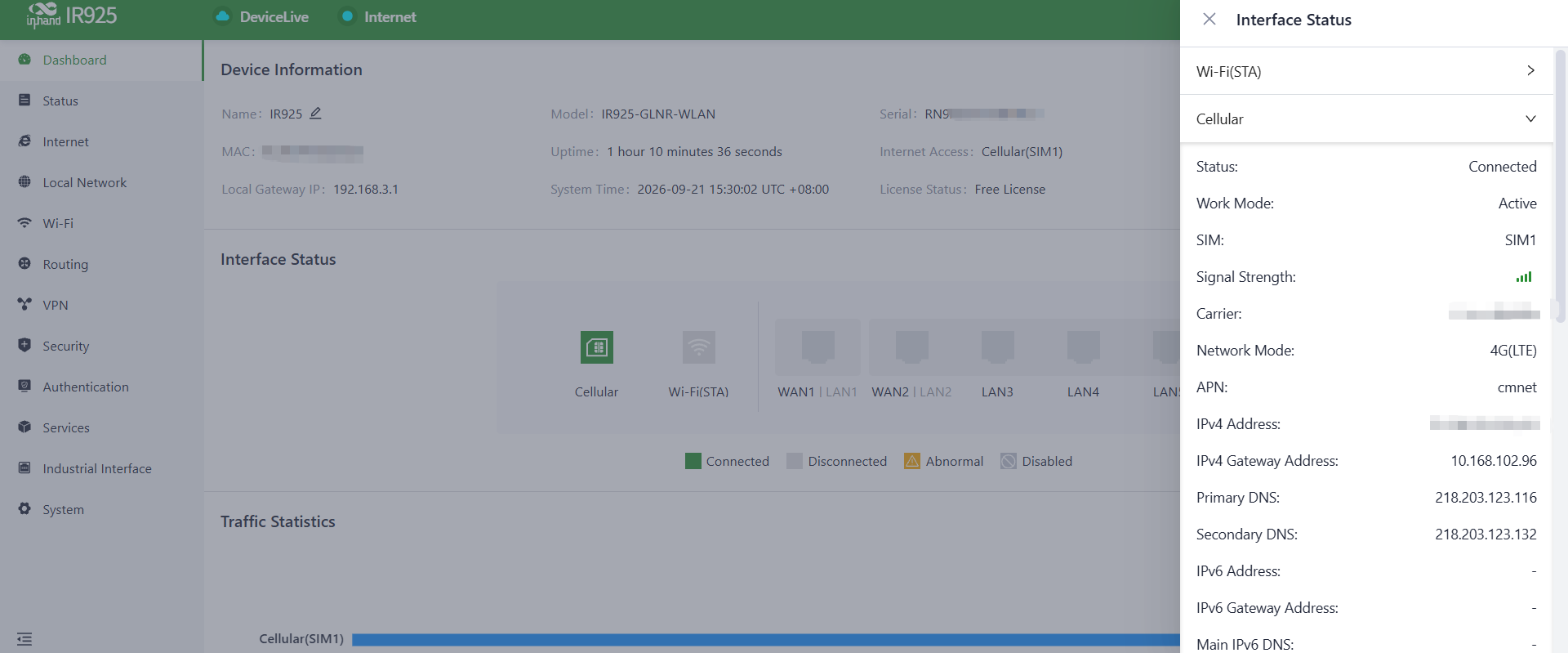

Figure 4-6 Interface Status

Traffic Statistics

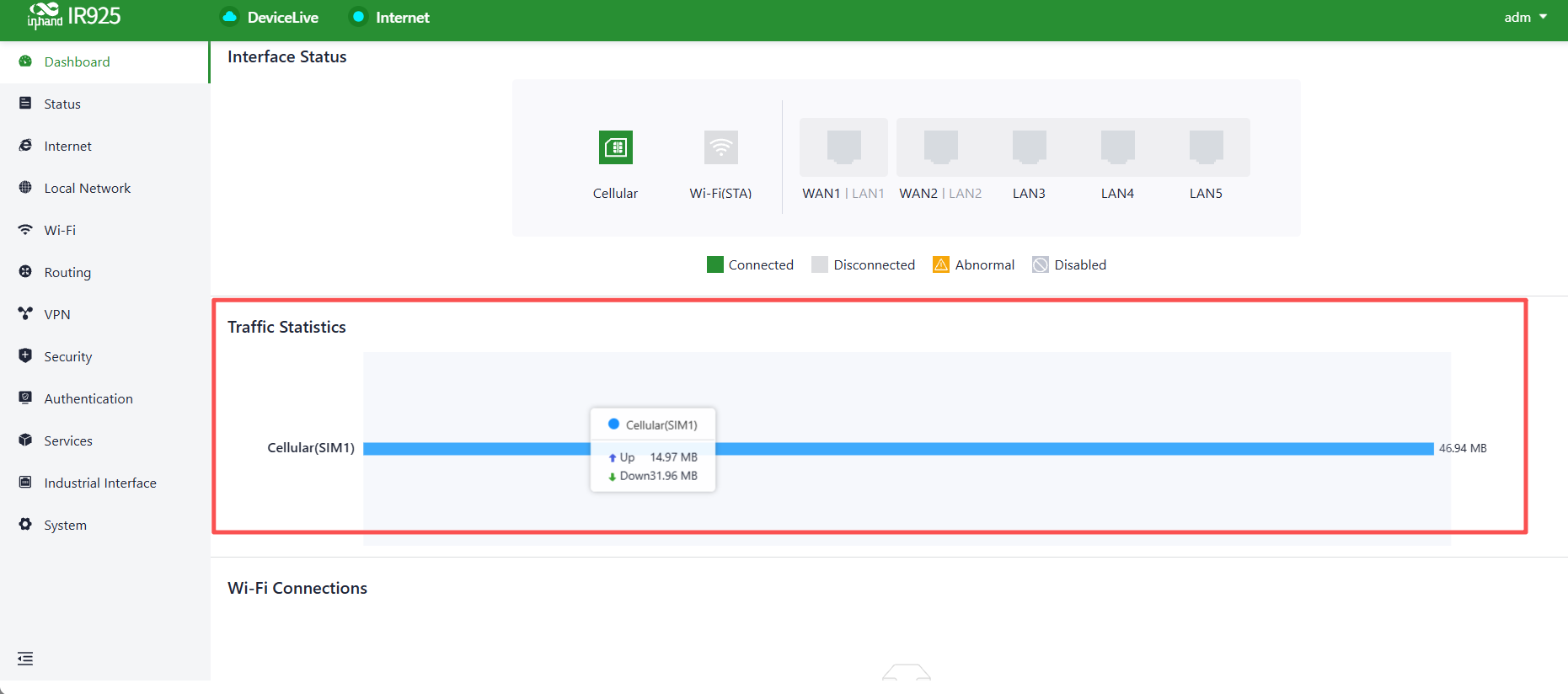

The usage of traffic on each upstream interface since the router was powered on can be monitored through the Dashboard > Traffic Statistics feature. The data in traffic statistics will reset after the device is rebooted. If historical traffic records are needed, they can be accessed on the device's details page within DeviceLive.

Figure 4-7 Traffic Statistics

Wi-Fi Connections

In the Dashboard > Wi-Fi Client Count feature, the number of active SSIDs on the IR925 and the number of connected clients under each SSID can be checked.

4.2 Status

Under the Status function, the device uplink status, operation logs, and events can be viewed to accurately grasp the device operation status.

4.2.1 Link Monitor

The Status > Link Monitoring feature displays the health status of each upstream link, along with information about throughput, latency, packet loss, and signal strength for each interface.

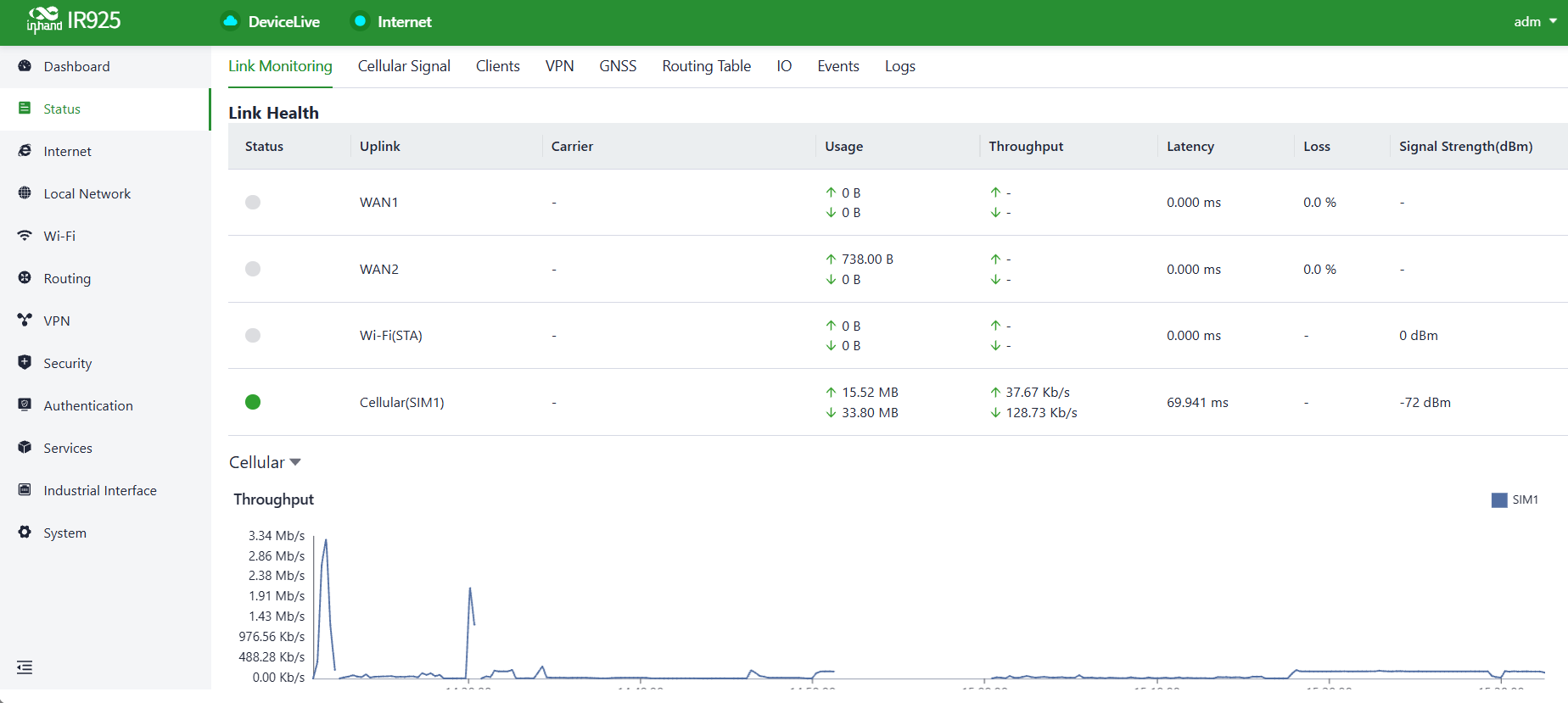

Figure 4-8 Link Monitoring

4.2.2 Cellular Signal

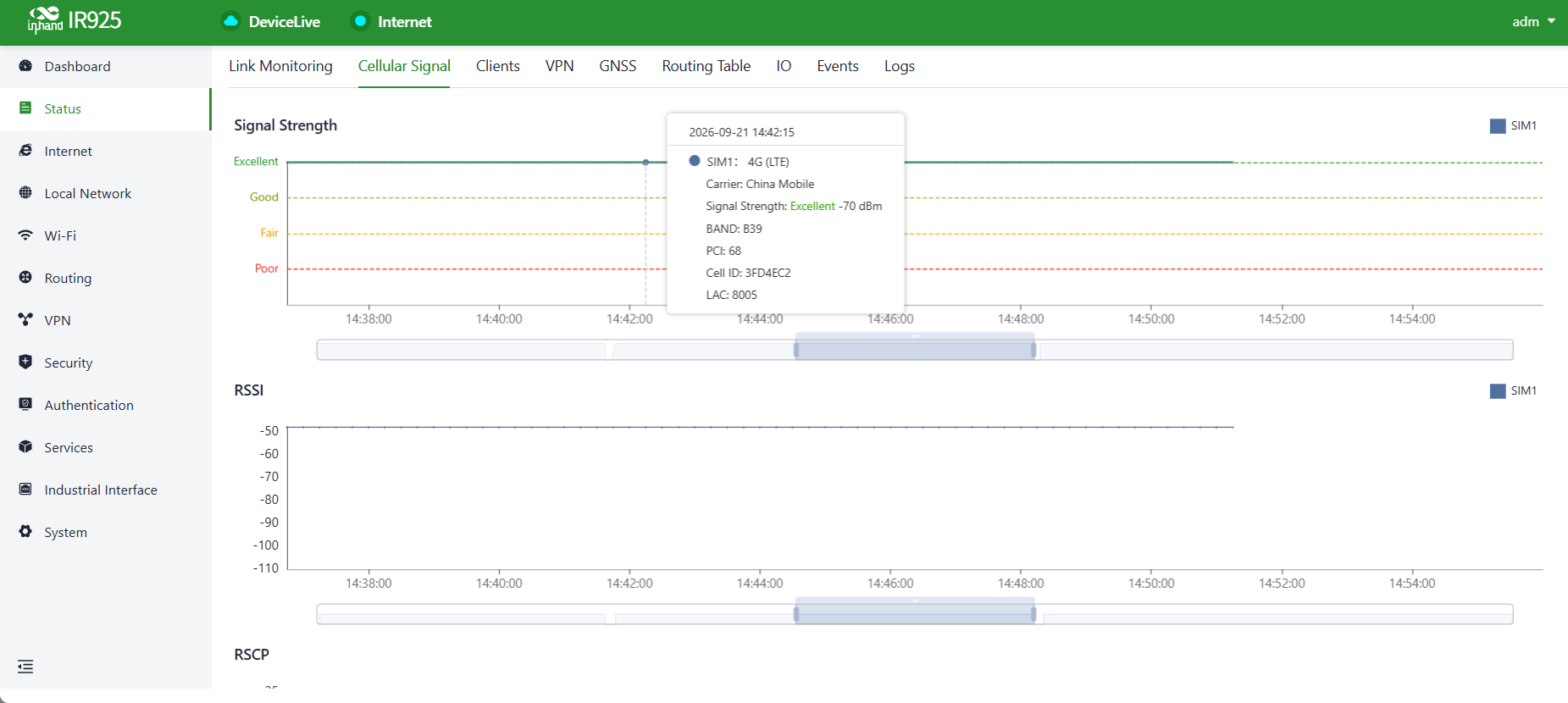

The Status > Cellular Signal feature displays the signal strength of SIM cards under the cellular interface, along with parameters such as RSSI, SINR, and RSRP.

Figure 4-9 Cellular Signal

4.2.3 Clients

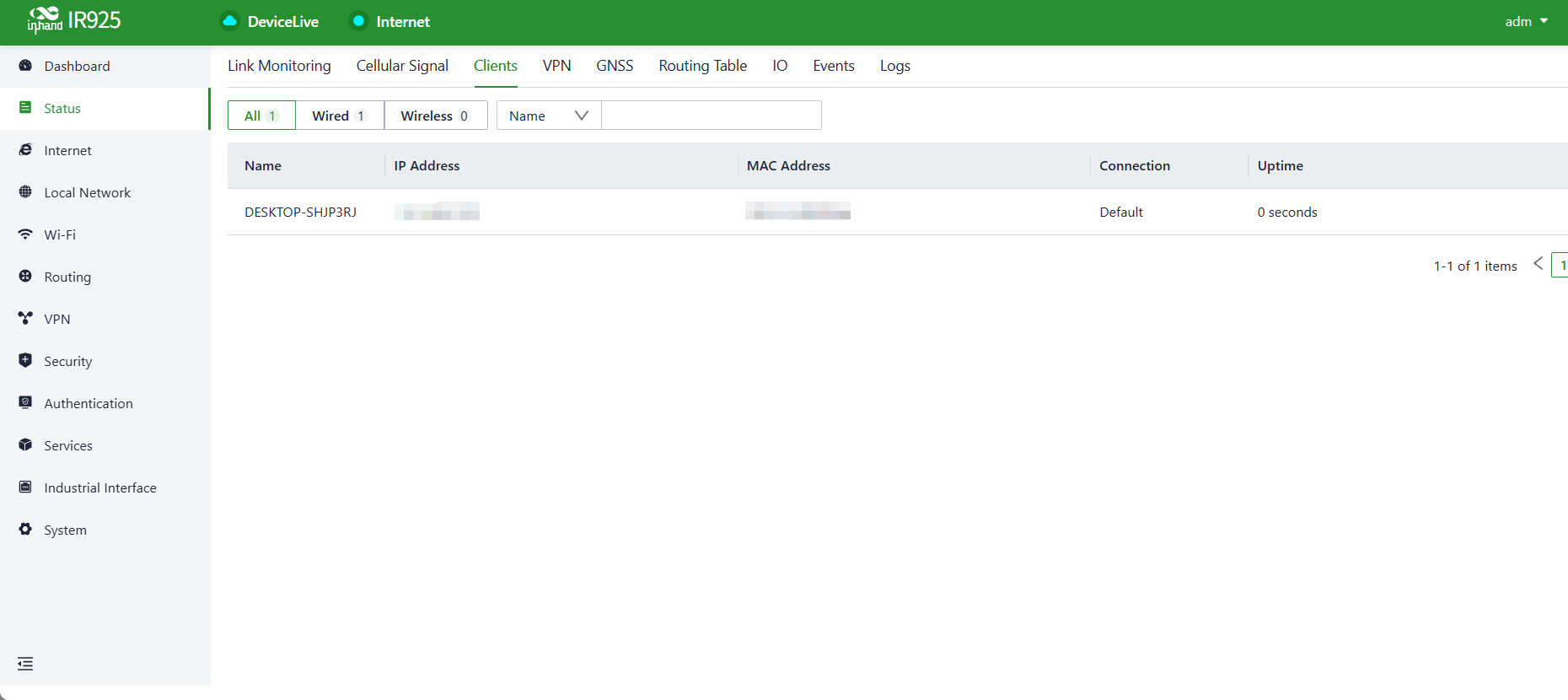

The Status > Clients feature displays detailed information about wired and wireless clients connected to the router, including names, addresses, MAC addresses, VLANs, connected subnets, traffic usage, and online duration.

Figure 4-10 Clients

4.2.4 VPN

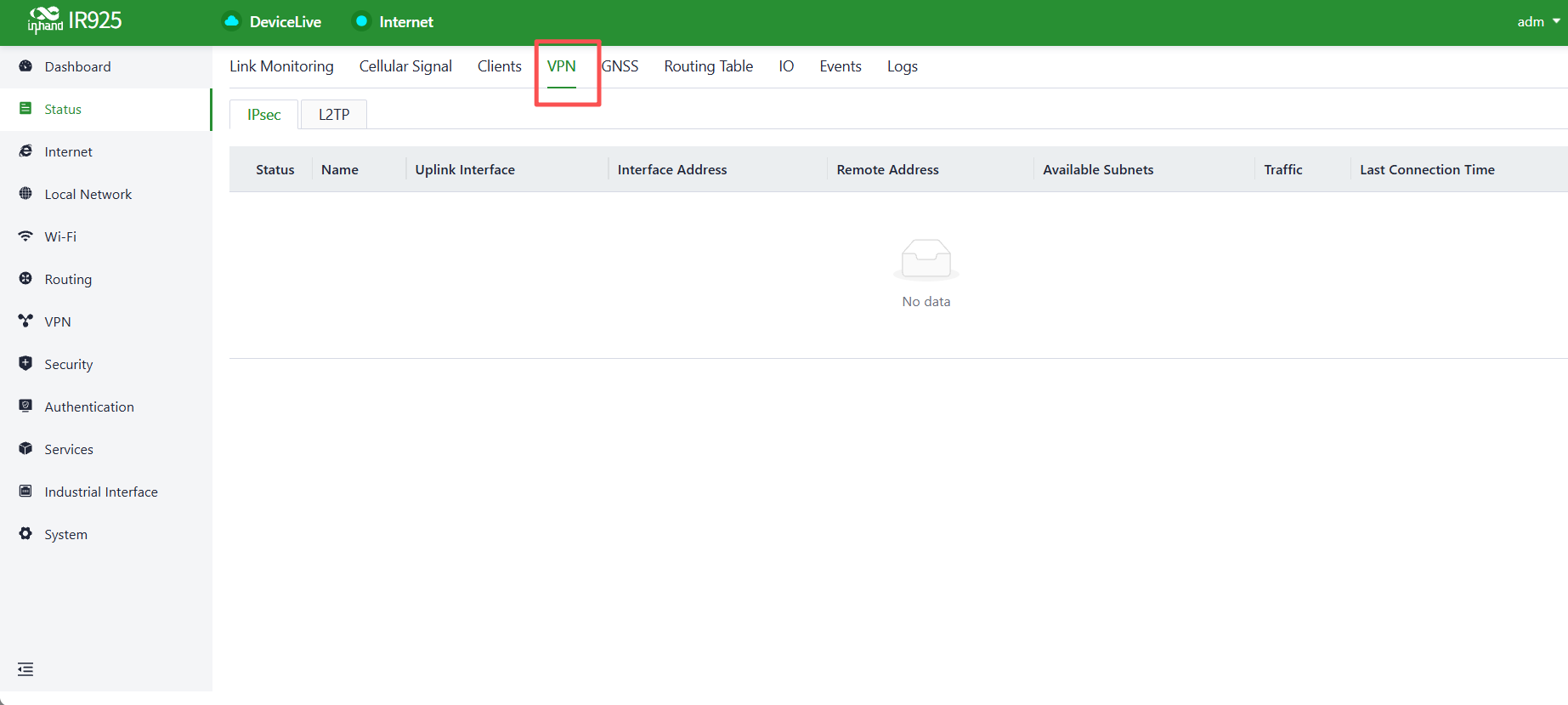

The Status > VPN feature displays information about IPsec VPN and L2TP VPN, including their status, traffic, and the duration of the most recent connection.

Figure 4-11 VPN Status

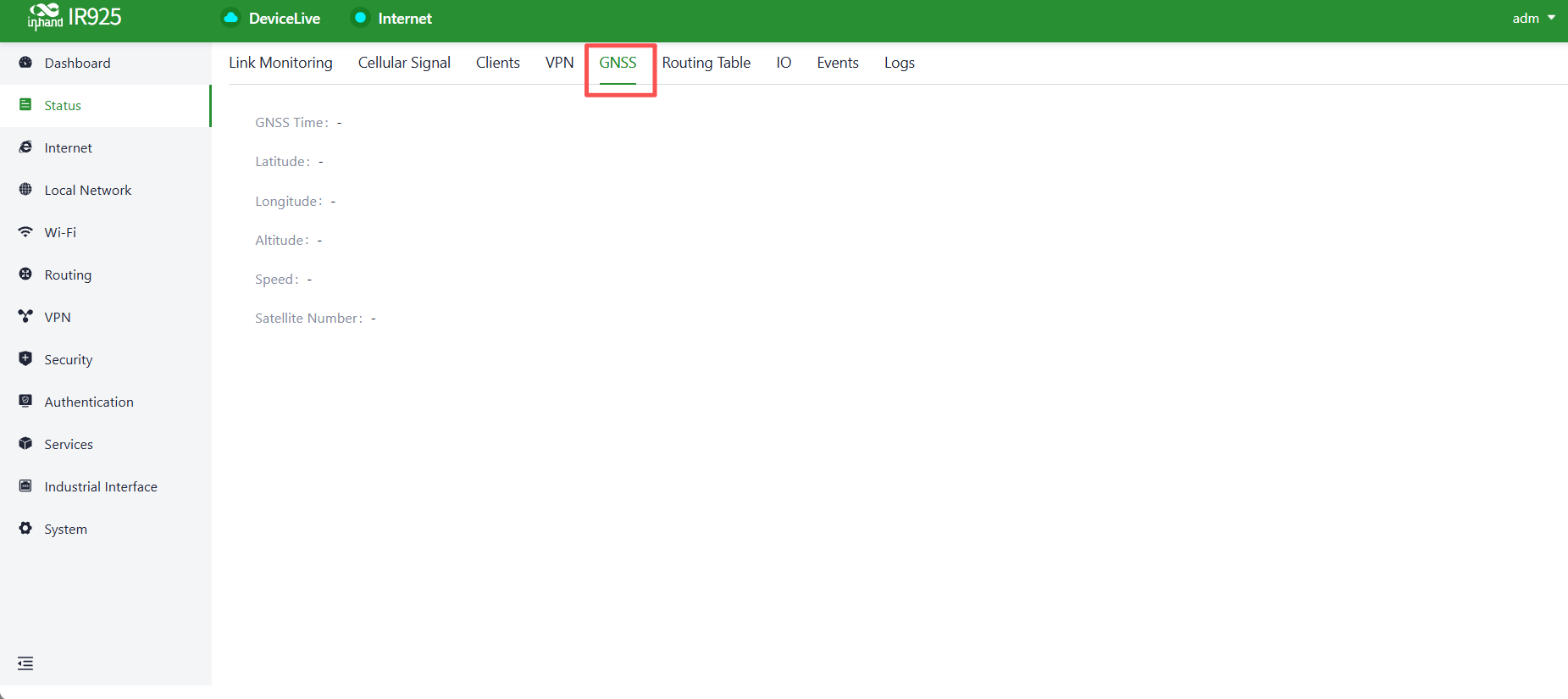

4.2.5 GNSS

Users can view satellite positioning information via Status > GNSS to determine the device's current location.

Figure 4-12 GNSS Positioning Information

4.2.6 Routing Table

Users can view all current routing information via Status > Routing Table to review the device's routing configuration.

Figure 4-13 Routing Table

4.2.7 I/O

Users can view the status of I/O interfaces via Status > I/O to check the operating status of the device's I/O interfaces.

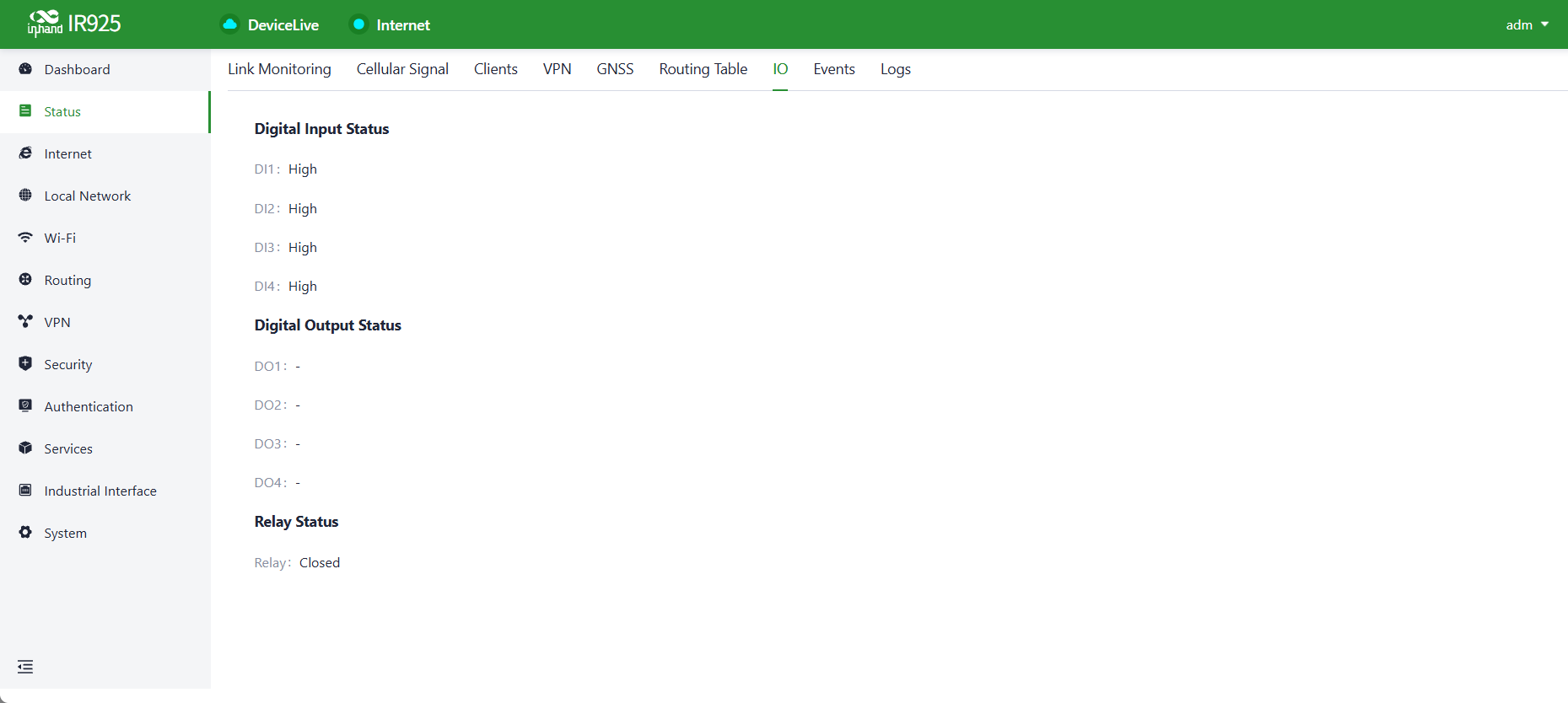

Figure 4-14 I/O Status

4.2.8 Events

The Status > Events feature displays event information related to the device's operation to help users understand the device's operational status.

Figure 4-15 Events

Currently supported event types are as follows: - Login Successful/Failed - Configuration changed - CPU uilization is too high - Memory utilization is too high - VPN status changed - Uplink status changed - Client status changed - Uplink switched - WAN/LAN1 switched - Upgrade - Reboot - Detection status changed - Cellular traffic reaches the threshold - Carrier switched

4.2.9 Logs

The Status > Logs feature allows users to examine the system logs, which contain information about the device's operational history. When the device encounters issues, technical personnel can use these logs for troubleshooting and diagnosis.

Figure 4-16 Logs

The log management functions are as follows:

1. Download Logs: Download the device's operational logs.
2. Download Diagnostic Logs: Download the device's diagnostic logs, which include system operation logs, device information, and device configurations.
3. Clear Logs: Clear the device's operational logs. This does not clear the device's diagnostic logs.

4.3 Internet

The Internet function is used to configure the parameters and operational modes of each upstream interface. The IR925 supports three access network modes: wired, cellular, and Wi-Fi. The device comes with two non-removable upstream links by default: WAN1 and Cellular. It can support up to four upstream links, including WAN1, Cellular, and Wi-Fi (STA). Wi-Fi (STA) interfaces need to be manually added and can be removed as needed.

4.3.1 Wired Connection

The parameters and operation modes for each upstream interface can be configured under the Internet function. The IR925 supports three access network modes: wired, cellular, and Wi-Fi. It can support up to three upstream links, including WAN, cellular, and Wi-Fi (STA). The WAN and Wi-Fi (STA) interfaces need to be manually added and can be deleted as needed; the cellular upstream link cannot be deleted.

Figure 4-17 Wired Connection Configuration

DHCP: The device's WAN interface has DHCP service enabled by default. Simply connect the WAN interface to the internet using an Ethernet cable, and it will automatically establish an internet connection.

Static IP: Users have the option to manually configure an address either obtained from their internet service provider or one that is within the same network segment as their upstream device. Once the configuration is complete, the router will access the network via the specified static IP address.

Figure 4-18 Static IP Configuration

PPPoE: Users have the option to configure broadband dial-up. Once the configuration is complete, the router will establish an internet connection through the broadband dial-up.

Figure 4-19 PPPoE Configuration

Cautions： - After adding a WAN interface, the original LAN1 port will switch its role to WAN. - After deleting the WAN interface, the former WAN port will revert to LAN1. - Deleting the WAN interface will remove all associated configurations including static routes, inbound/outbound rules, port forwarding, policy routing.

4.3.2 Wireless Connection

The IR925 supports connecting as a client to an on-site AP's network. To do this, click the "Add" button, select "Wi-Fi (STA)," and fill in the required parameters, including the SSID name and password.

Figure 4-20 Wi-Fi STA Configuration

Cautions: 1. Upon adding Wi-Fi (STA), the IR925 will automatically disable SSIDs in the same frequency band within the Wi-Fi settings, and the status field for those SSIDs cannot be modified. 2. After removing Wi-Fi (STA), the "Status" field and SSIDs in the same frequency band within the Wi-Fi settings can be modified. 3. When Wi-Fi (STA) is deleted, all configuration associated with the Wi-Fi (STA) interface, including static routes, inbound/outbound rules, port forwarding, policy routing, and traffic shaping settings, will be removed.

4.3.3 5G/4G Connection

In the usual scenario, upon inserting the SIM card and connecting the antennas, the IR925 router will automatically establish a dial-up connection and connect to the network when powered on.

To configure APN (Access Point Name) parameters, select the "Cellular" interface in the 【Internet】 menu and click the "Edit" button to access the APN parameter configuration interface.

Figure 4-21 Cellular APN Configuration

The IR925 also includes a traffic policy feature. Once the policy is enabled, the SIM card will take specific actions when the traffic reaches a threshold. Traffic usage statistics will reset at the beginning of the next month.

Select the "Cellular" interface in the 【Internet】 menu and click the "Policy" button to access the SIM card's policy parameter configuration interface.

Figure 4-22 Cellular Traffic Policy

Action	Description
Notification	Generates an event when traffic reaches the threshold but does not stop forwarding regular business traffic
Cloud Management Only	Generates an event when traffic reaches the threshold, allowing only the forwarding of cloud-based management traffic while blocking access to the internet for regular business traffic
Switch the SIM Card	Generates an event when traffic reaches the threshold and switches to another SIM card for internet access

Cautions: 1. In certain dedicated network scenarios, it may be necessary to manually disable the "Link Detection" function under the 【Internet】 menu to prevent cellular connectivity issues caused by unsuccessful detection. 2. In some cases, manual configuration of the subnet mask for the cellular interface may be required to ensure the proper functioning of the ARP feature. 3. When inserting or removing a SIM card, it is essential to disconnect the power to prevent data loss or damage to the device.

4.3.4 Uplink Table

The WAN and Wi-Fi (STA) interfaces can be added, edited, or removed in the Internet > Uplink Table. The priority of each interface can also be adjusted by dragging the "Priority" icon. Interfaces are arranged from top to bottom based on their priority, with higher priority interfaces taking precedence in determining the current upstream interface for device operation.

Figure 4-23 Uplink Table

4.3.5 Uplink Settings

Link detection settings and collaboration modes between different upstream interfaces can be configured through the Internet > Uplink Setting feature.

Figure 4-24 Uplink Settings

Link Detection Switch: The device has link detection functionality enabled by default. However, in certain specialized network environments where external communication is not possible, users may need to manually disable link detection. When link detection is turned off, latency, jitter, packet loss, signal strength, and other information for upstream interfaces will not be viewable in the 【Status】 menu.

Notes: 1. Modifying settings in the Internet menu can potentially lead to a disruption in device connectivity. Exercise caution when making changes. 2. When the link detection address is left empty, the default behavior is to detect the DNS address via the upstream interface. If a detection address is specified, all upstream interfaces will only detect the address provided. 3. In the router's link backup mode, users can customize detection parameters, and the device will switch links based on the enabled detection items. When detection items are not enabled, upstream link switching will only occur based on priority and link connectivity. 4. In the device's load balancing mode, all operational upstream links will forward business traffic, provided they are functioning correctly.

4.4 Local Network

Users can customize local subnets in Local Network, including configuring parameters such as the LAN address range, VLAN ID, and DHCP service. After configuration, users need to apply these settings to the device's LAN ports via Interface Management, or to the target SSID in the Wi-Fi settings. These operations ensure that client devices can connect to the local network smoothly according to the planned network addresses.

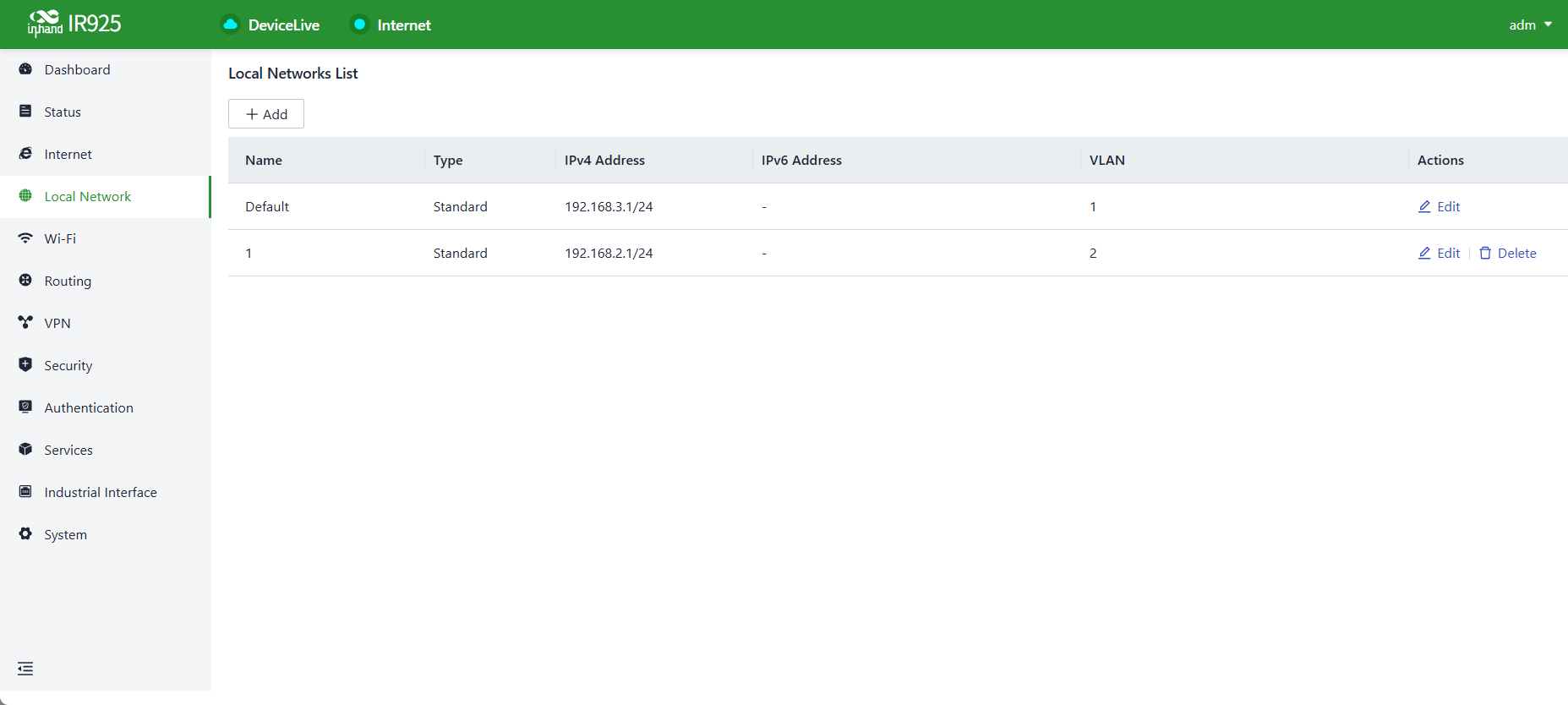

Figure 4-25 Local Network List

Click the Add/Edit button to add a new local network or edit an existing one.

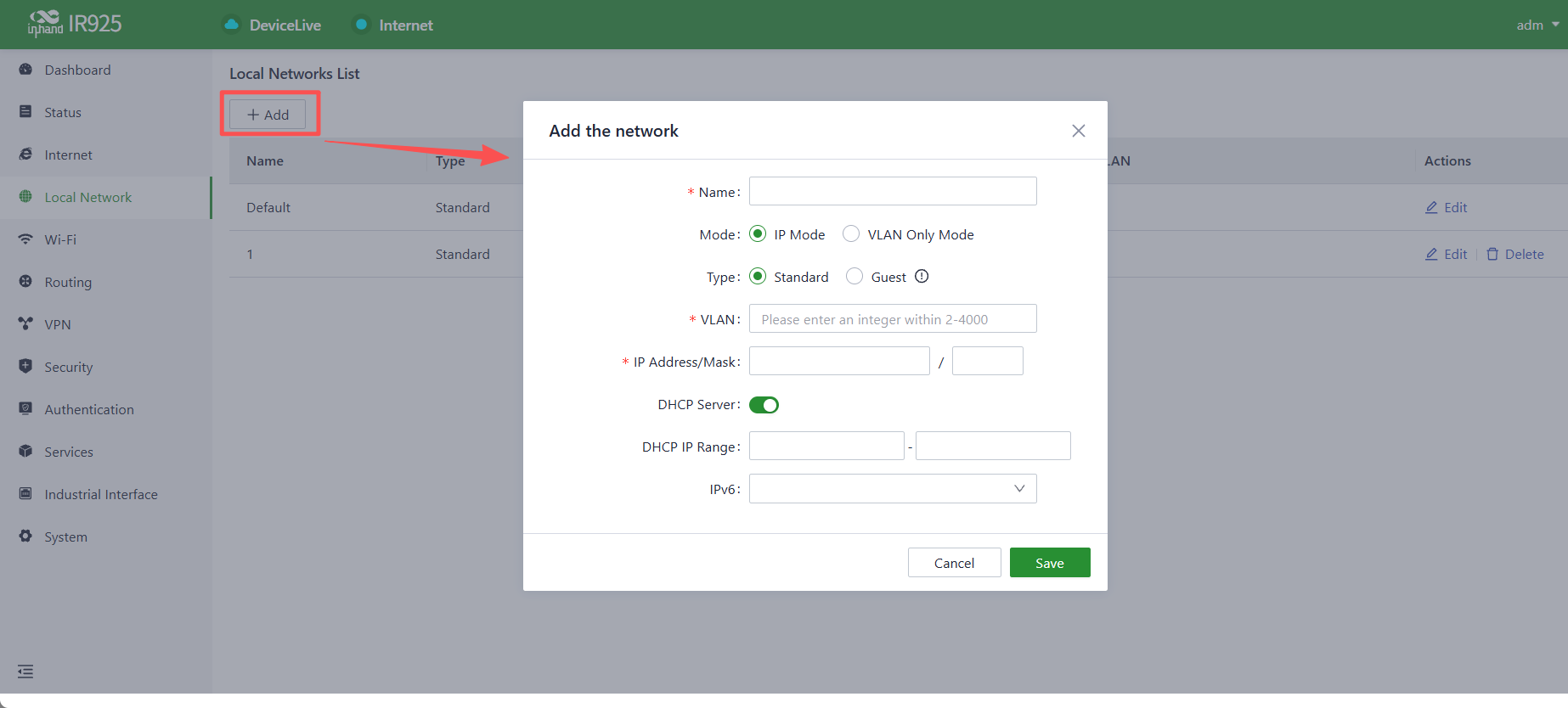

Figure 4-26 Local Network Add/Edit

• Name: Identifies the network. This name is used to select the network to be applied in Wi-Fi and Interface Management.
• Mode: Specifies whether the current subnet operates in Layer 2 transparent mode or Layer 3 IP mode. Default: IP Mode.
• VLAN: Divides the LAN into different virtual logical networks. By default, all interfaces and Wi-Fi networks use the default (VLAN 1) network.
• IP Address/Netmask: The gateway address for accessing the router via LAN port or Wi-Fi. Default: 192.168.2.1.
• DHCP Server: Clients connected to the router obtain IP addresses through this feature. Default: Enabled. The address pool range is automatically generated based on the IP Address/Netmask.
• The default local network cannot be deleted; only the IP Address/Netmask and DHCP Server settings can be modified.
• The mode of an added local network cannot be modified.
• VLAN Only mode is used for Layer 2 transparent transmission; IP Address/Netmask and DHCP Server configuration are not required.

4.5 Wi-Fi

4.5.1 SSIDs

The IR925 functions as an Access Point (AP) to provide multiple SSID wireless network access. Different SSIDs can be configured for various purposes and configurations.

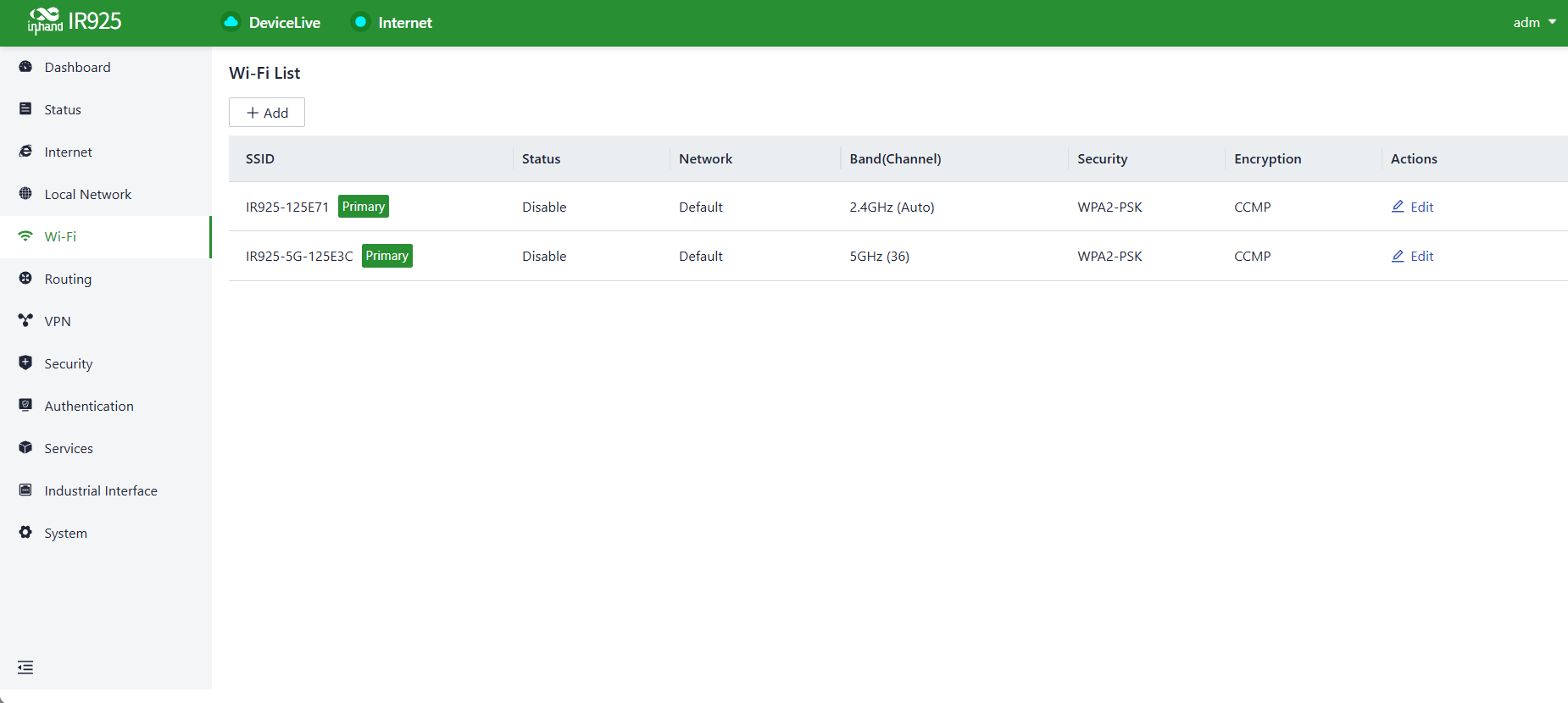

Figure 4-27 Wi-Fi List

To add a new SSID or edit an existing one, navigate to 【Wi-Fi】→【Wi-Fi List】 and click the "Add/Edit" button.

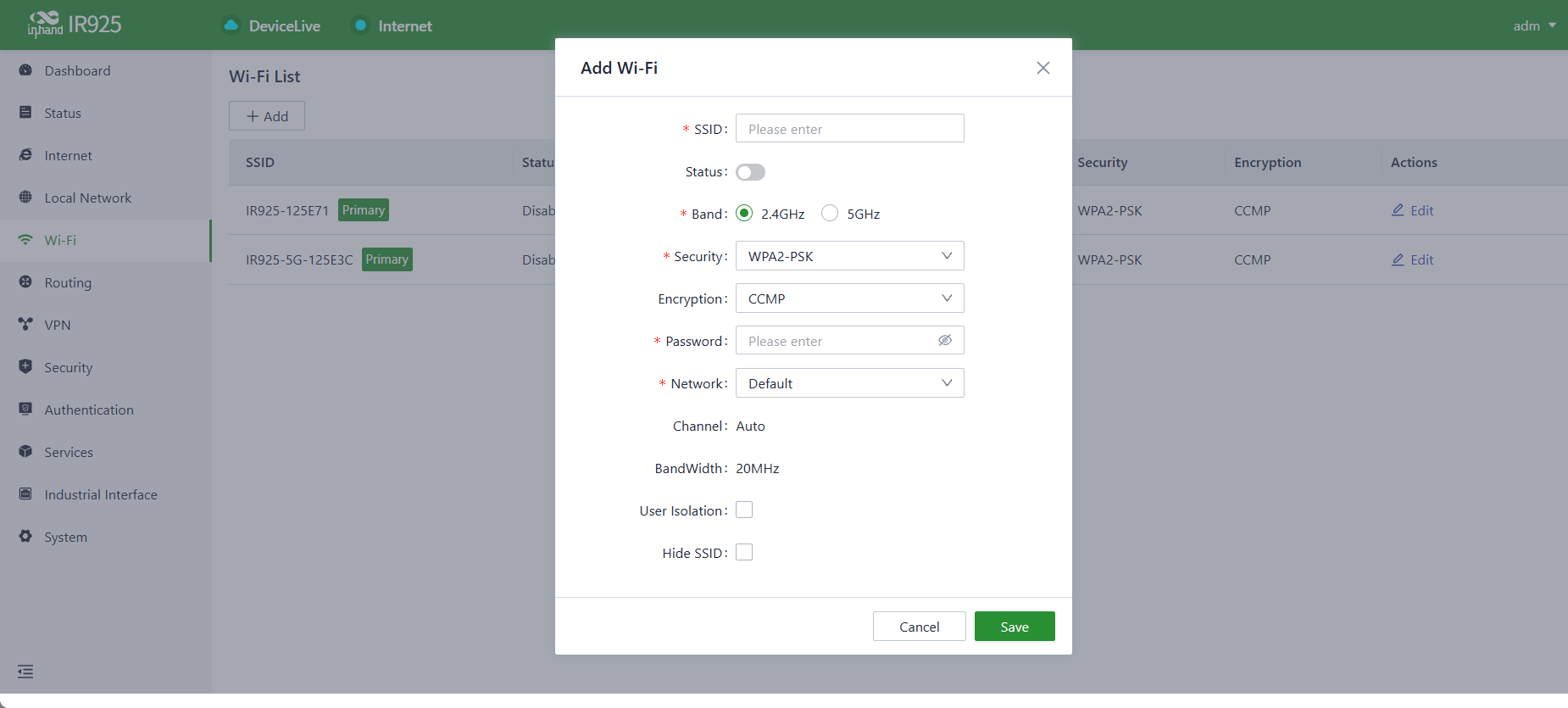

Figure 4-28 SSID Add/Edit

Notes:

1. The device is equipped with default 2.4GHz and 5GHz main SSIDs. The frequency bands of these main SSIDs cannot be modified, and the main SSIDs cannot be deleted.
2. Once an SSID is added, its frequency band cannot be changed. The added SSID automatically uses the same channel as its corresponding main SSID.
3. If a user creates a Wi-Fi (STA) interface in the 【Internet】 menu with the same frequency band as an existing SSID, that SSID cannot be enabled until the Wi-Fi (STA) interface is deleted.

4.6 Routing

The IR925 supports static routing. Users can configure static route entries via Routing > Static Routing to forward data through specified paths and interfaces. All entries in the static routing table are manually created by users; routes automatically generated by other services, such as VPN, are not displayed in this table.

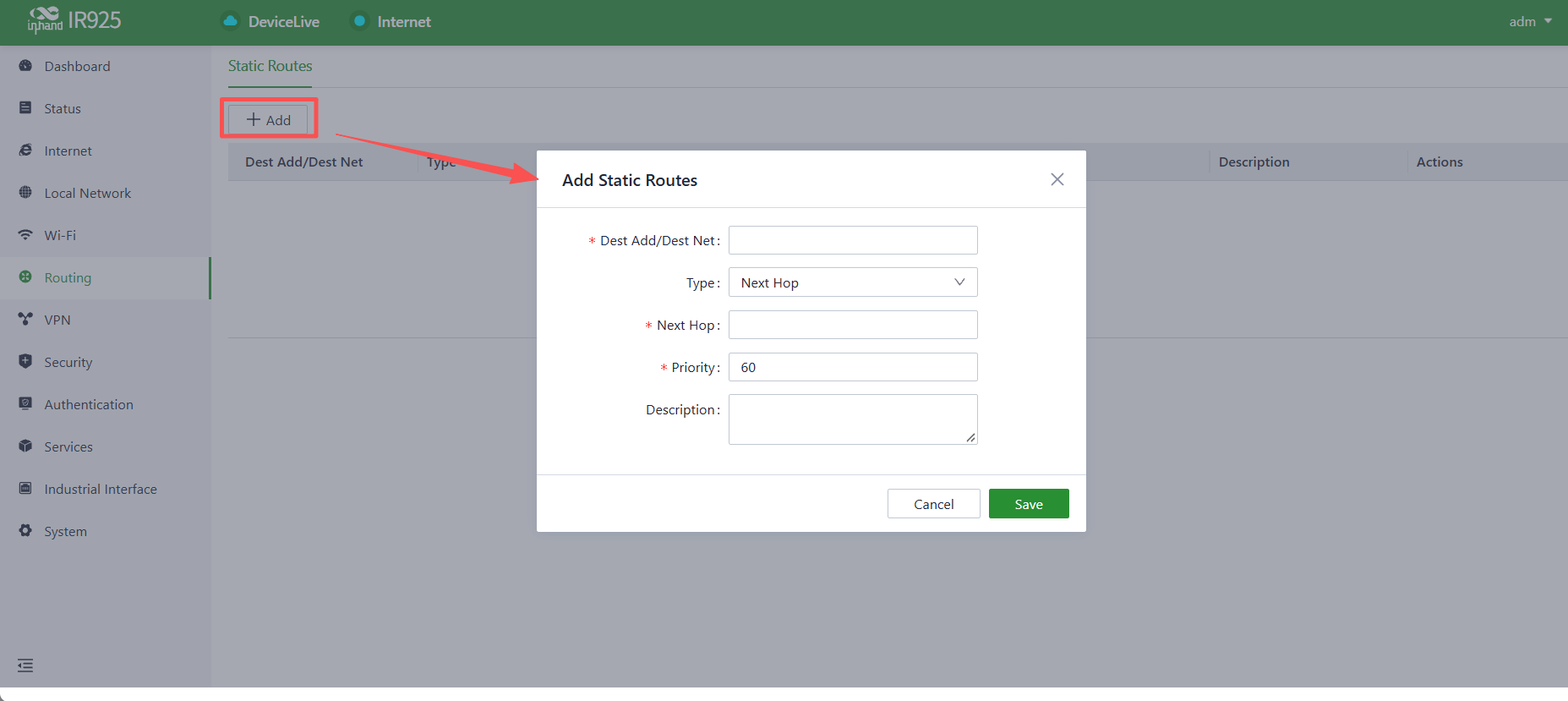

Figure 4-29 Static Routing

• For static routes destined to the same network/address, the next-hop address, interface, or priority must not be identical; otherwise, the route will become invalid.
• When a WAN, Wi-Fi (STA), or L2TP client VPN is deleted, the static routes using the corresponding interfaces will also be deleted.

4.7 VPN

In the VPN menu, users can configure IPSec VPN and L2TP VPN parameters to establish secure network connections.

4.7.1 IPSec VPN

IPSec (Internet Protocol Security) VPN is a protocol suite designed to enhance network communication security by encrypting and authenticating data transmission. It is widely used for establishing secure remote access, site-to-site connections, and virtual private networks. IPSec VPN ensures data protection and security through encryption and authentication methods.

To add a new IPSec VPN, navigate to VPN > IPSec VPN and click the "Add" button.

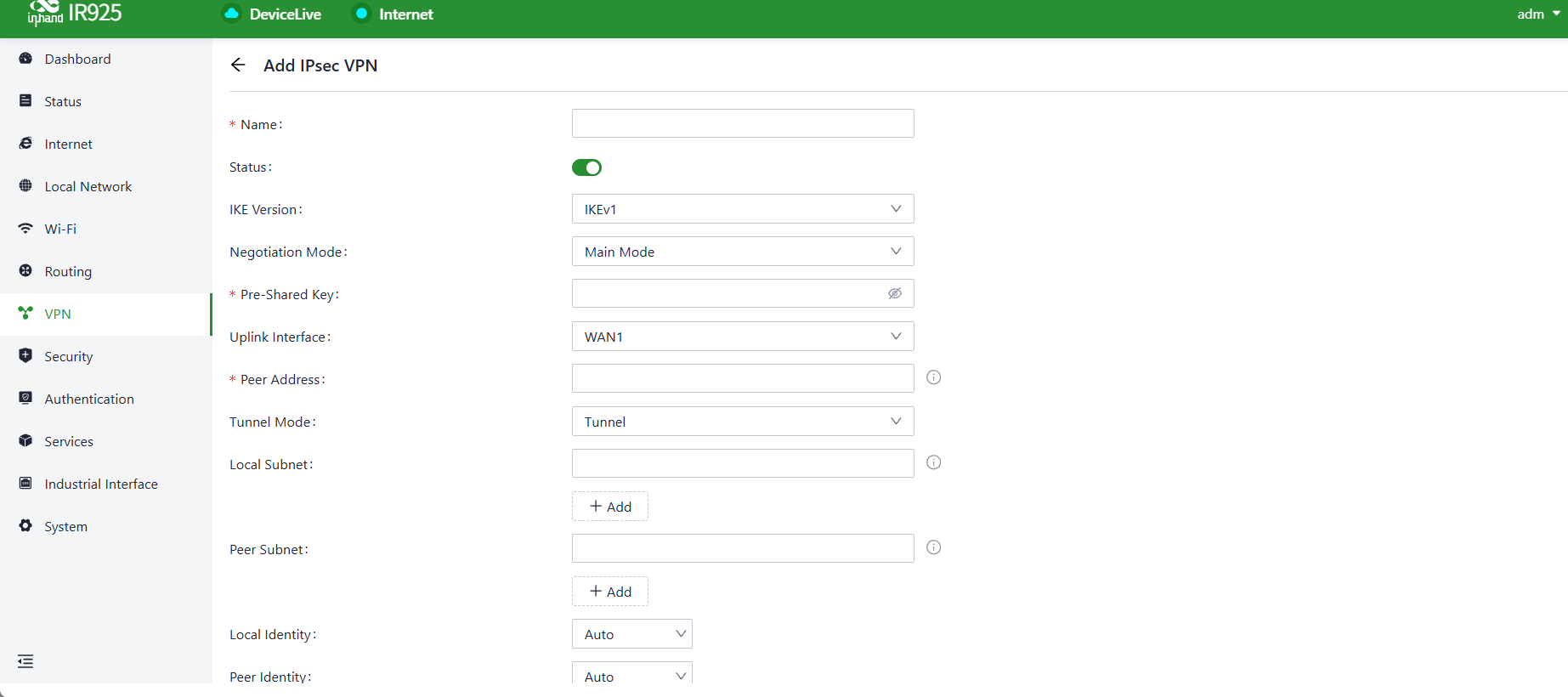

Figure 4-30 IPSec VPN Configuration

Once configurations are completed at both ends, the tunnel can be established. The tunnel establishment status can be checked in the Status > VPN menu.

The IPSec VPN parameters are described in the following table.

Parameter	Description
Name	The user-assigned name for the IPSec VPN, used for local management and identification
IKE Version	The version of the Internet Key Exchange (IKE) protocol. Supports IKEv1 and IKEv2
Pre-Shared Key	A secret shared key that must be configured identically on both devices for authentication during IKE negotiation
Internet Interface	The upstream interface used to establish the IPSec VPN locally
Tunnel Mode	The encapsulation mode for IPSec on IP packets. Supports tunnel mode and transport mode
Peer Address	The address of the remote endpoint with which the IR925 establishes the IPSec tunnel
Local Subnet	The subnet addresses that need to communicate through the IR925 IPSec VPN tunnel
Remote Subnet	The subnet address on the other end of the tunnel that needs to communicate through the IPSec VPN tunnel

IKE Policy Parameters:

Parameter	Description
Encryption Method	The encryption algorithm used by IKE. Options: DES, 3DES, AES128, AES192, AES256. Default: AES128
Authentication Method	The authentication algorithm used by IKE. Options: MD5, SHA1, SHA2-256, SHA2-384, SHA2-512. Default: SHA1
DH Group	The Diffie-Hellman exchange parameters used during IKE phase key negotiation. Options: 1, 2, 5, 14, 15, 16, 19, 20
Timeout	The IKE SA (Security Association) lifetime, in seconds. Default: 86400

IPSec Policy Parameters:

Parameter	Description
Security Protocol	The security protocol used by the ESP protocol
Encryption Method	The encryption algorithm used by the ESP protocol. Options: DES, 3DES, AES128, AES192, AES256. Default: AES128
Authentication Method	The authentication algorithm used by the ESP protocol. Options: MD5, SHA1, SHA2-256, SHA2-384, SHA2-512. Default: SHA1
PFS Group	An additional key exchange performed in Phase 2 to enhance communication security. Options: 1, 2, 5, 14, 15, 16, 19, 20
Timeout	The IPSec SA lifetime, in seconds. Default: 86400

Notes:

1. The device with the public IP address acts as the server, and client devices connect to it using the server's public IP address.

4.7.2 L2TP VPN

The Layer 2 Tunneling Protocol (L2TP) is a Layer 2 VPN protocol designed to establish secure point-to-point or site-to-site virtual private network connections. It is commonly used for remote access and branch office connectivity, creating secure communication channels to protect the privacy and integrity of data transmission.

L2TP Work as Client

The IR925 can act as an L2TP client and establish a tunnel with a remote L2TP server. To configure an L2TP client, navigate to VPN > L2TP VPN > Client and click the "Add" button.

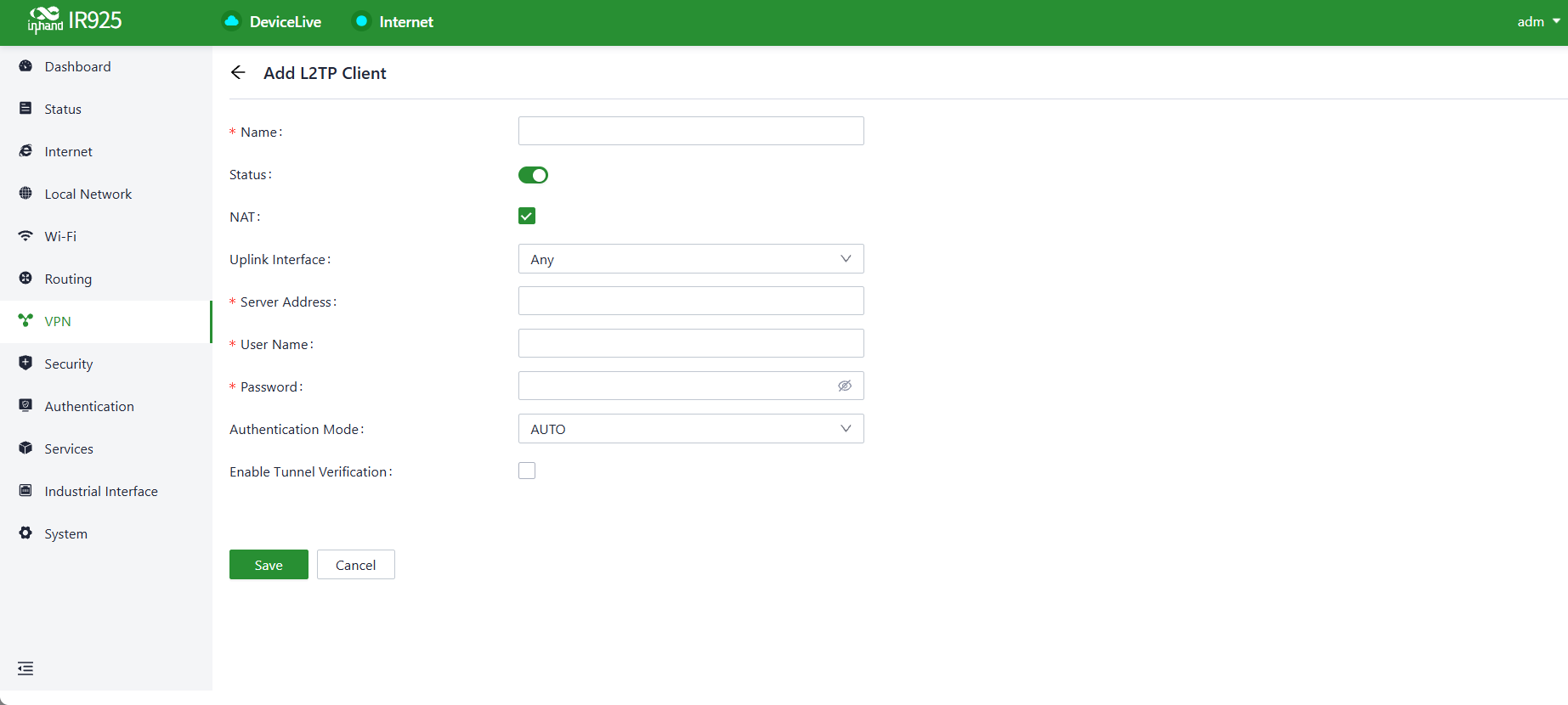

Figure 4-31 L2TP VPN Client Configuration

The L2TP client parameters are described in the following table.

Parameter	Description
Name	The name of the L2TP client for local identification
Status	The switch to enable or disable the L2TP client tunnel
NAT	The switch for NAT functionality when forwarding with the L2TP client
Upstream Interface	The upstream interface used for communication between the L2TP client and the server
Server Address	The communication address of the remote L2TP server
Username/Password	Credentials that must be configured identically on both ends during L2TP negotiation
Authentication Mode	The L2TP authentication mode
Enable Tunnel Authentication	When enabled, both ends must configure identical usernames and passwords for tunnel authentication

Work as Server

A typical L2TP server is usually deployed at the headquarters of an enterprise, serving as a remote access server for mobile office or branch offices. To configure the L2TP server settings, navigate to VPN > L2TP VPN > Server to access the L2TP server editing page.

Figure 4-32 L2TP VPN Server Configuration

The L2TP server parameters are described in the following table.

Parameter	Description
Name	The name of the L2TP server. Not editable
Status	The on/off switch for the L2TP server function. Default: off
Upstream Interface	The upstream interface used by the L2TP server
VPN Communication Address	The gateway address for L2TP clients, which can be assigned to devices within the IP address pool
Address Pool	The IP address pool used for communication when L2TP clients connect
Username/Password	Credentials that must be identical on both ends for L2TP negotiation
Authentication Mode	The L2TP authentication mode
Enable Tunnel Verification Function	When enabled, the usernames and passwords for tunnel verification on both ends must be identical

4.8 Security

In the Security menu, users can configure advanced features related to firewalls, policy routing, and traffic shaping.

4.8.1 Firewall

The firewall includes functions such as inbound rules, outbound rules, port forwarding, MAC address filtering, and more.

Inbound/Outbound Rules

Traffic in/out control can be implemented based on interfaces through the Security > Firewall > Outbound Rules/Inbound Rules feature. For example, if a user is subjected to a significant amount of attacks from a specific source IP address, inbound firewall rules can be used to restrict traffic from that IP address.

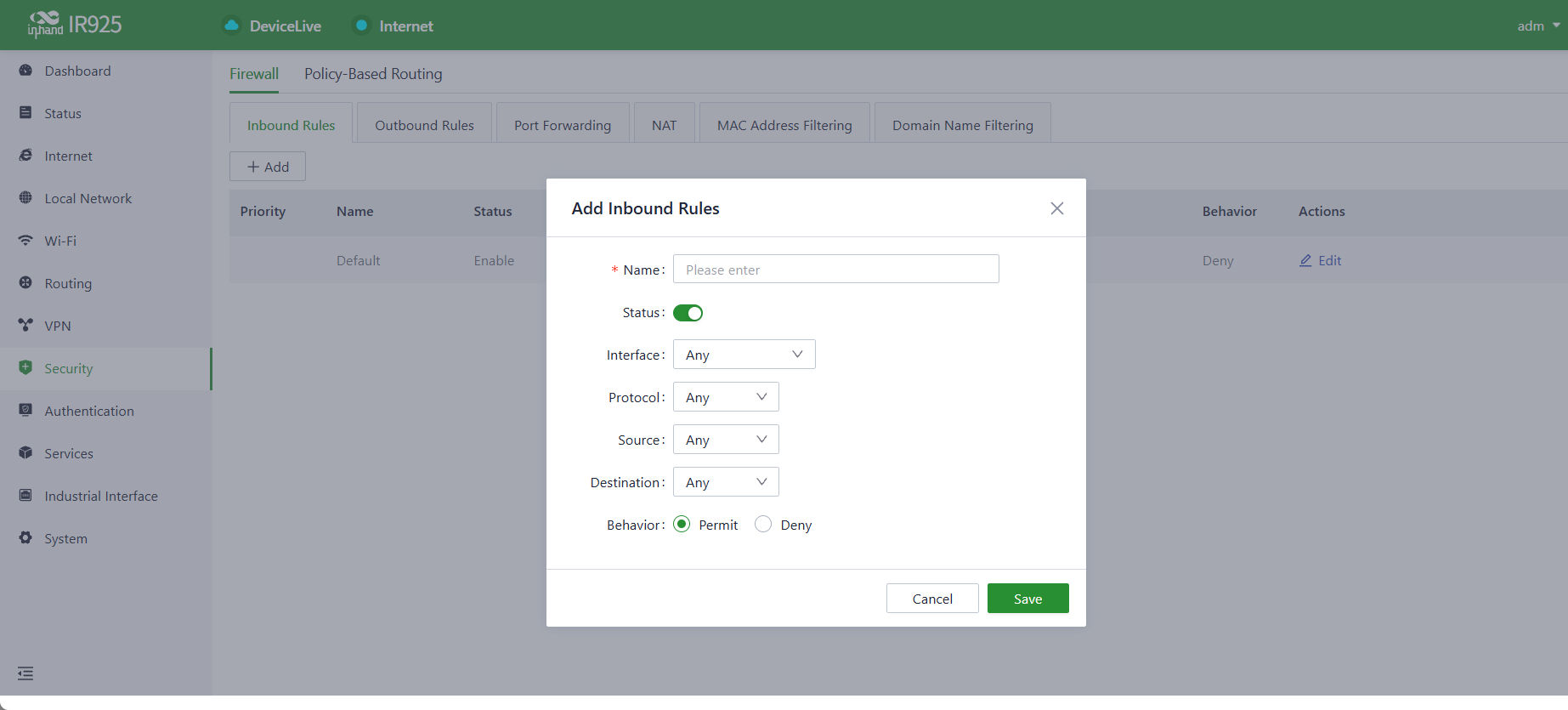

Figure 4-33 Inbound/Outbound Rules Configuration

Furthermore, IT personnel can utilize outbound firewall rules to restrict certain users' access to external networks. Inbound and outbound rules share the same configurable content, with the only distinction being the default rules.

The parameters for inbound/outbound rules are described in the following table.

Parameter	Description
Name	The name of the inbound/outbound rule for local identification.
Status	Rule function switch.
Interface	For outbound rules, it specifies the upstream interface where traffic leaves the router. For inbound rules, it specifies the upstream interface where traffic enters the router.
Protocol	Match traffic based on the protocol type, with options like Any, TCP, UDP, ICMP, or custom.
Source	Match the source address for traffic, supporting custom, with the default as Any.
Destination	Match the destination address for traffic, supporting custom, with the default as Any.
Action	Action taken for matching traffic in inbound/outbound rules, supporting allow and deny.
Inbound Rules	Traffic management rules for external network accessing the router, with the default as deny all.
Outbound Rules	Traffic management rules for traffic going out through the router, with the default allowing all.

Users can adjust the priority of inbound and outbound rules.

Port Forwarding

Port forwarding, also known as port mapping or port redirection, is used to redirect network packets from one network port (or address) to another network port or address. Users can configure port forwarding rules under Security > Firewall > Port Forwarding. When external traffic accesses a specific port on the router, the device forwards the data to the corresponding port of an internal client, enabling external access to services inside the router.

For example, when a user needs to access the service on port 1024 of the internal client at 192.168.2.10 from the external network, this client's port can be mapped to port 1024 under the WAN1 interface. External users only need to enter https://WAN address:1024 in their browser to access the target device's data, where the "WAN address" is the IP address of the WAN interface.

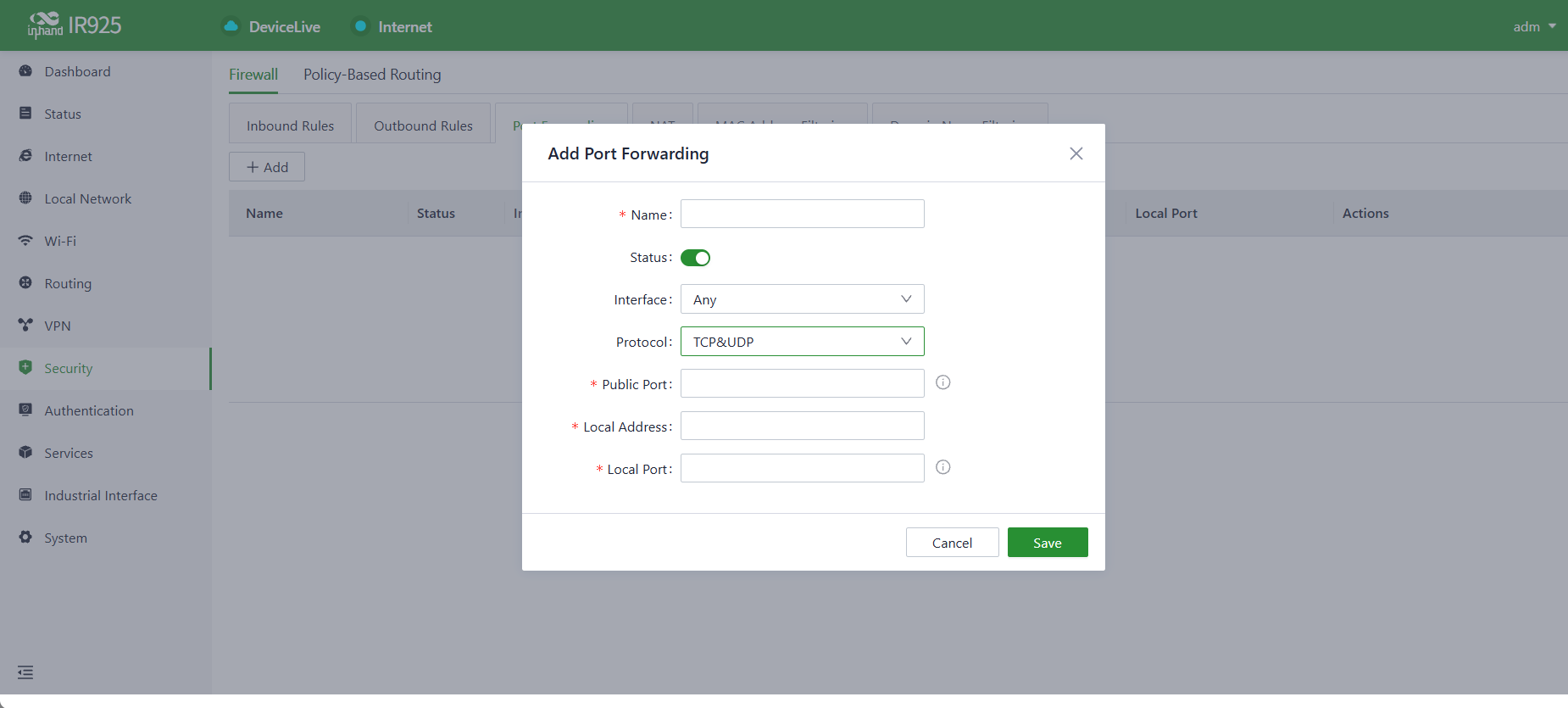

Figure 4-34 Port Forwarding Configuration

The parameters for port forwarding rules are described in the following table.

Parameter	Description
Name	The name of the port forwarding rule, used for local identification.
Status	The on/off switch for the port forwarding rule.
Interface	The upstream interface that provides mapping functionality for internal clients. The upstream interface needs public IP address support.
Protocol	The protocol type of the traffic for port mapping, supports TCP, UDP, and TCP & UDP.
Public Port	The port number on the upstream interface that provides mapping.
Local Address	The address of the target device located under the router that the external network needs to access.
Local Port	The port of the target device that the external network needs to access. It needs to be consistent with the public port input range.

NAT

NAT (Network Address Translator) is a technology used to use a private address in a local network and switch to a global IP address when connecting to the Internet. You can set source or destination address translation as needed in "Security > Firewall > NAT".

Figure 4-35 NAT

The parameters for NAT rules are described in the following table.

Parameter	Description
Name	The user sets a name for the rule.
Type	The type of this rule.
Protocol	The scope of the rule.
Source	The source IP address that needs to be translated.
Destination	The destination IP address that needs to be translated.
Converted Address	Translated address.

The Type parameter supports the following options:

Type	Description
SNAT	Translate the source IP address.
DNAT	Translate the destination IP address.

The Protocol parameter supports the following options:

Protocol	Description
Any	This rule is effective for all protocols.
TCP	This rule takes effect only for TCP protocol.
UDP	This rule takes effect only for UDP protocol.
TCP&UDP	This rule takes effect only for TCP and UDP protocols.

MAC Address Filter

MAC address filtering involves allowing or disallowing devices in a MAC address list to access the internet, which means controlling LAN devices' internet access requests through MAC address filtering on the router. Users can configure MAC address filtering rules in Security > Firewall > MAC Address Filtering.

Multiple MAC addresses can be created in the list, address descriptions can be added, and the list can be set to allow only the MAC addresses to access the network (whitelist), or block MAC addresses in the list from accessing the network (blacklist).

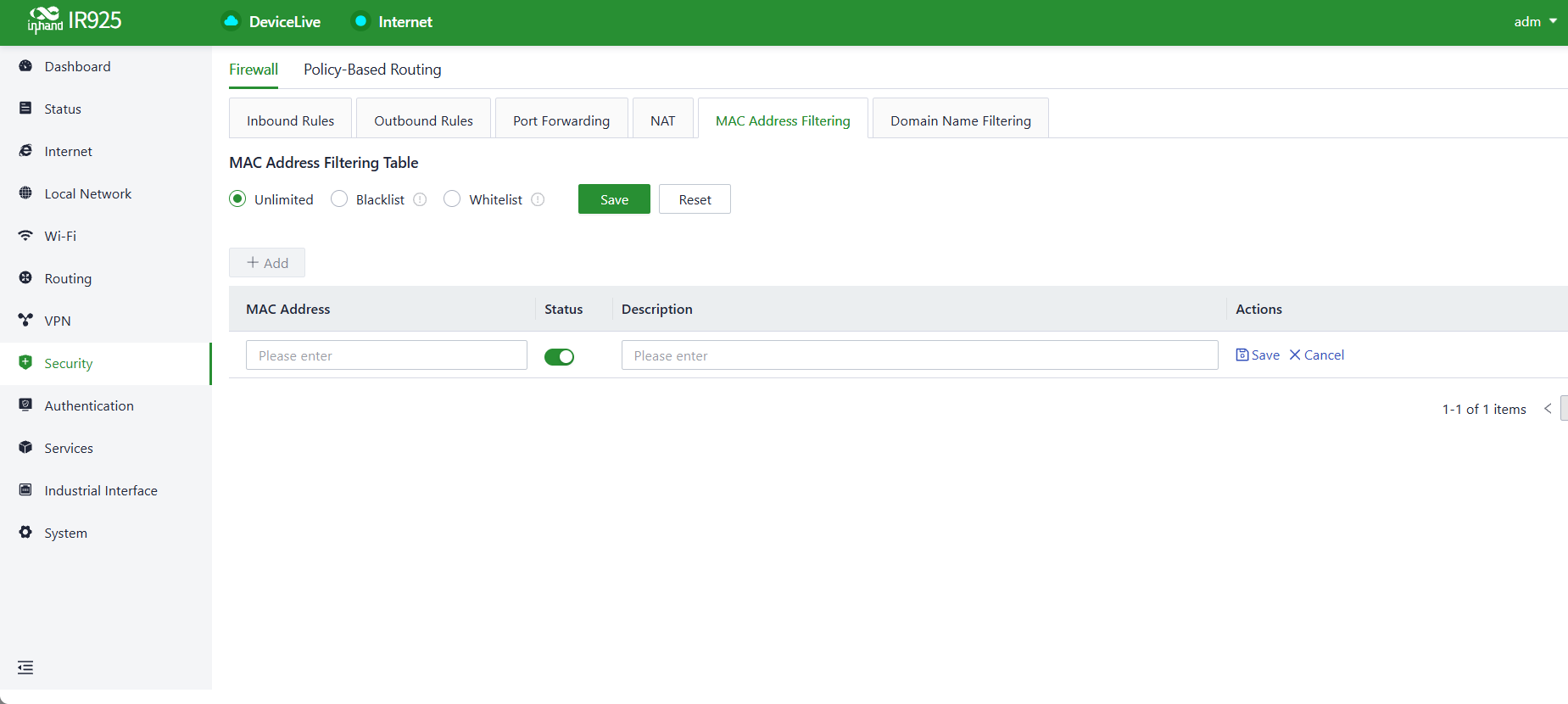

Figure 4-36 MAC Address Filtering Configuration

Domain Name Filtering

Domain filtering allows you to block (or allow) client access to the domains specified in the list. You can configure which domains are accessible or blocked under Security > Firewall > Domain Filtering.

You can add multiple rules to the domain filtering table to either allow clients to access certain domains (whitelist) or prohibit clients from accessing certain domains (blacklist).

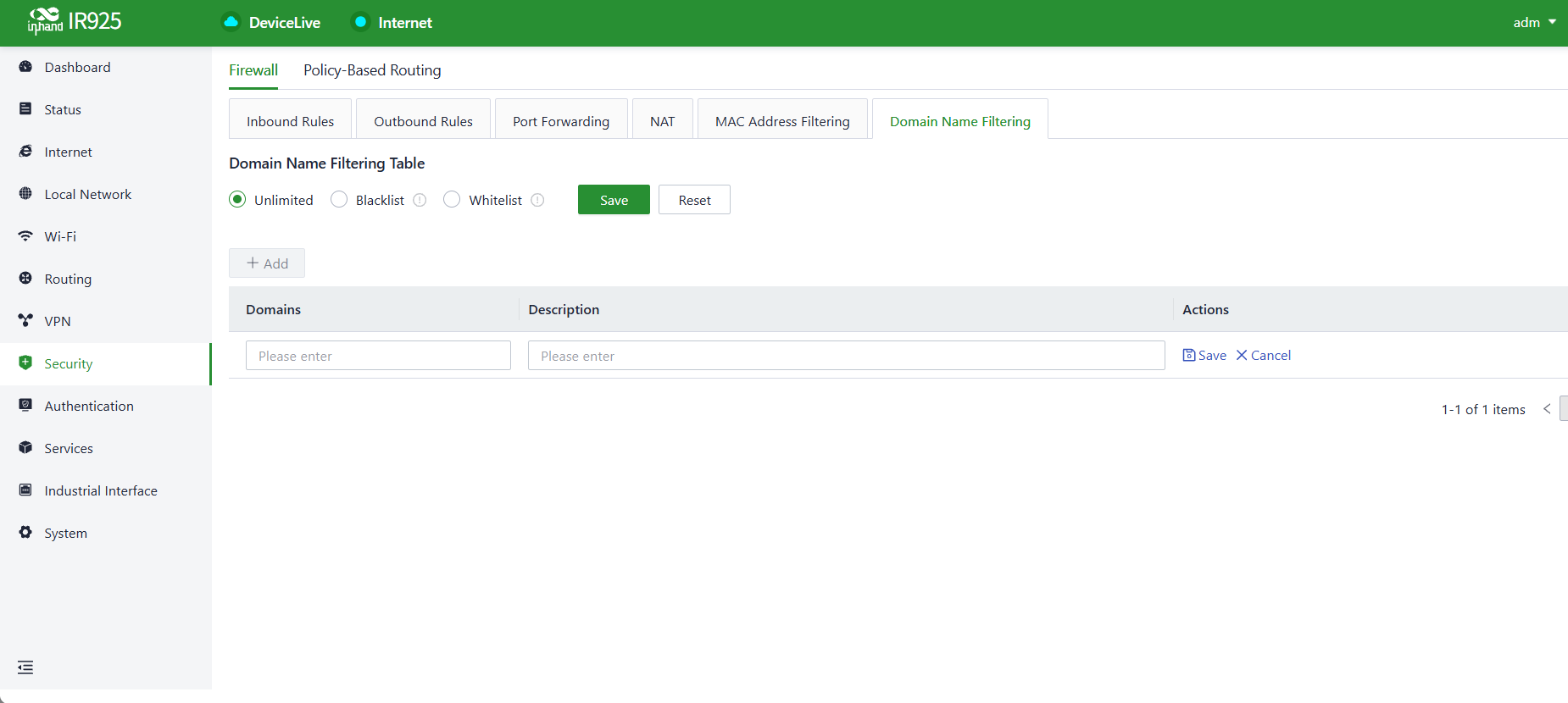

Figure 4-37 Domain Name Filtering

4.8.2 Policy-Based Routing

Policy-Based Routing is a feature that allows you to define routing policies based on actual requirements, enabling different data flows to be forwarded over different links as needed. This enhances the flexibility and controllability of routing selection, while improving link utilization efficiency and reducing enterprise costs.

Click Add under Security > Policy-Based Routing to create a new policy-based routing rule.

Note: The source address and destination address must not both be set to Any during configuration.

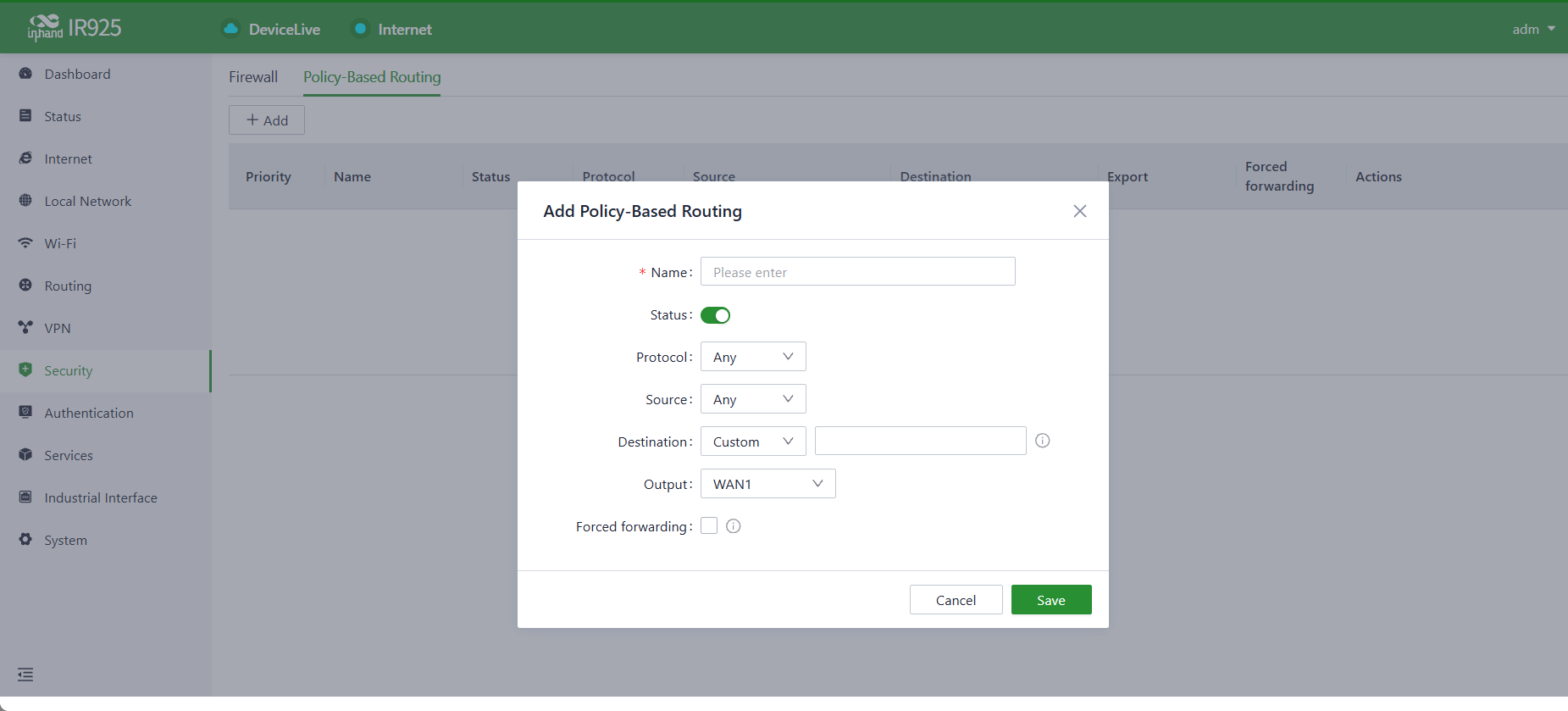

Figure 4-38 Policy-Based Routing Configuration

4.9 Authentication

The IR925 currently supports Portal authentication and 802.1X authentication.

4.9.1 Portal

The IR925 provides two types of Portal authentication: built-in lightweight authentication on the device and external RADIUS wireless authentication.

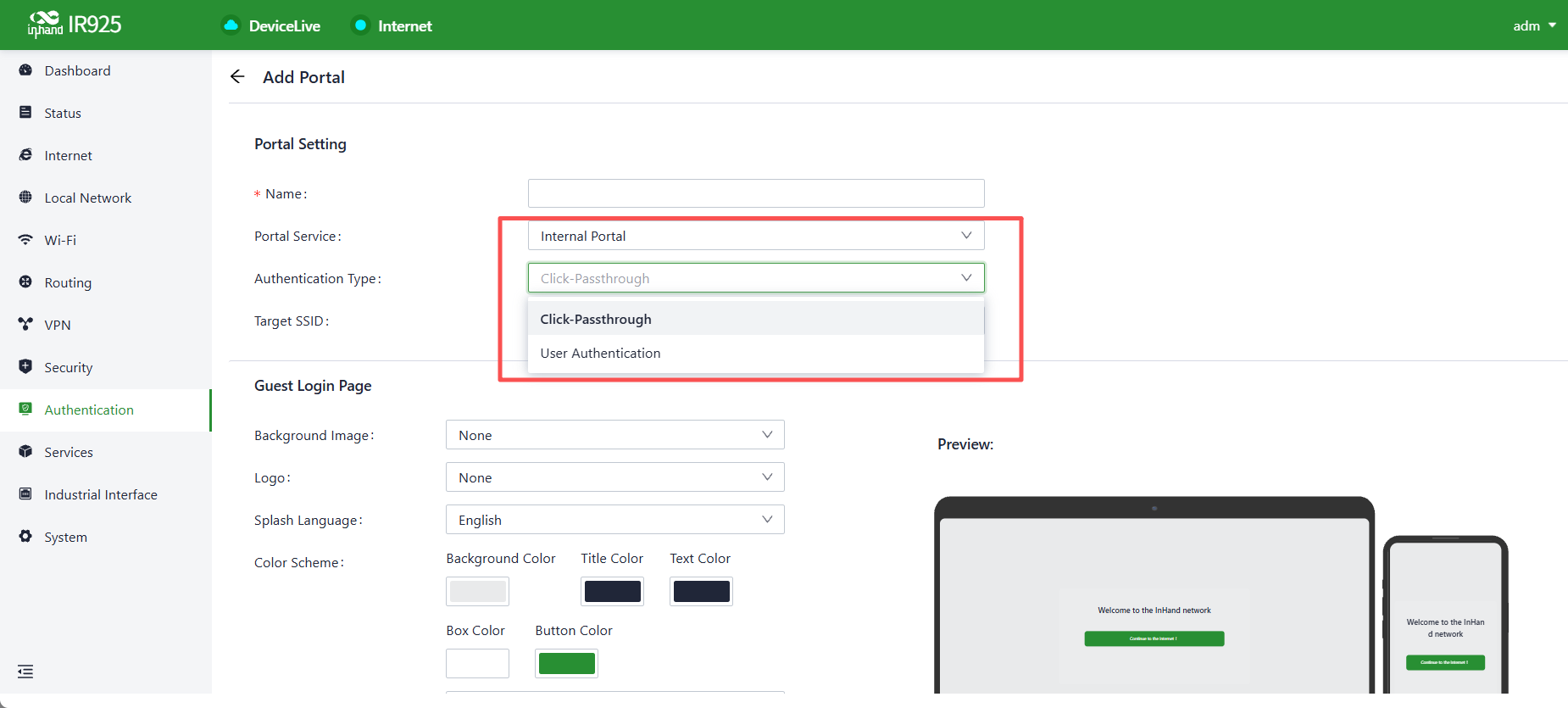

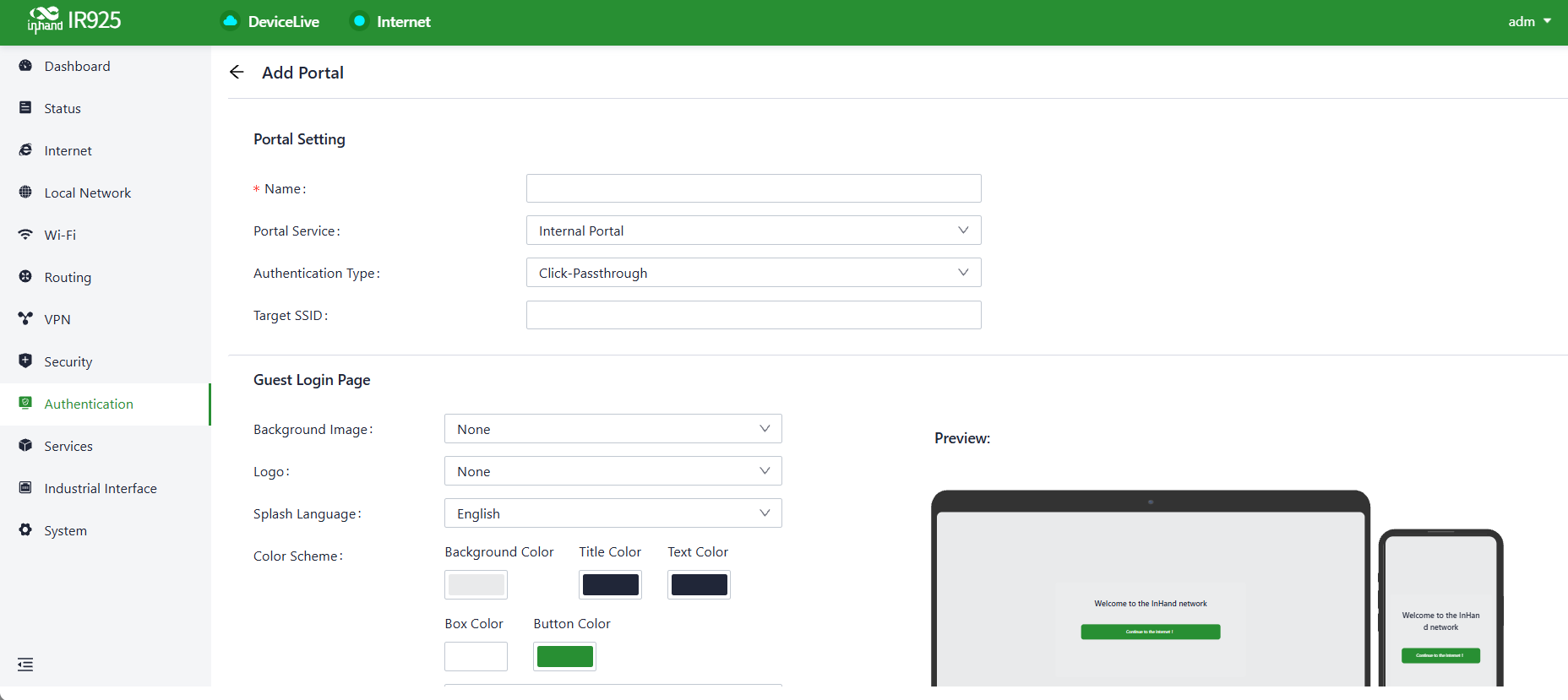

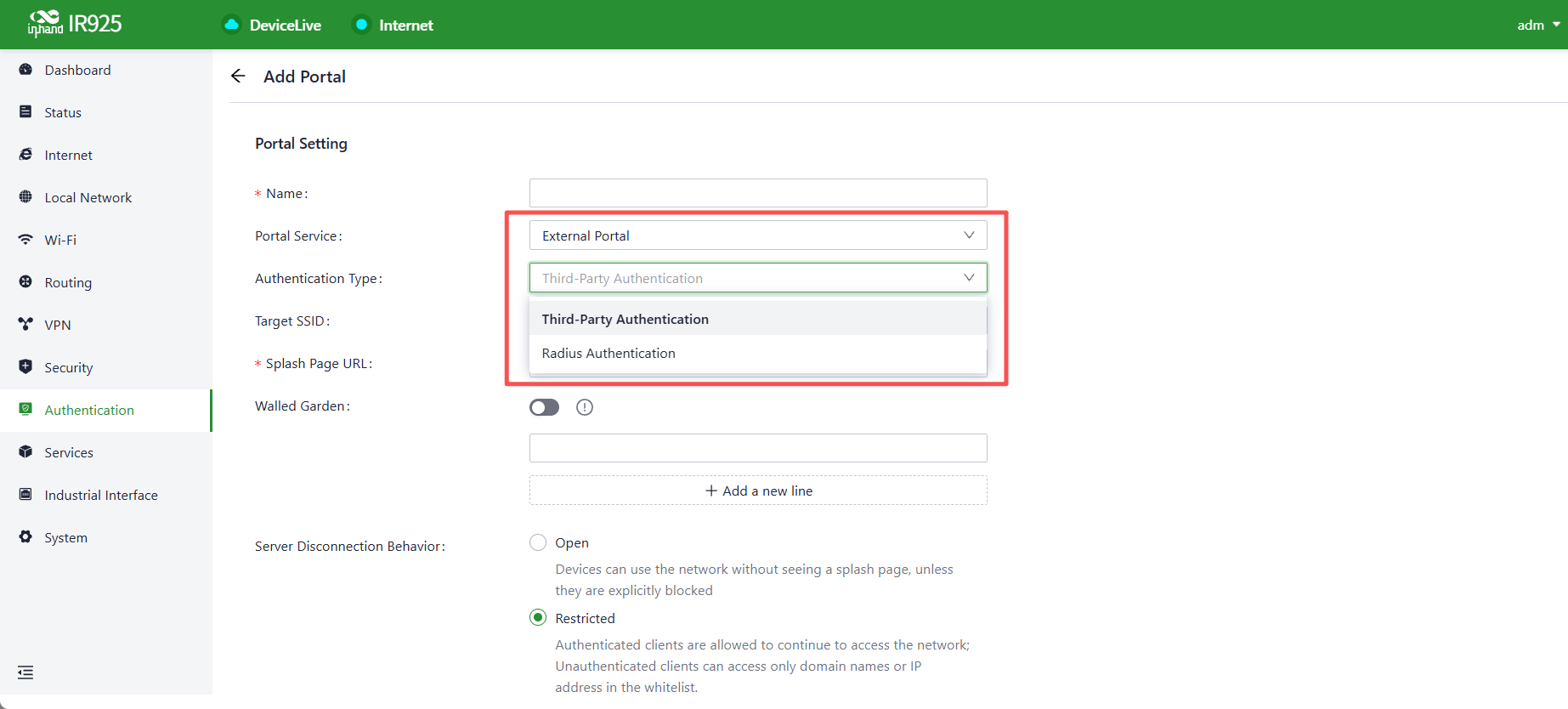

Figure 4-39 Portal Configuration

1. Internal Portal Users can choose between two local authentication modes: Click-Passthrough and User Authentication. The device also supports authenticating specified SSIDs, as well as customizing the welcome message, title, logo, background image, etc. on the redirected access page.

Figure 4-40 Internal Portal Configuration

2.External Portal You can choose either Third-Party Authentication or Radius authentication. When a third-party RADIUS server is deployed, wireless terminals can join the network via RADIUS authentication. Under Wi-Fi > SSIDs, select WPA or WPA2, and enter the authentication server address, port, and shared key.

Figure 4-41 External Portal Configuration

4.10 Services

4.10.1 Interface Management

The local networks allowed through a specific interface and the interface speed can be configured in the Service > Interface Management function.

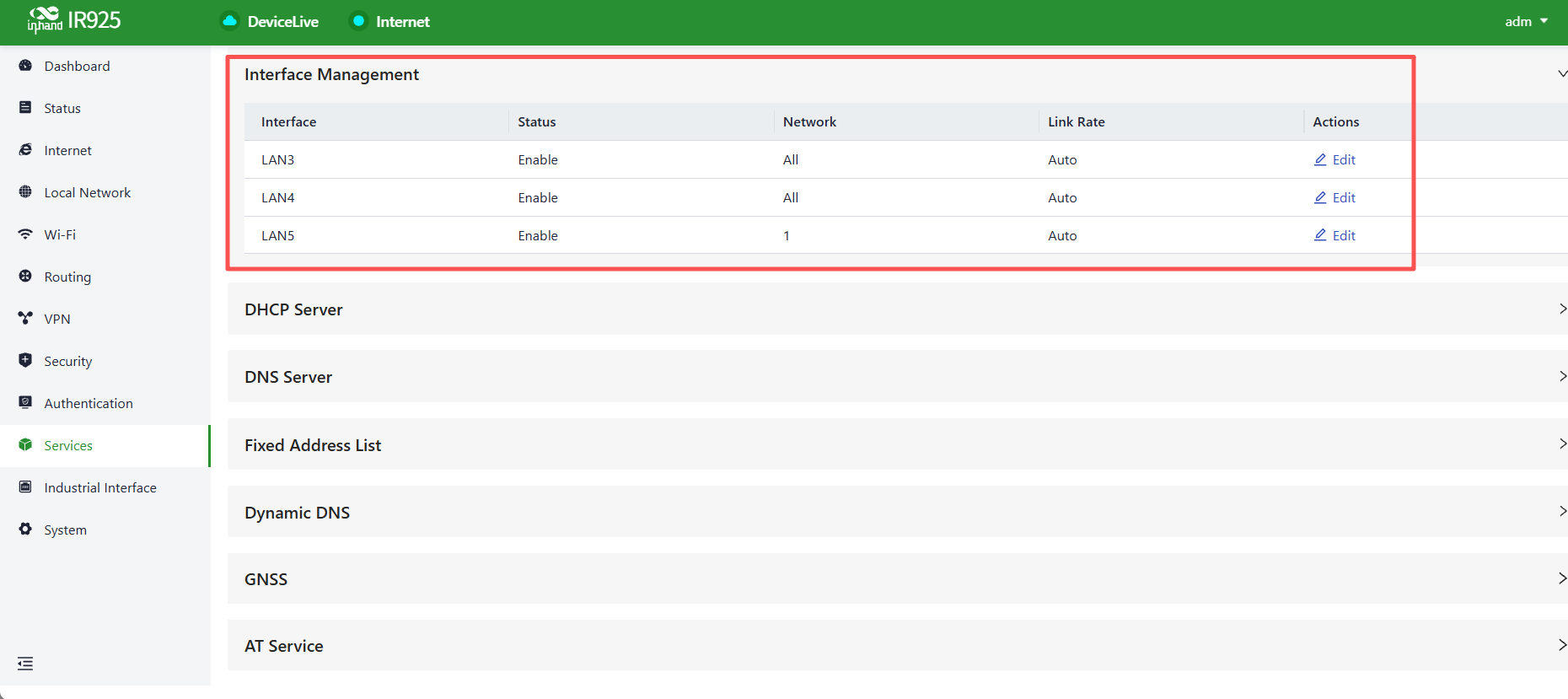

Figure 4-42 Interface Management List

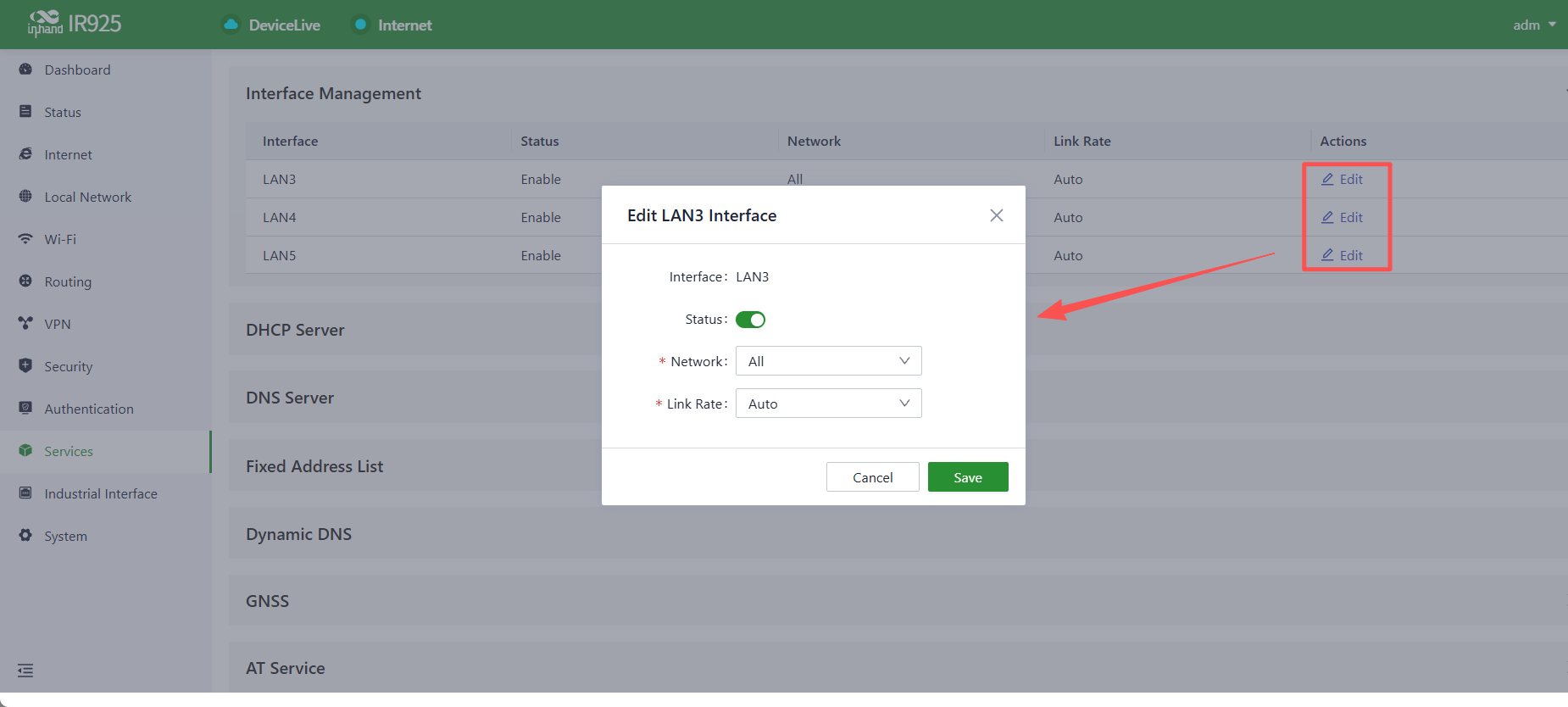

Figure 4-43 Interface Management Configuration

4.10.2 DHCP Server

The DHCP (Dynamic Host Configuration Protocol) service operates in a client/server communication mode, where clients request IP addresses from servers, and servers respond by assigning IP addresses dynamically to clients. The DHCP server's IP address pool can be configured using the Service > DHCP Server feature.

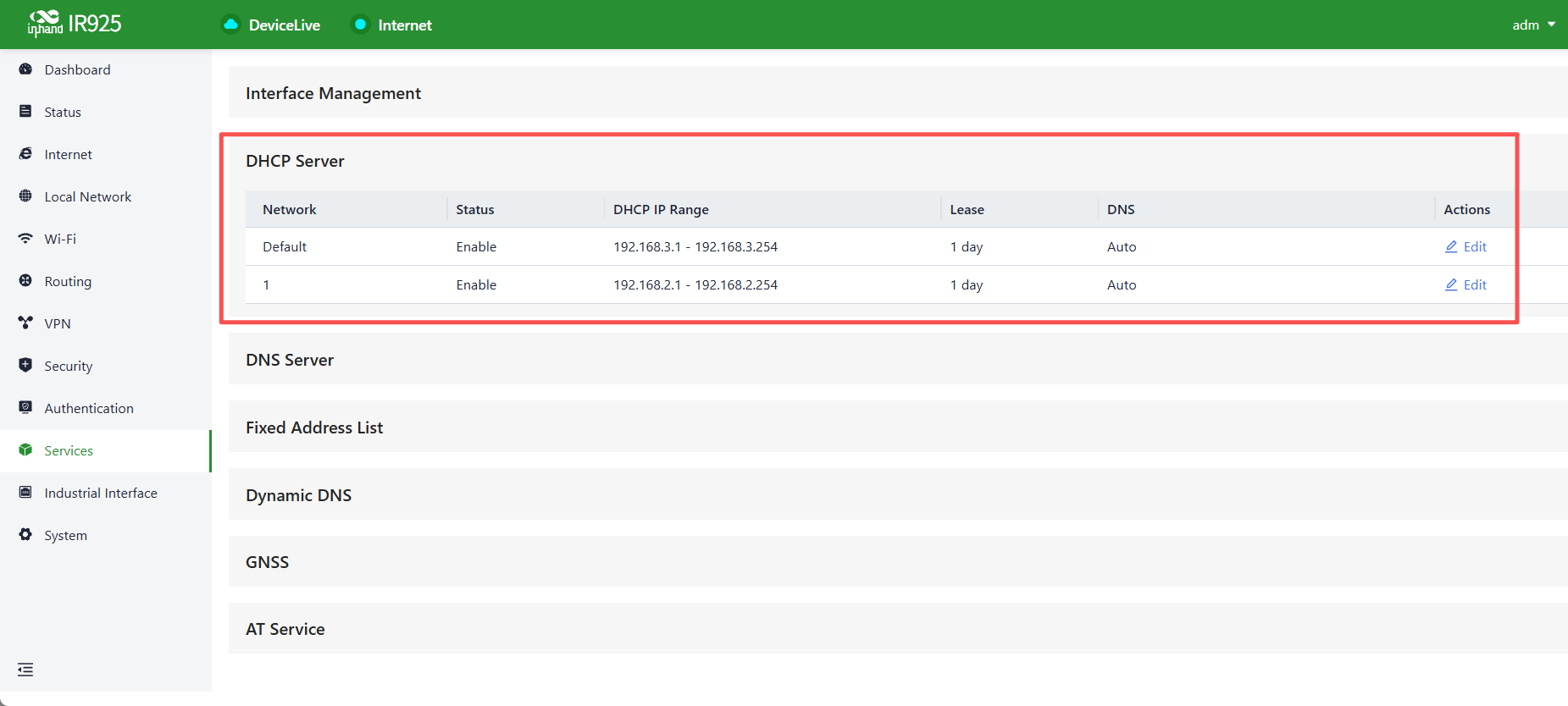

Figure 4-44 DHCP Server Configuration

Notes:

1. The device's DHCP service is generated based on the network information in the local network. If a local subnet is removed from the Local Network list, the DHCP server for that local subnet will also be deleted.
2. Local network entries need to be set in "IP" mode for the DHCP server function to take effect. Networks in "VLAN Only" mode are not within the selectable range.

4.10.3 DNS Server

DNS (Domain Name System) servers are a crucial network component responsible for translating human-readable domain names into computer-understandable IP addresses. DNS servers act as the address book of the internet, helping computers and devices locate other devices and ensuring that information can be correctly delivered across the network.

When DNS server addresses are not configured in Service > DNS Server, the DNS addresses obtained from the device's upstream interface will be used for domain name resolution. When DNS server addresses are configured, the configured DNS addresses will be used for domain name resolution.

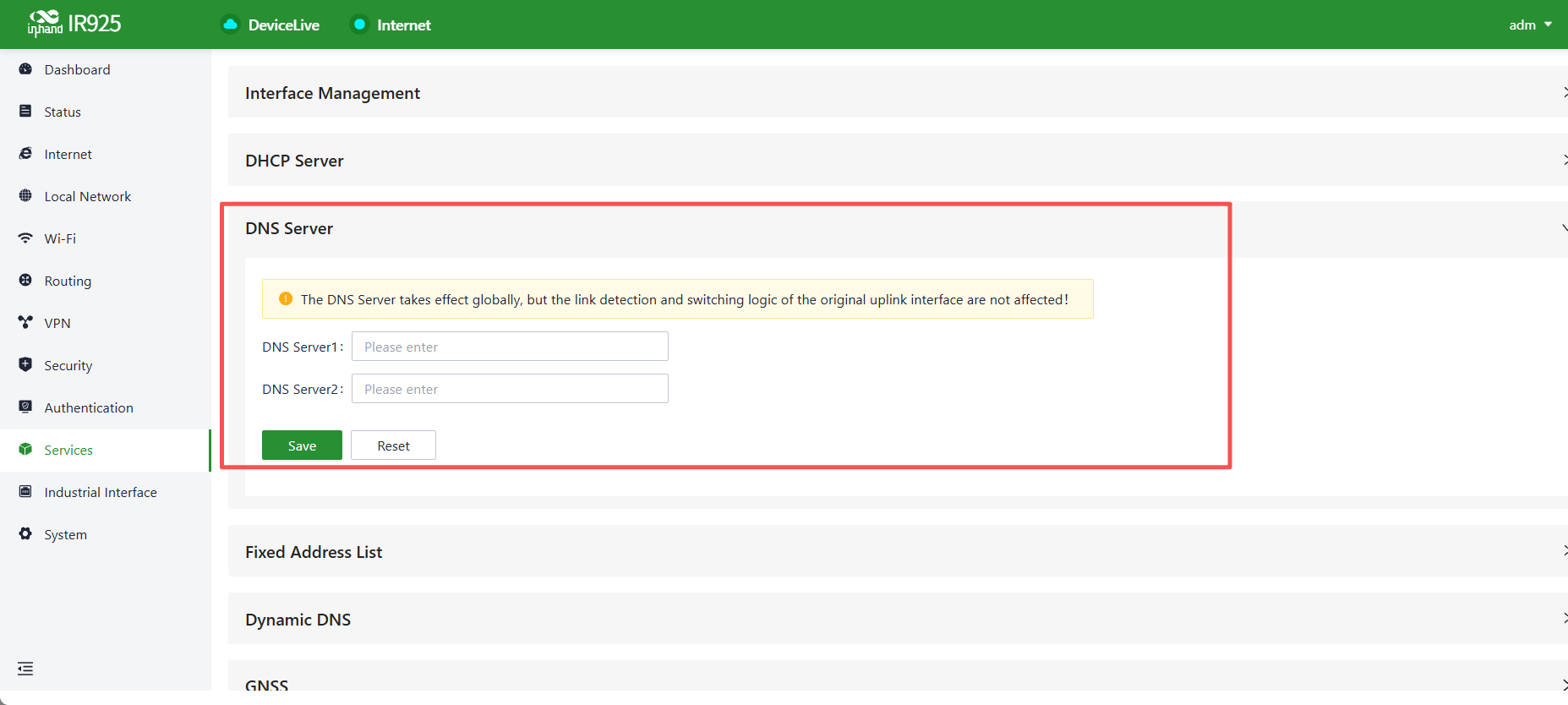

Figure 4-45 DNS Server Configuration

4.10.4 Fixed Address List

The Service > Fixed Address List function can be used to allocate a fixed IP address to a device based on its MAC address. This means that the device will consistently receive the same IP address every time it connects to the IR925.

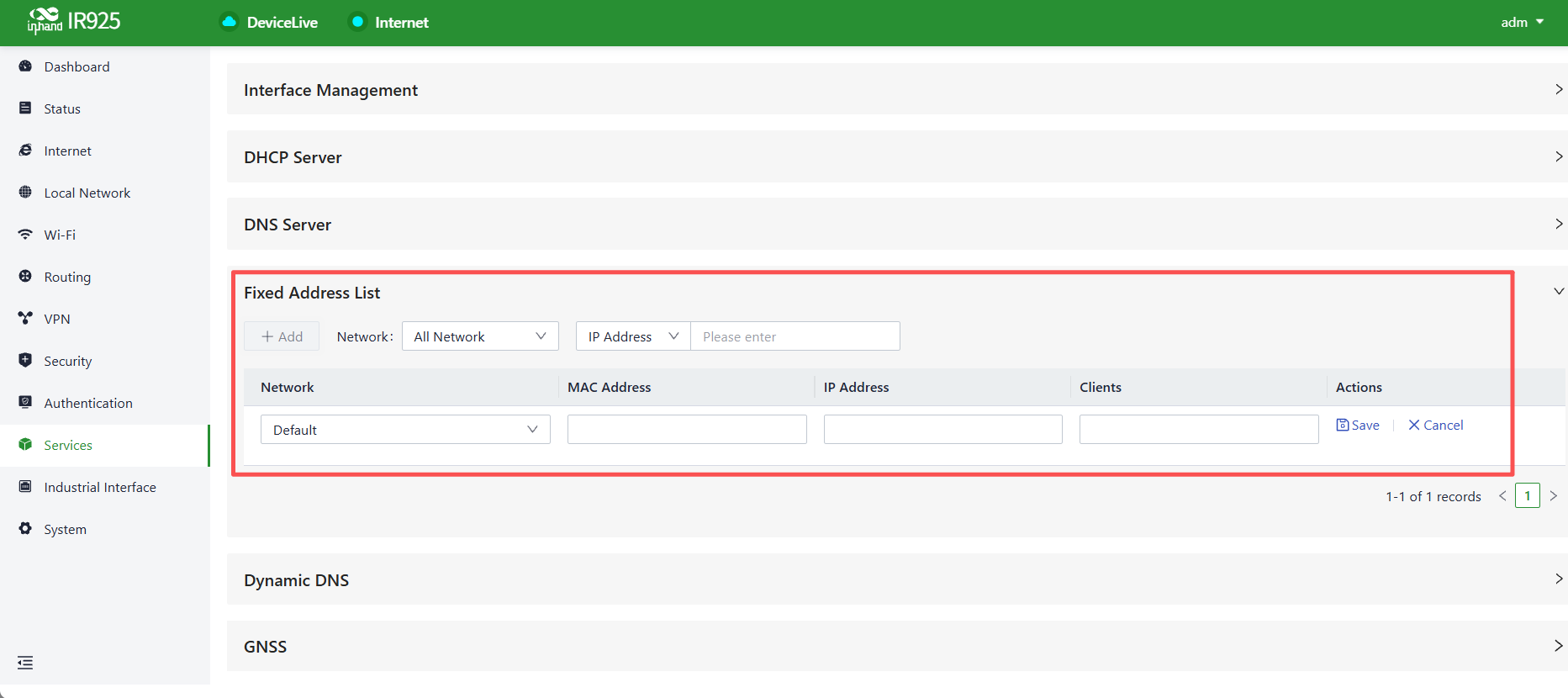

Figure 4-46 Fixed Address List Configuration

Cautions:

1. The available addresses for allocation must fall within the address range of the local network in IP mode, or the configuration will not take effect.
2. When the local network is deleted, all fixed address allocation rules within the local network's address range will be removed.

4.10.5 Dynamic DNS

Dynamic DNS (Dynamic Domain Name System) is used to automatically update the name server content in the domain system. According to internet domain rules, domain names are typically associated with fixed IP addresses. Dynamic DNS technology allows users with dynamic IP addresses to have a fixed name server, enabling external users to connect through regular updates.

The Dynamic DNS server address can be manually configured under the Service > Dynamic DNS feature.

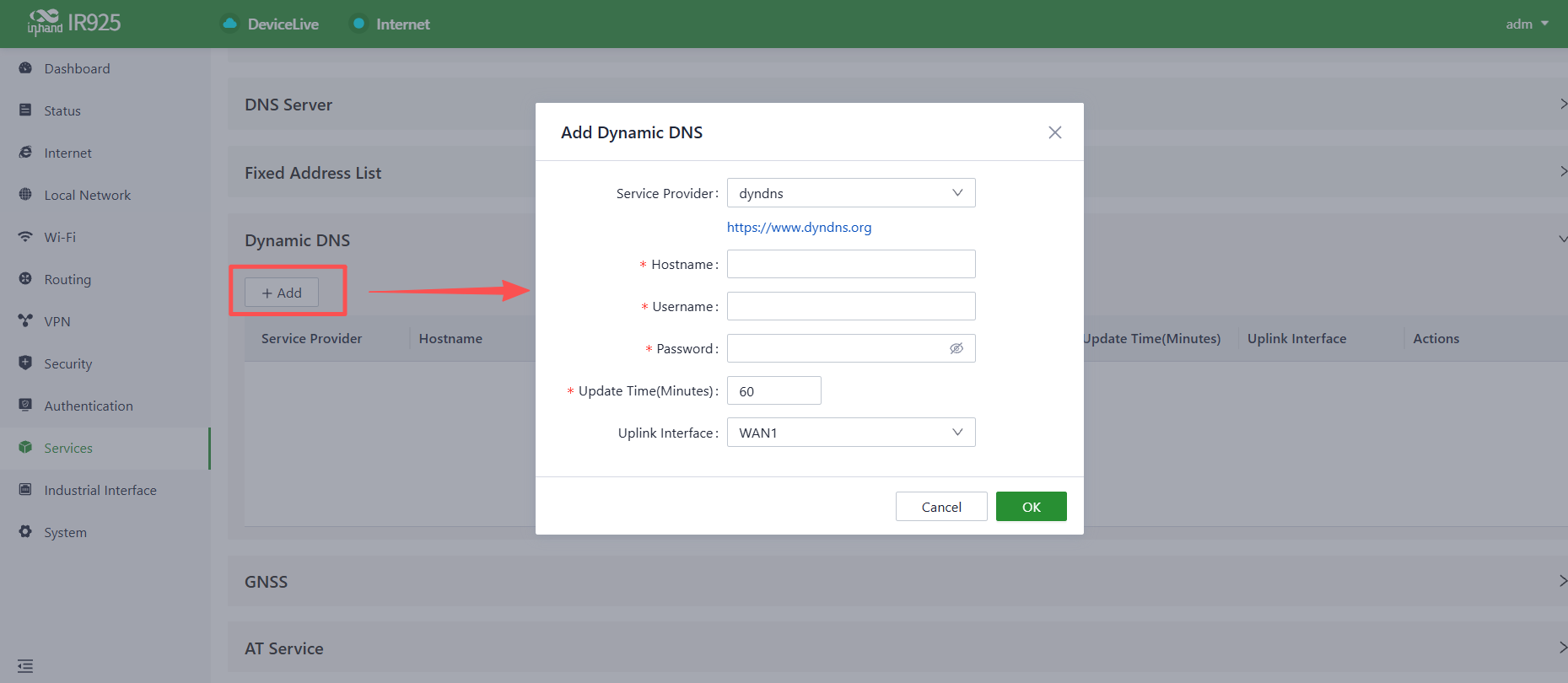

Figure 4-47 Dynamic DNS Configuration

The Dynamic DNS parameters are described in the following table.

Parameter	Description
Service Provider	Provided by the Dynamic DNS service operator. Options: dyndns, 3322, oray, no-ip, or custom (requires a URL)
Hostname	The hostname registered with the service provider
Username	The username registered with the service provider
Password	The password set during registration

4.10.6 GNSS

GNSS (Global Navigation Satellite System) is a system composed of multiple satellite constellations, designed to provide high-precision positioning, navigation, and timing services to users worldwide. By receiving signals transmitted from multiple satellites, the device can accurately calculate its own position (longitude, latitude, and altitude), plan travel routes, and obtain precise time information. The world's major GNSS systems include China's BeiDou Navigation Satellite System (BDS), the United States' Global Positioning System (GPS), Russia's GLONASS, and the European Union's Galileo. The GNSS function integrated in this device can receive signals from multiple systems simultaneously to improve positioning accuracy and stability.

Users can access the configuration page via Services > GNSS, where they can enable or disable the GNSS function and configure GNSS IP forwarding and GNSS serial forwarding. After GNSS is enabled, the Update Device Time option can also be turned on to synchronize the device clock.

Figure 4-48 GNSS Configuration

GNSS IP Forwarding

GNSS IP forwarding means that the device packages the received satellite positioning data into network packets via network protocols (such as TCP/UDP) and sends them to a specified IP address and port, enabling "network sharing" of positioning information.

Users can access the configuration page via Services > GNSS > GNSS IP Forwarding.

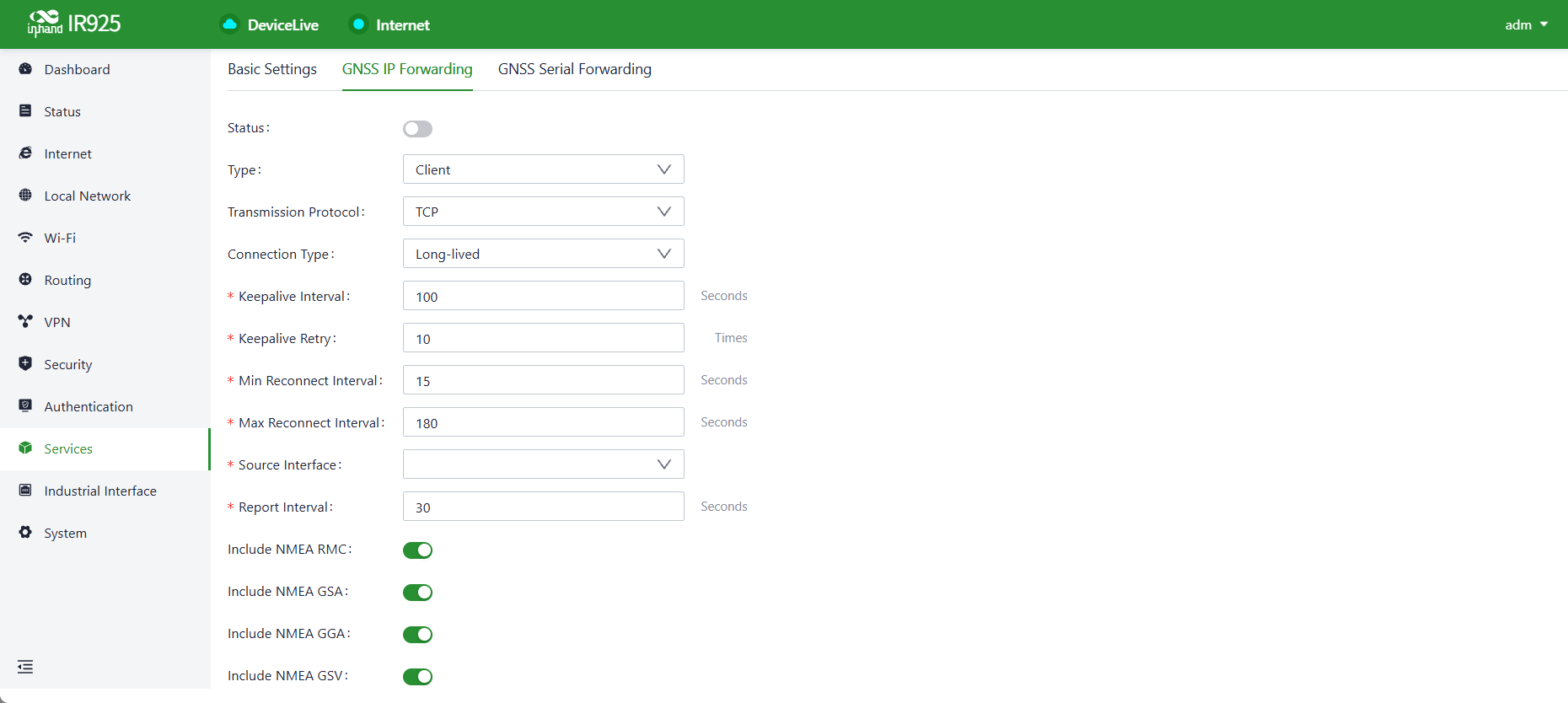

Figure 4-49 GNSS IP Forwarding

GNSS Serial Forwarding

GNSS serial forwarding means that the device sends GNSS positioning data to external devices connected to the serial port (such as computers, PLCs, and data loggers) in the form of a "serial data stream" via serial communication interfaces (such as RS232 and RS485).

Users can access the configuration page via Services > GNSS > GNSS Serial Forwarding.

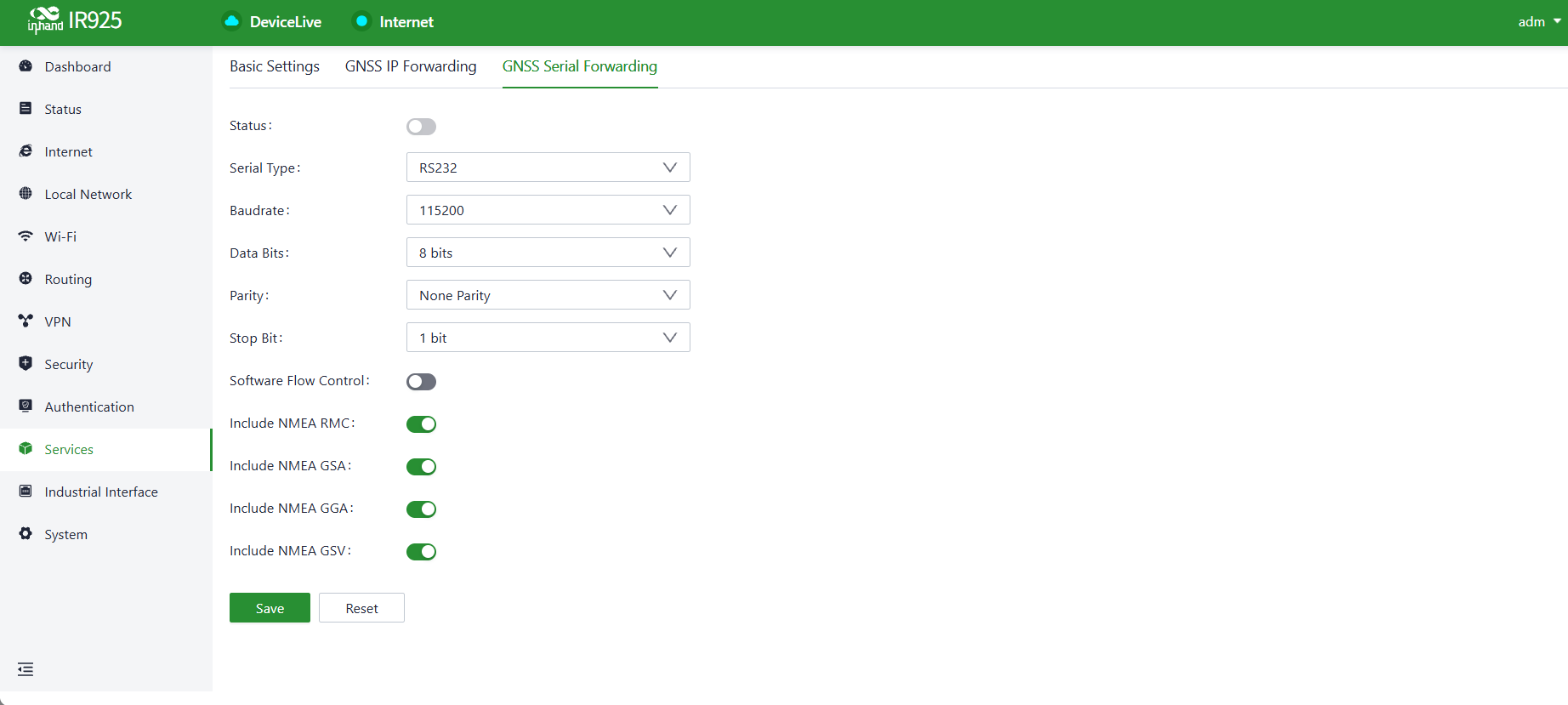

Figure 4-50 GNSS Serial Forwarding

4.10.7 AT Services

The IR925 supports interaction with the built-in cellular communication module via AT commands, allowing you to query (e.g., signal strength, network status), configure (e.g., network mode, APN parameters), and control (e.g., module reboot, dial-up connection) the module.

Users can access the configuration page under Services > AT Services.

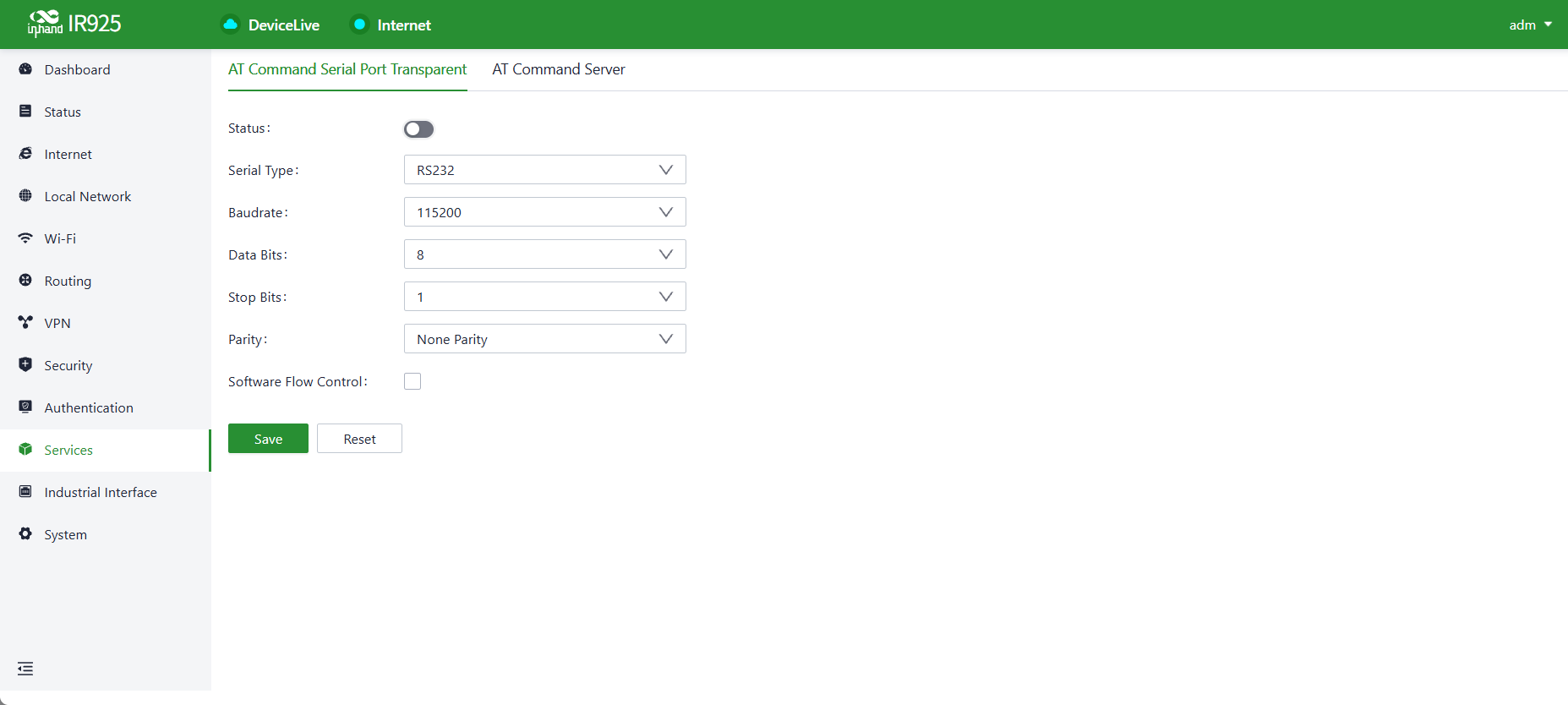

Figure 4-51 AT Services

4.11 Industrial Interfaces

4.11.1 Industrial Serial Port

The IR925 supports the RS232 and RS485 serial communication standards for data transmission between electronic devices. RS232 supports point-to-point connections and is typically suitable for short-distance communication; RS485 supports multi-point connections and offers longer communication distances than RS232.

Ensure that the serial port of the industrial router is connected to the target device's serial port using appropriate serial cables. RS232 and RS485 share the same configurable fields; RS232 is used as an example below:

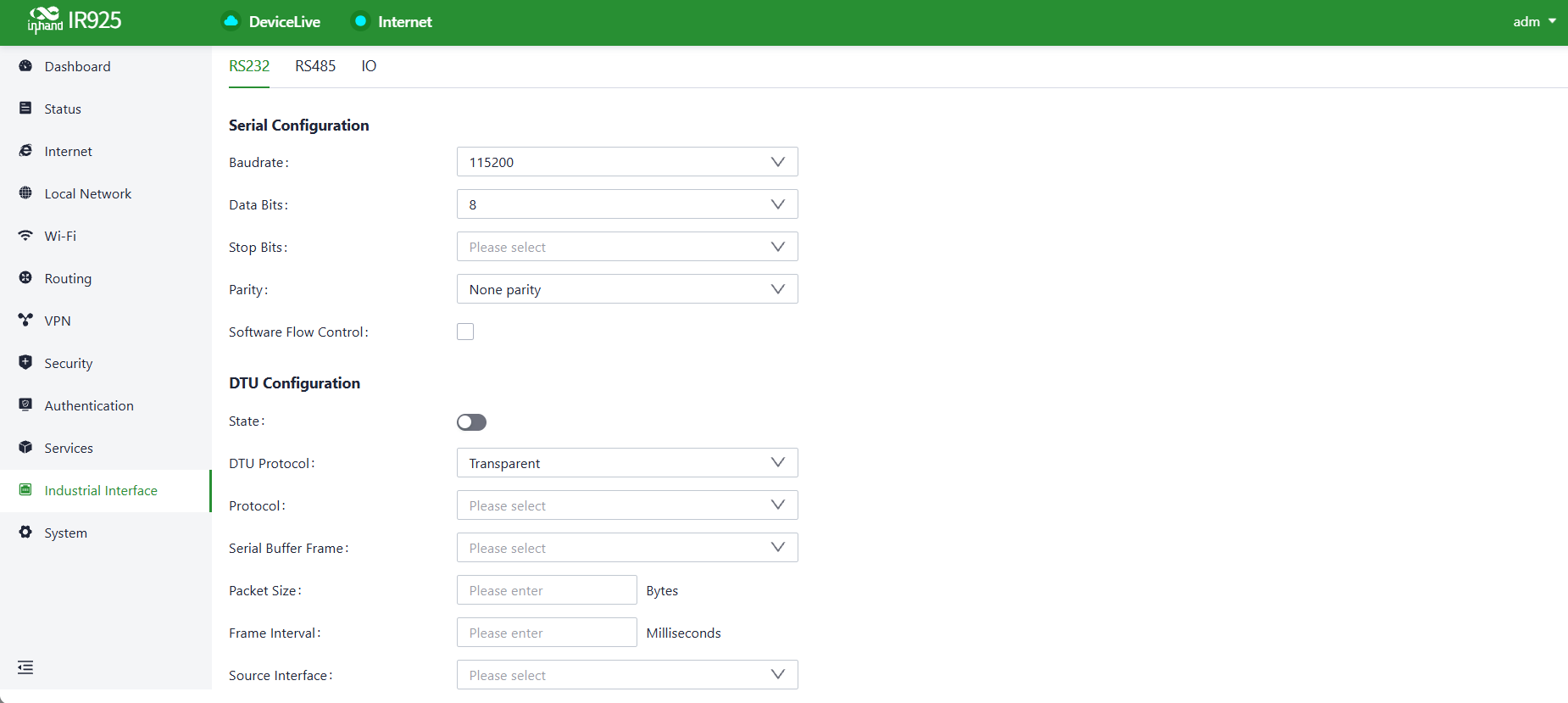

Figure 4-52 Industrial Serial Port Configuration

4.11.2 Industrial I/O

The IR925 supports 4 industrial digital I/O interfaces, which can be configured in input or output mode.

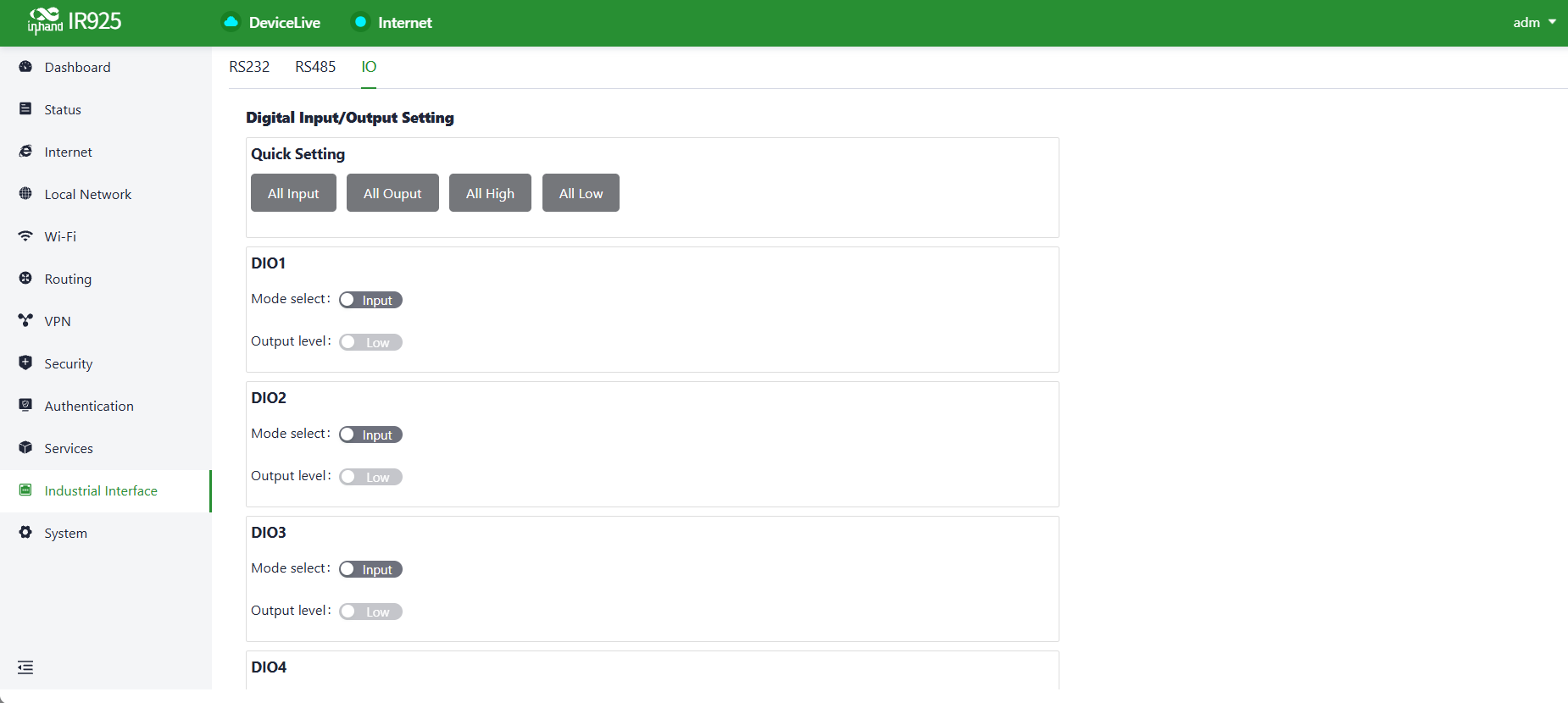

Figure 4-53 Industrial I/O Configuration

It also supports 1 relay output, which is closed by default and can be opened or closed manually.

4.12 System

In the System menu, settings related to cloud management, remote access control, clock settings, device options, configuration management, device alarms, tools, scheduled reboot, log server, account management, and other functions can be configured.

4.12.1 Cloud Management

DeviceLive (device.inhandcloud.com) is a cloud platform developed by InHand Networks to address challenges in industrial networks, such as slow deployment, complex operations, and poor user experiences. This platform integrates features like zero-touch deployment, intelligent operations and maintenance, security protection, and user experience capabilities. Once devices are connected to the cloud platform, remote management, batch configuration, traffic monitoring, and other operations can be performed through the platform.

The IR925 automatically connects to Device Live after establishing an internet connection by default. If the cloud management function is not required, it can be disabled manually in the System > Cloud Management function.

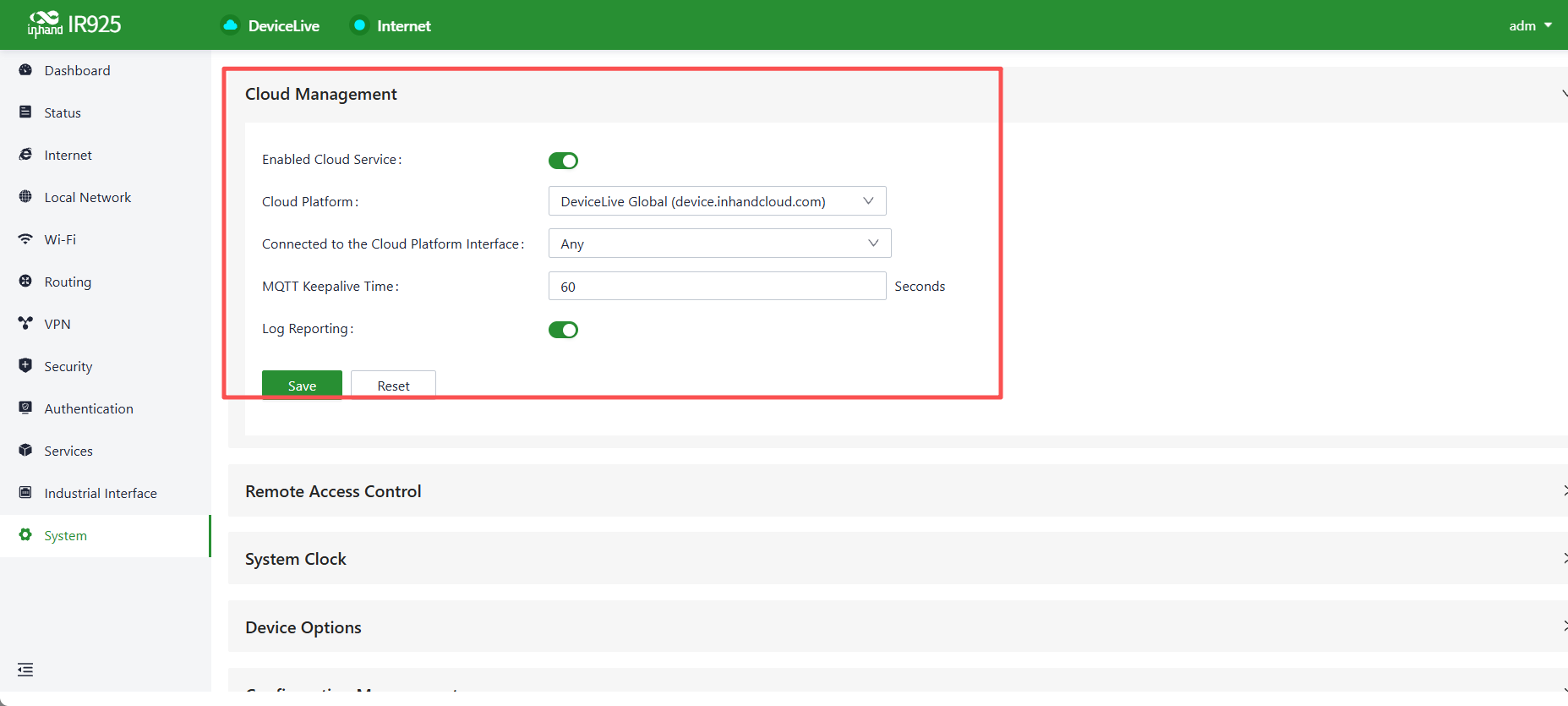

Figure 4-54 Cloud Management Configuration

4.12.2 Remote Access Control

Whether to allow external access to the router's web configuration interface from the internet can be configured through the System > Remote Access Control function. The service port for this purpose can also be set.

Figure 4-55 Remote Access Control Configuration

The remote access control parameters are described in the following table.

Parameter	Description
HTTPS	When enabled, the router's web interface can be accessed remotely by entering the public IP address and port number of the upstream interface in a web browser
SSH	When enabled, the router's backend can be accessed remotely using remote tools by providing the public IP address, port number, username, and password
Telnet	Once enabled, users can remotely log in to the router's management interface from a remote tool (e.g., CRT) by entering the public address & port of the device's uplink interface, along with the username and password.
Ping	When enabled, the upstream interface allows external networks to initiate ping requests

4.12.3 Country & System Clock

The Country & Clock feature is used to coordinate and synchronize time among network devices. The clock function in a network is essential for data transmission, logging, security, coordination, and troubleshooting.

You can select the current time zone under System > Country & Clock, and configure the NTP server address to synchronize the device's system time with the target NTP server.

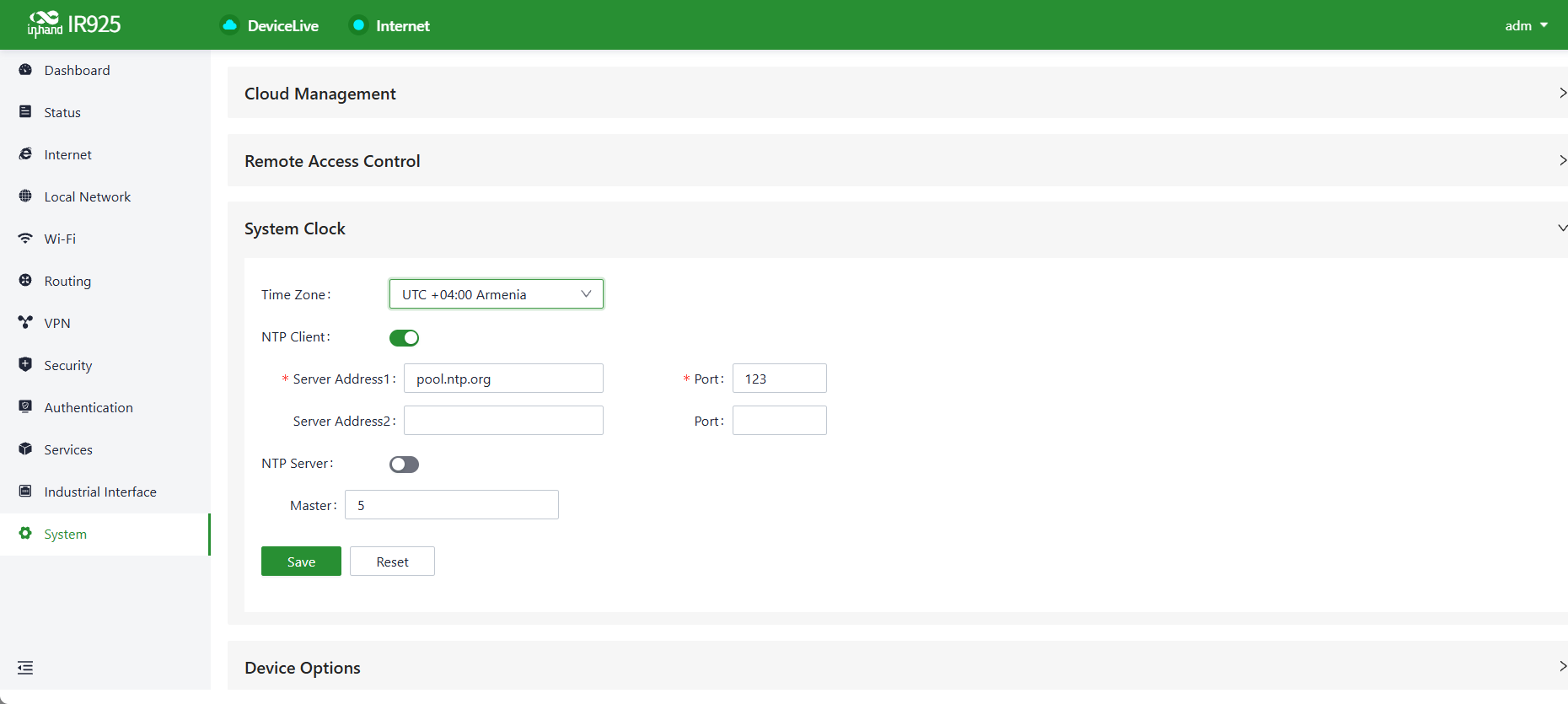

Figure 4-56 Country & System Clock Configuration

4.12.4 Device Options

In the System > Device Options section, various device operations can be performed, such as rebooting, upgrading firmware, and restoring factory settings.

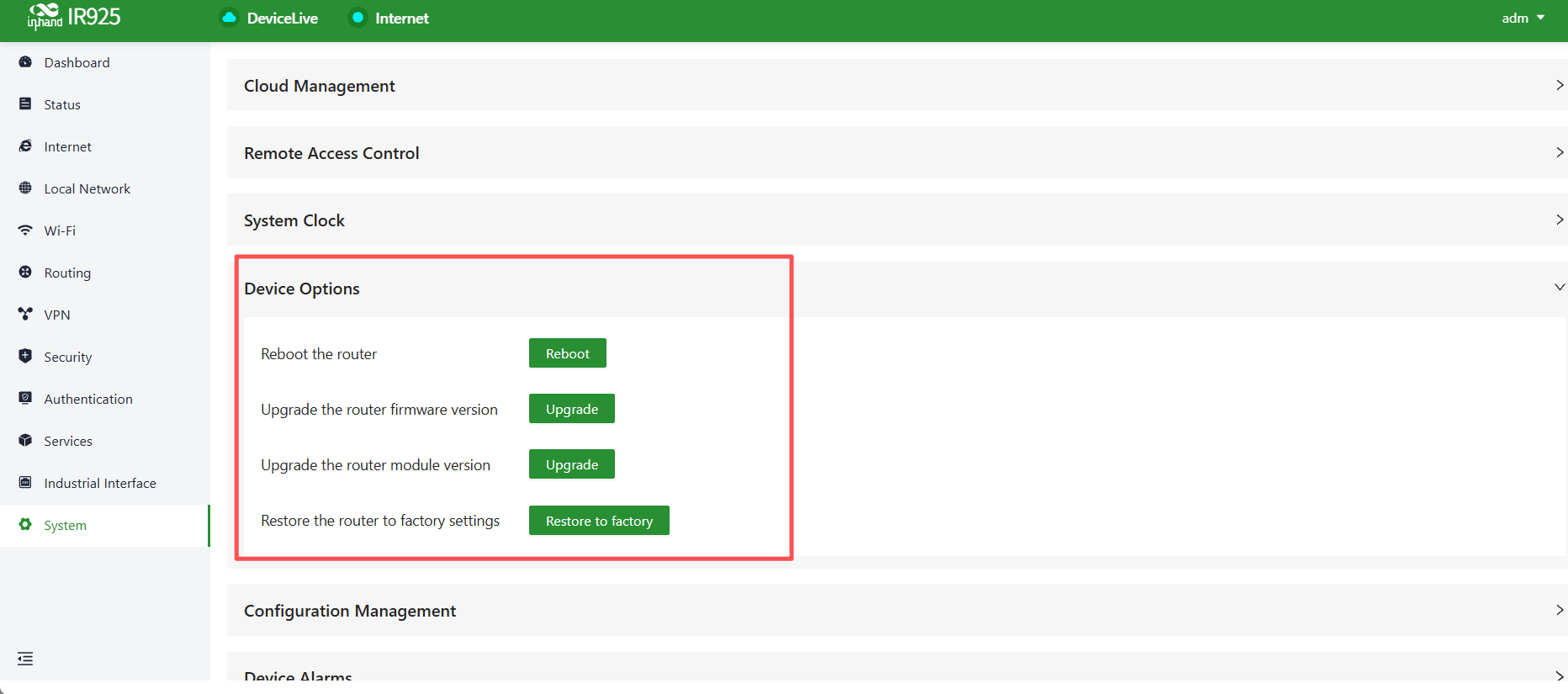

Figure 4-57 Device Options

Cautions:

1. When performing a local firmware upgrade, it is essential to ensure that the firmware is obtained from a legitimate source to avoid rendering the device inoperable due to incorrect firmware imports.
2. When a device is connected to the cloud platform, the platform will synchronize the previous configuration to the device again due to cloud-based configuration synchronization. The device will only clear historical data during the factory reset.

4.12.5 Configuration Management

Configuration backups and backup recovery are critical tasks in network management and maintenance. They involve saving the configuration information of network devices so that it can be quickly restored or transferred when needed.

Device configurations can be exported to local storage in the System > Configuration Management menu. This backup can be imported into the device in case of configuration loss or when overwriting the existing configuration is required.

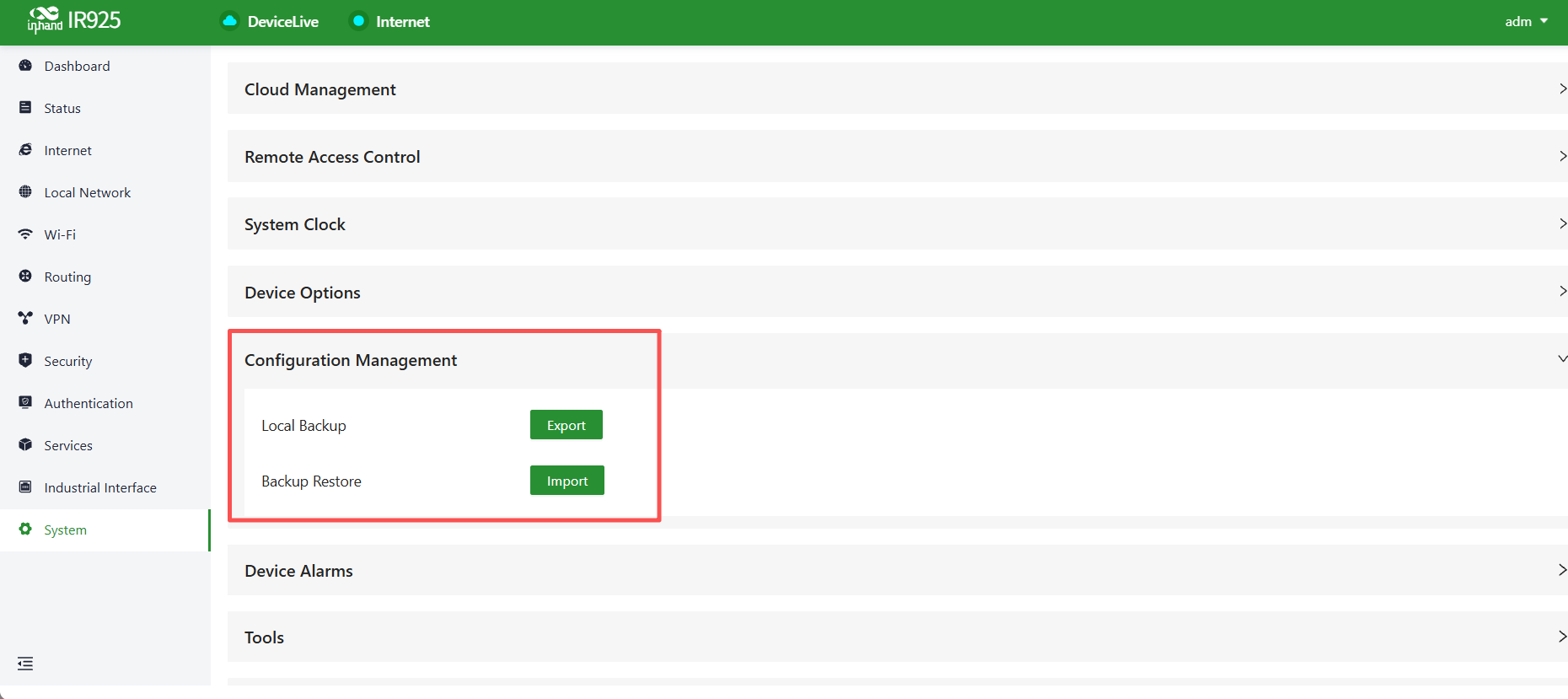

Figure 4-58 Configuration Management

4.12.6 Device Alarms

Specific events that may occur on the device can be selected as alarm events, and the email address for receiving alerts can be configured. When an alarm event occurs, the device will automatically send an email notification. Even if certain alarm options are not selected, related alarm events will still be recorded in the device's local logs.

Alarm event types and email addresses for alarm notifications can be configured in the System > Device Alarms menu.

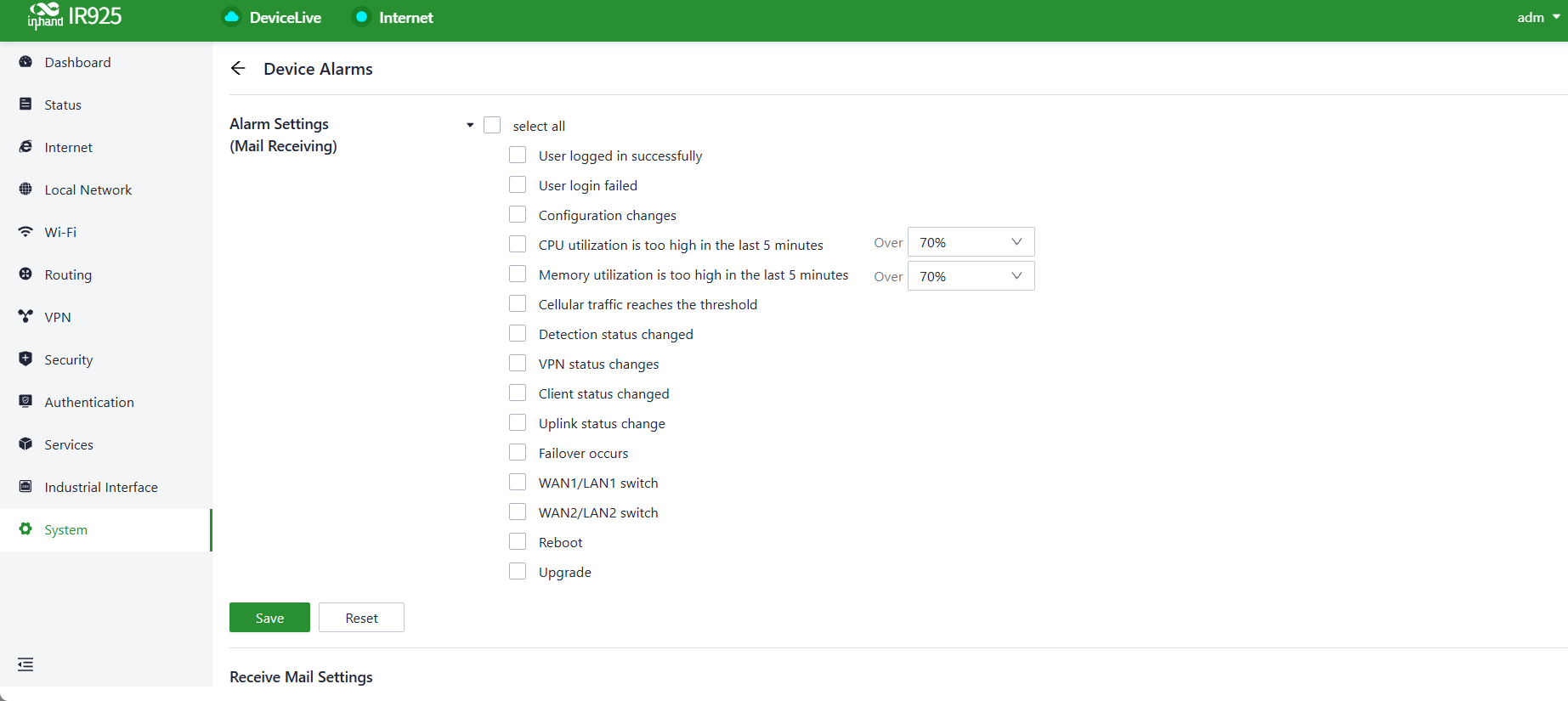

Figure 4-59 Device Alarms Configuration

After configuring the outgoing email server address, port, username, and password, the device will use this email account to send alarm notifications. The "Send Test Email" option can be used to verify whether the outgoing email configuration is correct.

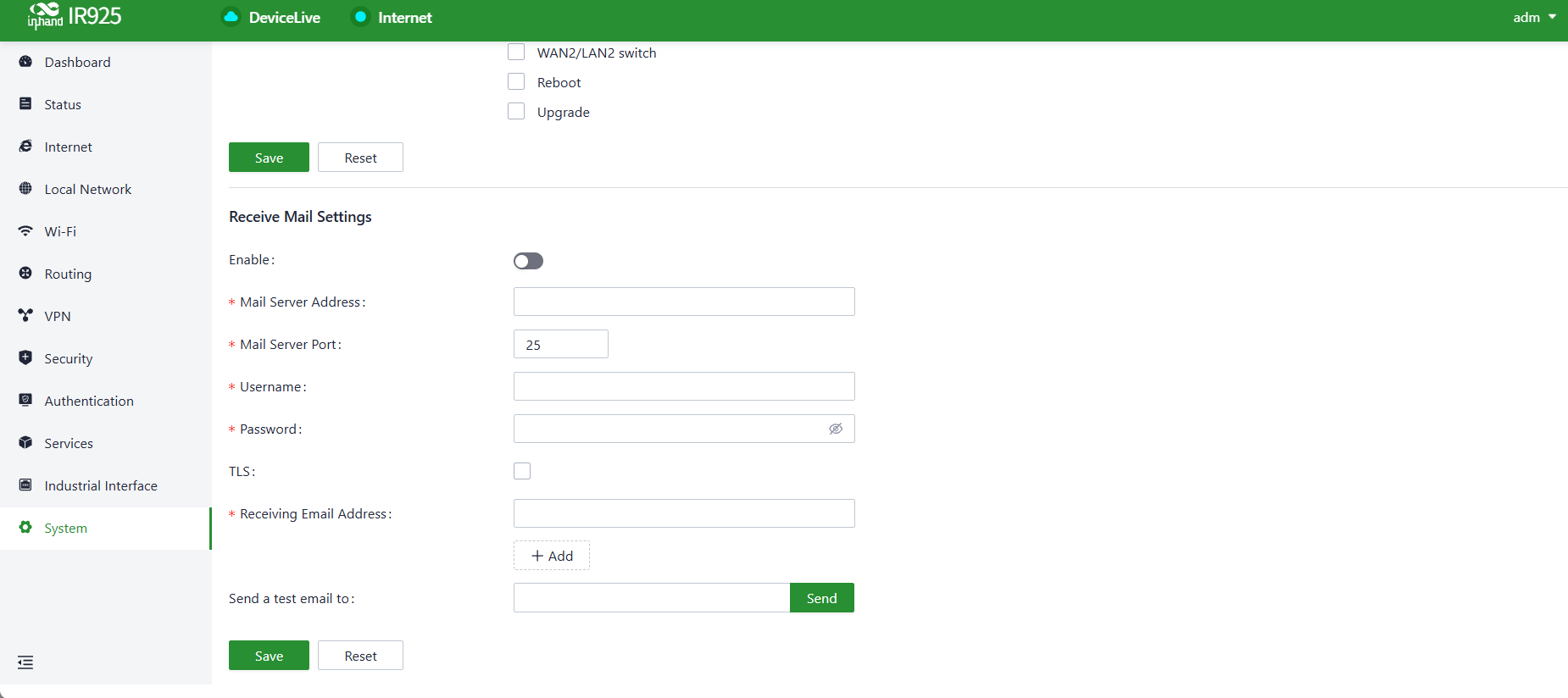

Figure 4-60 Email Server Configuration

4.12.7 Tools

Ping

ICMP (Internet Control Message Protocol) can be used to check the device's external network connectivity. In the "Target" field, enter any domain name or IP address to test the device's connectivity to, and click "Start" to check the connectivity status between the device and the specified target.

This function is accessed via System > Tools > Ping.

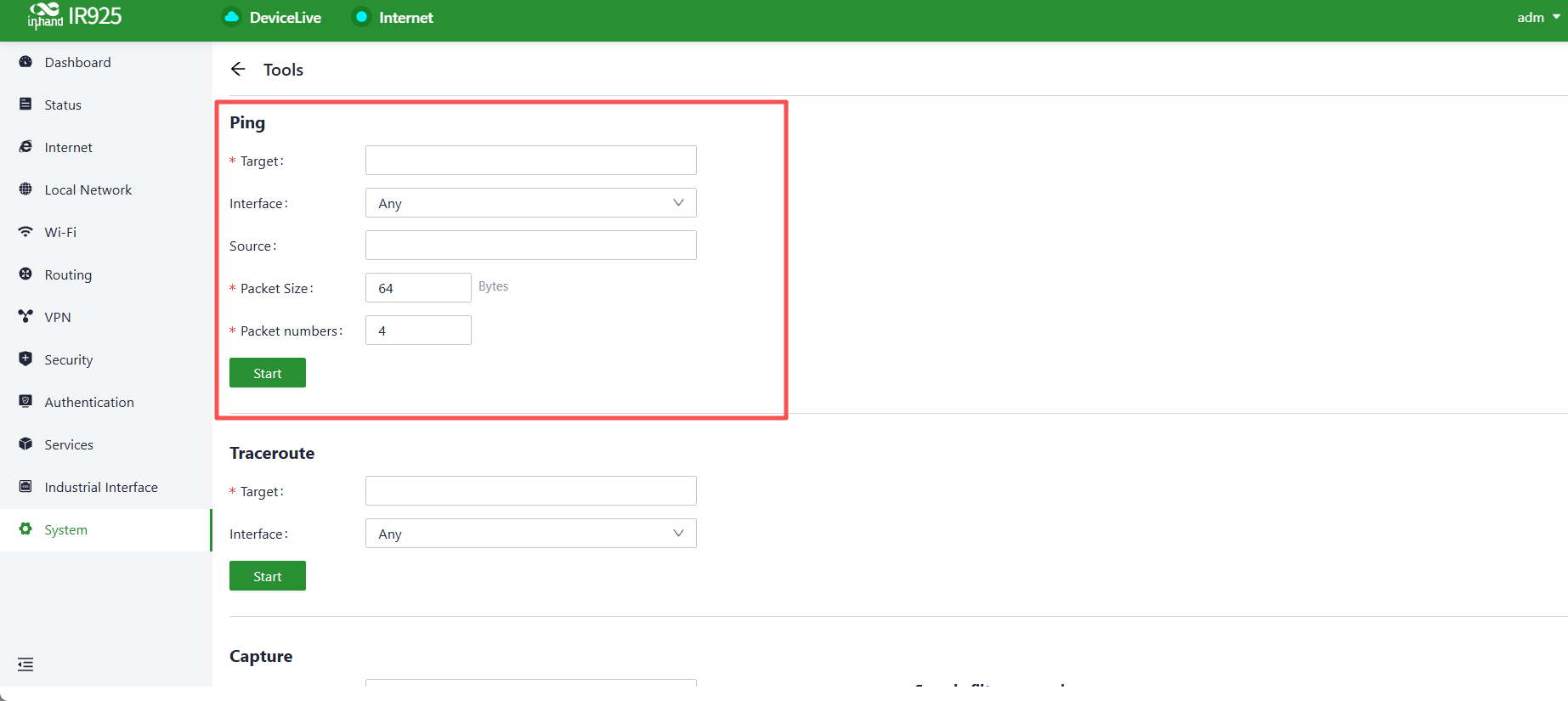

Figure 4-61 Ping Tool

Traceroute

Traceroute is a network diagnostic tool used to determine the network path that data packets take from the source to the destination, as well as the intermediate routers or hops along that path.

The target host's IP address can be entered in System > Tools > Traceroute, the outgoing interface for the traffic can be selected, and "Start" can be clicked to check the device's connectivity to the target IP by tracing the route.

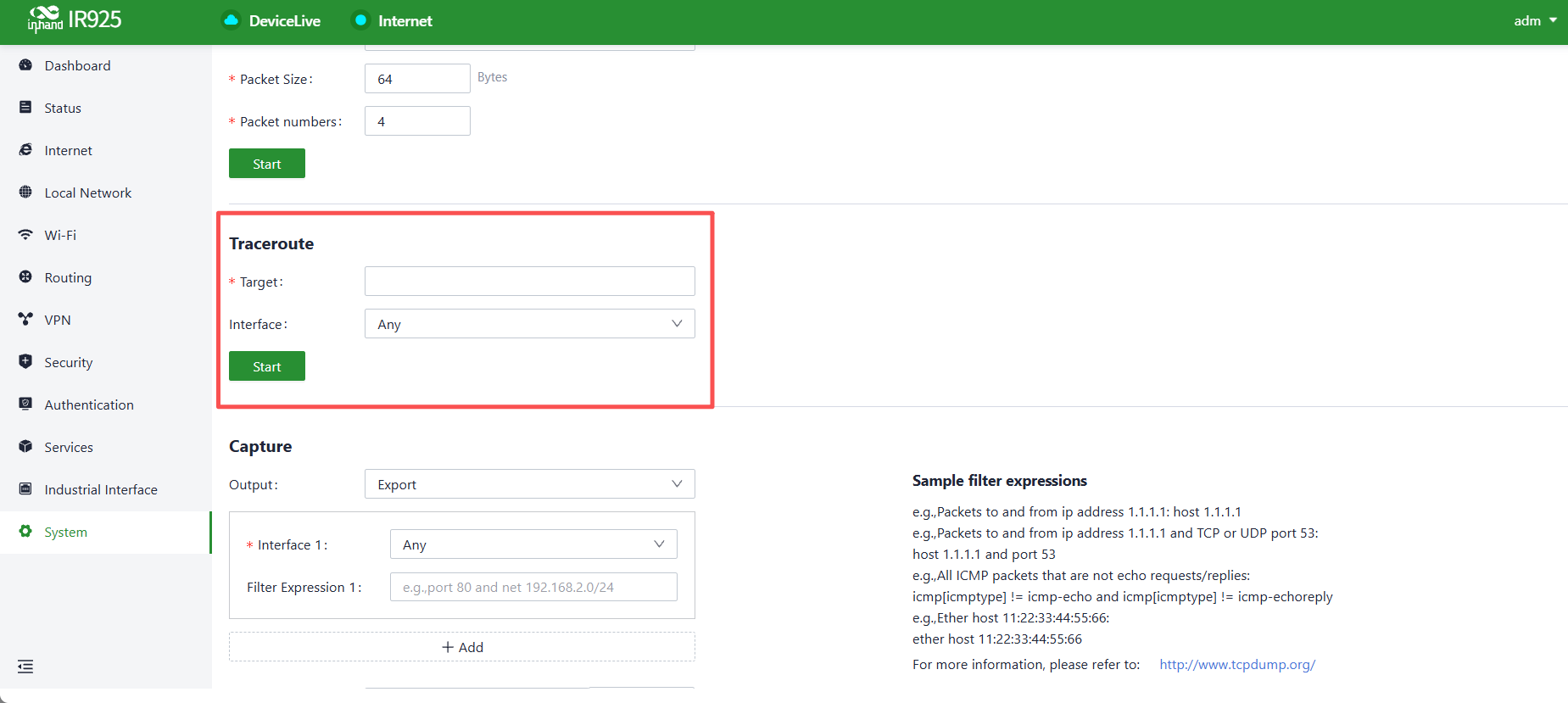

Figure 4-62 Traceroute Tool

Capture

Packet capturing is a network monitoring and analysis technique used to capture and record data packets transmitted over a computer network. Packet capture tools are typically used for network troubleshooting, network performance analysis, security auditing, and protocol analysis.

Packets passing through a specific interface can be captured in System > Tools > Packet Capture. By selecting the "Output" option, the captured data can be displayed within the interface or exported locally for further analysis.

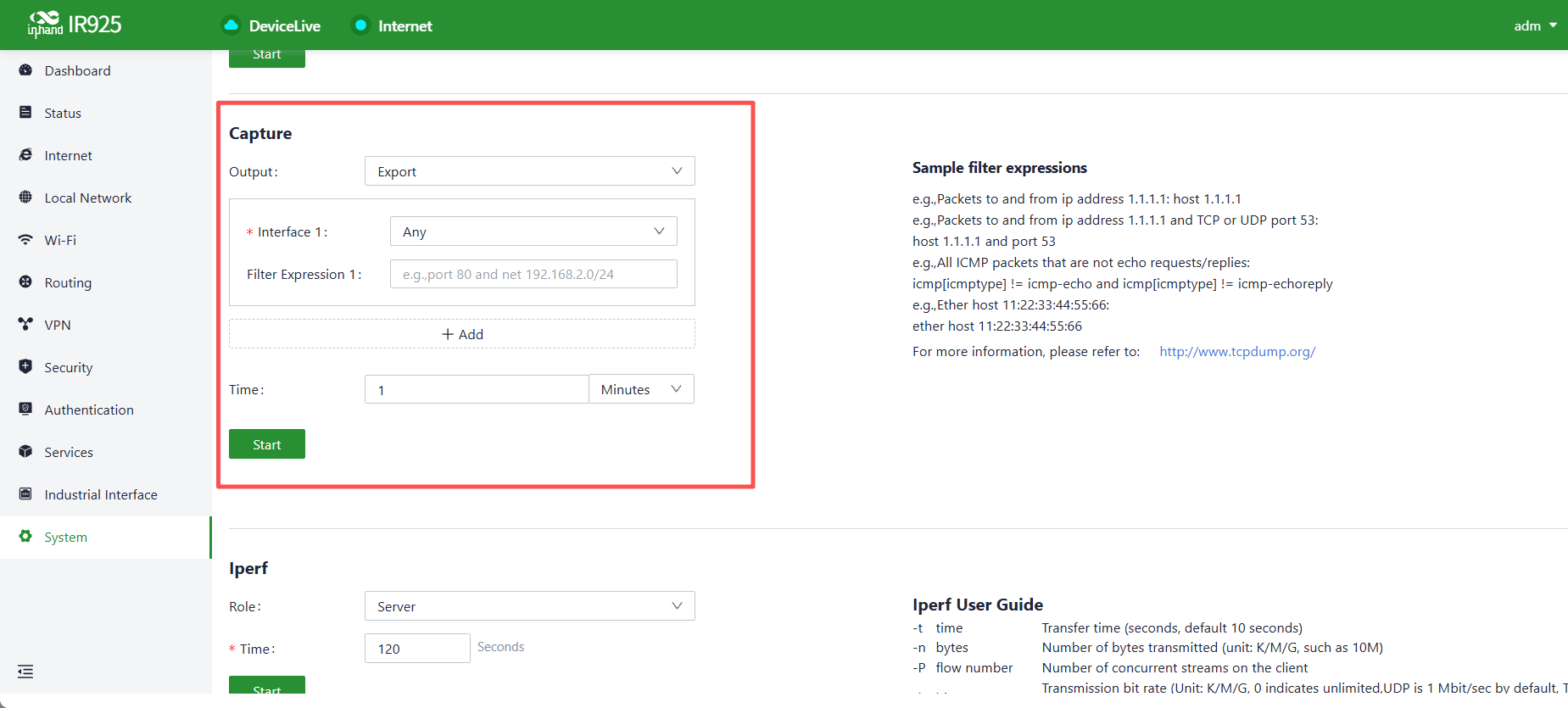

Figure 4-63 Packet Capture Tool

Iperf

Iperf is commonly used for traffic generation on the device to test network bandwidth and throughput, thereby evaluating link quality.

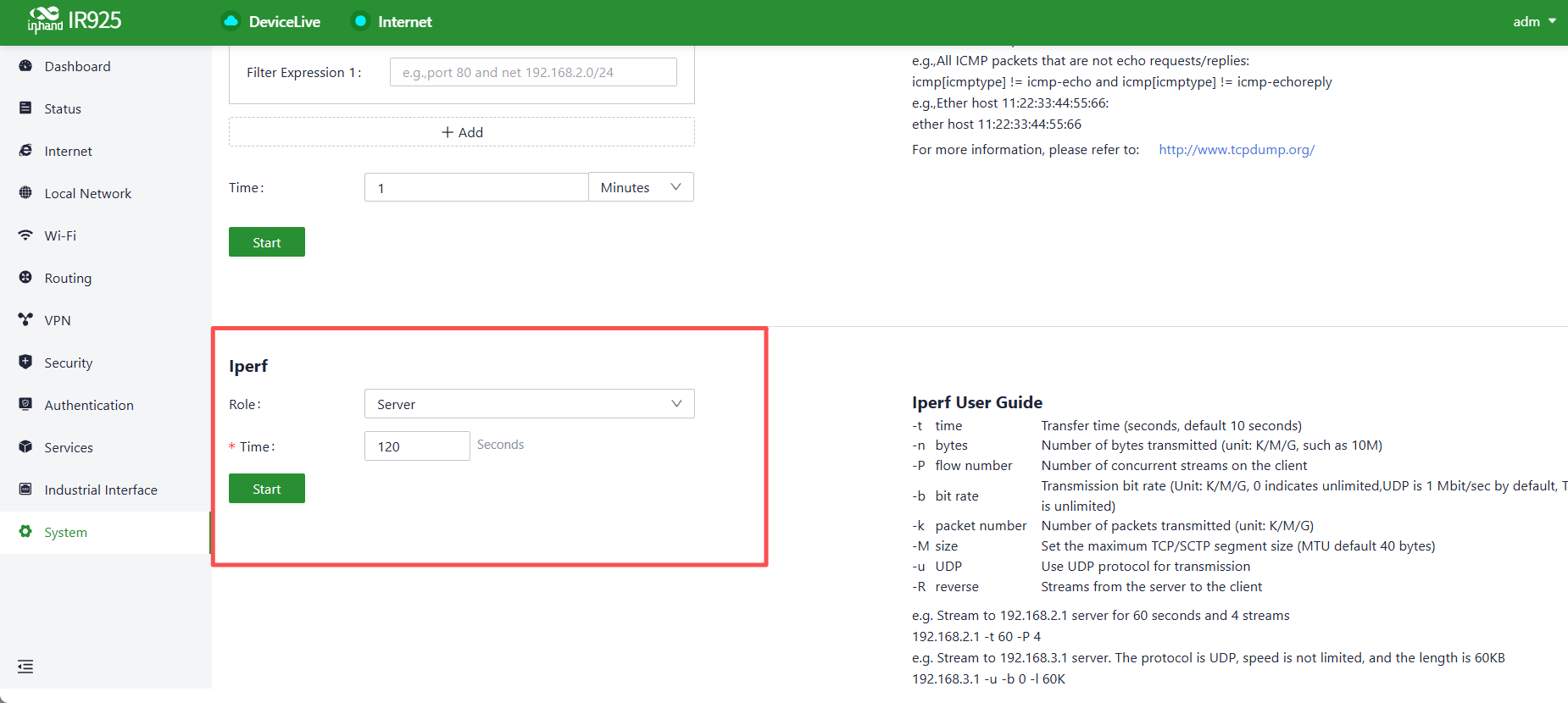

Figure 4-64 Iperf Tool

4.12.8 Scheduled Reboot

Scheduled reboot is a network device management strategy that allows administrators to automatically restart a device at a specific time or under certain conditions to ensure normal operation and performance.

Scheduled reboots can be configured in the System > Scheduled Reboot function based on business requirements. The device supports scheduled reboots at fixed times daily, weekly, or monthly.

In the case of monthly reboots, if the selected reboot day exceeds the actual number of days in the month, the device will reboot on the last day of the month. For example, if the 31st of every month is selected, the device will reboot on the 30th in a month with only 30 days.

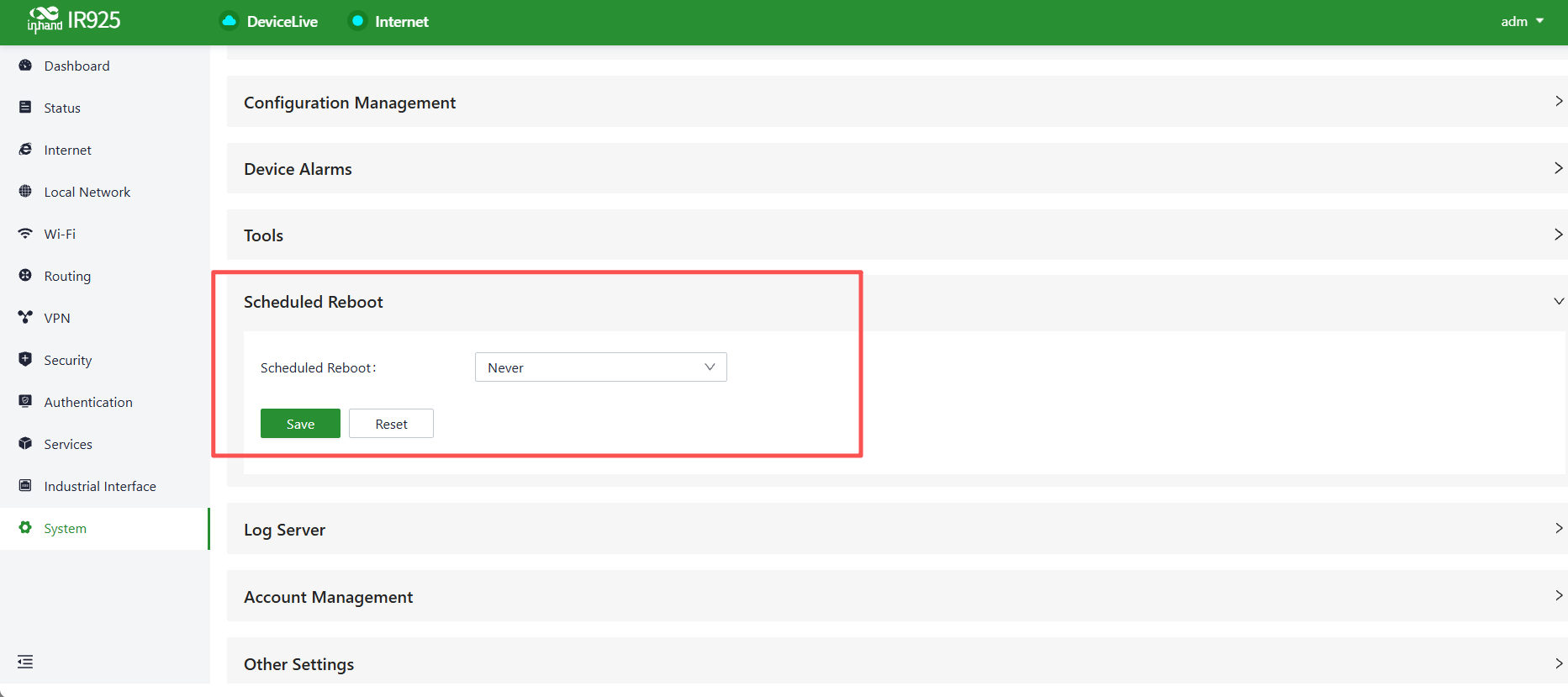

Figure 4-65 Scheduled Reboot Configuration

4.12.9 Log Server

A log server is a dedicated server or software application used to collect, store, and manage log information generated by network devices, applications, and operating systems. These log records include events, warnings, errors, activities, and other relevant information and are crucial for monitoring, troubleshooting, and performance optimization.

When the log file server function is enabled in the System > Log Server feature, the device will periodically upload log files to the specified log server.

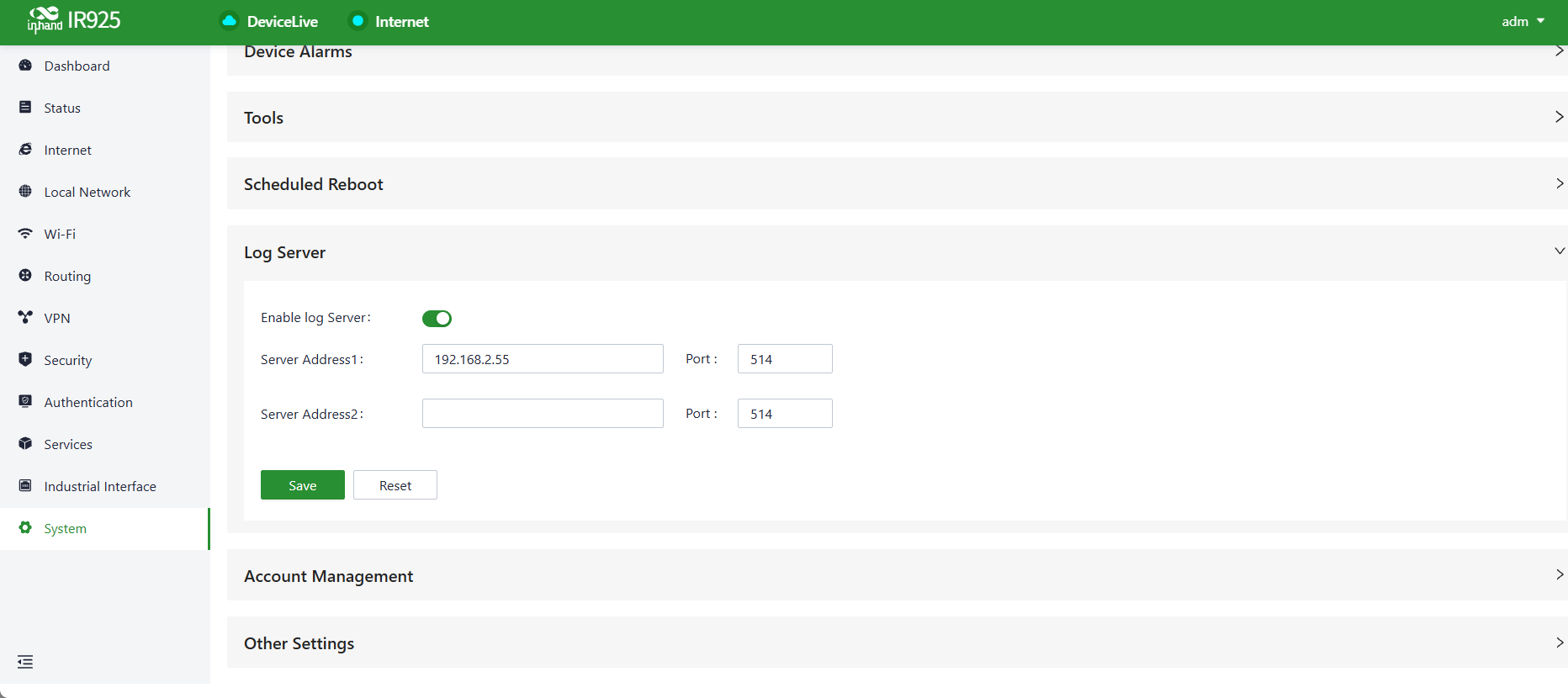

Figure 4-66 Log Server Configuration

4.12.10 Account Management

The username and password for logging in to the device's web page can be changed in the System > Account Management menu.

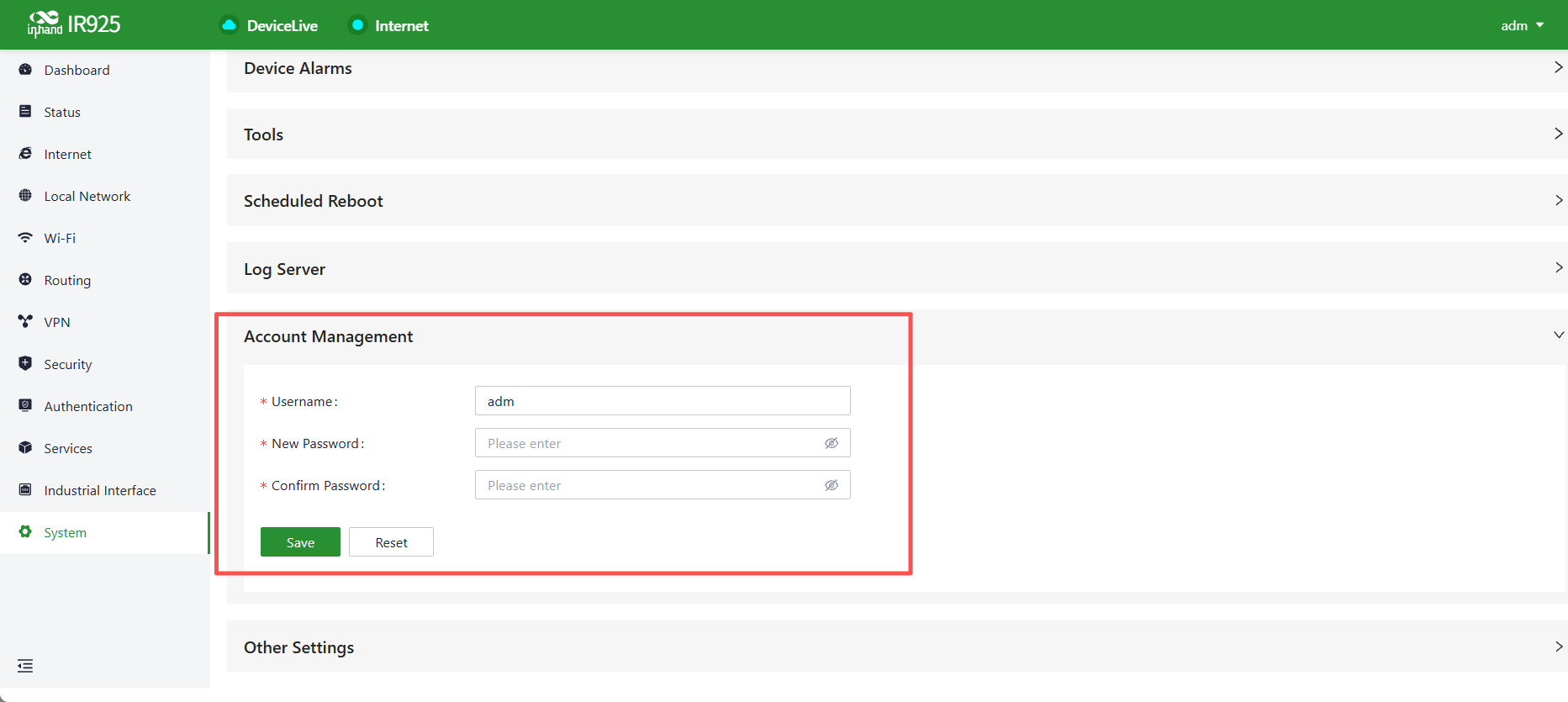

Figure 4-67 Account Management

4.12.11 Other Settings

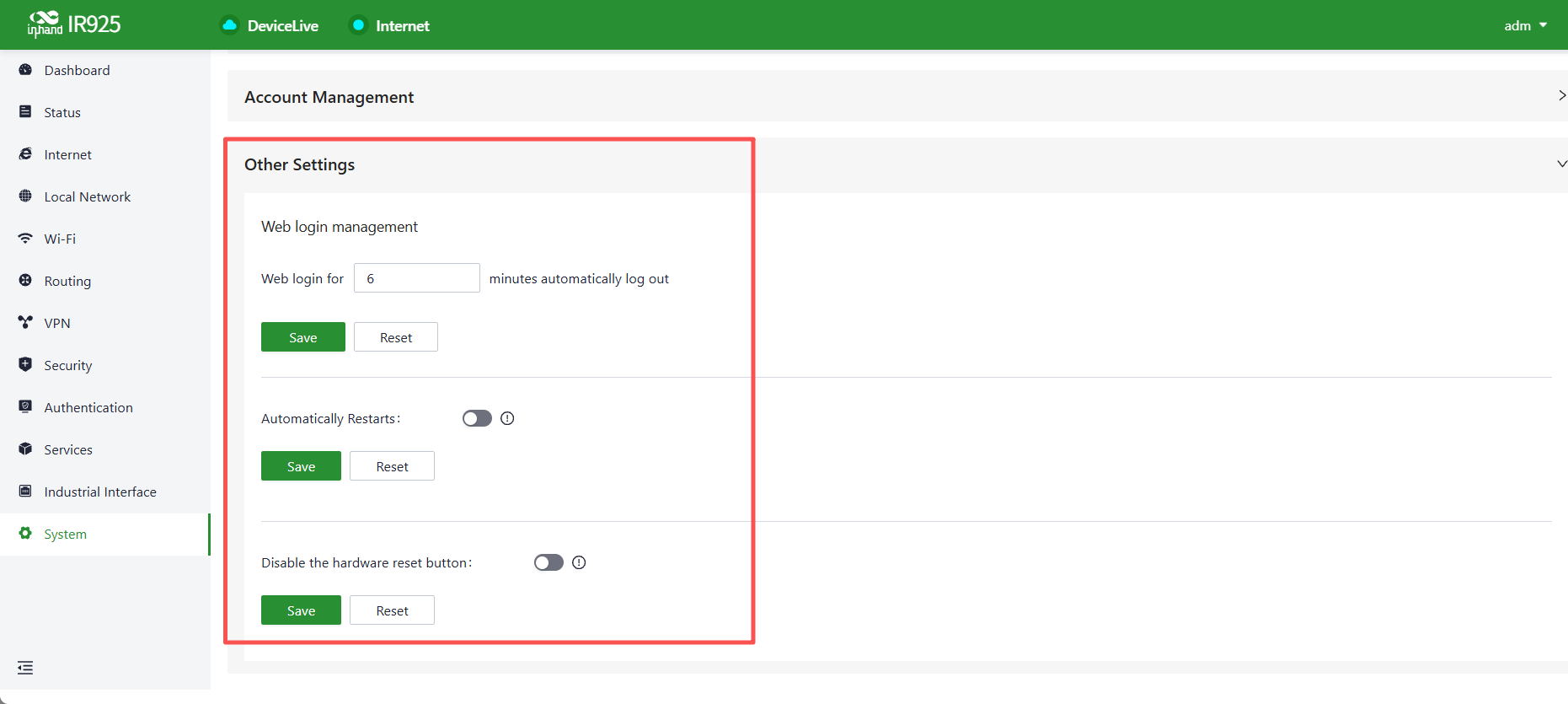

Figure 4-68 Other Settings

Web Login Management

When a user logs in to the local interface of the device through the web and the session remains active for a certain period, it will automatically log out or disconnect to protect privacy and security.

The logout time can be configured in System > Other Settings > Web Login Management. If the online time during a single login session on the device's web page exceeds the configured time, the system will automatically log the user out, and re-login will be required to continue operations.

Automatically Restarts

Industrial routers are designed with an auto-reboot mechanism to address situations where a manual reboot on site would otherwise be required to restore network connectivity. After enabling this feature under System > Other Settings > Automatically Restarts, the device will automatically reboot if it loses network connectivity and still cannot re-establish the connection after one hour of retries.

Disable Hardware Reset Button

Once enabled, the device can no longer be restored to factory default settings via the Reset button.

Chapter 5 Typical Applications

Use Case 1: Remote Monitoring Networking for Industrial Sites

Scenario Description: At an industrial site, the IR925 serves as an edge gateway, uploading data from on-site devices such as PLCs and sensors to the cloud platform via the cellular network, enabling remote monitoring and O&M.

Device Role: The device acts as an edge gateway, connecting field wired/wireless devices to the Internet and securing data transmission via VPN.

Configuration Steps:

1. Complete device installation and cellular networking as described in Installation and First Use.
2. Verify the cellular connection in the Internet menu.
3. If data encryption is required, configure IPSec VPN or L2TP VPN in the VPN menu.
4. Add the device to the Device Live platform for remote monitoring.

Reference Chapters:

• Cellular Networking
• VPN Configuration
• Connecting to the Device Live Platform

Appendix: Troubleshooting

1 Network Connection Issues

Symptom	Possible Cause	Troubleshooting Steps	Reference
Cannot connect to the cellular network	SIM card not inserted or poor contact	1. Check whether the SIM card is inserted correctly. 2. Re-insert the SIM card.	Cellular Networking
Cannot connect to the cellular network	Incorrect APN parameters	1. Verify the APN parameters. 2. Contact the carrier to obtain the correct APN.	Cellular Connection
Cannot connect to the cellular network	Weak or no signal	1. Check whether the antenna is connected. 2. Adjust the device position.	Before Installation
Cannot access the network via wired connection	Ethernet cable connection failure	1. Check whether the Ethernet cable is firmly connected. 2. Try a replacement cable.	Wired Network Access
Cannot access the network via wired connection	Incorrect WAN/LAN port mode	1. Confirm that the port is in WAN mode. 2. Check the port configuration in the Internet menu.	Wired Connection
Cannot access the network via Wi-Fi (STA)	Incorrect SSID or password	1. Verify the SSID and password. 2. Confirm the AP signal strength.	Wi-Fi Network Access
Cannot access the network via Wi-Fi (STA)	Authentication policy mismatch	1. Check the AP's authentication and encryption policies. 2. Ensure the IR925 configuration matches the AP.	Wireless Connection

2 Web Access Issues

Symptom	Possible Cause	Troubleshooting Steps	Reference
Cannot open the web interface	Incorrect IP address	1. Confirm that the PC and the device are on the same subnet. 2. Check the device's default IP.	Logging In to the Web Management Interface
Cannot open the web interface	Browser compatibility issues	1. Try another browser (Chrome recommended). 2. Clear the browser cache.	Logging In to the Web Management Interface
Forgot the login password	Password not recorded	1. Check the product nameplate. 2. If the password was changed and forgotten, restore factory defaults.	Restoring Factory Defaults

3 VPN Connection Issues

Symptom	Possible Cause	Troubleshooting Steps	Reference
IPSec VPN tunnel cannot be established	Pre-shared key mismatch	1. Verify that the pre-shared keys on both ends are identical.	IPSec VPN
IPSec VPN tunnel cannot be established	Incorrect peer address configuration	1. Configure the server side as 0.0.0.0. 2. Enter the server's public address on the client side.	IPSec VPN
IPSec VPN tunnel cannot be established	IKE policy mismatch	1. Verify the encryption algorithm, authentication algorithm, DH group, and other parameters on both ends.	IPSec VPN
L2TP VPN tunnel cannot be established	Incorrect username/password	1. Verify that the usernames and passwords on both ends are identical.	L2TP VPN
L2TP VPN tunnel cannot be established	Server address unreachable	1. Check network connectivity. 2. Confirm the server address is correct.	L2TP VPN Client

4 Cloud Platform Connection Issues

Symptom	Possible Cause	Troubleshooting Steps	Reference
Device cannot go online on Device Live	Device not connected to the Internet	1. Confirm that the device is connected to the Internet. 2. Check the cellular/wired/Wi-Fi connection status.	Connecting to the Device Live Platform
Device cannot go online on Device Live	Incorrect serial number	1. Verify that the serial number entered matches the device nameplate.	Connecting to the Device Live Platform
Device cannot go online on Device Live	Cloud management disabled	1. Confirm that cloud management is enabled under System > Cloud Management.	Cloud Management

Appendix Safety Precautions

1. The original power adapter must be used to avoid device damage caused by mismatched power adapters.

2. When installing the device, it should not be placed in an environment with strong electromagnetic interference. The device must be kept at a safe distance from high-power equipment. After installation, the device must be secured to prevent accidental drops and potential damage.

3. The device's operating environment must meet the temperature and humidity requirements specified in the user manual.

4. The device's cables, including Ethernet cables and power adapter connections, must be inspected regularly. Cables must be kept clean and replaced if any damage is detected.

5. When cleaning the device, chemical agents must not be sprayed directly on the device's surface to prevent damage to the housing or internal components. A soft cloth must be used for cleaning.

6. The device must not be disassembled or modified by unauthorized personnel, as this can pose safety risks and may void the device's warranty.
