IG Series API Documentation V1.0

API usage instructions

  • IG Series products provide a set of HTTP APIs for network management and system management. Users can use tools such as curl and Postman or use code to build and send HTTP requests to manage devices.
  • The API uses the HTTPS protocol. Because a self-signed certificate is used, the client does not need to verify the certificate. The method of not verifying the certificate is as follows:
  • curl Command plus -kparameters

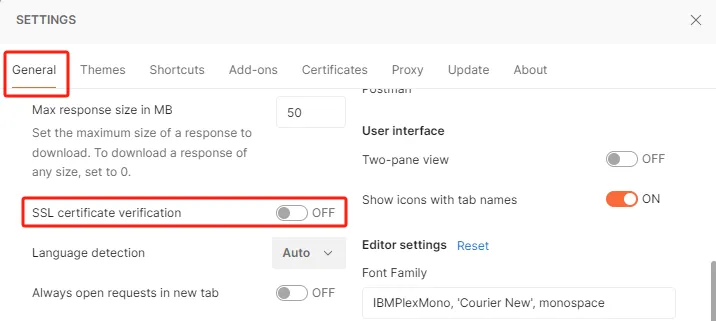

  • Postman needs to close SSL certificate verification


1
2
3
- HTTP API Port fixed `443`, the URL needs to be prefixed when used: `https :// <IP>` or `https :// <IP>: 443 `
- under Linux system, you can use curl Command to call API, for more curl Command usage: [https://curl.se/docs/ ](https://curl.se/docs/)
- under Windows system, you can use Postman software to call API,Postman uses the document:

https://learning.postman.com/docs/introduction/overview/

obtain authentication

Calling the HTTP-related API interface requires obtaining the Authorization token. The method of obtaining is to base64 encode the user name and password in the form of username:password to obtain the initial token, and then use this token to call the login interface to obtain the final Authorization token.

1
POST /v1/user/login

**Request Example **

the token YWRtOjEyMzQ1Ng = = is obtained by base64 encoding the default username and password in the adm:123456 format.

1
Authorization: Basic YWRtOjEyMzQ1Ng==

**Return information **

1
2
3
4
5
6
7
8
9
{
    "results": {
        "name": "adm",
        "priv": 15,
        "from": "10.5.30.215",
        "web_session": "HryznYzqVlLkOerl0RXeeoAh0vmcPPpn",
        "first_login": 0
    }
}

**parameter Description **

**parameter Name ** **parameter Description ** **parameter Type ** **value range **
web_session string

**return Example **

1
2
3
4
5
6
7
8
9
{
    "results": {
        "name": "adm",
        "priv": 15,
        "from": "10.5.30.215",
        "web_session": "9vh4d7NVeYxEm318VMleC6PHIvNQNCZL",
        "first_login": 0
    }
}

network Interface

cellular network

update Configuration

interface

1
PUT v1/cellular/config?autosave=1

load

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
{
    "enable": 1,
    "enable_dual_sim": 0,
    "main_sim": 1,
    "max_dial_times": 3,
    "min_dial_times": 0,
    "backup_sim_timeout": 0,
    "network_type": 0,
    "sim1_profile": 1,
    "sim2_profile": 0,
    "sim1_roaming": 1,
    "sim2_roaming": 1,
    "sim1_pincode": "",
    "sim2_pincode": "",
    "sim1_csq_threshold": 0,
    "sim2_csq_threshold": 0,
    "sim1_csq_detect_interval": 0,
    "sim2_csq_detect_interval": 0,
    "sim1_csq_detect_retries": 0,
    "sim2_csq_detect_retries": 0,
    "static_ip": 0,
    "ip_addr": "",
    "peer_addr": "",
    "connect_mode": 0,
    "trig_data": 1,
    "trig_sms": 0,
    "max_idle_time": 60,
    "radial_interval": 10,
    "init_command": "",
    "rssi_poll_interval": 120,
    "dial_timeout": 120,
    "mtu": 1500,
    "mru": 1500,
    "use_default_asyncmap": 0,
    "use_peer_dns": 1,
    "lcp_interval": 55,
    "lcp_max_retries": 5,
    "infinitely_dial_retry": 0,
    "debug": 0,
    "expert_options": "",
    "dial_time_on_sim2": 0,
    "pdp_type": 2,
    "sms": {
        "enable": 0,
        "mode": 1,
        "enable_reply": 0,
        "interval": 30,
        "phone_num_white_lists": [

        ]
    },
    "profile": [
        {
            "index": "default",
            "network_type": 1,
            "apn": "",
            "access_number": "",
            "auth_method": 0,
            "username": "",
            "password": ""
        },
        {
            "index": 1,
            "network_type": 1,
            "apn": "3gnet",
            "access_number": "*99***1#",
            "auth_method": 2,
            "username": "gprs",
            "password": "gprs"
        }
    ]
}

parameters

Attribute Type Range Description
enable integer [0,1] Dial enable switch, 0 off, 1 on
enable_dual_sim integer [0,1] dual card enable switch, 0 off, 1 on
main_sim integer [1, 2] main SIM card, 1 for sim1,2 for sim2
max_dial_times integer [1, 10] switch SIM cards after a number of SIM card dialing failures reaches the set number of times
min_dial_times integer 0 legacy field, fixed at 0
backup_sim_timeout integer [0, 8640000]s the time spent on the standby card, when the time is reached, it will be switched back to the main card, in seconds.
network_type integer [0, 7] 0: Automatic
1:2g
2:3g
3:4G
6:5g
7:4G5G
there are differences in the network system supported by the settings of different models.
sim1_profile integer [0,10] the dial parameters of the sim1 card and. 0 indicates the default dialing parameter set
1~10 corresponds to the index value in the profile array
sim2_profile integer [0,10] the dial parameters of the sim2 card and. 0 indicates the default dialing parameter set
1~10 corresponds to the index value in the profile array
sim1_roaming integer [0,1] does the sim1 card enable roaming, 0 off, 1 on
sim2_roaming integer [0,1] does the sim2 card enable roaming, 0 off, 1 on
sim1_pincode string [1, 6] character the pincode of the sim1 card
sim2_pincode string [1, 6] character pincode of sim2 card
sim1_csq_threshold integer 0 legacy field, fixed at 0
sim2_csq_threshold integer 0 legacy field, fixed at 0
sim1_csq_detect_interval integer 0 legacy field, fixed at 0
sim2_csq_detect_interval integer 0 legacy field, fixed at 0
kan integer 0 legacy field, fixed at 0
kan integer 0 Legacy field, fixed at 0
static_ip integer [0,1] whether to enable static IP, 0 off, 1 enabled, only ppp dial-up modules support this configuration
ip_addr string [1, 16] characters local IP address when static IP is enabled
peer_addr string [1, 16] characters peer IP address when static IP is enabled
connect_mode integer 0 legacy field, fixed at 0
trig_data integer 1 legacy field, fixed at 1
trig_sms integer 0 legacy field, fixed at 0
max_idle_time integer 60 Legacy field, fixed at 60
radial_interval integer [1, 3600]s after dialing fails, it will dial again, but it will wait for a period of time before dialing again. The waiting time is set here.
init_command string [1, 32] characters initialization command
rssi_poll_interval integer [1, 3600]s signal detection interval
dial_timeout integer [10, 3600]s dial Timeout
mtu integer [128, 1500] MTU value for the dial-up Interface
mru integer [128, 1500] MRU value of the dial-up Interface
use_default_asyncmap integer 0 legacy field, fixed at 0
use_peer_dns integer [0,1] whether to use the DNS assigned by dial-up, 0 does not use, 1 uses
infinitely_dial_retry integer [0,1] whether to turn on unlimited redial, after turning on, no matter how many times the dialing fails, the system will not restart; After turning off, when the dialing failure reaches a certain number of times, the system will automatically restart.
debug integer [0,1] whether to enable debug log, 0 off, 1 on
expert_options string [1, 32] characters expert Options
pdp_type integer [0,2] 0: IPV4
1: IPV6
2: IPV4V6
sms.enable integer [0,1] Whether to enable SMS function, 0 off, 1 on
sms.mode integer 1 SMS mode, fixed at 1, indicates SMS in text format
sms.enable_reply integer [0,1] after configuring the gateway through SMS, whether to reply to the configuration result through SMS, 0 does not reply, 1 reply.
sms.interval integer cycle of processing SMS
sms.phone_num_white_lists array maximum of 10 members mobile phone number White List, only in the white list of mobile phone number to send text messages, the program will be processed.

Query Configuration

interface

1
GET v1/cellular/config

response

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
{
    "results": {
        "enable": 0,
        "enable_dual_sim": 1,
        "main_sim": 1,
        "max_dial_times": 2,
        "min_dial_times": 300,
        "backup_sim_timeout": 0,
        "dial_time_on_sim2": 0,
        "network_type": 0,
        "pdp_type": 0,
        "sim1_profile": 0,
        "sim1_roaming": 1,
        "sim1_pincode": "",
        "sim2_profile": 0,
        "sim2_roaming": 1,
        "sim2_pincode": "",
        "sim1_csq_threshold": 0,
        "sim2_csq_threshold": 0,
        "sim1_csq_detect_interval": 0,
        "sim2_csq_detect_interval": 0,
        "sim1_csq_detect_retries": 0,
        "sim2_csq_detect_retries": 0,
        "static_ip": 0,
        "connect_mode": 0,
        "radial_interval": 10,
        "sms": {
            "enable": 0,
            "mode": 1,
            "enable_reply": 0,
            "interval": 30,
            "phone_num_white_lists": []
        },
        "profile": [
            {
                "index": 1,
                "network_type": 1,
                "apn": "3gnet",
                "access_number": "*99***1#",
                "auth_method": 0,
                "username": "gprs",
                "password": "gprs"
            }
        ],
        "init_command": "",
        "rssi_poll_interval": 120,
        "dial_timeout": 120,
        "mtu": 1500,
        "mru": 1500,
        "use_default_asyncmap": 0,
        "use_peer_dns": 1,
        "lcp_interval": 55,
        "lcp_max_retries": 5,
        "infinitely_dial_retry": 0,
        "debug": 0,
        "expert_options": ""
    }
}

parameters

Attribute Type Range Description
enable integer [0,1] Dial enable switch, 0 off, 1 on
enable_dual_sim integer [0,1] dual card enable switch, 0 off, 1 on
main_sim integer [1, 2] main SIM card, 1 for sim1,2 for sim2
max_dial_times integer [1, 10] switch SIM cards after a number of SIM card dialing failures reaches the set number of times
min_dial_times integer 0 legacy field, fixed at 0
backup_sim_timeout integer [0, 8640000]s the time spent on the standby card, when the time is reached, it will be switched back to the main card, in seconds.
network_type integer [0, 7] 0: Automatic
1:2g
2:3g
3:4G
6:5g
7:4G5G
there are differences in the network system supported by the settings of different models.
sim1_profile integer [0,10] the dial parameters of the sim1 card and. 0 indicates the default dialing parameter set
1~10 corresponds to the index value in the profile array
sim2_profile integer [0,10] the dial parameters of the sim2 card and. 0 indicates the default dialing parameter set
1~10 corresponds to the index value in the profile array
sim1_roaming integer [0,1] does the sim1 card enable roaming, 0 off, 1 on
sim2_roaming integer [0,1] does the sim2 card enable roaming, 0 off, 1 on
sim1_pincode string [1, 6] character the pincode of the sim1 card
sim2_pincode string [1, 6] character pincode of sim2 card
sim1_csq_threshold integer 0 legacy field, fixed at 0
sim2_csq_threshold integer 0 legacy field, fixed at 0
sim1_csq_detect_interval integer 0 legacy field, fixed at 0
sim2_csq_detect_interval integer 0 legacy field, fixed at 0
kan integer 0 legacy field, fixed at 0
kan integer 0 Legacy field, fixed at 0
static_ip integer [0,1] whether to enable static IP, 0 off, 1 enabled, only ppp dial-up modules support this configuration
ip_addr string [1, 16] characters local IP address when static IP is enabled
peer_addr string [1, 16] characters peer IP address when static IP is enabled
connect_mode integer 0 legacy field, fixed at 0
trig_data integer 1 legacy field, fixed at 1
trig_sms integer 0 legacy field, fixed at 0
max_idle_time integer 60 Legacy field, fixed at 60
radial_interval integer [1, 3600]s after dialing fails, it will dial again, but it will wait for a period of time before dialing again. The waiting time is set here.
init_command string [1, 32] characters initialization command
rssi_poll_interval integer [1, 3600]s signal detection interval
dial_timeout integer [10, 3600]s dial Timeout
mtu integer [128, 1500] MTU value for the dial-up Interface
mru integer [128, 1500] MRU value of the dial-up Interface
use_default_asyncmap integer 0 legacy field, fixed at 0
use_peer_dns integer [0,1] whether to use the DNS assigned by dial-up, 0 does not use, 1 uses
infinitely_dial_retry integer [0,1] whether to turn on unlimited redial, after turning on, no matter how many times the dialing fails, the system will not restart; After turning off, when the dialing failure reaches a certain number of times, the system will automatically restart.
debug integer [0,1] whether to enable debug log, 0 off, 1 on
expert_options string [1, 32] characters expert Options
pdp_type integer [0,2] 0: IPV4
1: IPV6
2: IPV4V6
sms.enable integer [0,1] Whether to enable SMS function, 0 off, 1 on
sms.mode integer 1 SMS mode, fixed at 1, indicates SMS in text format
sms.enable_reply integer [0,1] after configuring the gateway through SMS, whether to reply to the configuration result through SMS, 0 does not reply, 1 reply.
sms.interval integer cycle of processing SMS
sms.phone_num_white_lists array maximum of 10 members mobile phone number White List, only in the white list of mobile phone number to send text messages, the program will be processed.

Query Status

module Status

interface

1
GET v1/cellular/modem/status

response

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
{
    "results": {
        "active_sim": "SIM 1",
        "imei_code": "865847055239576",
        "imsi_code": "460026001115905",
        "iccid_code": "898600F0221109E25905",
        "phone_number": "",
        "signal_level": 17,
        "dbm": 79,
        "rerp": 0,
        "rerq": 0,
        "register_status": 1,
        "operator": "China Mobile",
        "mcc_mnc": 46000,
        "apns": "",
        "network_type": "4G",
        "lac": "8005",
        "cell_id": "8006700",
        "arfcn": 0,
        "sinr": "",
        "pci": 0,
        "network_submode": "LTE",
        "model_temp": 0
    }
}

parameters

Attribute Type Range Description
active_sim string [1, 16] characters SIM card currently in use
imei_code string [1, 16] characters IEMI information of cellular module
imsi_code string [1, 16] characters IMSI information of SIM card
iccid_code string [1, 32] characters ICCID information of SIM card
phone_number string [1, 16] characters mobile phone number
signal_level integer [0, 31] signal quality
rerp integer RERP
rerq integer RERQ
register_status integer [0, 7] connection status:
0: Registering to the network
1: Register network successfully
2: Registering to the network
3: Registration network is denied
4: Failed to register network for unknown reason
5: Failed to register network for unknown reason
6: Not yet registered to the network
7: Turn off dialing, the registration status is not displayed at this time
operator string [1, 16] characters operator
mcc_mnc integer PLMN
apns string [1, 16] characters APN Information
network_type string [1, 16] characters network Type
lac string [1, 16] characters location Area Code
cell_id string [1, 16] characters cell ID
connection status

interface

1
GET v1/cellular/network/status

response

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
{
    "results": [
        {
            "status": 1,
            "ip_addr": "10.148.48.144",
            "netmask": "255.255.255.255",
            "gateway": "10.148.48.145",
            "dns": "223.87.253.100 223.87.253.253",
            "mtu": 1500,
            "connect_time": 2
        }
    ]
}

parameters

Attribute Type Range Description
status integer [0,1] 0: not connected; 1: Connected
ip_addr string [1, 16] characters cellular interface IP address
netmask string [1, 16] characters cellular Interface Subnet Mask
gateway string [1, 16] characters gateway
mtu integer [68, 1500] interface MTU value
dns string [1, 32] dns information
connect_time integer cellular interface connection duration

WAN interface

update Configuration

interface

1
PUT v1/eth/config?autosave=1

load

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
{
    "iface_name": "fastethernet 0/1",
    "internet": 0,
    "primary_ip": "10.5.30.213",
    "netmask": "255.255.255.0",
    "mtu": 1500,
    "speed_duplex": 0,
    "track_l2_state": 1,
    "shutdown": 0,
    "description": "",
    "multi_ip": [
        {
            "secondary_ip": "192.168.6.2",
            "netmask": "255.255.255.0"
        }
    ]
}

parameters

Attribute Type Range Description
iface_name string [1, 16] characters interface Name
internet integer [0,1] 0: interface is configured as static IP
1: The interface is configured as DHCP to obtain the address
primary_ip string [1, 16] characters interface IP address
netmask string [1, 16] characters Interface Subnet Mask
mtu integer [68, 1500] interface MTU value
track_l2_state integer [0,1] level 2 status linkage switch; 0 off, 1 on
shutdown integer [0,1] interface status switch; 0 on, 1 off
description string [0,32] characters interface Description Information
multi_ip object interface from IP information

query Configuration

interface

1
GET v1/eth/config?iface=eth1

response

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
{
    "results": {
        "iface_name": "fastethernet 0/1",
        "internet": 0,
        "primary_ip": "10.5.30.213",
        "netmask": "255.255.255.0",
        "mtu": 1500,
        "speed_duplex": 0,
        "track_l2_state": 1,
        "shutdown": 0,
        "description": "test",
        "multi_ip": []
    }
}

parameters

Attribute Type Range Description
iface_name string [1, 16] characters interface Name
internet integer [0,1] 0: interface is configured as static IP
1: The interface is configured as DHCP to obtain the address
primary_ip string [1, 16] characters interface IP address
netmask string [1, 16] characters interface Subnet Mask
mtu integer [68, 1500] interface MTU value
track_l2_state integer [0,1] level 2 status linkage switch; 0 off, 1 on
shutdown integer [0,1] interface status switch; 0 on, 1 off
description string [0,32] characters interface Description Information
multi_ip object interface from IP information

query Status

interface

1
GET v1/eth/status?iface=eth1

response

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
{
    "results": {
        "iface_name": "fastethernet 0/1",
        "connect_type": 0,
        "ip_addr": "10.5.30.213",
        "netmask": "255.255.255.0",
        "gateway": "0.0.0.0",
        "dns": "0.0.0.0 ",
        "mtu": 1500,
        "status": 1,
        "connect_time": 70629,
        "remaining_lease": 0,
        "description": "test"
    }
}

parameters

Attribute Type Range Description
iface_name string [1, 16] characters interface Name
connect_type integer [0,1] 0: interface is configured as static IP
1: The interface is configured as DHCP to obtain the address
ip_addr string [1, 16] characters interface IP address
netmask string [1, 16] characters interface Subnet Mask
mtu integer [68, 1500] interface MTU value
gateway string [1, 16] characters IP address of the Gateway
status integer [0,1] interface status; 0 means interface down,1 means interface up
dns string [0,32] characters dns information
connect_time integer [1, n] duration of interface up
remaining_lease integer [0, 10080] the remaining lease period when the interface obtains the address through DHCP, in minutes.

LAN interface

update Configuration

interface

1
PUT v1/bridge/config?autosave=1&brid=1

load

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
{
    "iface_name": "bridge 1",
    "primary_ip": "192.168.2.1",
    "netmask": "255.255.255.0",
    "shutdown": false,
    "description": "lan_interface",
    "bridge_ifaces": [
        "fastethernet 0/2"
    ],
    "multi_ip": [
        {
            "secondary_ip": "192.168.7.100",
            "netmask": "255.255.255.0"
        }
    ]
}

parameters

Attribute Type Range Description
iface_name string [1, 16] characters interface Name
primary_ip string [1, 16] characters interface IP address
netmask string [1, 16] characters interface Subnet Mask
shutdown bool true/false interface status switch; false on, true off
bridge_interfaces array LAN is a bridge interface. Here is a list of the physical interfaces that the bridge interface contains.
description string [0,32] characters interface Description Information
multi_ip object interface from IP information

query Configuration

Interface

1
GET v1/bridge/config?brid=1

response

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
{
    "results": {
        "iface_name": "bridge 1",
        "primary_ip": "192.168.2.1",
        "netmask": "255.255.255.0",
        "shutdown": 0,
        "description": "lan_interface",
        "bridge_ifaces": [
            "fastethernet 0/2"
        ],
        "multi_ip": [
            {
                "secondary_ip": "192.168.7.100",
                "netmask": "255.255.255.0"
            }
        ]
    }
}

parameters

Attribute Type Range Description
iface_name string [1, 16] characters interface Name
primary_ip string [1, 16] characters interface IP address
netmask string [1, 16] characters interface Subnet Mask
shutdown bool true/false interface status switch; false on, true off
bridge_interfaces array LAN is a bridge interface. Here is a list of the physical interfaces that the bridge interface contains.
description string [0,32] characters Interface Description Information
multi_ip object interface from IP information

query Status

interface

1
v1/bridge/status?brid=1

response

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
{
    "results": {
        "iface_name": "bridge 1",
        "connect_type": 0,
        "ip_addr": "192.168.2.1",
        "netmask": "255.255.255.0",
        "gateway": "0.0.0.0",
        "dns": "0.0.0.0 ",
        "mtu": 1500,
        "status": 1,
        "connect_time": 338203,
        "remaining_lease": 0,
        "description": "lan_interface"
    }
}

parameters

Attribute Type Range Description
iface_name string [1, 16] characters interface Name
connect_type integer [0,1] 0: interface is configured as static IP
1: The interface is configured as DHCP to obtain the address
ip_addr string [1, 16] characters interface IP address
netmask string [1, 16] characters interface Subnet Mask
mtu integer [68, 1500] interface MTU value
gateway string [1, 16] characters IP address of the Gateway
dns string [0,32] characters dns information
connect_time integer [1, n] duration of interface up
description string [0,32] characters interface Description Information
status integer [0,1] interface status; 0 means interface down,1 means interface up
remaining_lease integer [0, 10080] the remaining lease period when the interface obtains the address through DHCP, in minutes.

WLAN

Update Station configuration

interface

1
PUT v1/dot11radio/config?autosave=1

load

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
{
    "enable": 1,
    "iface": "dot11radio1",
    "station_role": 1,
    "ap_ssid_broadcast": 1,
    "ap_ssid": "InEdgeGateway",
    "auth_method": 0,
    "wpa_psk_key": "",
    "ap_max_associations": 0,
    "ap_wpa_group_rekey": 3600,
    "ap_isolate": 0,
    "ap_band": 0,
    "ap_radio_type": 7,
    "ap_channel": 11,
    "encrypt_mode": 0,
    "wep_key": "",
    "ap_radius_ip": "",
    "ap_radius_port": 1812,
    "ap_radius_key": "",
    "ap_radius_srcif": "",
    "ap_bandwidth": 0,
    "sta_default_route": 1,
    "sta_ssid": "0x696E68616E642D76697369746F72",
    "sta_auth_method": 5,
    "sta_encrypt_mode": 4,
    "sta_wpa_psk_key": "inhand@visitor",
    "sta_wep_key": "",
    "sta_auth_mode": 0,
    "sta_inner_auth": 0,
    "sta_username": "",
    "sta_password": "",
    "sta_dhcp": 1,
    "ip_addr": "",
    "netmask": ""，
    "sta_auth_mode": 1,
    "sta_inner_auth": 1,
    "sta_username": "hello",
    "sta_password": "abcd123456",
}

Parameters

Attribute Type Range Description
enable integer [0,1] WLAN switch, 0 off, 1 on
station_role integer [0,1] Wi-Fi working mode
0:AP
1:Station
ap_ssid string [1, 32] characters ssid name in AP mode
ap_ssid_broadcast integer [0,1] SSID broadcast switch, 0 is off, 1 is on
auth_method integer [0, 8] authentication Method
0: No certification
1: Shared authentication
2: Reserved Fields
3:WPA-PSK
4: WPA
5: WPA2-PSK
6: WPA2
7: WPA/WPA2
8: WPAPSK/WPA2PSK
wpa_psk_key string [8,63] Characters WPA/WPA2 PSK key. This option is valid only when the authentication method is WPA-PSK,WPA2-PSK,WPAPSK/WPA2PSK
ap_max_associations integer [1, 128] maximum number of clients
ap_wpa_group_rekey integer [600, 86400] group Password Negotiation Time
ap_isolate integer [0,1] AP isolating switch, 0 off, 1 on
ap_band integer [0,1] Radio band, 0 is 2.4G,1 is 5G
ap_radio_type integer 0: 802.11b/g,
1: 802.11b
2: 802.11a
4: 802.11g
6: 802.11n
7: 802.11g/n
8: 802.11an/ac
9: 802.11b/g/n,
11: 802.11na		 when the wireless frequency band is 2.4G, the drop-down options are: 0,1, 4,6, 7,9; When the wireless frequency band is 5G, the drop-down options are: 2,8, 11
ap_channel integer [1, 11] channel
encrypt_mode integer [0,4] encryption Method
0: Do not encrypt
1: WEP40
2: WEP104
3: TKIP
4: AES
wep_key string [0,16] character network Key
ap_radius_ip string [1, 16] characters IP address of the radius server
ap_radius_port integer [1, 65535] port number of the radius server
ap_radius_key string [1, 32] characters shared key for radius server
ap_radius_srcif string [1, 16] characters name of the interface connected to the radius server
ap_bandwidth integer 0,1,3 wireless bandwidth
0:20MHz
1:40MHz
3:80MHz
sta_default_route integer [0,1] when the mode is station, add the default route based on WLAN, 0 does not add, 1 adds
sta_ssid string [1, 64] characters ssid name to be connected when the mode is station
sta_auth_method integer [0,6] authentication Method
0: No certification
1: Shared Certification
2: Reserved Unused
3: WPA-PSK certification
4: WPA certification
5: WPA2-PSK certification
6: WPA2 certification
sta_auth_mode integer 1 authentication mode (WPA/WPA2 mode needs to be configured)
1: EAP-PEAP
sta_iner_auth integer [1, 2] Internal authentication (WPA/WPA2 mode needs to be configured)
1:mschapv2
2: md5
sta_username string user name (to be configured in WPA/WPA2 mode)
sta_password string password (to be configured in WPA/WPA2 mode)
sta_dhcp integer [0,1] whether to enable static IP:
0: use static IP
1: Do not use static IP, use DHCP to obtain IP address
ip_addr string [0,16] character static IP address set when static IP is enabled
netmask string [0,16] character subnet mask set when static IP is enabled

query Station configuration

interface

1
GET v1/dot11radio/config?iface=dot11radio1

response

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
{
    "results": {
        "enable": 1,
        "iface": "dot11radio1",
        "station_role": 1,
        "ap_ssid_broadcast": 1,
        "ap_ssid": "InEdgeGateway",
        "auth_method": 0,
        "wpa_psk_key": "",
        "ap_max_associations": 0,
        "ap_wpa_group_rekey": 3600,
        "ap_isolate": 0,
        "ap_band": 0,
        "ap_radio_type": 7,
        "ap_channel": 11,
        "encrypt_mode": 0,
        "wep_key": "",
        "ap_radius_ip": "",
        "ap_radius_port": 1812,
        "ap_radius_key": "",
        "ap_radius_srcif": "",
        "ap_bandwidth": 0,
        "sta_default_route": 1,
        "sta_ssid": "0x696E68616E642D76697369746F72",
        "sta_auth_method": 5,
        "sta_encrypt_mode": 4,
        "sta_wpa_psk_key": "inhand@visitor",
        "sta_wep_key": "",
        "sta_auth_mode": 0,
        "sta_inner_auth": 0,
        "sta_username": "",
        "sta_password": "",
        "sta_dhcp": 1,
        "ip_addr": "0.0.0.0",
        "netmask": "0.0.0.0"
    }
}
Attribute Type Range Description
enable integer [0,1] WLAN switch, 0 off, 1 on
station_role integer [0,1] Wi-Fi working mode
0:AP
1:Station
ap_ssid string [1, 32] characters ssid name in AP mode
ap_ssid_broadcast integer [0,1] SSID broadcast switch, 0 is off, 1 is on
auth_method integer [0, 8] authentication Method
0: No certification
1: Shared authentication
2: Reserved Fields
3:WPA-PSK
4: WPA
5: WPA2-PSK
6: WPA2
7: WPA/WPA2
8: WPAPSK/WPA2PSK
wpa_psk_key string [8,63] Characters WPA/WPA2 PSK key. This option is valid only when the authentication method is WPA-PSK,WPA2-PSK,WPAPSK/WPA2PSK
ap_max_associations integer [1, 128] maximum number of clients
ap_wpa_group_rekey integer [600, 86400] group Password Negotiation Time
ap_isolate integer [0,1] AP isolating switch, 0 off, 1 on
ap_band integer [0,1] radio band, 0 is 2.4G,1 is 5G
ap_radio_type integer 0: 802.11b/g,
1: 802.11b
2: 802.11a
4: 802.11g
6: 802.11n
7: 802.11g/n
8: 802.11an/ac
9: 802.11b/g/n,
11: 802.11na		 when the wireless frequency band is 2.4G, the drop-down options are: 0,1, 4,6, 7,9; When the wireless frequency band is 5G, the drop-down options are: 2,8, 11
ap_channel integer [1, 11] channel
encrypt_mode integer [0,4] encryption Method
0: Do not encrypt
1: WEP40
2: WEP104
3: TKIP
4: AES
wep_key string [0,16] character network Key
ap_radius_ip string [1, 16] characters IP address of the radius server
ap_radius_port integer [1, 65535] port number of the radius server
ap_radius_key string [1, 32] characters shared key for radius server
ap_radius_srcif string [1, 16] characters name of the interface connected to the radius server
ap_bandwidth integer 0,1,3 wireless bandwidth
0:20MHz
1:40MHz
3:80MHz
sta_default_route integer [0,1] when the mode is station, add the default route based on WLAN, 0 does not add, 1 adds
sta_ssid string [1, 64] characters ssid name to be connected when the mode is station
sta_auth_method integer [0,6] authentication Method
0: No certification
1: Shared Certification
2: Reserved Unused
3: WPA-PSK certification
4: WPA certification
5: WPA2-PSK certification
6: WPA2 certification
sta_auth_mode integer 1 authentication mode (WPA/WPA2 mode needs to be configured)
1: EAP-PEAP
sta_iner_auth integer [1, 2] internal authentication (WPA/WPA2 mode needs to be configured)
1:mschapv2
2: md5
sta_username string user name (to be configured in WPA/WPA2 mode)
sta_password string password (to be configured in WPA/WPA2 mode)
sta_dhcp integer [0,1] whether to enable static IP:
0: use static IP
1: Do not use static IP, use DHCP to obtain IP address
ip_addr string [0,16] character static IP address set when static IP is enabled
netmask string [0,16] character subnet mask set when static IP is enabled

query Station status

interface

1
GET v1/dot11radio/status?iface=dot11radio1

response

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
{
    "results": {
        "station_role": 1,
        "status": 1,
        "mac_addr": "f4:3c:3b:36:18:2d",
        "ap_ssid": "InEdgeGateway",
        "auth_method": 0,
        "ap_channel": 11,
        "encrypt_method": 0,
        "sta_ssid": "0x696E68616E642D76697369746F72",
        "sta_connection": 1,
        "sta_auth_method": 5,
        "sta_encrypt_method": 4,
        "sta_gateway": "10.5.60.254",
        "sta_dns": "61.139.2.69 183.221.253.100",
        "sta_connect_time": 218,
        "ip_addr": "10.5.60.111",
        "netmask": "255.255.255.0"
    }
}
Attribute Type Range Description
station_role string [0,1] Wi-Fi mode
0: AP
1: Station
status integer [0,1] Wi-Fi Status
0: Closed
1: Open
mac_addr string 17 characters MAC address of the Wi-Fi interface
encrypt_method integer [0,4] encryption Method
0: Do not encrypt
1: WEP40
2: WEP104
3: TKIP
4: AES
sta_ssid integer [1, 32] SSID name of the connection
sta_connection integer [0,1] connection status:
0: Not connected
1: Connected
sta_auth_method integer [0,6] authentication Method
0: No certification
1: Shared Certification
2: Reserved Unused
3: WPA-PSK certification
4: WPA certification
5: WPA2-PSK certification
6: WPA2 certification
sta_gateway string [1, 16] characters the Gateway address of the Wi-Fi interface, that is, the IP address of the AP.
sta_dns string [1, 16] characters dns address obtained from the Wi-Fi interface
sta_connect_time integer [0, 4294967296] Wi-Fi connection duration
ip_addr string [1, 16] characters IP address of the Wi-Fi interface
netmask string [1, 16] characters subnet mask of the Wi-Fi interface

update AP configuration

interface

1
PUT v1/dot11radio/config?autosave=1

load

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
{
    "enable": 1,
    "iface": "dot11radio1",
    "station_role": 0,
    "ap_ssid_broadcast": 1,
    "ap_ssid": "0x496E4564676547617465776179",
    "auth_method": 0,
    "wpa_psk_key": "",
    "ap_max_associations": 10,
    "ap_wpa_group_rekey": 3600,
    "ap_isolate": 0,
    "ap_band": 0,
    "ap_radio_type": 7,
    "ap_channel": 11,
    "encrypt_mode": 0,
    "wep_key": "",
    "ap_radius_ip": "",
    "ap_radius_port": 1812,
    "ap_radius_key": "",
    "ap_radius_srcif": "",
    "ap_bandwidth": 0,
    "sta_default_route": 0,
    "sta_ssid": "",
    "sta_auth_method": 0,
    "sta_encrypt_mode": 0,
    "sta_wpa_psk_key": "",
    "sta_wep_key": "",
    "sta_auth_mode": 0,
    "sta_inner_auth": 0,
    "sta_username": "",
    "sta_password": "",
    "sta_dhcp": 0,
    "ip_addr": "",
    "netmask": ""
}

parameters

Attribute Type Range Description
enable integer [0,1] WLAN switch, 0 off, 1 on
station_role integer [0,1] Wi-Fi working mode
0:AP
1:Station
ap_ssid string [1, 32] characters ssid name in AP mode
ap_ssid_broadcast integer [0,1] SSID broadcast switch, 0 is off, 1 is on
auth_method integer [0, 8] authentication Method
0: No certification
1: Shared authentication
2: Reserved Fields
3:WPA-PSK
4: WPA
5: WPA2-PSK
6: WPA2
7: WPA/WPA2
8: WPAPSK/WPA2PSK
wpa_psk_key string [8,63] Characters WPA/WPA2 PSK key. This option is valid only when the authentication method is WPA-PSK,WPA2-PSK,WPAPSK/WPA2PSK
ap_max_associations integer [1, 128] maximum number of clients
ap_wpa_group_rekey integer [600, 86400] group Password Negotiation Time
ap_isolate integer [0,1] AP isolating switch, 0 off, 1 on
ap_band integer [0,1] radio band, 0 is 2.4G,1 is 5G
ap_radio_type integer 0: 802.11b/g,
1: 802.11b
2: 802.11a
4: 802.11g
6: 802.11n
7: 802.11g/n
8: 802.11an/ac
9: 802.11b/g/n,
11: 802.11na		 when the wireless frequency band is 2.4G, the drop-down options are: 0,1, 4,6, 7,9; When the wireless frequency band is 5G, the drop-down options are: 2,8, 11
ap_channel integer [1, 11] channel
encrypt_mode integer [0,4] encryption Method
0: Do not encrypt
1: WEP40
2: WEP104
3: TKIP
4: AES
wep_key string [0,16] character network Key
ap_radius_ip string [1, 16] characters IP address of the radius server
ap_radius_port integer [1, 65535] port number of the radius server
ap_radius_key string [1, 32] characters shared key for radius server
ap_radius_srcif string [1, 16] characters name of the interface connected to the radius server
ap_bandwidth integer 0,1,3 wireless bandwidth
0:20MHz
1:40MHz
3:80MHz
sta_default_route integer [0,1] when the mode is station, add the default route based on WLAN, 0 does not add, 1 adds
sta_ssid string [1, 64] characters ssid name to be connected when the mode is station
sta_auth_method integer [0,6] authentication Method
0: No certification
1: Shared Certification
2: Reserved Unused
3: WPA-PSK certification
4: WPA certification
5: WPA2-PSK certification
6: WPA2 certification
sta_auth_mode integer 1 authentication mode (WPA/WPA2 mode needs to be configured)
1: EAP-PEAP
sta_iner_auth integer [1, 2] internal authentication (WPA/WPA2 mode needs to be configured)
1: mschapv2
2: md5
sta_username string user name (to be configured in WPA/WPA2 mode)
sta_password string password (to be configured in WPA/WPA2 mode)
sta_dhcp integer [0,1] whether to enable static IP:
0: use static IP
1: Do not use static IP, use DHCP to obtain IP address
ip_addr string [0,16] character static IP address set when static IP is enabled
netmask string [0,16] character subnet mask set when static IP is enabled

query AP configuration

interface

1
GET v1/dot11radio/config?iface=dot11radio1

response

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
{
    "results": {
        "enable": 1,
        "iface": "dot11radio1",
        "station_role": 0,
        "ap_ssid_broadcast": 1,
        "ap_ssid": "0x496E4564676547617465776179",
        "auth_method": 0,
        "wpa_psk_key": "",
        "ap_max_associations": 10,
        "ap_wpa_group_rekey": 3600,
        "ap_isolate": 0,
        "ap_band": 0,
        "ap_radio_type": 7,
        "ap_channel": 11,
        "encrypt_mode": 0,
        "wep_key": "",
        "ap_radius_ip": "",
        "ap_radius_port": 1812,
        "ap_radius_key": "",
        "ap_radius_srcif": "",
        "ap_bandwidth": 0,
        "sta_default_route": 0,
        "sta_ssid": "",
        "sta_auth_method": 0,
        "sta_encrypt_mode": 0,
        "sta_wpa_psk_key": "",
        "sta_wep_key": "",
        "sta_auth_mode": 0,
        "sta_inner_auth": 0,
        "sta_username": "",
        "sta_password": "",
        "sta_dhcp": 0,
        "ip_addr": "0.0.0.0",
        "netmask": "0.0.0.0"
    }
}
Attribute Type Range Description
enable integer [0,1] WLAN switch, 0 off, 1 on
station_role integer [0,1] Wi-Fi working mode
0:AP
1:Station
ap_ssid string [1, 32] characters ssid name in AP mode
ap_ssid_broadcast integer [0,1] SSID broadcast switch, 0 is off, 1 is on
auth_method integer [0, 8] authentication Method
0: No certification
1: Shared authentication
2: Reserved Fields
3:WPA-PSK
4: WPA
5: WPA2-PSK
6: WPA2
7: WPA/WPA2
8: WPAPSK/WPA2PSK
wpa_psk_key string [8,63] Characters WPA/WPA2 PSK key. This option is valid only when the authentication method is WPA-PSK,WPA2-PSK,WPAPSK/WPA2PSK
ap_max_associations integer [1, 128] maximum number of clients
ap_wpa_group_rekey integer [600, 86400] group Password Negotiation Time
ap_isolate integer [0,1] AP isolating switch, 0 off, 1 on
ap_band integer [0,1] radio band, 0 is 2.4G,1 is 5G
ap_radio_type integer 0: 802.11b/g,
1: 802.11b
2: 802.11a
4: 802.11g
6: 802.11n
7: 802.11g/n
8: 802.11an/ac
9: 802.11b/g/n,
11: 802.11na		 when the wireless frequency band is 2.4G, the drop-down options are: 0,1, 4,6, 7,9; When the wireless frequency band is 5G, the drop-down options are: 2,8, 11
ap_channel integer [1, 11] Channel
encrypt_mode integer [0,4] encryption Method
0: Do not encrypt
1: WEP40
2: WEP104
3: TKIP
4: AES
wep_key string [0,16] character network Key
ap_radius_ip string [1, 16] characters IP address of the radius server
ap_radius_port integer [1, 65535] port number of the radius server
ap_radius_key string [1, 32] characters shared key for radius server
ap_radius_srcif string [1, 16] characters Name of the interface connected to the radius server
ap_bandwidth integer 0,1,3 wireless bandwidth
0:20MHz
1:40MHz
3:80MHz
sta_default_route integer [0,1] when the mode is station, add the default route based on WLAN, 0 does not add, 1 adds
sta_ssid string [1, 64] characters ssid name to be connected when the mode is station
sta_auth_method integer [0,6] authentication Method
0: No certification
1: Shared Certification
2: Reserved Unused
3: WPA-PSK certification
4: WPA certification
5: WPA2-PSK certification
6: WPA2 certification
sta_auth_mode integer 1 authentication mode (WPA/WPA2 mode needs to be configured)
1: EAP-PEAP
sta_iner_auth integer [1, 2] internal authentication (WPA/WPA2 mode needs to be configured)
1: mschapv2
2: md5
sta_username string user name (to be configured in WPA/WPA2 mode)
sta_password string password (to be configured in WPA/WPA2 mode)
sta_dhcp integer [0,1] whether to enable static IP:
0: use static IP
1: Do not use static IP, use DHCP to obtain IP address
ip_addr string [0,16] character Static IP address set when static IP is enabled
netmask string [0,16] character subnet mask set when static IP is enabled

query AP status

interface

1
GET v1/dot11radio/status?iface=dot11radio1

response

1
2
3
4
5
6
7
8
9
{
    "results": {
        "station_role": 0,
        "status": 1,
        "mac_addr": "f4:3c:3b:36:18:2d",
        "ap_ssid": "0x496E4564676547617465776179",
        "ap_channel": 11,
    }
}
Attribute Type Range Description
station_role string [0,1] Wi-Fi mode
0: AP
1: Station
status integer [0,1] Wi-Fi Status
0: Closed
1: Open
mac_addr string 17 characters MAC address of the Wi-Fi interface
ap_ssid string [1,32] characters name of AP SSID
ap_channel integer [1, 11] channel

Loopback

Loopback

update Configuration

interface

1
PUT v1/loopback/config?autosave=1

load

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
{
    "ip_addr": "127.0.0.1",
    "netmask": "255.0.0.0",
    "multi_ip": [
        {
            "ip_addr": "127.0.0.2",
            "netmask": "255.255.255.0"
        }
    ],
    "description": ""
}

parameters

Attribute Type Range Description
ip_addr string [1, 16] characters loopback port IP address
netmask string [1, 16] characters interface Subnet Mask
description string [0,32] characters interface Description Information
multi_ip object call back information from IP

query Configuration

interface

1
GET v1/loopback/config

response

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
{
    "results": {
        "ip_addr": "127.0.0.1",
        "netmask": "255.0.0.0",
        "multi_ip": [
            {
                "ip_addr": "127.0.0.2",
                "netmask": "255.255.255.0"
            }
        ],
        "description": ""
    }
}

parameters

Attribute Type Range Description
ip_addr string [1, 16] characters loopback port IP address
netmask string [1, 16] characters interface Subnet Mask
description string [0,32] characters interface Description Information
multi_ip object call back information from IP

network Services

DHCP server

Update Configuration

interface

1
PUT v1/dhcp/services/config?autosave=1

load

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
{
    "dhcp_services": [
        {
            "enable": 1,
            "interface": "bridge 1",
            "start_addr": "192.168.2.2",
            "end_addr": "192.168.2.100",
            "lease": 1440
        }
    ],
    "windows_name_server": "192.168.2.200",
    "macip_bind_config": [
        {
            "mac_addr": "00:18:06:21:EA:EA",
            "ip_addr": "192.168.2.100"
        }
    ],
    "dhcp_relay_enable": 0,
    "isChecked": 1
}

parameters

Attribute Type Range Description
dhcp_services object DHCP Server configuration
enable integer [0,1] DHCP Server switch, 0 off, 1 on
start_addr string [1, 16] characters start address of DHCP address pool
end_addr string [1, 16] characters end address of DHCP address pool
lease integer [30, 10080] minutes lease Duration
windows_name_server string [1, 16] characters Windows name server
macip_bind_config object MAC and IP binding configuration
mac_addr string [1,18] character MAC address to be bound
ip_addr string [1, 16] characters IP address to be bound
dhcp_relay_enable integer [0,1] whether to enable DHCP Relay, 0 off, 1 on
isChecked interger [0,1] whether to enable IP address conflict detection, fixed at 1

query Configuration

interface

1
GET v1/dhcp/services/config

response

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
{
    "results": {
        "dhcp_relay_enable": 0,
        "dhcp_services": [
            {
                "enable": 1,
                "interface": "bridge 1",
                "start_addr": "192.168.2.2",
                "end_addr": "192.168.2.100",
                "lease": 1440
            }
        ],
        "windows_name_server": "",
        "macip_bind_config": [

        ]
    }
}

parameters

Attribute Type Range Description
dhcp_services object DHCP Server configuration
enable integer [0,1] DHCP Server switch, 0 off, 1 on
start_addr string [1, 16] characters start address of DHCP address pool
end_addr string [1, 16] characters end address of DHCP address pool
lease integer [30, 10080] minutes lease Duration
windows_name_server string [1, 16] characters Windows name server
macip_bind_config object MAC and IP binding configuration
mac_addr string [1,18] character MAC address to be bound
ip_addr string [1, 16] characters IP address to be bound
dhcp_relay_enable integer [0,1] whether to enable DHCP Relay, 0 off, 1 on

DNS service

the DNS service page is divided into domain name service and relay service.

Domain Name Service

update Configuration

interface

1
v1/dns/server/config?autosave=1

load

1
2
3
4
{
    "primary_dns": "8.8.8.8",
    "secondary_dns": "114.114.114.114"
}

parameters

Attribute Type Range Description
primary_dns string [1, 16] characters preferred Domain Name Server
secondary_dns string [1, 16] characters alternate Domain Name Server
query Configuration

Interface

1
GET v1/dns/server/config

response

1
2
3
4
5
6
{
    "results": {
        "primary_dns": "8.8.8.8",
        "secondary_dns": "114.114.114.114"
    }
}

parameters

Attribute Type Range Description
primary_dns string [1, 16] characters preferred Domain Name Server
secondary_dns string [1, 16] characters alternate Domain Name Server

relay Service

update Configuration

interface

1
PUT v1/dns/relay/config?autosave=1

load

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
{
    "enable": 1,
    "dhcp_enable": 1,
    "host_ip_relation": [
        {
            "host": "www.google.com",
            "ip_addr1": "1.2.3.4",
            "ip_addr2": "4.3.2.1"
        }
    ]
}

parameters

Attribute Type Range Description
enable integer [0,1] DNS relay service switch, 0 off, 1 on
dhcp_enable integer [0,1] DHCP Server switch, 0 is turned off and 1 is turned on. Before calling this interface, query the status of DHCP Server. The values passed here remain the same.
host_ip_relation object domain name and IP mapping
host string [1, 64] characters
ip_addr1 string [1, 16] characters the first IP address corresponding to the domain name
ip_addr2 string [1, 16] characters the second IP address corresponding to the domain name
query Configuration

interface

1
GET v1/dns/relay/config

response

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
{
    "results": {
        "enable": 1,
        "dhcp_enable": 0,
        "host_ip_relation": [
            {
                "host": "www.google.com",
                "ip_addr1": "1.2.3.4",
                "ip_addr2": "4.3.2.1"
            }
        ]
    }
}

parameters

Attribute Type Range Description
enable integer [0,1] DNS relay service switch, 0 off, 1 on
dhcp_enable integer [0,1] DHCP Server switch, 0 is turned off and 1 is turned on. Before calling this interface, query the status of DHCP Server. The values passed here remain the same.
host_ip_relation object domain name and IP mapping
host string [1, 64] characters
ip_addr1 string [1, 16] characters the first IP address corresponding to the domain name
ip_addr2 string [1, 16] characters the second IP address corresponding to the domain name

host List

query Status

interface

1
v1/dhcp/services/status

response

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
{
    "results": [
        {
            "interface": "fastethernet 0/1",
            "mac_addr": "e4:54:e8:d2:1a:be",
            "ip_addr": "10.5.30.215",
            "host_addr": "",
            "lease": 0
        },
        {
            "interface": "fastethernet 0/1",
            "mac_addr": "08:00:27:6b:a1:eb",
            "ip_addr": "10.5.30.31",
            "host_addr": "",
            "lease": 0
        },
        {
            "interface": "bridge 1",
            "mac_addr": "88:a4:c2:95:71:35",
            "ip_addr": "192.168.2.99",
            "host_addr": "",
            "lease": 0
        },
        {
            "interface": "fastethernet 0/1",
            "mac_addr": "78:17:be:ca:0d:76",
            "ip_addr": "10.5.30.254",
            "host_addr": "",
            "lease": 0
        }
    ]
}

parameters

Attribute Type Range Description
interface string [1, 32] characters Name of the interface connected to the host
mac_addr string [1,18] character host mac address
ip_addr string [1, 16] characters host IP address
host_addr string [1, 64] characters host Name
lease string [0, 10080] character the duration of the lease period when the host obtains the address through DHCP

routing

the routing menu is divided into routing status and static routing configuration.

Routing Status

query Status
1
GET v1/route/status

response

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
{
    "results": [
        {
            "type": "static",
            "destination": "0.0.0.0",
            "netmask": "0.0.0.0",
            "gateway": "10.5.30.254",
            "interface": "fastethernet 0/1",
            "distance_metric": "255/0",
            "time": ""
        },
        {
            "type": "connected",
            "destination": "10.5.30.0",
            "netmask": "255.255.255.0",
            "gateway": "",
            "interface": "fastethernet 0/1",
            "distance_metric": "0/0",
            "time": ""
        },
        {
            "type": "connected",
            "destination": "127.0.0.0",
            "netmask": "255.0.0.0",
            "gateway": "",
            "interface": "loopback 1",
            "distance_metric": "0/0",
            "time": ""
        },
        {
            "type": "connected",
            "destination": "192.168.2.0",
            "netmask": "255.255.255.0",
            "gateway": "",
            "interface": "bridge 1",
            "distance_metric": "0/0",
            "time": ""
        }
    ]
}

parameters

Attribute Type Range Description
type string [1, 16] characters static: static route
connected: Directly connected route
interface string [1, 16] characters name of the interface corresponding to the route
destination string [1, 16] characters the destination address of the route
netmask string [1, 16] characters subnet mask of the destination address of the route
distance_metric string [1, 16] characters route distance and metric information
gateway string [1, 16] characters the IP address of the next hop.
time string [0,32] characters

static Routing

update Configuration

interface

1
v1/route/static/config?autosave=1

load

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
[
    {
        "destination": "0.0.0.0",
        "netmask": "0.0.0.0",
        "interface": "cellular 1",
        "gateway": "",
        "distance": 253,
        "track": 0
    },
    {
        "destination": "0.0.0.0",
        "netmask": "0.0.0.0",
        "interface": "fastethernet 0/1",
        "gateway": "10.5.30.254",
        "distance": 254,
        "track": 0
    }
]

parameters

Attribute Type Range Description
destination string [1, 16] characters the destination address of the route
netmask string [1, 16] characters subnet mask of the destination address of the route
interface string [1, 16] characters interface information corresponding to the route
gateway string [1, 16] characters the IP address of the next hop.
distance integer [2, 255] distance information of the route
track integer [1, 10] the track identifier of the route.
Query Configuration

interface

1
GET v1/route/static/config

Response

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
{
    "results": [
        {
            "destination": "0.0.0.0",
            "netmask": "0.0.0.0",
            "interface": "cellular 1",
            "gateway": "",
            "distance": 253,
            "track": 0
        },
        {
            "destination": "0.0.0.0",
            "netmask": "0.0.0.0",
            "interface": "fastethernet 0/1",
            "gateway": "10.5.30.254",
            "distance": 254,
            "track": 0
        }
    ]
}

parameters

Attribute Type Range Description
destination string [1, 16] characters the destination address of the route
netmask string [1, 16] characters subnet mask of the destination address of the route
interface string [1, 16] characters interface information corresponding to the route
gateway string [1, 16] characters the IP address of the next hop.
distance integer [2, 255] distance information of the route
track integer [1, 10] the track identifier of the route.

Firewall

firewall contains access control list and network address translation two sub-functions

access Control List

update Configuration

interface

1
PUT v1/firewall/acl/config?autosave=1

load

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
{
    "access_control_list": [
        {
            "id": 100,
            "sequence_number": 10,
            "action": 0,
            "protocol": 0,
            "acl_source": {
                "ip": "any",
                "wildcard_mask": "",
                "port_rule": "any",
                "port1": 0,
                "port2": 0
            },
            "acl_destination": {
                "ip": "any",
                "wildcard_mask": "",
                "port_rule": "any",
                "port1": 0,
                "port2": 0
            },
            "icmp_type": 0,
            "icmp_describe_value": "all",
            "icmp_type_value": 0,
            "icmp_code_value": 0,
            "established": 0,
            "fragments": 0,
            "log": 0,
            "description": ""
        },
        {
            "id": 101,
            "sequence_number": 10,
            "action": 0,
            "protocol": 0,
            "acl_source": {
                "ip": "any",
                "wildcard_mask": "",
                "port_rule": "any",
                "port1": 0,
                "port2": 0
            },
            "acl_destination": {
                "ip": "any",
                "wildcard_mask": "",
                "port_rule": "any",
                "port1": 0,
                "port2": 0
            },
            "icmp_type": 0,
            "icmp_describe_value": "all",
            "icmp_type_value": 0,
            "icmp_code_value": 0,
            "established": 0,
            "fragments": 0,
            "log": 0,
            "description": ""
        },
        {
            "id": 102,
            "sequence_number": 20,
            "action": 0,
            "protocol": 0,
            "acl_source": {
                "ip": "any",
                "wildcard_mask": "",
                "port_rule": "any",
                "port1": 0,
                "port2": 0
            },
            "acl_destination": {
                "ip": "any",
                "wildcard_mask": "",
                "port_rule": "any",
                "port1": 0,
                "port2": 0
            },
            "icmp_type": 0,
            "icmp_describe_value": "all",
            "icmp_type_value": 0,
            "icmp_code_value": 0,
            "established": 0,
            "fragments": 0,
            "log": "",
            "description": ""
        },
        {
            "id": 192,
            "sequence_number": 10,
            "action": 0,
            "protocol": 6,
            "acl_source": {
                "ip": "any",
                "wildcard_mask": "",
                "port_rule": "any",
                "port1": 0,
                "port2": 0
            },
            "acl_destination": {
                "ip": "any",
                "wildcard_mask": "",
                "port_rule": "eq",
                "port1": 443,
                "port2": 0
            },
            "icmp_type": 0,
            "icmp_describe_value": "all",
            "icmp_type_value": 0,
            "icmp_code_value": 0,
            "established": 0,
            "fragments": 0,
            "log": 1,
            "description": ""
        },
        {
            "id": 192,
            "sequence_number": 20,
            "action": 1,
            "protocol": 6,
            "acl_source": {
                "ip": "any",
                "wildcard_mask": "",
                "port_rule": "any",
                "port1": 0,
                "port2": 0
            },
            "acl_destination": {
                "ip": "any",
                "wildcard_mask": "",
                "port_rule": "eq",
                "port1": 80,
                "port2": 0
            },
            "icmp_type": 0,
            "icmp_describe_value": "all",
            "icmp_type_value": 0,
            "icmp_code_value": 0,
            "established": 0,
            "fragments": 0,
            "log": 0,
            "description": ""
        },
        {
            "id": 192,
            "sequence_number": 30,
            "action": 1,
            "protocol": 6,
            "acl_source": {
                "ip": "any",
                "wildcard_mask": "",
                "port_rule": "any",
                "port1": 0,
                "port2": 0
            },
            "acl_destination": {
                "ip": "any",
                "wildcard_mask": "",
                "port_rule": "eq",
                "port1": 23,
                "port2": 0
            },
            "icmp_type": 0,
            "icmp_describe_value": "all",
            "icmp_type_value": 0,
            "icmp_code_value": 0,
            "established": 0,
            "fragments": 0,
            "log": 0,
            "description": ""
        },
        {
            "id": 192,
            "sequence_number": 40,
            "action": 1,
            "protocol": 6,
            "acl_source": {
                "ip": "any",
                "wildcard_mask": "",
                "port_rule": "any",
                "port1": 0,
                "port2": 0
            },
            "acl_destination": {
                "ip": "any",
                "wildcard_mask": "",
                "port_rule": "eq",
                "port1": 22,
                "port2": 0
            },
            "icmp_type": 0,
            "icmp_describe_value": "all",
            "icmp_type_value": 0,
            "icmp_code_value": 0,
            "established": 0,
            "fragments": 0,
            "log": 0,
            "description": ""
        },
        {
            "id": 192,
            "sequence_number": 50,
            "action": 1,
            "protocol": 6,
            "acl_source": {
                "ip": "any",
                "wildcard_mask": "",
                "port_rule": "any",
                "port1": 0,
                "port2": 0
            },
            "acl_destination": {
                "ip": "any",
                "wildcard_mask": "",
                "port_rule": "eq",
                "port1": 53,
                "port2": 0
            },
            "icmp_type": 0,
            "icmp_describe_value": "all",
            "icmp_type_value": 0,
            "icmp_code_value": 0,
            "established": 0,
            "fragments": 0,
            "log": 0,
            "description": ""
        },
        {
            "id": 192,
            "sequence_number": 60,
            "action": 1,
            "protocol": 17,
            "acl_source": {
                "ip": "any",
                "wildcard_mask": "",
                "port_rule": "any",
                "port1": 0,
                "port2": 0
            },
            "acl_destination": {
                "ip": "any",
                "wildcard_mask": "",
                "port_rule": "eq",
                "port1": 53,
                "port2": 0
            },
            "icmp_type": 0,
            "icmp_describe_value": "all",
            "icmp_type_value": 0,
            "icmp_code_value": 0,
            "established": 0,
            "fragments": 0,
            "log": 0,
            "description": ""
        }
    ],
    "default_policy": 0,
    "interface_list": [
        {
            "interface": "cellular 1",
            "inbound_acl": 0,
            "outbound_acl": 0,
            "admin_acl": 192
        }
    ]
}

parameters

Attribute Type Range Description
destination string [1, 16] characters the destination address of the route
netmask string [1, 16] characters subnet mask of the destination address of the route
interface string [1, 16] characters interface information corresponding to the route
gateway string [1, 16] characters the IP address of the next hop.
distance integer [2, 255] Distance information of the route
track integer [1, 10] the track identifier of the route.
Query Configuration

interface

1
GET v1/firewall/acl/config

response

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
{
    "results": {
        "default_policy": 0,
        "access_control_list": [
            {
                "id": 100,
                "sequence_number": 10,
                "action": 0,
                "protocol": 0,
                "acl_source": {
                    "ip": "any",
                    "wildcard_mask": ""
                },
                "acl_destination": {
                    "ip": "any",
                    "wildcard_mask": ""
                },
                "fragments": 0,
                "log": 0,
                "description": ""
            },
            {
                "id": 101,
                "sequence_number": 10,
                "action": 0,
                "protocol": 0,
                "acl_source": {
                    "ip": "any",
                    "wildcard_mask": ""
                },
                "acl_destination": {
                    "ip": "any",
                    "wildcard_mask": ""
                },
                "fragments": 0,
                "log": 0,
                "description": ""
            },
            {
                "id": 102,
                "sequence_number": 20,
                "action": 0,
                "protocol": 0,
                "acl_source": {
                    "ip": "any",
                    "wildcard_mask": ""
                },
                "acl_destination": {
                    "ip": "any",
                    "wildcard_mask": ""
                },
                "fragments": 0,
                "log": 0,
                "description": ""
            },
            {
                "id": 192,
                "sequence_number": 10,
                "action": 0,
                "protocol": 6,
                "acl_source": {
                    "ip": "any",
                    "wildcard_mask": "",
                    "port_rule": "any"
                },
                "acl_destination": {
                    "ip": "any",
                    "wildcard_mask": "",
                    "port_rule": "eq",
                    "port1": 443
                },
                "established": 0,
                "log": 1,
                "description": ""
            },
            {
                "id": 192,
                "sequence_number": 20,
                "action": 1,
                "protocol": 6,
                "acl_source": {
                    "ip": "any",
                    "wildcard_mask": "",
                    "port_rule": "any"
                },
                "acl_destination": {
                    "ip": "any",
                    "wildcard_mask": "",
                    "port_rule": "eq",
                    "port1": 80
                },
                "established": 0,
                "log": 0,
                "description": ""
            },
            {
                "id": 192,
                "sequence_number": 30,
                "action": 1,
                "protocol": 6,
                "acl_source": {
                    "ip": "any",
                    "wildcard_mask": "",
                    "port_rule": "any"
                },
                "acl_destination": {
                    "ip": "any",
                    "wildcard_mask": "",
                    "port_rule": "eq",
                    "port1": 23
                },
                "established": 0,
                "log": 0,
                "description": ""
            },
            {
                "id": 192,
                "sequence_number": 40,
                "action": 1,
                "protocol": 6,
                "acl_source": {
                    "ip": "any",
                    "wildcard_mask": "",
                    "port_rule": "any"
                },
                "acl_destination": {
                    "ip": "any",
                    "wildcard_mask": "",
                    "port_rule": "eq",
                    "port1": 22
                },
                "established": 0,
                "log": 0,
                "description": ""
            },
            {
                "id": 192,
                "sequence_number": 50,
                "action": 1,
                "protocol": 6,
                "acl_source": {
                    "ip": "any",
                    "wildcard_mask": "",
                    "port_rule": "any"
                },
                "acl_destination": {
                    "ip": "any",
                    "wildcard_mask": "",
                    "port_rule": "eq",
                    "port1": 53
                },
                "established": 0,
                "log": 0,
                "description": ""
            },
            {
                "id": 192,
                "sequence_number": 60,
                "action": 1,
                "protocol": 17,
                "acl_source": {
                    "ip": "any",
                    "wildcard_mask": "",
                    "port_rule": "any"
                },
                "acl_destination": {
                    "ip": "any",
                    "wildcard_mask": "",
                    "port_rule": "eq",
                    "port1": 53
                },
                "log": 0,
                "description": ""
            }
        ],
        "interface_list": [
            {
                "interface": "cellular 1",
                "inbound_acl": 0,
                "outbound_acl": 0,
                "admin_acl": 192
            }
        ]
    }
}

network Address Translation

update Configuration

interface

1
PUT v1/firewall/nat/config?autosave=1

load

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
{
    "nat_rule_list": [
        {
            "action": 0,
            "source_network": 0,
            "translation_type": 5,
            "transmit_protocol": 0,
            "transmit_source": {
                "ip_addr": "0.0.0.0",
                "port": 0,
                "acl_num": 101,
                "interface": "",
                "end_port": 0
            },
            "transmit_dest": {
                "ip_addr": "0.0.0.0",
                "port": 0,
                "acl_num": 0,
                "interface": "fastethernet 0/1",
                "end_port": 0
            },
            "source_range": {
                "ip_addr": "0.0.0.0",
                "netmask": "0.0.0.0"
            },
            "description": "",
            "log": 0
        },
        {
            "action": 0,
            "source_network": 0,
            "translation_type": 5,
            "transmit_protocol": 0,
            "transmit_source": {
                "ip_addr": "0.0.0.0",
                "port": 0,
                "acl_num": 100,
                "interface": "",
                "end_port": 0
            },
            "transmit_dest": {
                "ip_addr": "0.0.0.0",
                "port": 0,
                "acl_num": 0,
                "interface": "cellular 1",
                "end_port": 0
            },
            "source_range": {
                "ip_addr": "0.0.0.0",
                "netmask": "0.0.0.0"
            },
            "description": "",
            "log": 0
        },
        {
            "action": 0,
            "source_network": 0,
            "translation_type": 0,
            "transmit_protocol": 1,
            "transmit_source": {
                "ip_addr": "1.1.1.1",
                "port": 0,
                "acl_num": 100,
                "end_port": 0,
                "interface": ""
            },
            "transmit_dest": {
                "ip_addr": "2.2.2.2",
                "port": 0,
                "acl_num": 0,
                "end_port": 0,
                "interface": ""
            },
            "source_range": {
                "ip_addr": "0.0.0.0",
                "mask": "0.0.0.0"
            },
            "description": "",
            "log": 0
        }
    ],
    "network_interface": [
        {
            "type": 2,
            "interface": "cellular 1"
        },
        {
            "type": 1,
            "interface": "bridge 1"
        },
        {
            "type": 2,
            "interface": "fastethernet 0/1"
        }
    ]
}
query Configuration

interface

1
GET v1/firewall/nat/config

response

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
{
    "nat_rule_list": [
        {
            "action": 0,
            "source_network": 0,
            "translation_type": 5,
            "transmit_protocol": 0,
            "transmit_source": {
                "ip_addr": "0.0.0.0",
                "port": 0,
                "acl_num": 101,
                "interface": "",
                "end_port": 0
            },
            "transmit_dest": {
                "ip_addr": "0.0.0.0",
                "port": 0,
                "acl_num": 0,
                "interface": "fastethernet 0/1",
                "end_port": 0
            },
            "source_range": {
                "ip_addr": "0.0.0.0",
                "netmask": "0.0.0.0"
            },
            "description": "",
            "log": 0
        },
        {
            "action": 0,
            "source_network": 0,
            "translation_type": 5,
            "transmit_protocol": 0,
            "transmit_source": {
                "ip_addr": "0.0.0.0",
                "port": 0,
                "acl_num": 100,
                "interface": "",
                "end_port": 0
            },
            "transmit_dest": {
                "ip_addr": "0.0.0.0",
                "port": 0,
                "acl_num": 0,
                "interface": "cellular 1",
                "end_port": 0
            },
            "source_range": {
                "ip_addr": "0.0.0.0",
                "netmask": "0.0.0.0"
            },
            "description": "",
            "log": 0
        },
        {
            "action": 0,
            "source_network": 0,
            "translation_type": 0,
            "transmit_protocol": 1,
            "transmit_source": {
                "ip_addr": "1.1.1.1",
                "port": 0,
                "acl_num": 100,
                "end_port": 0,
                "interface": ""
            },
            "transmit_dest": {
                "ip_addr": "2.2.2.2",
                "port": 0,
                "acl_num": 0,
                "end_port": 0,
                "interface": ""
            },
            "source_range": {
                "ip_addr": "0.0.0.0",
                "mask": "0.0.0.0"
            },
            "description": "",
            "log": 0
        }
    ],
    "network_interface": [
        {
            "type": 2,
            "interface": "cellular 1"
        },
        {
            "type": 1,
            "interface": "bridge 1"
        },
        {
            "type": 2,
            "interface": "fastethernet 0/1"
        }
    ]
}

edge Computing

Python APP

install the Python APP

Since the Python APP installation package may be relatively large, the installation process needs to transmit the APP installation package in blocks. In this process, three types of interfaces need to be called:

  1. block Transfer Start Interface
1
GET /v1/files/before/app/import?md5=02c22f0493471e0bc3d25cbdf3893481&name=device_supervisor-V3.1.5.tar.gz

**parameter Description **

**parameter Name ** **parameter Description ** **parameter Type ** **value range **
name name of the app installation package string
md5 md5 value of the app installation package string
  1. Block transfer interface

it is recommended to block the app installation package with a size of 510241024 bytes.

1
POST /v1/files/app/import?type=app&sub_type=app&fileName=device_supervisor-V3.1.5.tar.gz&chunks=27&chunk=17&size=82408268&md5=02c22f0493471e0bc3d25
**Parameter Name ** **parameter Description ** **parameter Type ** **value range **
type the type of the imported file. When installing python app, the value is app.
sub_type the subtype of the import file. When installing python app, the value is app.
fileName name of the app installation package
chunks total number of blocks
chunk what chunk is the current package
size the total size of the app installation package, in bytes
md5 md5 value of the app installation package
  1. merging blocks into app whole package interface
1
POST /v1/files/merge/app/import

**request Example **

1
2
3
4
5
6
{
    "data": {
        "name": "device_supervisor-V3.1.5.tar.gz",
        "total": 82408268
    }
}

parameter Description

parameter Name parameter Description parameter Type value range
name name of the app installation package
total the size of the app installation package, in bytes

delete Python APP

1
POST /v1/python/agent/uninstall/app?autosave=1&app_name=device_supervisor

**parameter Description **

parameter Name parameter Description parameter Type value range
app_name name of the app to be deleted string

obtain the configuration of the Python APP

1
GET /v1/python/agent/app/config

**return Example **

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
{
    "results": {
        "python_engine": 1,
        "app_configuration": [
            {
                "enable": 0,
                "app_name": "device_supervisor",
                "app_version": "3.1.5",
                "sdk_version": "1.4.5",
                "start_args": "",
                "log_size": 1,
                "microfrontend_app": 1,
                "log_file_num": 2
            }
        ]
    }
}

**parameter Description **

parameter Name parameter Description parameter Type value range
python_engine configure the python engine on/off status numerical [0,1];0 indicates that the python engine is disabled; 1 indicates that the python engine is enabled.
enable python app on/off status numerical [0,1];0 means to close the python app,1 means to open the python app.
app_name The name of python app; The program will be automatically set after app installation; string
app_version version of python app; The program will be set automatically after app installation. String
sdk_version the python sdk version that the python app depends on; The program is automatically set after the app is installed string
start_args startup parameters of python app; The default is empty after app installation. String
log_size log size of python app; The default is 1m after app installation. Numerical [1,100], unit is M.
microfrontend_app whether python app is a micro front-end program, fixed to 1 after app installation; numerical fixed to 1
log_file_num number of logs of python app; Fixed to 2 after app installation numerical [1, 2]

update the configuration of a Python APP

1
v1/python/agent/app/config?autosave=1

**Request Example **

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
{
    "python_engine": 1,
    "app_configuration": [
        {
            "enable": 1,
            "app_name": "device_supervisor",
            "app_version": "3.1.5",
            "sdk_version": "1.4.5",
            "start_args": "",
            "log_size": 1,
            "microfrontend_app": 1,
            "log_file_num": 2
        }
    ]
}

**parameter Description **

parameter Name parameter Description parameter Type value range
python_engine configure the python engine to enable/disable. Because the python app depends on the python engine, this configuration item needs to be configured as 1 to enable the python engine. Numerical [0,1];0 indicates that the python engine is disabled; 1 indicates that the python engine is enabled.
enable python app on/off; numerical [0,1];0 means to close the python app,1 means to open the python app.
app_name configure the name of the python app; string this information is generated by the program after app installation and needs to be obtained from the interface for obtaining configuration. Cannot be configured as other values;
app_version configure the version of the python app; string this information is generated by the program after app installation and needs to be obtained from the interface for obtaining configuration. Cannot be configured as other values;
sdk_version configure the python sdk version that the python app depends on; string this information is generated by the program after app installation and needs to be obtained from the interface for obtaining configuration. Cannot be configured as other values;
start_args python app startup parameters string
log_size python app log size numerical [1,100], unit is M.
microfrontend_app whether the flag is a micro front end; When configuring, the value of this parameter needs to be fixed to 1 numerical fixed to 1
log_file_num number of log files, fixed at 2 numerical fixed to 2

**response example **

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
{
    "results": {
        "python_engine": 1,
        "app_configuration": [
            {
                "enable": 0,
                "app_name": "device_supervisor",
                "app_version": "3.1.5",
                "sdk_version": "1.4.5",
                "start_args": "",
                "log_size": 1,
                "microfrontend_app": 1,
                "log_file_num": 2
            }
        ]
    }
}

1


1

start/stop Python APP

1
PUT /v1/python/agent/app/management?app_name=device_supervisor&action=start

**parameter Description **

parameter Name parameter Description parameter Type value range
app_name Name of the app that needs to be launched string
action python app on/off; string start means to start the app;stop means to close the app

query the running status of a Python APP

1
GET /v1/python/agent/app/status

**response example **

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
{
    "results": [
        {
            "app_name": "device_supervisor",
            "app_version": "3.1.5",
            "sdk_version": "1.4.5",
            "state": "STOPPED",
            "start": "2024-05-11T06:06:02+0000",
            "stop": "2024-05-11T06:16:39+0000",
            "exit_code": 0,
            "uptime": "May 11 02:16 PM"
        }
    ]
}

**parameter Description **

parameter Name parameter Description parameter Type value range
state running status of python app string

system Management

system Time

set Time Zone

interface

1
PUT v1/system/timezone?autosave=1

load

1
2
3
{
    "timezone": "UTC-8"
}

parameters

Attribute Type Range Description
timezone string [1, 32] characters time Zone Encoding

query Time Zone

interface

1
GET v1/system/timeinfo

In addition to time zone information, this interface also returns device time information.

Response

1
2
3
4
5
6
{
    "results": {
        "device_time": "2024-08-02 15:58:14",
        "timezone": "UTC-8"
    }
}

parameters

Attribute Type Range Description
timezone string [1, 32] characters time Zone Encoding
device_time string [1, 32] characters equipment Time

set time

interface

1
PUT v1/system/settime

load

1
2
3
{
    "device_time": "2024-08-01 16:00:17"
}

SNTP client

update Configuration

interface

1
PUT v1/sntp/client/config?autosave=1

load

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
{
    "enable": 1,
    "update_interval": 600,
    "source_ip": "",
    "sntp_servers_list": [
        {
            "server_addr": "0.pool.ntp.org",
            "port": 123
        },
        {
            "server_addr": "1.pool.ntp.org",
            "port": 123
        },
        {
            "server_addr": "2.pool.ntp.org",
            "port": 123
        },
        {
            "server_addr": "3.pool.ntp.org",
            "port": 123
        }
    ]
}

parameters

Attribute Type Range Description
enable integer [0,1] SNTP switch, 0 off, 1 on
update_interval integer [60, 2592000 ] seconds SNTP The period of the synchronization time between the client and the server, unit s
source_ip string [1, 16] characters the source IP address of the request message, which can be left blank, is automatically selected by the system.
server_addr string [1, 64] characters address of the sntp server
port port [1, 65535] port of the sntp server
query Configuration

interface

1
GET v1/sntp/client/config

response

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
{
    "results": {
        "enable": 1,
        "update_interval": 600,
        "source_ip": "",
        "sntp_servers_list": [
            {
                "server_addr": "0.pool.ntp.org",
                "port": 123
            },
            {
                "server_addr": "1.pool.ntp.org",
                "port": 123
            },
            {
                "server_addr": "2.pool.ntp.org",
                "port": 123
            },
            {
                "server_addr": "3.pool.ntp.org",
                "port": 123
            }
        ]
    }
}

parameters

Attribute Type Range Description
enable integer [0,1] SNTP switch, 0 off, 1 on
update_interval integer [60, 2592000 ] seconds SNTP The period of the synchronization time between the client and the server, unit s
source_ip string [1, 16] characters the source IP address of the request message, which can be left blank, is automatically selected by the system.
server_addr string [1, 64] characters address of the sntp server
port port [1, 65535] port of the sntp server

NTP server

update Configuration

interface

1
PUT v1/ntp/server/config?autosave=1

load

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
{
    "enable": 1,
    "master": 2,
    "source_interface": "fastethernet 0/1",
    "source_ip": "",
    "ntp_servers_list": [
        {
            "server_addr": "0.pool.ntp.org",
            "prefer_ntp_server": 1
        },
        {
            "server_addr": "1.pool.ntp.org",
            "prefer_ntp_server": 0
        },
        {
            "server_addr": "2.pool.ntp.org",
            "prefer_ntp_server": 0
        },
        {
            "server_addr": "3.pool.ntp.org",
            "prefer_ntp_server": 0
        }
    ]
}

parameters

Attribute Type Range Description
enable integer [0,1] NTP server switch, 0 off, 1 on
master integer [2, 15] NTP server hierarchy
source_interface string [1, 16] characters the interface of the NTP server source listening, and source_ip are selected, one is configured, and the other needs to be empty.
source_ip string [1, 16] characters the IP address that the NTP server listens to, and source_interface, one is configured, and the other needs to be empty.
server_addr string [1, 64] characters NTP server address
prefer_ntp_server integer [0,1] primary server, 0 No, 1 Yes
query Configuration

interface

1
GET v1/ntp/server/config

response

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
{
    "results": {
        "enable": 1,
        "master": 2,
        "source_interface": "fastethernet 0/1",
        "source_ip": "",
        "ntp_servers_list": [
            {
                "server_addr": "0.pool.ntp.org",
                "prefer_ntp_server": 1
            },
            {
                "server_addr": "1.pool.ntp.org",
                "prefer_ntp_server": 0
            },
            {
                "server_addr": "2.pool.ntp.org",
                "prefer_ntp_server": 0
            },
            {
                "server_addr": "3.pool.ntp.org",
                "prefer_ntp_server": 0
            }
        ]
    }
}
Attribute Type Range Description
enable integer [0,1] NTP server switch, 0 off, 1 on
master integer [2, 15] NTP server hierarchy
source_interface string [1, 16] characters the interface of the NTP server source listening, and source_ip are selected, one is configured, and the other needs to be empty.
source_ip string [1, 16] characters the IP address that the NTP server listens to, and source_interface, one is configured, and the other needs to be empty.
server_addr string [1, 64] characters NTP server address
prefer_ntp_server integer [0,1] primary server, 0 No, 1 Yes

system Log

query Log

interface

1
GET v1/syslog/view?lines=20

lines = 20 indicates that the latest 20 logs are returned. If all logs are returned, lines = all

response

  1
  2
  3
  4
  5
  6
  7
  8
  9
 10
 11
 12
 13
 14
 15
 16
 17
 18
 19
 20
 21
 22
 23
 24
 25
 26
 27
 28
 29
 30
 31
 32
 33
 34
 35
 36
 37
 38
 39
 40
 41
 42
 43
 44
 45
 46
 47
 48
 49
 50
 51
 52
 53
 54
 55
 56
 57
 58
 59
 60
 61
 62
 63
 64
 65
 66
 67
 68
 69
 70
 71
 72
 73
 74
 75
 76
 77
 78
 79
 80
 81
 82
 83
 84
 85
 86
 87
 88
 89
 90
 91
 92
 93
 94
 95
 96
 97
 98
 99
100
101
102
103
104
{
    "results": [
        [
            6,
            "Aug  1 18:26:12",
            " ntpd[3063]: 45.76.221.157 local addr 10.5.30.213 -> <null>"
        ],
        [
            6,
            "Aug  1 18:26:12",
            " ntpd[3063]: 202.112.31.197 local addr 10.5.30.213 -> <null>"
        ],
        [
            6,
            "Aug  1 18:26:12",
            " agent[1609]: start ntp server service"
        ],
        [
            5,
            "Aug  1 18:26:12",
            " ntpd[15503]: ntpd [email protected] Tue Jul 30 03:04:58 UTC 2024 (1): Starting"
        ],
        [
            6,
            "Aug  1 18:26:12",
            " ntpd[15503]: Command line: ntpd -n -c /etc/ntp.conf"
        ],
        [
            6,
            "Aug  1 18:26:12",
            " ntpd[15503]: proto: precision = 3.334 usec (-18)"
        ],
        [
            6,
            "Aug  1 18:26:12",
            " ntpd[15503]: Listen and drop on 0 v6wildcard [::]:123"
        ],
        [
            6,
            "Aug  1 18:26:12",
            " ntpd[15503]: Listen and drop on 1 v4wildcard 0.0.0.0:123"
        ],
        [
            6,
            "Aug  1 18:26:12",
            " ntpd[15503]: Listen normally on 2 lo 127.0.0.1:123"
        ],
        [
            6,
            "Aug  1 18:26:12",
            " ntpd[15503]: Listen normally on 3 eth1 10.5.30.213:123"
        ],
        [
            6,
            "Aug  1 18:26:12",
            " ntpd[15503]: Listen normally on 4 lo [::1]:123"
        ],
        [
            6,
            "Aug  1 18:26:12",
            " ntpd[15503]: Listening on routing socket on fd #21 for interface updates"
        ],
        [
            7,
            "Aug  1 18:37:45",
            " kernel: [10581.266736] rtc-ds1307 0-006f: write secs=46, mins=37, hours=10, mday=1, mon=7, year=124, wday=4"
        ],
        [
            7,
            "Aug  1 18:37:45",
            " kernel: [10581.266757] rtc-ds1307 0-006f: write: c6 37 10 0d 01 08 24"
        ],
        [
            7,
            "Aug  1 18:37:45",
            " kernel: [10581.267396] rtc-ds1307 0-006f: read: c6 37 10 2d 01 28 24"
        ],
        [
            7,
            "Aug  1 18:37:45",
            " kernel: [10581.267416] rtc-ds1307 0-006f: read secs=46, mins=37, hours=10, mday=1, mon=7, year=124, wday=4"
        ],
        [
            7,
            "Aug  1 18:49:23",
            " kernel: [11279.271306] rtc-ds1307 0-006f: write secs=24, mins=49, hours=10, mday=1, mon=7, year=124, wday=4"
        ],
        [
            7,
            "Aug  1 18:49:23",
            " kernel: [11279.271330] rtc-ds1307 0-006f: write: a4 49 10 0d 01 08 24"
        ],
        [
            7,
            "Aug  1 18:49:23",
            " kernel: [11279.271963] rtc-ds1307 0-006f: read: a4 49 10 2d 01 28 24"
        ],
        [
            7,
            "Aug  1 18:49:23",
            " kernel: [11279.271982] rtc-ds1307 0-006f: read secs=24, mins=49, hours=10, mday=1, mon=7, year=124, wday=4"
        ]
    ]
}

each array Member contains three elements, the first is the log level, the second is the time when the log is generated, and the third is the specific log content.

Update Configuration

interface

1
PUT v1/syslog/config?autosave=1

load

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
{
    "log_to_remote_enable": 1,
    "history_log_size": 512,
    "history_log_severity": 5,
    "remote_server": [
        {
            "server_addr": "192.168.2.100",
            "server_port": 514
        }
    ],
    "log_to_console": 0
}

parameters

Attribute Type Range Description
log_to_remote_enable integer [0,1] send to remote log server switch, 0 off, 1 on
history_log_size integer [64,2048]KB history Log Size
history_log_severity integer [0, 7] History Log Level
0: Urgent
1: The alarm
2: Serious
3: Error
4: Warning
5: Notice
6: The Information
7: Debugging
server_addr string [1, 16] characters IP address of the remote log server
server_port integer [1, 65535] port number of the remote log server
log_to_console integer [0,1] fixed to 0

system Upgrade

import Firmware

interface

1
POST v1/import/firmware

example

1
curl -k -X POST -H "Authorization: Bearer 6nwWSPQ6AEe18L4zi4sbr9SM0xJLI2nE" -F "file=@/home/nowlan/Temp/IG502.bin" https://10.5.30.206/v1/import/firmware

response

1
2
3
{
    "results": "ok"
}

device restart

after the firmware is upgraded to the device, you need to restart the device to switch the version. For the device restart api, see restart-> manual restartchapter.

Configuration Management

configure Auto Save

interface

1
PUT v1/system/autosave?autosave=1

load

1
2
3
{
    "auto_save": 1
}

parameters

Attribute Type Range Description
auto_save integer [0,1] auto save switch, 0 off, 1 on
configure an encryption password

interface

1
PUT v1/system/encrypt/password?autosave=1

load

1
2
3
{
    "encrypt_passwd": 1
}

parameters

Attribute Type Range Description
encrypt_passwd integer [0,1] encrypt plaintext password switch, 0 off, 1 on
querying System Configuration

interface

1
GET v1/system/sysinfo

response

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
{
    "results": {
        "language": "Chinese",
        "hostname": "EdgeGateway",
        "model_name": "IG502L",
        "oem_name": "inhand",
        "serial_number": "GL5022221013911",
        "feature": "",
        "mac_addr1": "00:18:05:20:ea:ea",
        "mac_addr2": "00:18:05:20:ea:1e",
        "firmware_version": "V2.1.25",
        "bootloader_version": "2017.01.r14382",
        "product_number": "LFA3-D485-IO-W-G",
        "description": "www.inhand.com.cn",
        "auto_save": 1,
        "encrypt_passwd": 0
    }
}

parameters

Attribute Type Range Description
auto_save integer [0,1] auto save switch, 0 off, 1 on
encrypt_passwd integer [0,1] encrypt plaintext password switch, 0 off, 1 on
restore factory settings

interface

1
PUT /v1/system/restore/config

load

1
2
3
{
    "restore_all_data": 1
}

parameters

Attribute Type Range Description
restore_all_data integer [0,1] whether to clear personal data, installed app;0 keep, 1 clear

device Cloud Platform

Inhand Inconect Service

update Configuration

interface

1
PUT v1/inconnect/config?autosave=1

load

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
{
    "enable": 1,
    "server_addr": "ics.inhandiot.com",
    "tls": 1,
    "register_account": "[email protected]",
    "https_proxy": "",
    "http_proxy": "",
    "site_name": "",
    "asset_number": "",
    "location_type": 1,
    "lbs_upload_interval": 120,
    "channel_keepalive": 60,
    "dataflow_upload_interval": 3600
}

parameters

Attribute Type Range Description
enable integer [0,1] whether to enable the docking Inhand Connect platform function, 0 off, 1 on
server_addr string [1, 64] characters platform Address
register_account string [1, 64] characters the account connected to the platform, usually a mailbox, needs to be registered with the platform in advance.
https_proxy string [1, 64] characters legacy field, blank
http_proxy string [1, 64] characters legacy field, blank
site_name string [1, 64] characters legacy field, blank
asset_number string [1, 64] characters legacy field, blank
location_type integer [0,1] device location method, 0 using GPS,1 using cellular. Requires the device model to support cellular, GPS can be used.
lbs_upload_interval integer [60, 86400] seconds period of reporting the equipment location to the platform, unit second
channel_keepalive integer [30, 3600] seconds the heartbeat period of the connection between the device and the platform, in seconds.
dataflow_upload_interval integer [3600, 86400] seconds period of reporting platform for cellular traffic information of equipment
query Configuration

interface

1
GET v1/inconnect/config

response

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
{
    "results": {
        "enable": 1,
        "server_addr": "ics.inhandiot.com",
        "tls": 1,
        "register_account": "[email protected]",
        "https_proxy": "",
        "http_proxy": "",
        "site_name": "",
        "asset_number": "",
        "location_type": 0,
        "lbs_upload_interval": 120,
        "channel_keepalive": 60,
        "dataflow_upload_interval": 3600
    }
}

parameters

Attribute Type Range Description
enable integer [0,1] whether to enable the docking Inhand Connect platform function, 0 off, 1 on
server_addr string [1, 64] characters platform Address
register_account string [1, 64] characters the account connected to the platform, usually a mailbox, needs to be registered with the platform in advance.
https_proxy string [1, 64] characters legacy field, blank
http_proxy string [1, 64] characters legacy field, blank
site_name string [1, 64] characters legacy field, blank
asset_number string [1, 64] characters Legacy field, blank
location_type integer [0,1] device location method, 0 using GPS,1 using cellular. Requires the device model to support cellular, GPS can be used.
lbs_upload_interval integer [60, 86400] seconds period of reporting the equipment location to the platform, unit second
channel_keepalive integer [30, 3600] seconds the heartbeat period of the connection between the device and the platform, in seconds.
dataflow_upload_interval integer [3600, 86400] seconds period of reporting platform for cellular traffic information of equipment
query Status

interface

1
GET v1/inconnect/status

response

1
2
3
4
5
{
    "results": {
        "status": "device_connected"
    }
}

parameters

Attribute Type Range Description
status string [1, 32] characters connection status

Inhand Device Manager

update Configuration

interface

1
v1/dm/config?autosave=1

load

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
{
    "enable": 1,
    "server_addr": "iot.inhand.com.cn",
    "tls": 1,
    "register_account": "[email protected]",
    "https_proxy": "",
    "http_proxy": "",
    "site_name": "",
    "asset_number": "",
    "location_type": 1,
    "lbs_upload_interval": 120,
    "channel_keepalive": 60,
    "dataflow_upload_interval": 3600,
    "conn_mode": 0
}
Attribute Type Range Description
enable integer [0,1] whether to enable the docking Inhand Device Manager platform function, 0 off, 1 on
server_addr string [1, 64] characters platform Address
register_account string [1, 64] characters the account connected to the platform, usually a mailbox, needs to be registered with the platform in advance.
https_proxy string [1, 64] characters legacy field, blank
http_proxy string [1, 64] characters legacy field, blank
site_name string [1, 64] characters legacy field, blank
asset_number string [1, 64] characters legacy field, blank
location_type integer [0,1] device location method, 0 using GPS,1 using cellular. Requires the device model to support cellular, GPS can be used.
lbs_upload_interval integer [60, 86400] seconds period of reporting the equipment location to the platform, unit second
channel_keepalive integer [30, 3600] seconds the heartbeat period of the connection between the device and the platform, in seconds.
dataflow_upload_interval integer [3600, 86400] seconds period of reporting platform for cellular traffic information of equipment
conn_mode integer legacy field, set to 0
query Configuration

interface

1
GET v1/dm/config

response

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
{
    "results": {
        "enable": 1,
        "conn_mode": 0,
        "server_addr": "iot.inhand.com.cn",
        "tls": 1,
        "register_account": "[email protected]",
        "https_proxy": "",
        "http_proxy": "",
        "site_name": "",
        "asset_number": "",
        "location_type": 1,
        "lbs_upload_interval": 120,
        "channel_keepalive": 60,
        "dataflow_upload_interval": 3600
    }
}

parameters

Attribute Type Range Description
enable integer [0,1] whether to enable the docking Inhand Device Manager platform function, 0 off, 1 on
server_addr string [1, 64] characters platform Address
register_account string [1, 64] characters the account connected to the platform, usually a mailbox, needs to be registered with the platform in advance.
https_proxy string [1, 64] characters Legacy field, blank
http_proxy string [1, 64] characters legacy field, blank
site_name string [1, 64] characters legacy field, blank
asset_number string [1, 64] characters legacy field, blank
location_type integer [0,1] device location method, 0 using GPS,1 using cellular. Requires the device model to support cellular, GPS can be used.
lbs_upload_interval integer [60, 86400] seconds period of reporting the equipment location to the platform, unit second
channel_keepalive integer [30, 3600] seconds the heartbeat period of the connection between the device and the platform, in seconds.
dataflow_upload_interval integer [3600, 86400] seconds period of reporting platform for cellular traffic information of equipment
conn_mode integer legacy field, set to 0
query Status

interface

1
GET v1/dm/status

response

1
2
3
4
5
{
    "results": {
        "status": "device_connected"
    }
}

parameters

Attribute Type Range Description
status string [1, 32] characters connection status

Inhand Cloud Service

update Configuration

interface

1
PUT v1/devicelive/config?autosave=1

load

1
2
3
4
5
6
{
    "mode": 1,
    "server_addr": "device.inhandcloud.cn",
    "channel_keepalive": 60,
    "config_source": 0
}

parameters

Attribute Type Range Description
mode integer [0,1] switch to Inhand iSCADE Cloud, 0 off, 1 on
server_addr string [1, 64] characters address of the platform
channel_keepalive integer [30, 1200] seconds the heartbeat period of the connection between the device and the platform, in seconds.
config_source integer [0,1] fixed to 0
query Configuration

interface

1
GET v1/devicelive/config

response

1
2
3
4
5
6
7
8
{
    "results": {
        "mode": 1,
        "server_addr": "device.inhandcloud.cn",
        "channel_keepalive": 60,
        "config_source": 0
    }
}

parameters

Attribute Type Range Description
mode integer [0,1] switch to Inhand iSCADE Cloud, 0 off, 1 on
server_addr string [1, 64] characters address of the platform
channel_keepalive integer [30, 1200] seconds the heartbeat period of the connection between the device and the platform, in seconds.
config_source integer [0,1] fixed to 0
query Status

interface

1
GET v1/devicelive/status

response

1
2
3
4
5
{
    "results": {
        "status": 2
    }
}

parameters

Attribute Type Range Description
status integer [0,1] status of the connected platform
0: Not connected
1: Connecting
2: Connected

management Tools

web/ssh/telnet update configuration

interface

1
PUT v1/services/config?autosave=1

load

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
{
    "https": {
        "enable": 1,
        "listen_ip_addr": "any",
        "port": 443,
        "remote_access": 0
    },
    "telnet": {
        "enable": 1,
        "listen_ip_addr": "any",
        "port": 23,
        "remote_access": 0
    },
    "ssh": {
        "enable": 1,
        "listen_ip_addr": "any",
        "port": 22,
        "timeout": 120,
        "key_mode": 0,
        "key_length": 1024,
        "remote_access": 0
    },
    "web_login_timeout": 300
}

parameters

Attribute Type Range Description
https.enable integer [0,1] Web Server switch, 0 off, 1 on
https.listen_ip_addr string [1, 16] characters the address that the Web Server listens to. You can pass any or the IP address of the interface.
https.port integer [1, 65535] port number on which the Web Server listens
https.remote_access integer [0,1] on remote control switch, 0 off, 1 on
web_login_timeout integer [100, 3600] the web idle timeout period, after idle reaches this value, will automatically exit the login.
telnet.enable integer [0,1] Telnet Server switch, 0 off, 1 on
telnet.listen_ip_addr string [1, 16] characters the address that the Telnet Server listens to. You can pass any or the IP address of the interface.
telnet.port integer [1, 65535] Telnet Server listening port number
telnet.remote_access integer [0,1] on remote control switch, 0 off, 1 on
ssh.enable integer [0,1] SSH Server switch, 0 off, 1 on
ssh.listen_ip_addr string [1, 16] characters SSH Server listening address, which can be transmitted to any or the IP address of the interface.
ssh.port integer [1, 65535] SSH Server listening port number
ssh.timeout integer [1, 120] SSH connection timeout, after idle reaches this value, the connection will be automatically disconnected
ssh.key_mode integer [0,0] key mode, fixed not 0, representing RSA
ssh.key_length integer 512, 1024, 2048, 4096 key Length
ssh.remote_access integer [0,1] on remote control switch, 0 off, 1 on
web/ssh/telnet query configuration

interface

1
GET v1/services/config

response

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
{
    "results": {
        "https": {
            "enable": 1,
            "listen_ip_addr": "any",
            "port": 443,
            "remote_access": 0
        },
        "telnet": {
            "enable": 1,
            "listen_ip_addr": "any",
            "port": 23,
            "remote_access": 0
        },
        "ssh": {
            "enable": 1,
            "listen_ip_addr": "any",
            "port": 22,
            "timeout": 120,
            "key_mode": 0,
            "key_length": 1024,
            "remote_access": 0
        },
        "web_login_timeout": 300
    }
}

parameters

Attribute Type Range Description
https.enable integer [0,1] Web Server switch, 0 off, 1 on
https.listen_ip_addr string [1, 16] characters the address that the Web Server listens to. You can pass any or the IP address of the interface.
https.port integer [1, 65535] port number on which the Web Server listens
https.remote_access integer [0,1] on remote control switch, 0 off, 1 on
web_login_timeout integer [100, 3600] the web idle timeout period, after idle reaches this value, will automatically exit the login.
telnet.enable integer [0,1] Telnet Server switch, 0 off, 1 on
telnet.listen_ip_addr string [1, 16] characters the address that the Telnet Server listens to. You can pass any or the IP address of the interface.
telnet.port integer [1, 65535] Telnet Server listening port number
telnet.remote_access integer [0,1] on remote control switch, 0 off, 1 on
ssh.enable integer [0,1] SSH Server switch, 0 off, 1 on
ssh.listen_ip_addr string [1, 16] characters SSH Server listening address, which can be transmitted to any or the IP address of the interface.
ssh.port integer [1, 65535] SSH Server listening port number
ssh.timeout integer [1, 120] SSH connection timeout, after idle reaches this value, the connection will be automatically disconnected
ssh.key_mode integer [0,0] key mode, fixed not 0, representing RSA
ssh.key_length integer 512, 1024, 2048, 4096 key Length
ssh.remote_access integer [0,1] on remote control switch, 0 off, 1 on
developer Mode Update Configuration

interface

1
PUT v1/python/agent/engine?autosave=1

load

1
2
3
4
5
6
{
    "debug_password": "123456",
    "debug_enable": 1,
    "fixed_passwd": 1,
    "debug_user": "developer"
}

parameters

Attribute Type Range Description
debug_enable integer [0,1] whether to enable developer mode, 0 off, 1 on
debug_user string [1, 16] characters developer Mode User Name
debug_password string [1, 32] characters developer Mode Password
fixed_passwd integer [0,1] whether the firmware password is enabled, 0 off, 1 on
developer mode query configuration

interface

1
GET v1/python/agent/status

response

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
{
    "results": {
        "app_manager_status": 0,
        "python_sdk": 0,
        "python_engine": 2,
        "python_version": "",
        "sdk_version": "",
        "sdk_version2": "",
        "debug_enable": 1,
        "debug_user": "pyuser",
        "debug_port": "222",
        "fixed_passwd": 1,
        "debug_password": "123456",
        "user_storage_space": 6837583872,
        "user_storage_use": 1826816,
        "extern_storage_card": 0,
        "extern_storage_use": 0,
        "extern_usb_card": 0,
        "extern_usb_use": 0
    }
}

parameters

Attribute Type Range Description
debug_enable integer [0,1] whether to enable developer mode, 0 off, 1 on
debug_user string [1, 16] characters developer Mode User Name
debug_password string [1, 32] characters Developer Mode Password
fixed_passwd integer [0,1] whether the firmware password is enabled, 0 off, 1 on

User Management

add User

interface

1
POST v1/admind/user?autosave=1

load

1
2
3
4
5
{
    "privilege": 15,
    "password": "Aa123456",
    "username": "testuser"
}

parameters

Attribute Type Range Description
username string [1, 16] user name of the new user
password string [1, 32] characters password for new user
privilege integer [1, 15] the permissions of the new user. The larger the value, the higher the permissions.
delete User

interface

1
DELETE v1/admind/user?autosave=1&username=testuser
query User

interface

1
GET v1/admind/user

response

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
{
    "results": [
        {
            "administrator": 1,
            "username": "adm",
            "password": "$1$e6ISIUYb$mRpJoJIIN/rMdHJtPjAoM.",
            "privilege": 15
        }
    ]
}

parameters

Attribute Type Range Description
username string [1, 16] user Name
password string [1, 32] characters password
privilege integer [1, 15] permissions for the user
administrator integer [0,1] administrator account, 0 No, 1 Yes

restart

timed restart

interface

1
PUT v1/admind/cron/config?autosave=1

load

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
{
    "cron_job": "reboot",
    "every_hour": 0,
    "week": 0,
    "month": 0,
    "day": 0,
    "hour": 6,
    "minutes": 0,
    "enable": 1
}

parameters

Attribute Type Range Description
enable integer [0,1] Whether to enable timing restart, 0 off, 1 on
cron_job string [1, 16] fixed as reboot
month integer fixed to 0
week integer fixed to 0
day integer fixed to 0
hour integer [0, 23] timed restart corresponding Hour
minutes integer [0, 59] minutes corresponding to the timing restart
manual restart

interface

1
POST v1/system/reboot

tools

ping

performing a ping operation

interface

1
POST v1/system/reboot

load

1
2
3
4
5
6
{
    "host": "www.baidu.com",
    "ping_count": 4,
    "packet_size": 32,
    "expert_options": ""
}

parameters

Attribute Type Range Description
host string [1, 64] characters the destination address of the ping probe
ping_count integer [1, 50] number of ping messages sent
packet_size integer [8, 1472] Byte the size of the ping message, in bytes
expert_options string [1, 64] advanced Options
query ping results

interface

1
GET v1/task/status?type=ping

response

1
2
3
4
5
6
{
    "results": {
        "status": "success",
        "data": "PING www.baidu.com (39.156.66.18): 32 data bytes\n40 bytes from 39.156.66.18: seq=0 ttl=49 time=39.385 ms\n40 bytes from 39.156.66.18: seq=1 ttl=49 time=38.668 ms\n40 bytes from 39.156.66.18: seq=2 ttl=49 time=38.324 ms\n40 bytes from 39.156.66.18: seq=3 ttl=49 time=38.605 ms\n\n--- www.baidu.com ping statistics ---\n4 packets transmitted, 4 packets received, 0% packet loss\nround-trip min/avg/max = 38.324/38.745/39.385 ms\n"
    }
}

traceroute

performing a traceroute operation

interface

1
POST v1/tools/traceroute

load

1
2
3
4
5
6
7
{
    "host": "www.baidu.com",
    "maximum_hops": 20,
    "timeout": 3,
    "transmit_protocol": 0,
    "expert_options": ""
}

parameters

Attribute Type Range Description
host string [1, 64] characters the target address of the traceroute probe.
maximum_hops integer [2, 40] max Hops
timeout integer [2, 10] seconds timeout, in seconds
transmit_protocol string UDP or ICMP agreement
expert_options string [1, 64] advanced Options
query traceroute results

interface

1
GET v1/task/status?type=traceroute

response

1
2
3
4
5
6
{
    "results": {
        "status": "doing",
        "data": "traceroute to www.baidu.com (39.156.66.18), 20 hops max, 38 byte packets\n 1  10.5.30.254 (10.5.30.254)  2.901 ms  1.191 ms  0.728 ms\n 2  *"
    }
}

tcpdump packets capture

execute tcpdump to capture packets

interface

1
POST v1/tools/tcpdump

load

1
2
3
4
5
6
{
    "interface": "fastethernet 0/1",
    "capture_number": 20,
    "expert_options": "",
    "action": "capture"
}

parameters

Attribute Type Range Description
interface string [1, 16] characters based on which interface to capture packets
capture_number integer [10, 1000] number of bag grabbing
action string [1, 16] characters fixed as capture
expert_options string [1, 64] advanced Options
