Digital Factory Transformation Gateway Configuration Manual Template¶

I. Document Information¶

Document Name: Digital Factory Transformation Gateway Configuration Manual
Product Model: IG502

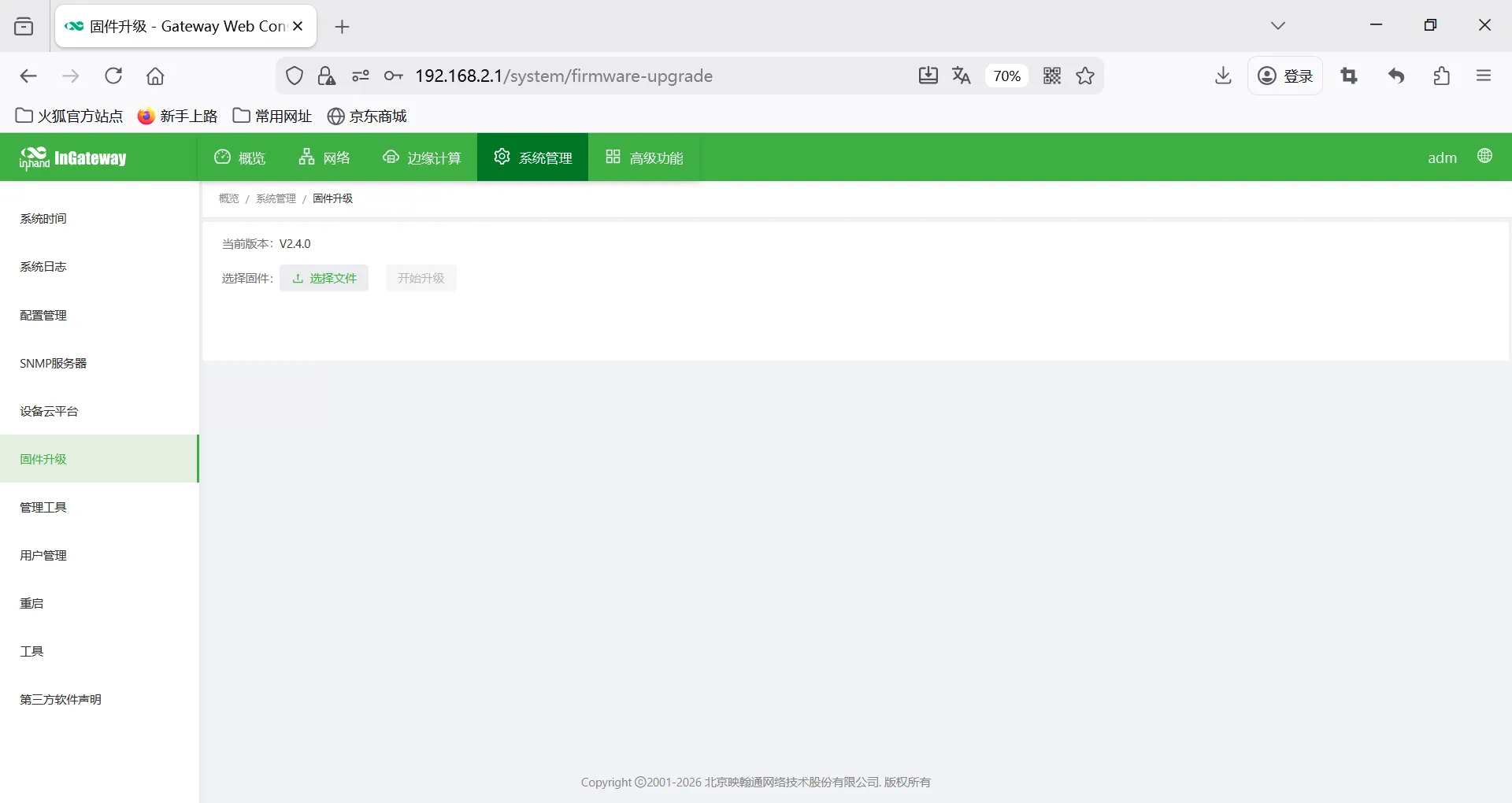

Firmware Versions: V2.4.0, DSA V3.4.0
Applicable Scenarios: Electricity meter data acquisition, equipment networking, edge data collection to cloud
Writing Date: March 20, 2026

II. Gateway Overview¶

2.1 Product Introduction¶

This data acquisition gateway is used for data acquisition from equipment such as PLCs, meters, sensors, frequency converters, servos in industrial sites. It supports multi-protocol parsing, edge computing, data continuation after network interruption, remote management, and data cloud upload.

2.2 Main Functions¶

Multi serial / network port acquisition
Mainstream industrial protocol parsing
MQTT/Modbus TCP data upload
Edge computing, local caching
Remote configuration, remote diagnosis, remote upgrade
Wide temperature industrial-grade design

2.3 Typical Application Topology¶

Device → RS485 / Ethernet → Data acquisition gateway → 4G / Ethernet → Cloud platform / Host computer / SCADA

III. Hardware Description¶

3.1 Appearance and Interfaces¶

Power interface: DC 9–36V
Serial ports: RS232 / RS485
Network ports: LAN ×2 (WAN/LAN configurable)
Wireless: 4G/5G/Wi-Fi (optional)
Indicator lights: PWR, RUN, NET, signal strength
Reset button: Restore factory settings

3.2 Wiring Instructions¶

3.2.1 Power Wiring¶

Positive: V+
Negative: V-
Note: Reverse polarity protection, lightning protection, grounding

3.2.2 RS485 Wiring¶

A → A
B → B
Shield layer single-ended grounding
Termination resistor: 120Ω (required for long distances)

3.2.3 Ethernet Wiring¶

Direct/crossover adaptive, recommends Cat5e or higher network cables.

IV. Factory Default Parameters¶

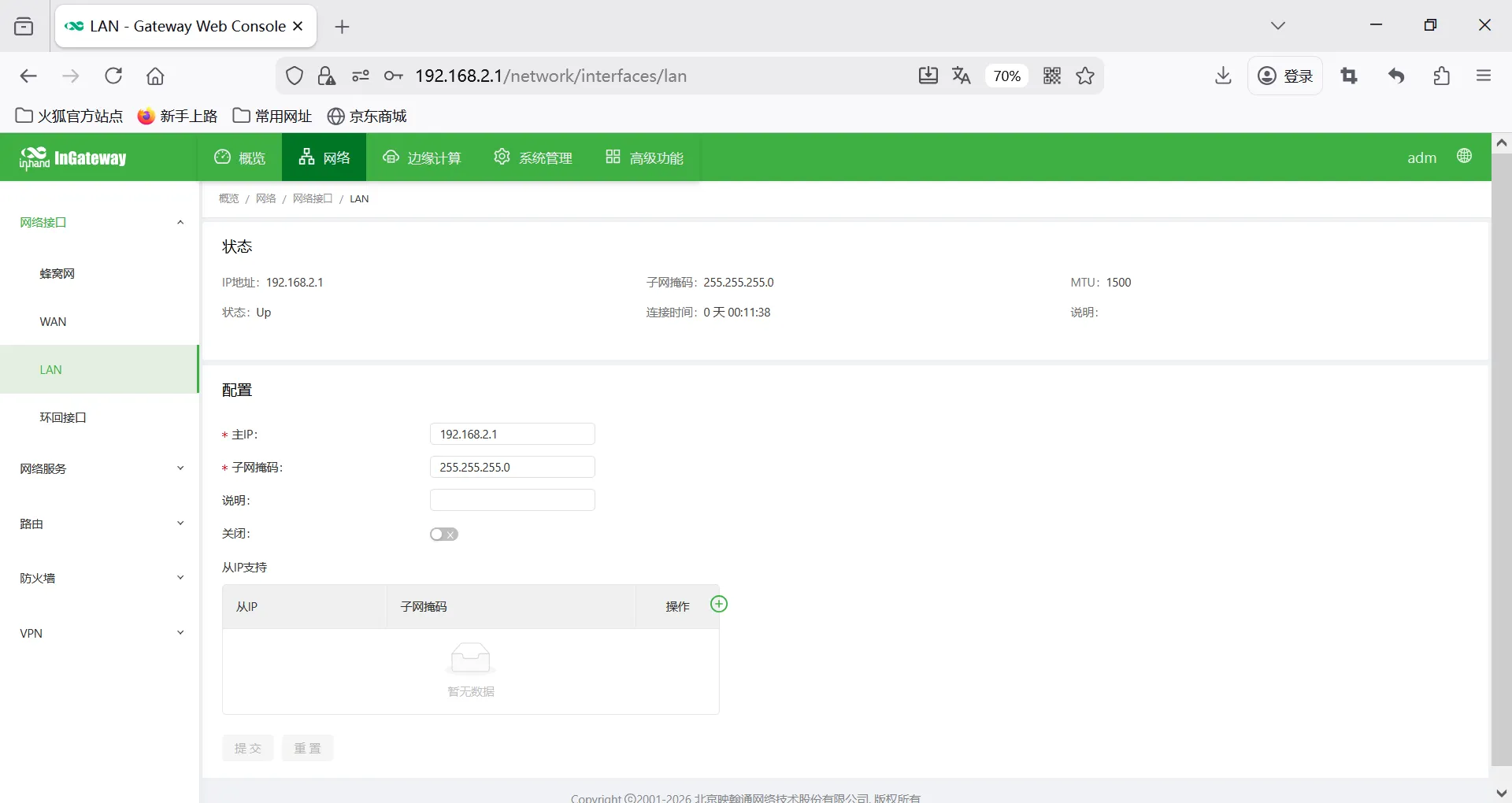

Default IP: 192.168.2.1
Subnet mask: 255.255.255.0
Web username: adm
Web password: 123456
Serial port default parameters: 9600,8,N,1

V. Preliminary Preparation¶

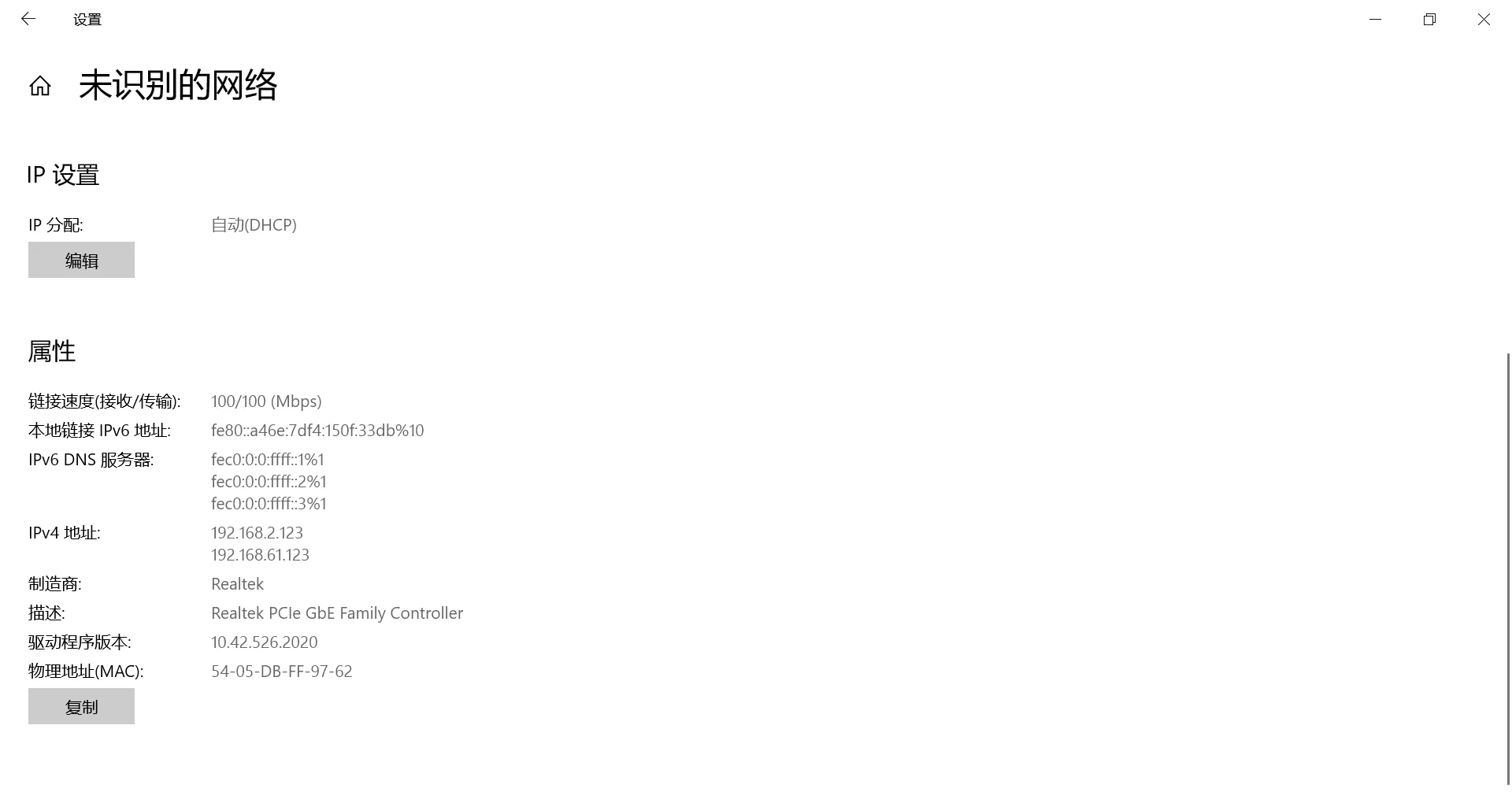

Set computer to same network segment IP as gateway
Connect computer to gateway LAN port with network cable
Power on gateway, wait for RUN light to illuminate steadily

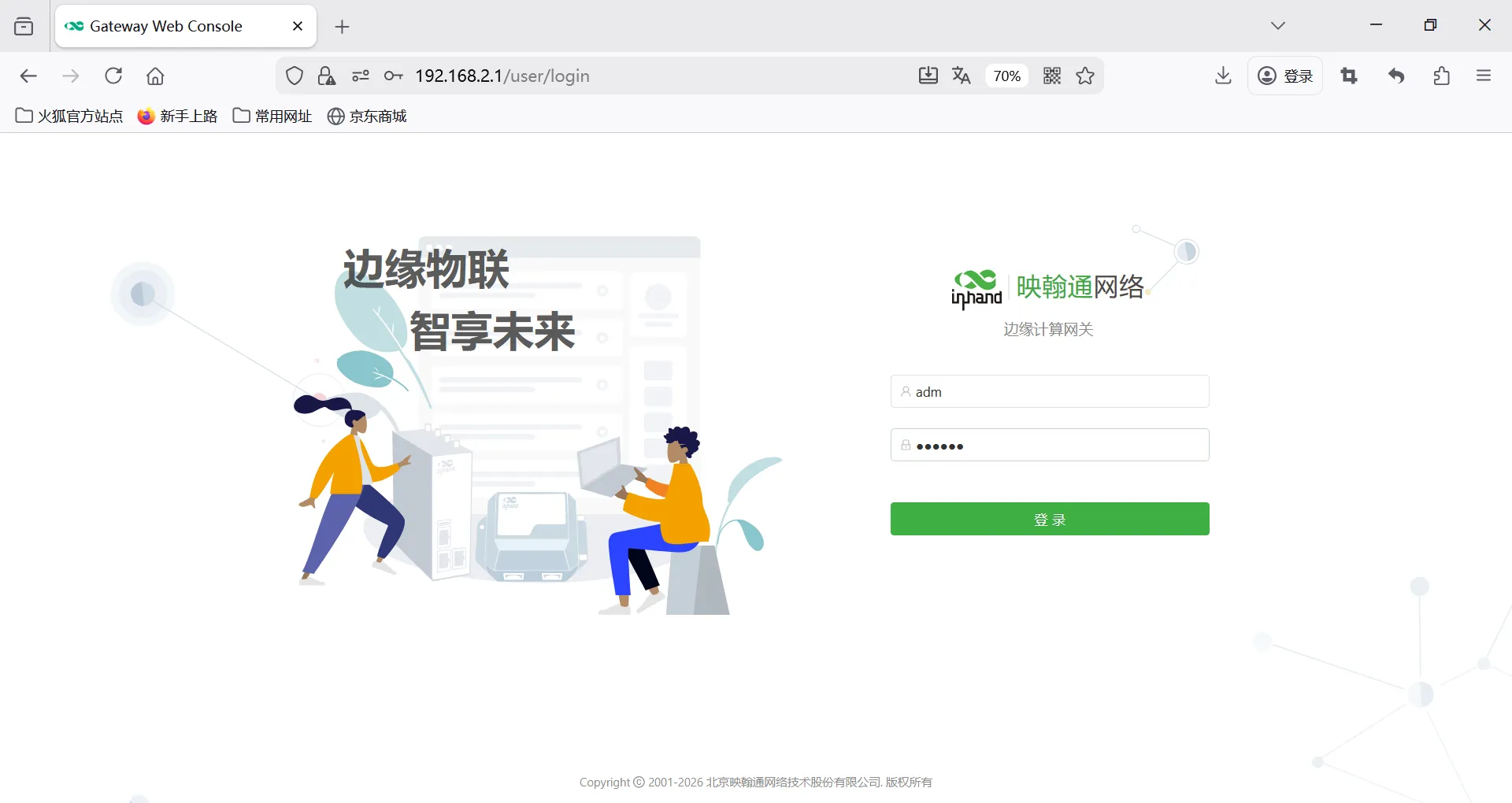

Enter gateway IP in browser to access configuration page

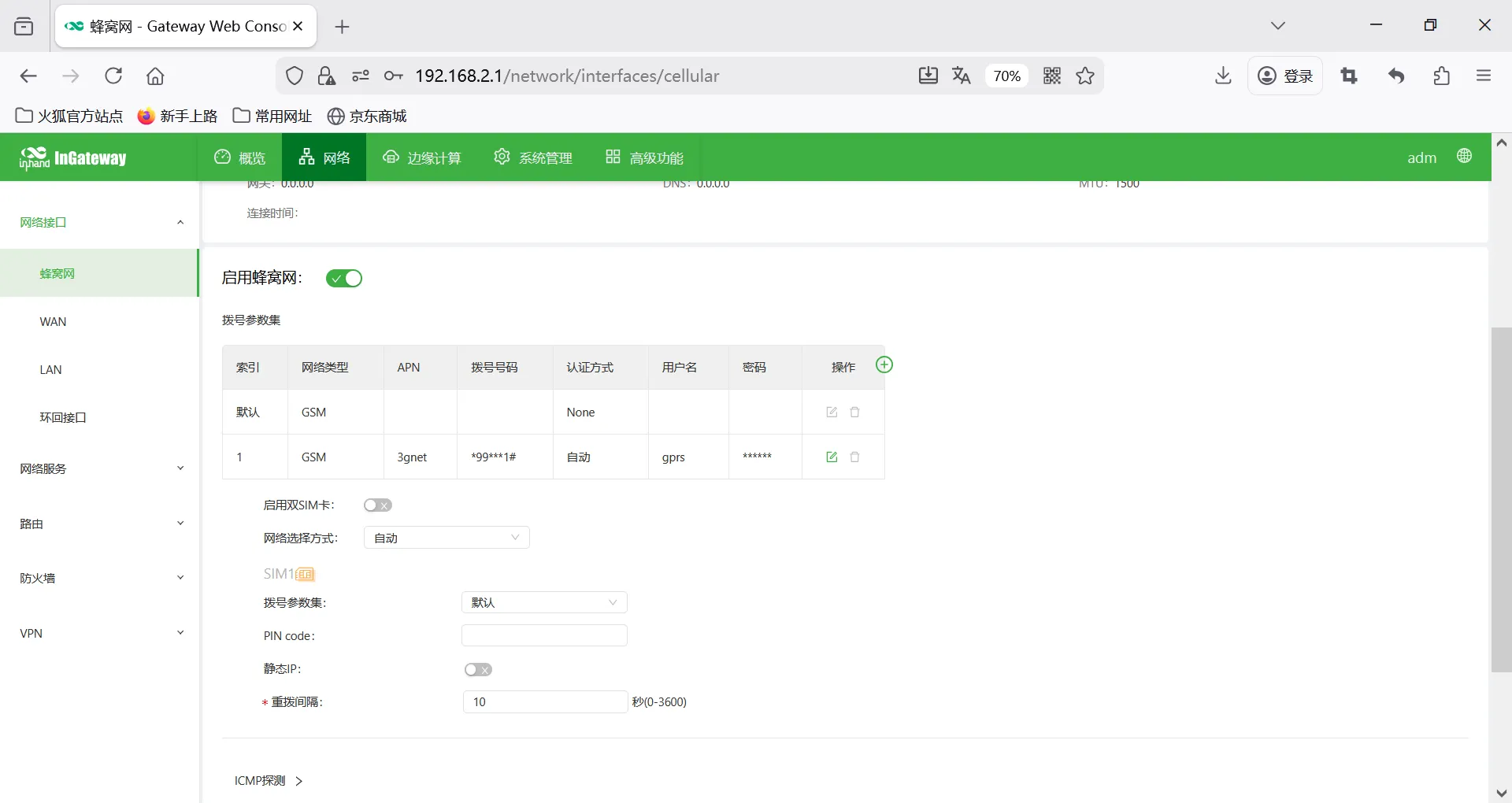

VI. Network Configuration¶

Insert SIM card (supports NB-IoT/4G)
Enable mobile network
APN: Automatic / Manual entry
View signal strength

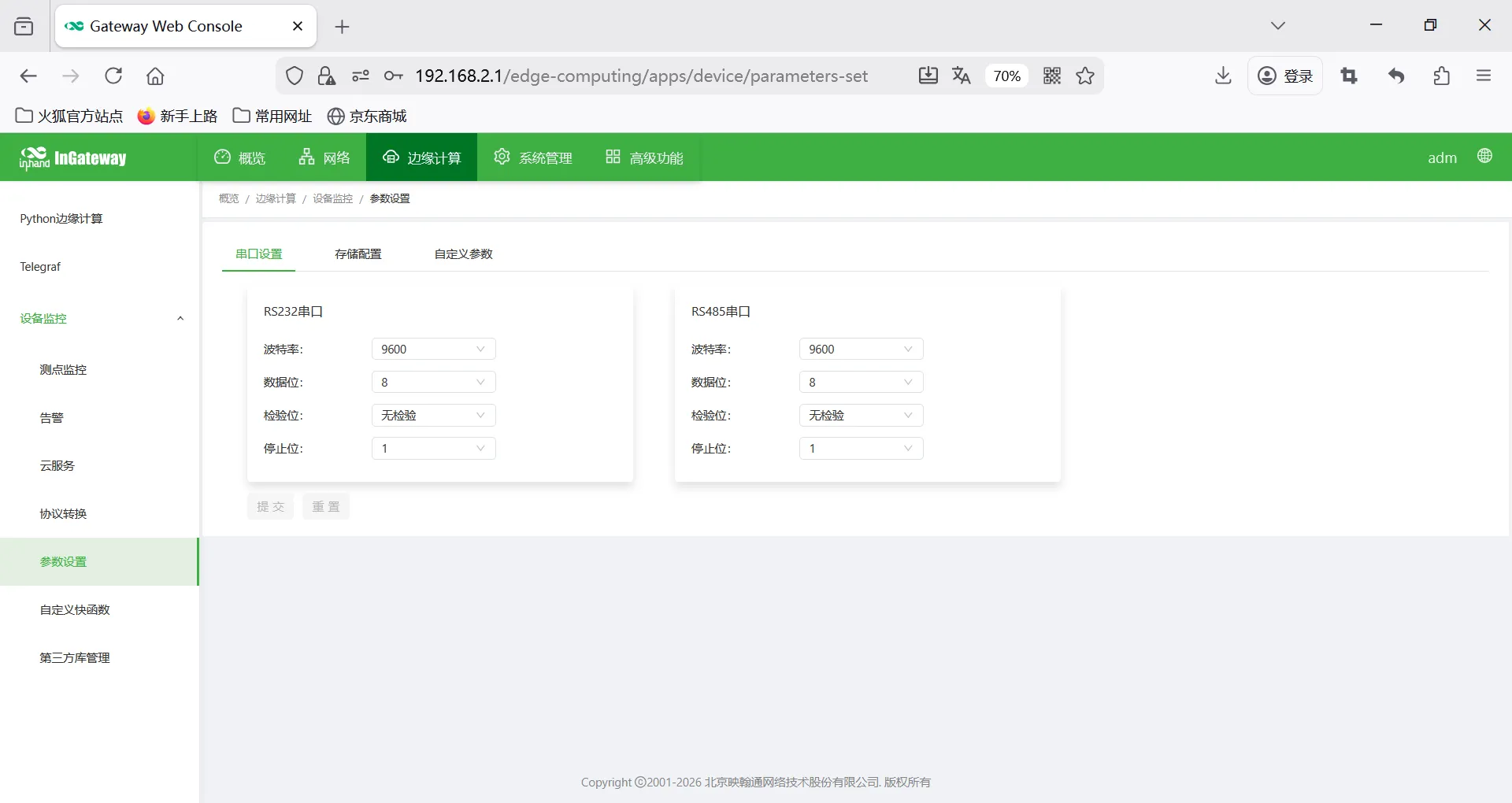

VII. Serial Port Configuration¶

Enter [Serial Port Configuration] → [COM1/COM2…]
Mode selection: Acquisition mode
Baud rate: 9600
Data bits: 8
Parity: None
Stop bits: 1
Save to take effect

VIII. Equipment and Protocol Configuration¶

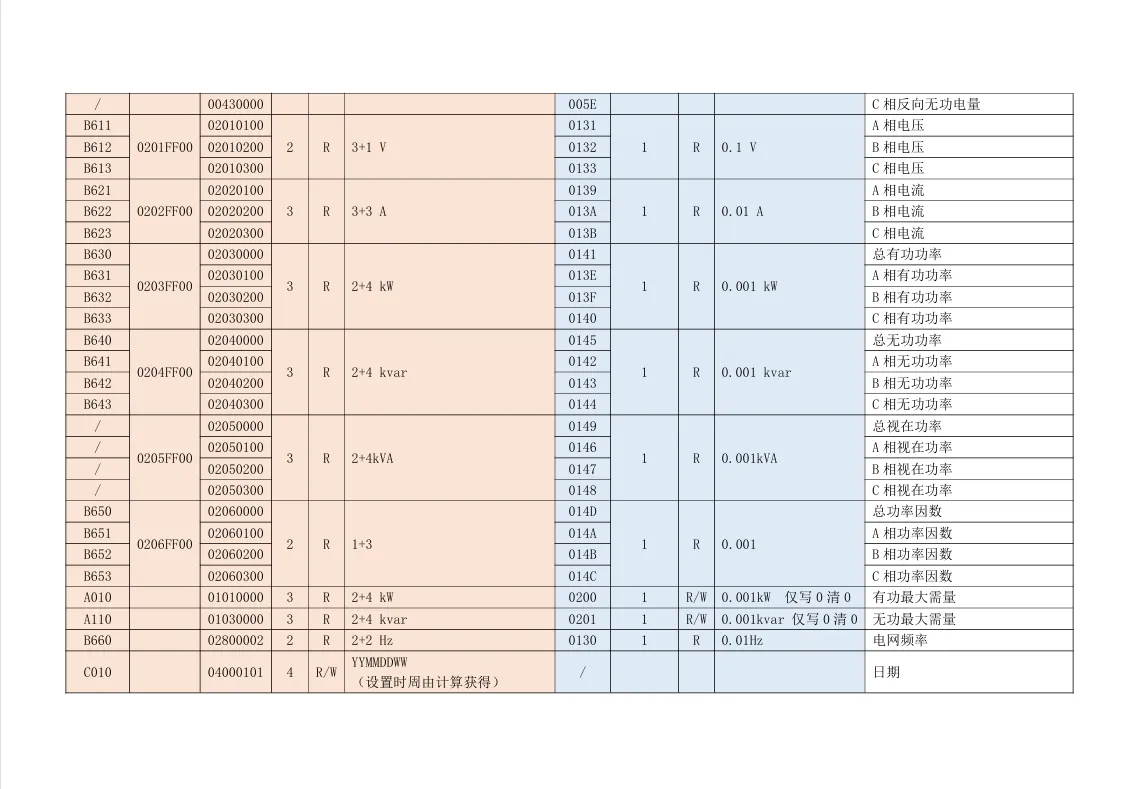

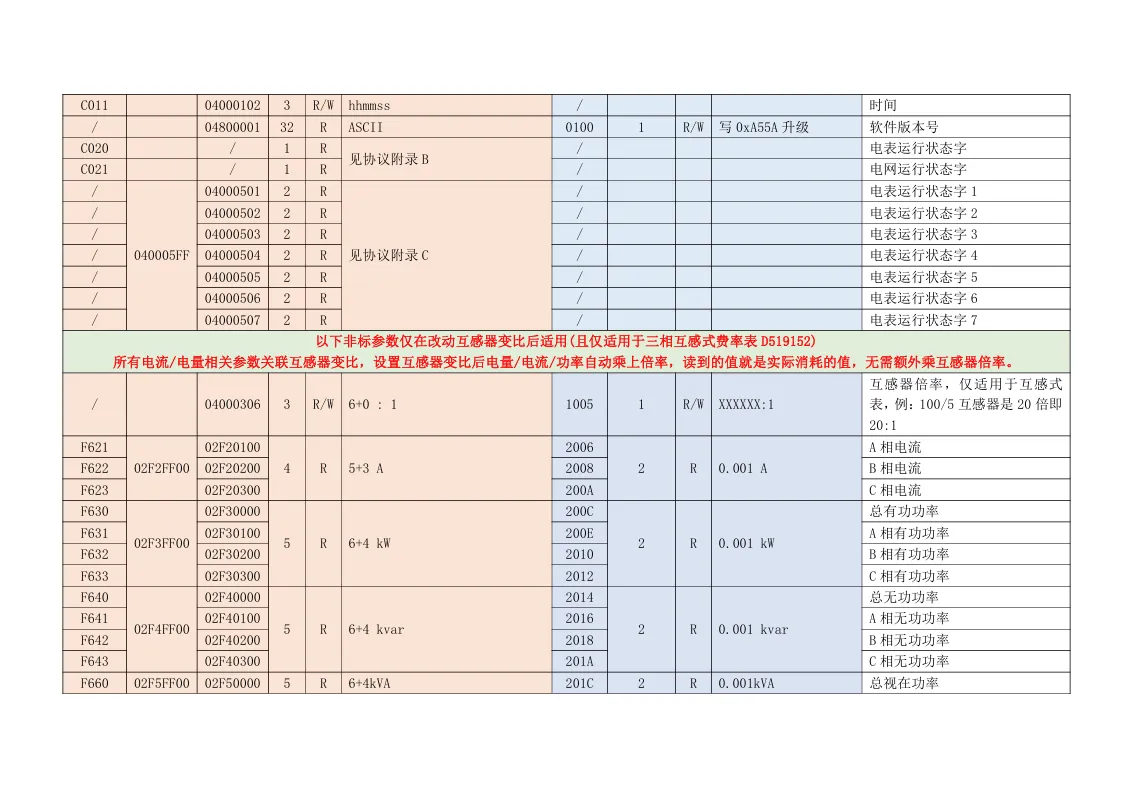

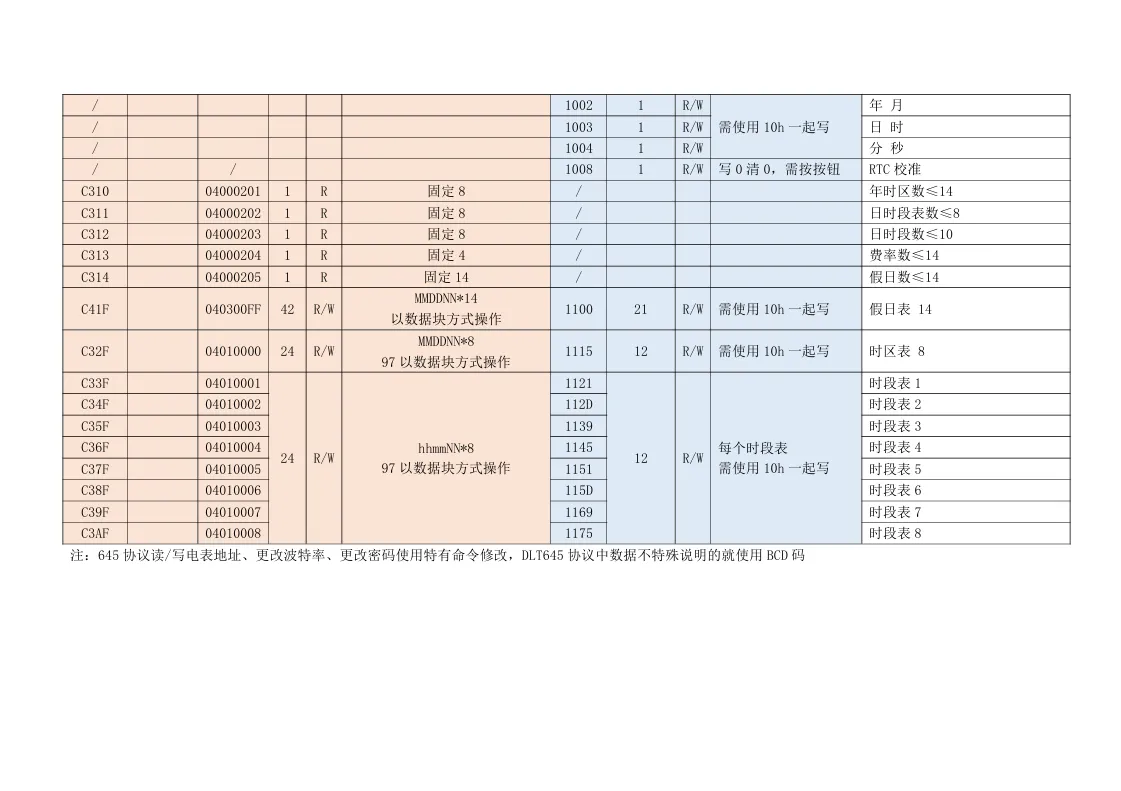

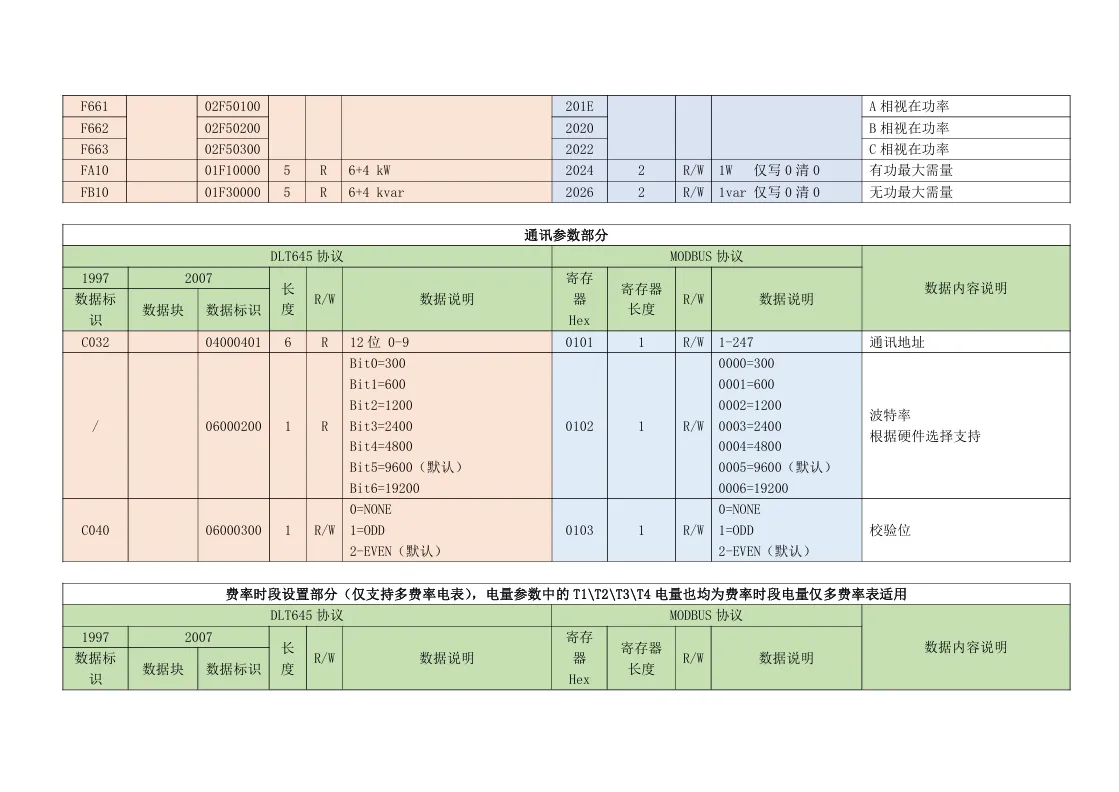

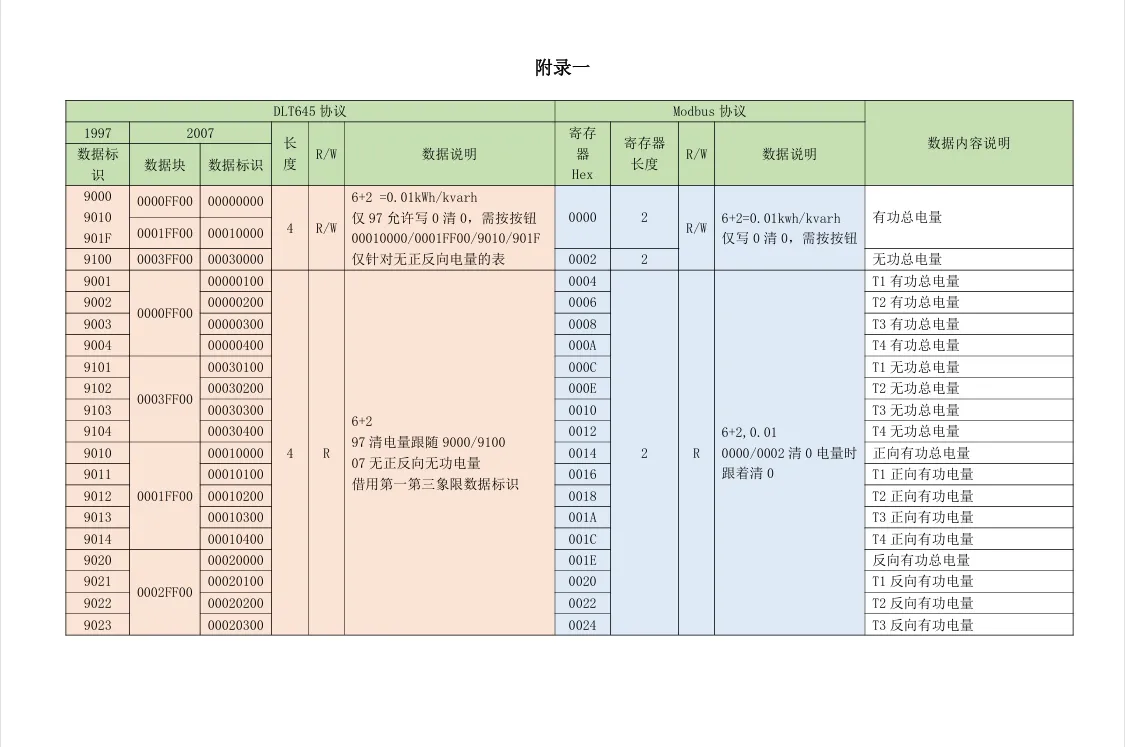

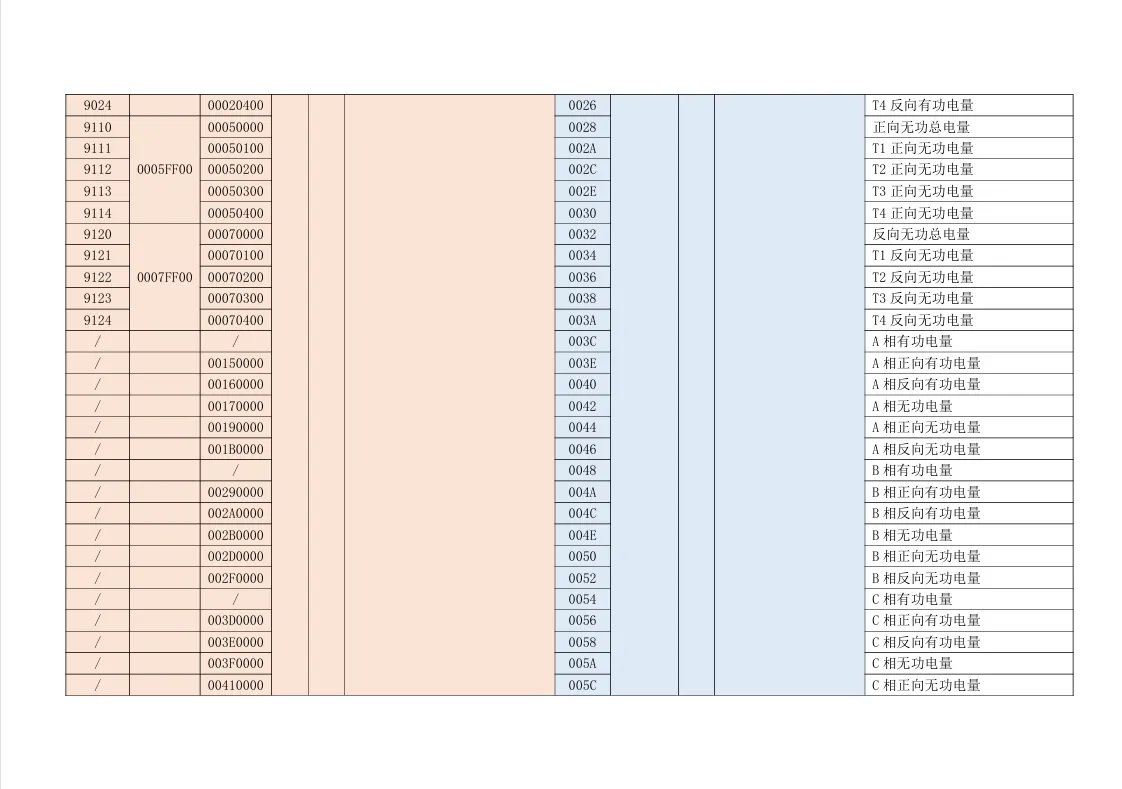

8.1 View Terminal Equipment Protocol Point Table Document (provided by manufacturer)¶

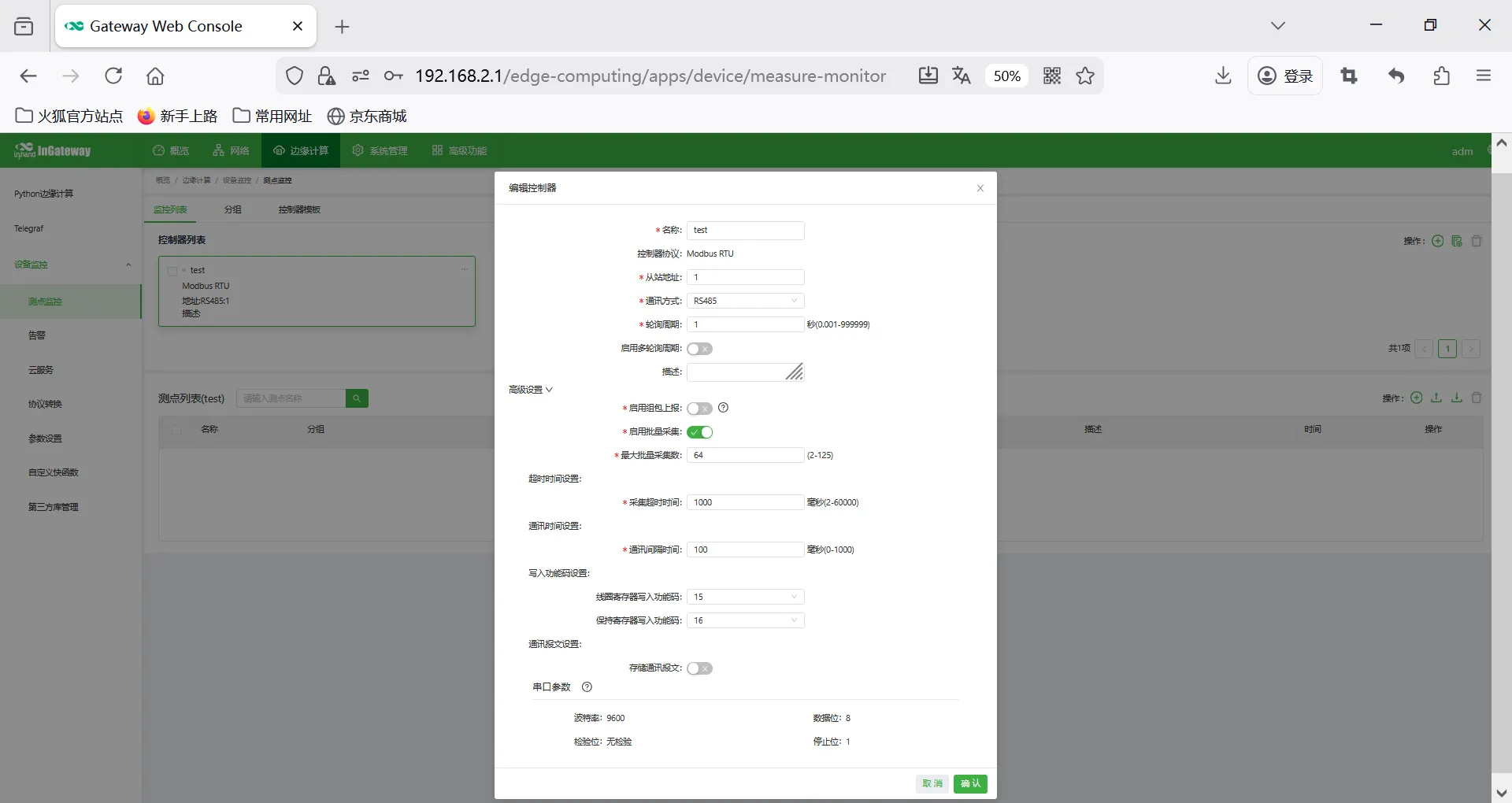

8.2 Add Acquisition Device¶

Enter [Data Acquisition Configuration] → [Add Device]
Select Modbus RTU
Select serial port
Set device address 1
Set timeout, retry count
Save

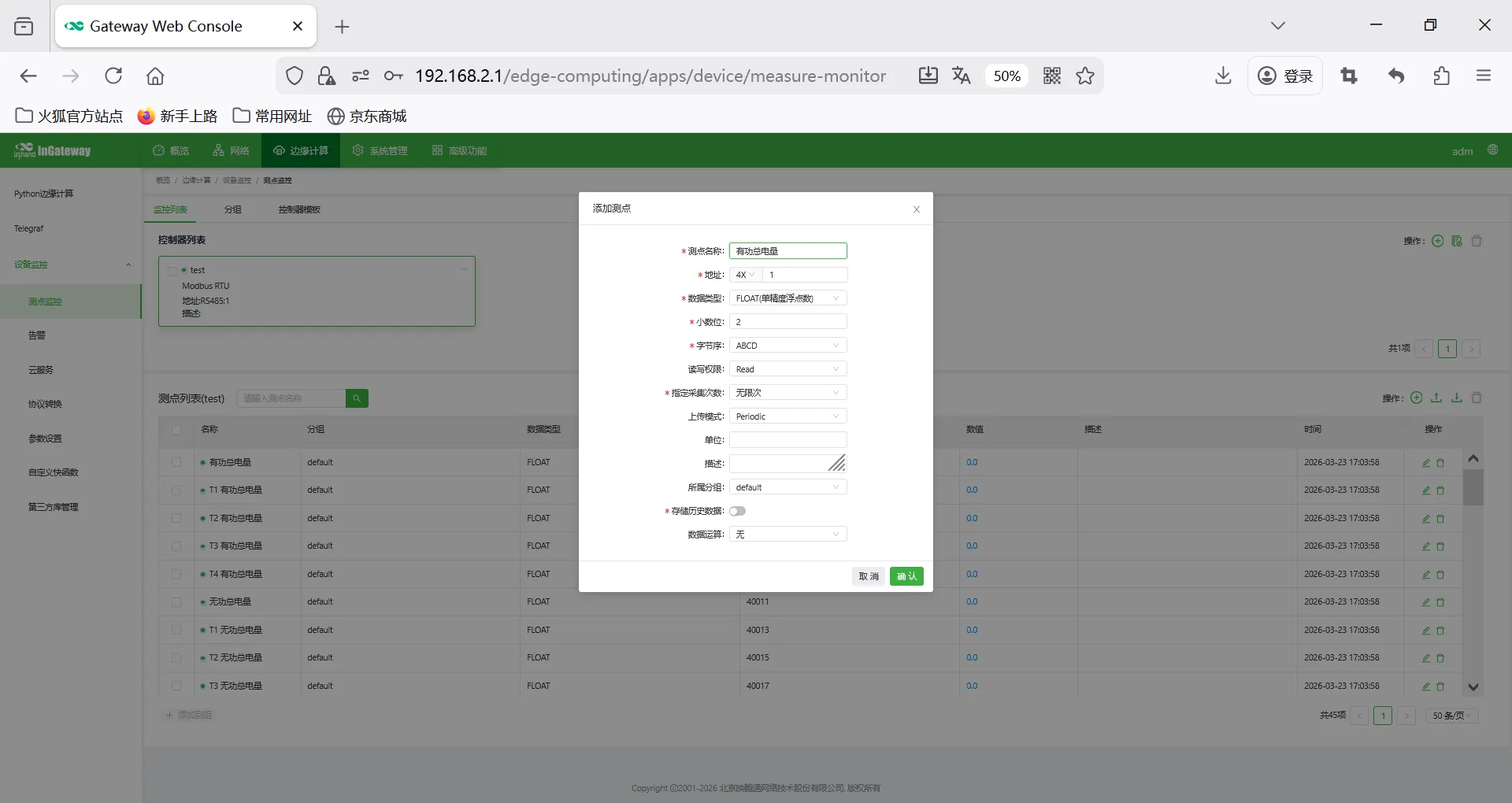

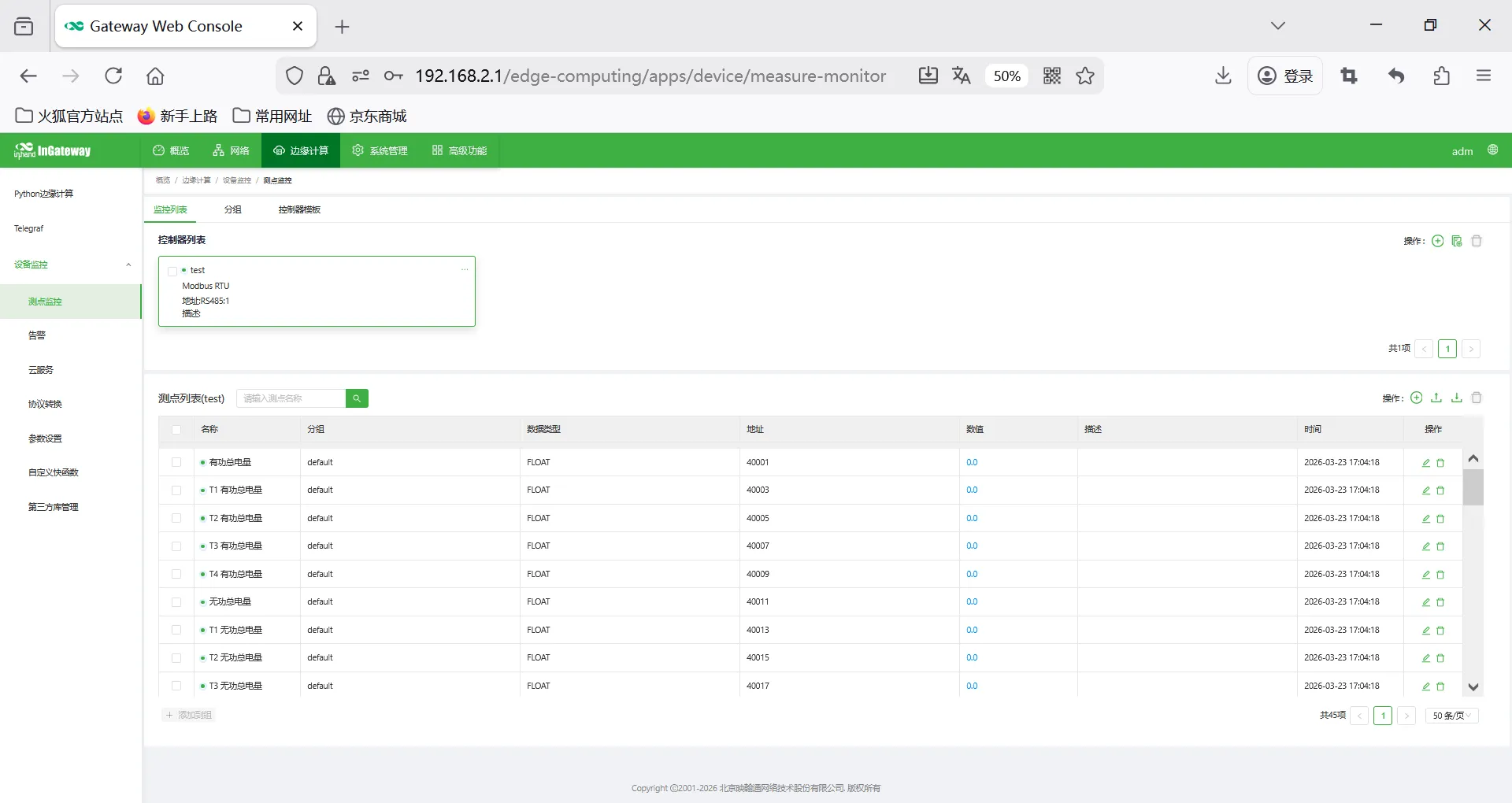

8.3 Add Acquisition Points¶

Enter [Point Configuration] → [Add Point]
Point name: Custom
Register function code: 03(4x)
Address offset: 0
Data type: int16/uint16/int32/float, etc.
Acquisition interval: 100ms
Coefficient, unit, range
Alarm upper/lower limits (optional)
Save

8.4 Point Table Import / Export¶

Supports Excel batch import, export and backup.

IX. Data Upload Configuration¶

HTTP Upload¶

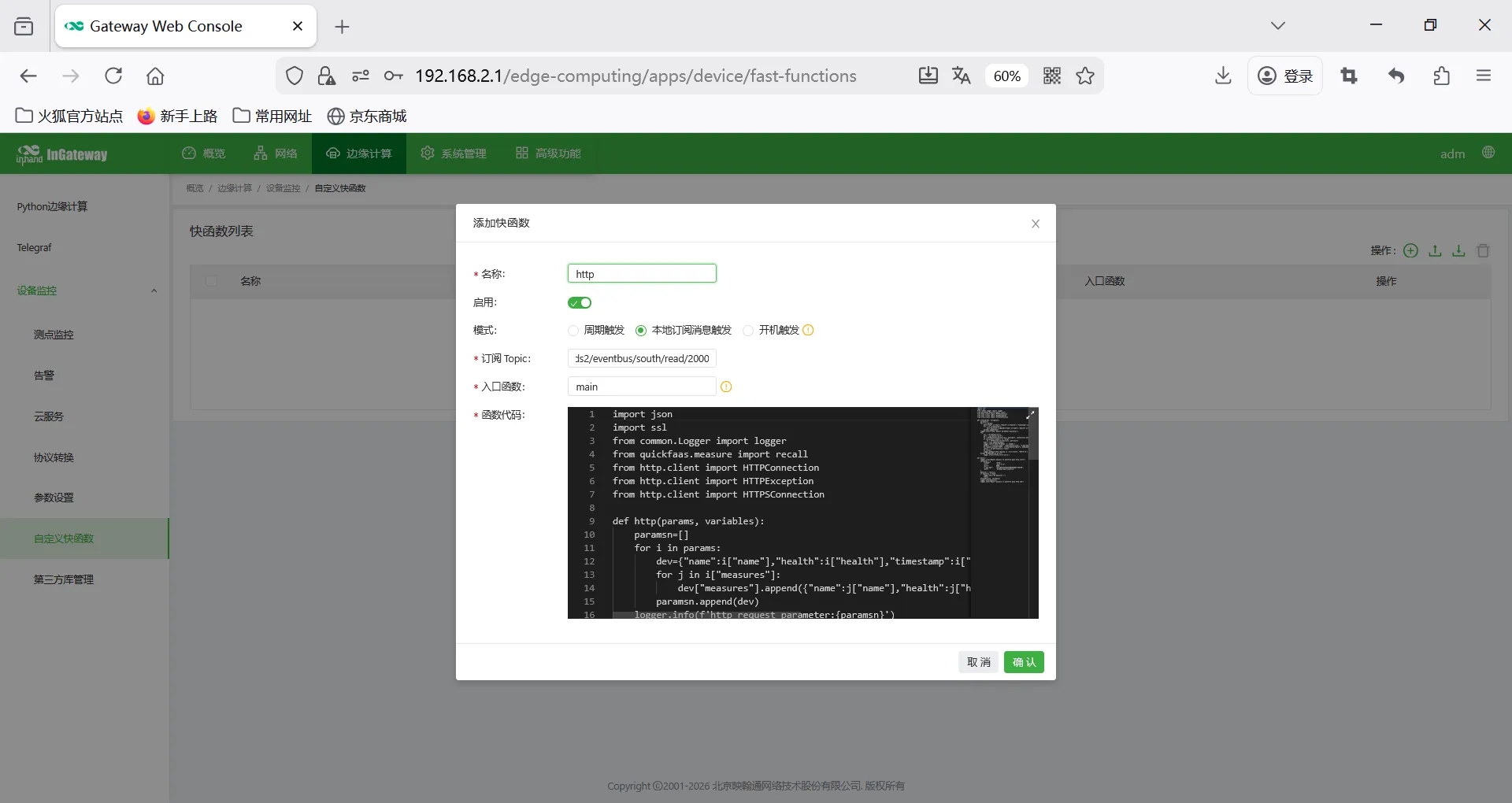

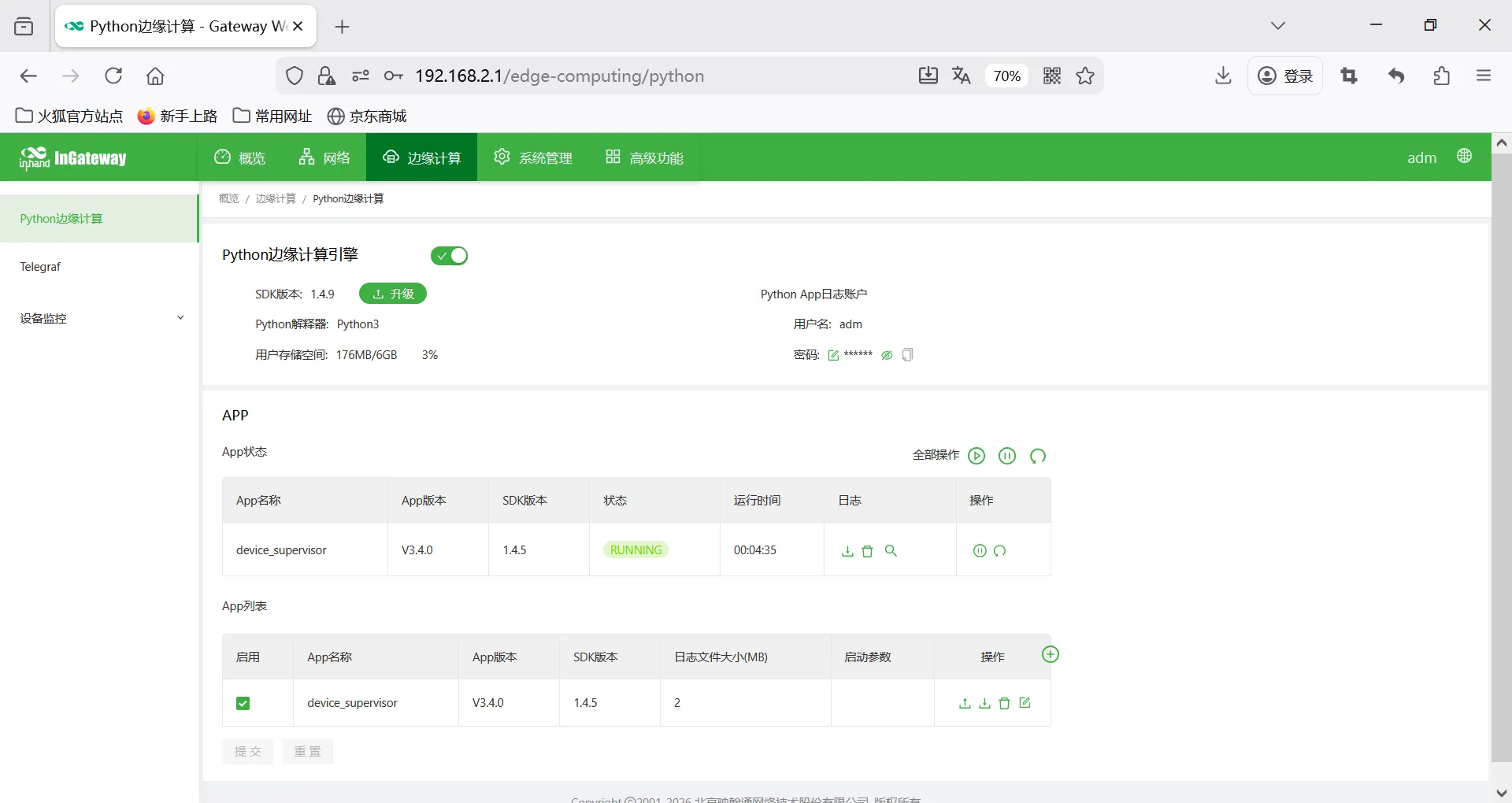

Configure URL, request method, Header, Body template through code in custom quick functions.

Example Code

# data=[{"name": "ED002092", "health": 1, "timestamp": 1773107297, "timestampMsec": 1773107297383, "measures": [{"name": "pl", "health": 1, "timestamp": 1773107293, "timestampMsec": 1773107293724, "value": 49.960000000000001}]}]

import json
import ssl
from common.Logger import logger
from quickfaas.measure import recall
from http.client import HTTPConnection
from http.client import HTTPException
from http.client import HTTPSConnection

def http(params, variables):
    paramsn=[]
    for i in params:
        dev={"name":i["name"],"health":i["health"],"timestamp":i["timestamp"],"measures":[]}
        for j in i["measures"]:
            dev["measures"].append({"name":j["name"],"health":j["health"],"timestamp":j["timestamp"],"value":j["value"]})
        paramsn.append(dev)
    logger.info(f'http request parameter:{paramsn}')
    try:
        url = variables["url"]
        port = variables["port"]
        h1 = HTTPSConnection(host=url, port=port, context=ssl.SSLContext(),timeout=3)
        if variables["schema"] == "http":
            h1 = HTTPConnection(host=url, port=port)
        body = json.dumps(paramsn)
        logger.info(f'Send HttpBody --> {body}')
        headers = {"Content-Type": "application/json", "x-api-key": variables["x-api-key"]}
        h1.request(method="POST", url=variables["path"], body=body, headers=headers)
        result = h1.getresponse().read()
        h1.close()
        logger.debug(f'http reponse is :{str(result, "UTF-8")}')
    except HTTPException as err:
        logger.error(f'http error:{err}')

def main():
    logger.info("Report measure to platform pass http start")
    variables = {
        "schema":       "http",
        "url":          "***.***.***.***",
        "port":         8080,
        "x-api-key":    "***************************",
        "path":         "dvcRep/reportingforjz"
    }
    measures = recall()
    if measures is None:
        logger.warn("No measures !")
        return
    http(measures, variables)
    logger.info(measures)
    logger.info("Report measure to platform pass http end")

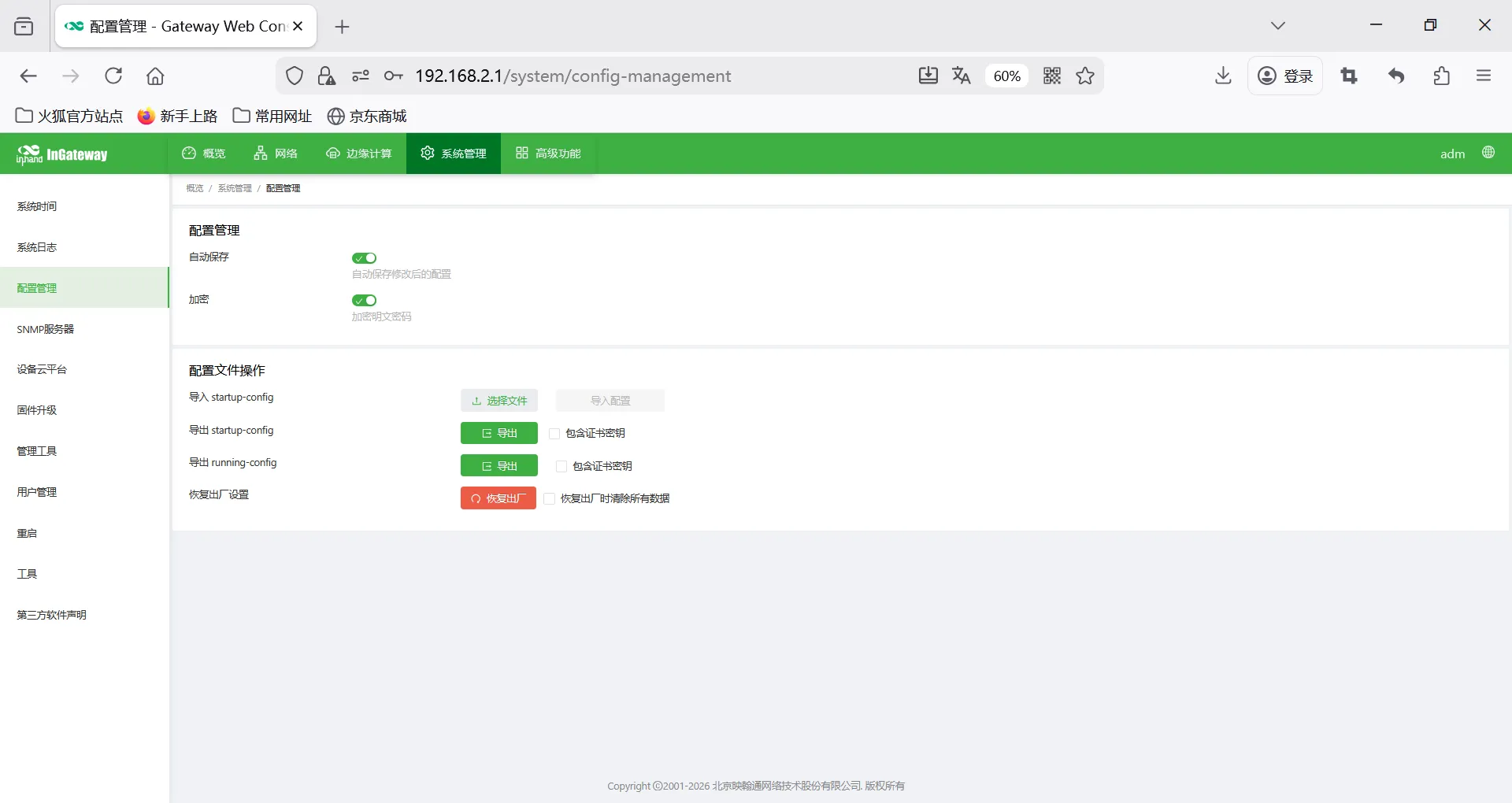

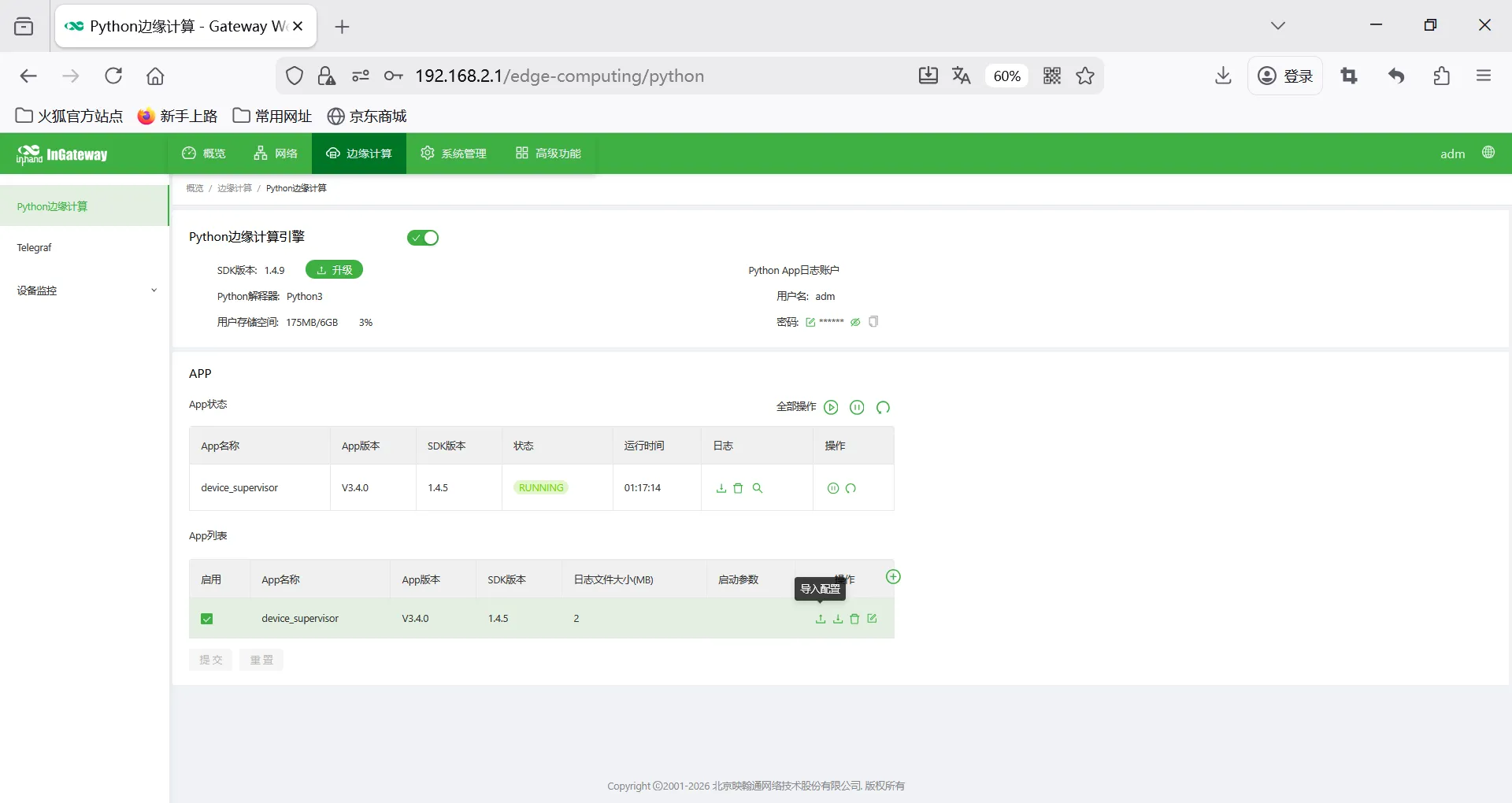

X. Import Gateway Configuration and DSA Configuration¶

Configuration files are in the config directory
