5G Outdoor Unit
Enterprises have been adopting 5G cellular networks to greatly enhance the flexibility and convenience of their IT architecture. Our cloud-managed 5G ODU2000 series, combined with the InCloud Manager SaaS service, provides a high-speed, secure, and convenient 5G network, empowering enterprises for the future.
Unleash the power of 5G
Leveraging high-performance and fast 5G cellular network access, InHandNetworks 5G ODU delivers excellent connectivity with low latency, fully unlocking the potential of 5G!
- Ultra-fast 5G network, DL: 4.76Gbps, UL: 1.25Gbps
- SA/NSA networking
- 5G Sub-6 GHz
- Compatible with LTE CAT19
Agility and robustness
With outstanding performance, InHandNetworks 5G ODU helps enterprises build more robust and agile networks, facilitating business growth with improved experience.
- Throughput up to 2Gbps
- 2*2.5Gbps Ethernet port
- WAN/LAN or dual LAN
- PoE-enabled LAN port
Worry-free connectivity
The ODU2000 offers “always-online” connectivity, ensuring network stability, minimizing your risk of network failure.
- Wired/cellular failover
- Dual NANO SIM for different carriers
- Optional eSIM with external SIM link redundancy
- Multi-layer link detection, auto recovery from faults
Zero-touch deployment
Zero-touch deployment streamlines the process effortlessly. Non-IT individuals can easily power and install on-site network equipment, while IT professionals remotely configure and troubleshoot devices from the cloud, reducing deployment costs. programmed, on-site fault response, problem location, and the loss caused by equipment failure can be reduced.
- Plug & play
- App configuration
- Web configuration
- Configuration via InCloud Manager

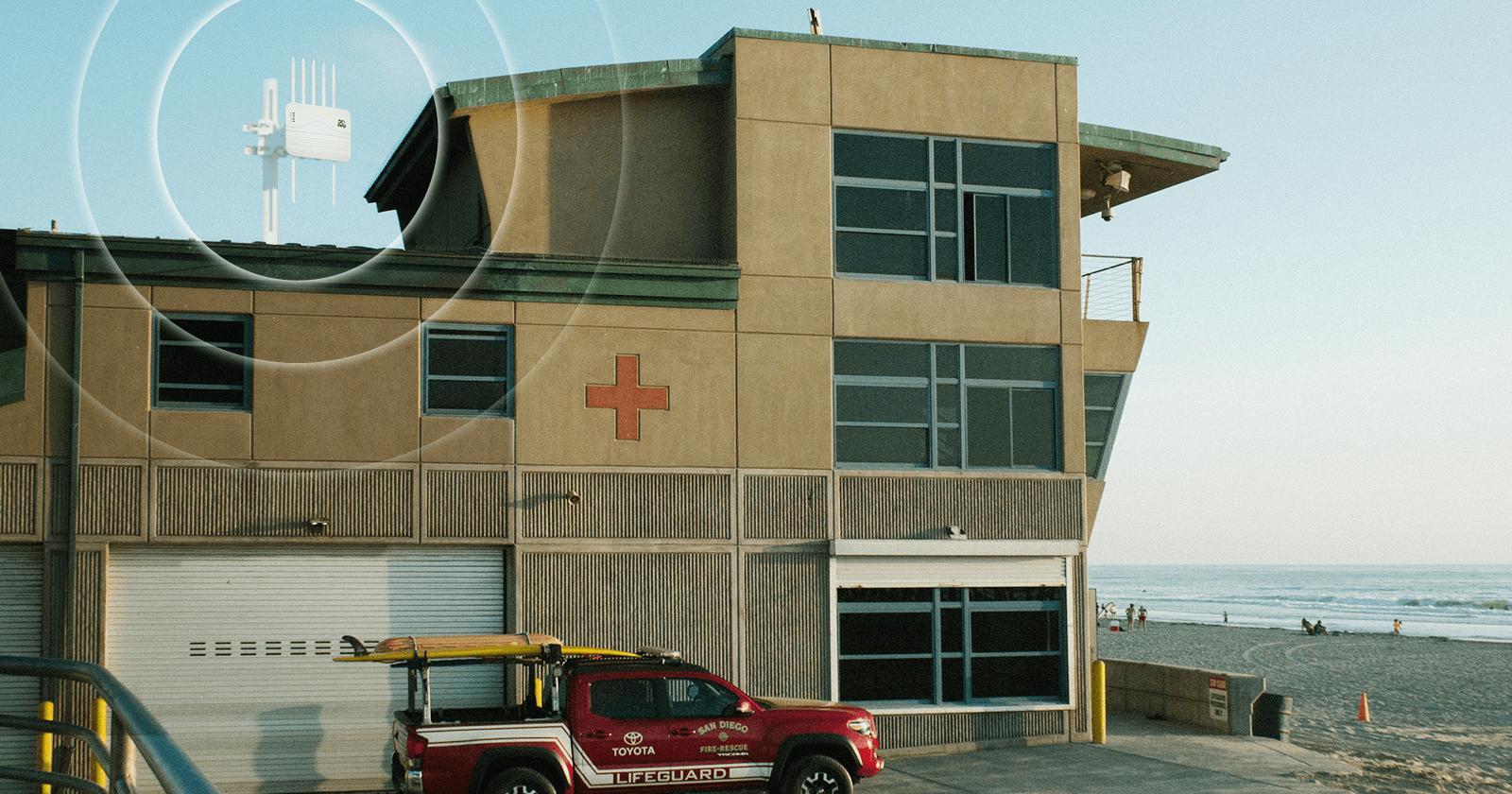

Purposely designed for outdoors
Committed to rigorous design principles, the InHandNetworks 5G ODU exemplifies meticulous attention to detail. From product design to component selection, every aspect is carefully crafted, ensuring exceptional performance even in harsh outdoor environments.
- IP67 protection rating
- Die-cast aluminum metal housing, fanless design
- Operating temperature: -30~70°C
- Flexible wall/pole mounting with adjustable angles
- External 6 high-performance 5G antennas made of fiberglass
- High-precision GPS location tracking
Efficiently managed in the cloud
The InHandNetworks 5G ODU, paired with the InCloud Manager, enables seamless cloud management of distributed sites at scale. Gain real-time network monitoring and enhance IT management efficiency from anywhere, breaking free from limitations.
- Unified management access platform
- Simple and intuitive graphical data
- Easy-to-use management interface
- Overview of business
Key Parameters
 Resources → Datasheet → Buy Now → | Hardware Platform | ||||
| Throughput | Recommended No. of Users | ||||
| Up to 2Gbps | 200 | ||||
| Interface Description | |||||
| Cellular | Ethernet Port | Wi-Fi | USB | GPS | |
| 5G: 4.76Gbps (DL)/1.25Gbps (UL) 4G: 1.6Gbps (DL)/200Mbps (UL) | 2*2.5 GbE RJ45 WAN/LAN switchable PoE in LAN Port | 802.11 b/g/n, Single band 2.4GHz | 1* Type-C 2.0 | GPS/GLONASS/Beidou/Galileo/QZSS | |
| SIM | Ingress Protection | Ground Terminal | Lights | Antenna Interface | |
| 1*eSIM 2*SIM, Nano SIM slots | IP67 | 1*GND | System, Cellular, Signal, WAN, LAN | TNC-type connectors 6*Sub 6, 1*GNSS, 1*Wi-Fi | |
Applications
