ISE Series Unmanaged Industrial Ethernet Switch
ISE Series Unmanaged Industrial Ethernet Switch

Unmanaged Industrial Ethernet Switches

The ISE series is designed for harsh industrial environments. It integrates features like wide temperature tolerance, wide voltage design, and protected industrial circuits.In challenging industrial scenarios, InHand Networks’ industrial Ethernet switches demonstrate reliable performance, providing customers with trusted solutions.

 / Unmanaged Industrial Ethernet Switches

Robust metal casing, high protection rating

  • Sturdy metal casing, fanless design
  • EMC/Protection Rating: Level 3/IP40
  • MTBF: 35 years
  • Redundant dual power inputs, Wide Temperature, Wide Voltage
  • International Certifications: UL, CE, FCC
High Protection Rating of ISE Unmanaged Industrial Ethernet Switch
Diverse Port Combination of ISE Unmanaged Industrial Ethernet Switch

A diverse and flexible port combination

  • 5-18 Ports

  • 10/100/1000BaseT(X) (RJ45 connector)

  • 100/1000BaseSFP Ports

  • 100BaseFX / 1000BaseFX ports, transmission distance 0-120km, with SC/FC/ST connectors

Easy to use, quick deployment, and supports fault monitoring and alerts

  • Supports DIN-rail and rack mounting installation

  • Plug and play, quick deployment
  • Supports relay alarms, including power loss and port disconnection

  • Suppress broadcast storms, port flow control, and trigger abnormal interrupt alarms through dip switches
Easy-to-use ISE Unmanaged Industrial Ethernet Switch

Which Model is Right for You?

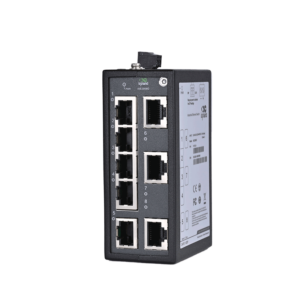

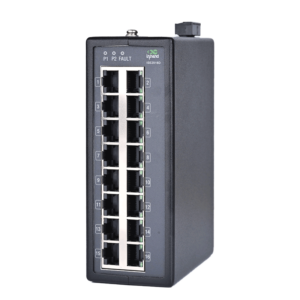

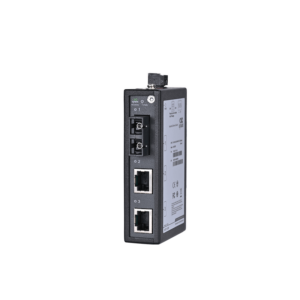

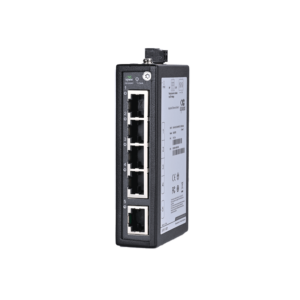

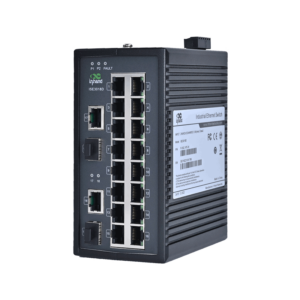

ModelISE2003DISE2005DISE2008DISE2016DISE3018D
100BaseFX Ports1////
10/100BaseT(X) Ports
(RJ45 connector)
2581616
100/1000BaseSFP Ports////2
Backplane Bandwidth16 Gbps16 Gbps16 Gbps8.8 Gbps8.8 Gbps
MAC Table Size4 K4 K4 K8 K8 K
Packet Buffer Size1.5 Mbits1.5 Mbits1.5 Mbits4 Mbits4 Mbits
Datasheet →

Buy Now →
Datasheet →

Buy Now →
Datasheet →

Buy Now →
Datasheet →

Buy Now →
Datasheet →

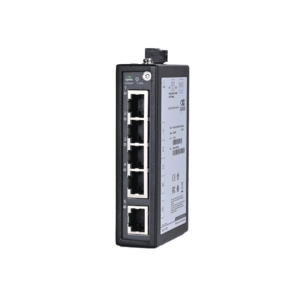

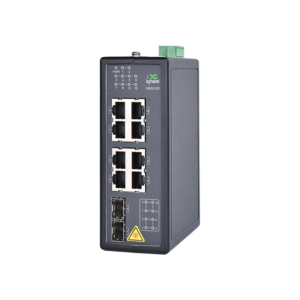

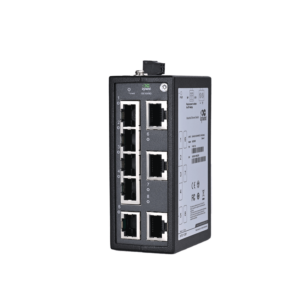

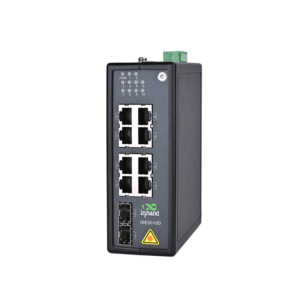

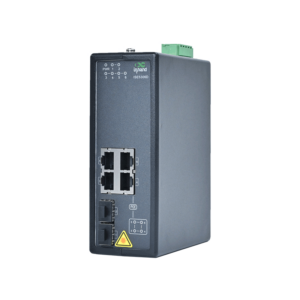

ModelISE5005DISE5008DISE5010DISE5306DISE5310D
10/100/1000BaseT(X) Ports
(RJ45 connector)
588//
100/1000BaseSFP Ports///22
PoE Ports
10/100/1000BaseT(X),
(RJ45connector)
///48
Backplane Bandwidth16 Gbps16 Gbps20 Gbps20 Gbps20 Gbps
MAC Table Size4 K4 K4 K4 K4 K
Packet Buffer Size1.5 Mbits1.5 Mbits1.5 Mbits1.5 Mbits1.5 Mbits
Datasheet →

Buy Now →
Datasheet →

Buy Now →
Datasheet →

Buy Now →
Datasheet →Datasheet →

Buy Now →

Applications

The IG902 edge gateway and the ISE switch connects onsite PLCs to the cloud, helps collect data from the site, and upload them to the cloud, ensuring clean, high-quality drinking water for urban residents.

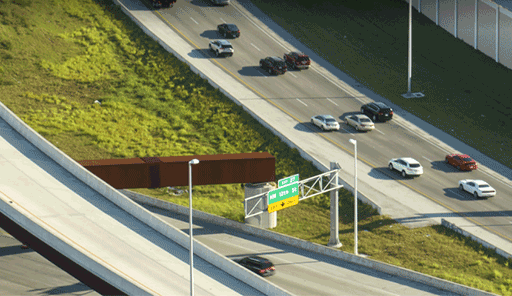

In face of distributed ETC site InHand Networks offers a remote monitoring solution for ETC equipment, helps better manage and maintain those devices, reducing traffic congestion and improving travel experience.

The “cloud + end” remote monitoring solution featuring the IG502 and the InConnect delivers real-time communications and efficient monitoring & control.
