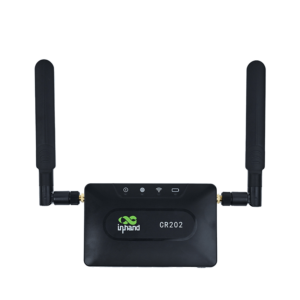

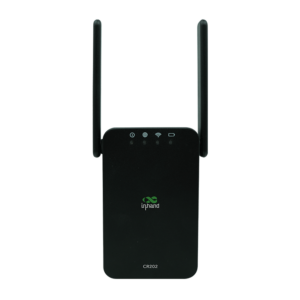

CR202-Lite
4G Cellular Router

With compact and small body and high-capacity battery, InHand Networks’ CR202 portable cellular series routers offer high-speed and reliable connectivity for individuals and enterprises, allowing users network access anytime and anywhere.

Request a Quote
Buy Now

CR202-Lite
4G Cellular Router

With compact and small body and high-capacity battery, InHand Networks’ CR202 portable cellular series routers offer high-speed and reliable connectivity for individuals and enterprises, allowing users network access anytime and anywhere.

Request a Quote
Buy Now

QSG VIDEO

Portable Cellular Router, Stay Connected Anywhere, Anytime.

Exquisite and portable

The CR202 portable cellular routers feature a sleek, compact design that fits easily in a pocket or bag, delivering connectivity anytime, anywhere.

Broad protocol support

Versatile power supply

Powered by a high-capacity battery, the CR202 delivers up to 8 hours per charge, and supports continuous operation when plugged in with the included power supply.

Omnipotent connectivity

The CR202 supports cellular, Wi-Fi, and wired access, providing reliable network connectivity for up to 32 devices simultaneously.

Efficient cloud management keeps everything in your hand

Paired with Device Manager cloud, the CR202 enables seamless cloud management, allowing real-time monitoring and efficient control of distributed sites.

Exquisite and portable

The CR202 portable cellular routers feature a sleek, compact design that fits easily in a pocket or bag, delivering connectivity anytime, anywhere.

Broad protocol support

Versatile power supply

Powered by a high-capacity battery, the CR202 delivers up to 8 hours per charge, and supports continuous operation when plugged in with the included power supply.

Omnipotent connectivity

The CR202 supports cellular, Wi-Fi, and wired access, providing reliable network connectivity for up to 32 devices simultaneously.

Efficient cloud management keeps everything in your hand

Paired with Device Manager cloud, the CR202 enables seamless cloud management, allowing real-time monitoring and efficient control of distributed sites.

  • Core Technical Specifications
    Cellular 4G LTE (Cat.4/Cat.6); up to 300 Mbps DL / 50 Mbps UL (Cat.6)
    Cloud Management InHand Device Manager
    Network & Security NAT, static routing; SPI firewall, DoS, ACL, URL filtering
    Wi-Fi 2.4 GHz 802.11 b/g/n, 300 Mbps; AP / STA
    Throughput / Users 100 Mbps; up to 32 users
    SIM 1 × Nano + optional eSIM
    Ethernet / Antenna 2 × 10/100 Mbps (WAN/LAN, dual-LAN); 2 × 4G external + 2 × Wi-Fi internal
    Power / Battery USB-C 5 V / 2 A; optional 3000 mAh, up to 8 h
    Dimensions / Weight 122 × 75 × 26.4 mm (4.80 × 2.95 × 1.04 in); 235 g (0.52 lb)
    Installation Desktop / wall; -10 °C ~ +50 °C (14 °F ~ +122 °F) op.; -20 °C ~ +60 °C (-4 °F ~ +140 °F) stg.
    Certification FCC, IC, PTCRB, Verizon, AT&T, FirstNet, T-MOBILE, CE, UN38.3
  • Performance Metrics
    Data Throughput 100 Mbps
    Recommended Users 32
  • Interfaces
    Cellular 4G LTE Cat.4/Cat.6; Cat.6: 300 Mbps DL / 50 Mbps UL
    Ethernet 2 × 10/100 Mbps, WAN/LAN switchable, dual-LAN
    SIM 1 × Nano-SIM, 1 × eSIM optional
    Reset Reset button
    ON/OFF ON/OFF button
    Antenna 2 × external 4G cellular antennas, 2 × internal Wi-Fi antennas
  • LEDs
    LED System, Cellular, Wi-Fi, Battery
  • Wi-Fi
    Frequency Single-band 2.4 GHz
    Max Bandwidth 300 Mbps
    Protocol 802.11 b/g/n
    Mode AP / STA
  • Power
    Input TYPE-C, 5 V / 2 A
    Battery 3000mAh optional, lasts up to 8 hours
  • Mechanical
    Installation Desktop, wall mounting
    Dimensions 122 × 75 × 26.4 mm (4.80 × 2.95 × 1.04 in)
    Weight 235 g (0.52 lb)
    Housing Plastic
    Cooling Fanless
  • Environment
    Operating Temperature -10 °C ~ +50 °C (14 °F ~ +122 °F)
    Storage Temperature -20 °C ~ +60 °C (-4 °F ~ +140 °F)
    Protection IP30
  • Certification
    Certification FCC, IC, PTCRB, Verizon, AT&T, FirstNet, T-MOBILE, CE, UN38.3
    Warranty 3 years (Battery: 1 year)
  • Network Features
    Access APN authentication
    Authentication CHAP/PAP
    Network Standard GSM/EDGE, WCDMA, TDD LTE/FDD LTE
    LAN Protocol ARP
    WAN Protocol Static IP, PPPoE, DHCP
    IP Application Ping, DHCP Server, DHCP Client, DNS relay, Telnet, IP Passthrough
    Routing Static routing
    NAT Supports NAT
  • Security
    Firewall SPI, DoS protection
    Access Control ACL, URL filtering
    Other NAT, DMZ, port mapping
  • Reliability
    Link Backup Hot backup, cold backup, load balancing
    Dual-SIM Failover Supports dual-SIM failover (North American model only)
    Link Detection Heartbeat detection, auto-reconnect
    Watchdog Self-check, fault self-recovery
  • Management
    Configuration Telnet, Web, SSH
    Upgrade Web upgrade, Device Manager upgrade
    SMS Functions Status query, restart
    Dial-on-demand Dial-on-demand, data / SMS activation
    Traffic Management Data traffic threshold, traffic statistics, traffic alarm
    Alarm System restart alarm, LAN port online/offline alarm, data traffic alarm, SIM card failure alarm
    Maintenance Tools Ping, Traceroute
    Status Query System status, modem status, network connection status, routing status
    Device Manager InHand Device Manager for bulk management
Fetching resources...

Standard package*

  • CR202-Lite Cellular Router *1
  • 3000mAh Lithium Battery *1
  • Power Supply *1
  • Ethernet Cable *1
  • User Guide *1

* Standard package contents vary by standard order codes.

Contact us directly to learn more about our packaging options.

Specifications
  • Core Technical Specifications
    Cellular 4G LTE (Cat.4/Cat.6); up to 300 Mbps DL / 50 Mbps UL (Cat.6)
    Cloud Management InHand Device Manager
    Network & Security NAT, static routing; SPI firewall, DoS, ACL, URL filtering
    Wi-Fi 2.4 GHz 802.11 b/g/n, 300 Mbps; AP / STA
    Throughput / Users 100 Mbps; up to 32 users
    SIM 1 × Nano + optional eSIM
    Ethernet / Antenna 2 × 10/100 Mbps (WAN/LAN, dual-LAN); 2 × 4G external + 2 × Wi-Fi internal
    Power / Battery USB-C 5 V / 2 A; optional 3000 mAh, up to 8 h
    Dimensions / Weight 122 × 75 × 26.4 mm (4.80 × 2.95 × 1.04 in); 235 g (0.52 lb)
    Installation Desktop / wall; -10 °C ~ +50 °C (14 °F ~ +122 °F) op.; -20 °C ~ +60 °C (-4 °F ~ +140 °F) stg.
    Certification FCC, IC, PTCRB, Verizon, AT&T, FirstNet, T-MOBILE, CE, UN38.3
  • Performance Metrics
    Data Throughput 100 Mbps
    Recommended Users 32
  • Interfaces
    Cellular 4G LTE Cat.4/Cat.6; Cat.6: 300 Mbps DL / 50 Mbps UL
    Ethernet 2 × 10/100 Mbps, WAN/LAN switchable, dual-LAN
    SIM 1 × Nano-SIM, 1 × eSIM optional
    Reset Reset button
    ON/OFF ON/OFF button
    Antenna 2 × external 4G cellular antennas, 2 × internal Wi-Fi antennas
  • LEDs
    LED System, Cellular, Wi-Fi, Battery
  • Wi-Fi
    Frequency Single-band 2.4 GHz
    Max Bandwidth 300 Mbps
    Protocol 802.11 b/g/n
    Mode AP / STA
  • Power
    Input TYPE-C, 5 V / 2 A
    Battery 3000mAh optional, lasts up to 8 hours
  • Mechanical
    Installation Desktop, wall mounting
    Dimensions 122 × 75 × 26.4 mm (4.80 × 2.95 × 1.04 in)
    Weight 235 g (0.52 lb)
    Housing Plastic
    Cooling Fanless
  • Environment
    Operating Temperature -10 °C ~ +50 °C (14 °F ~ +122 °F)
    Storage Temperature -20 °C ~ +60 °C (-4 °F ~ +140 °F)
    Protection IP30
  • Certification
    Certification FCC, IC, PTCRB, Verizon, AT&T, FirstNet, T-MOBILE, CE, UN38.3
    Warranty 3 years (Battery: 1 year)
  • Network Features
    Access APN authentication
    Authentication CHAP/PAP
    Network Standard GSM/EDGE, WCDMA, TDD LTE/FDD LTE
    LAN Protocol ARP
    WAN Protocol Static IP, PPPoE, DHCP
    IP Application Ping, DHCP Server, DHCP Client, DNS relay, Telnet, IP Passthrough
    Routing Static routing
    NAT Supports NAT
  • Security
    Firewall SPI, DoS protection
    Access Control ACL, URL filtering
    Other NAT, DMZ, port mapping
  • Reliability
    Link Backup Hot backup, cold backup, load balancing
    Dual-SIM Failover Supports dual-SIM failover (North American model only)
    Link Detection Heartbeat detection, auto-reconnect
    Watchdog Self-check, fault self-recovery
  • Management
    Configuration Telnet, Web, SSH
    Upgrade Web upgrade, Device Manager upgrade
    SMS Functions Status query, restart
    Dial-on-demand Dial-on-demand, data / SMS activation
    Traffic Management Data traffic threshold, traffic statistics, traffic alarm
    Alarm System restart alarm, LAN port online/offline alarm, data traffic alarm, SIM card failure alarm
    Maintenance Tools Ping, Traceroute
    Status Query System status, modem status, network connection status, routing status
    Device Manager InHand Device Manager for bulk management
Fetching resources...

Standard package*

  • CR202-Lite Cellular Router *1
  • 3000mAh Lithium Battery *1
  • Power Supply *1
  • Ethernet Cable *1
  • User Guide *1

* Standard package contents vary by standard order codes.

Contact us directly to learn more about our packaging options.

Device Manager

Device Management Cloud

Centralized management of InHand industrial routers and gateways with visual monitoring, plus easy remote configuration and upgrades.

Learn More

Device Manager

Learn More

Related Cases

Preview
Wireless Connectivity for Business Travels

Wireless Connectivity for Business Travels

Wireless Connectivity for Business Travels Applications and Cases Key Takeaways Wireless Connectivity…

Learn More →
Wireless Connectivity for Mobile Retailers

Wireless Connectivity for Mobile Retailers

Wireless Connectivity for Mobile Retailers Applications and Cases Key Takeaways With dual…

Learn More →
Outdoor Livestreaming

Outdoor Livestreaming

Outdoor Livestreaming Applications and Cases Key Takeaways With the CR202-Lite portable LTE…

Learn More →
See All Cases

Frequently Asked Questions

Which certifications does the CR202-Lite carry?

CR202-NAC6-WLAN-B/NA-Lite (LTE Cat 6, North America) is certified with Verizon, AT&T, T-Mobile, and FirstNet (LTE/4G), plus FCC, IC, and PTCRB. CR202-EUC4-WLAN-B/NA-Lite (LTE Cat 4, Europe/APAC) is CE-certified. The B/NA suffix indicates Battery (3000 mAh, ~8 hours runtime) or No-battery configuration. Only NA SKUs include the embedded eSIM; EU/APAC SKUs use external nano-SIM only.

Check the Network LED (Globe icon). The Globe LED must be steady for cellular to be online — green for strong signal, yellow for medium, red for weak. Blinking green means dialing up; blinking yellow or red indicates a dial error or SIM/modem issue. Off means cellular is disabled.

Power on the device. Connect your laptop via Ethernet to a LAN port, or join the default Wi-Fi SSID printed on the device label. Open a browser and go to http://192.168.2.1 . Log in with the credentials printed on the nameplate. If the page doesn’t load, set your network adapter to DHCP or a 192.168.2.x static IP.

The CR202-Lite NA SKU supports a physical nano-SIM plus an embedded Verizon eSIM. Log in and go to Network > Cellular:

  1. Set the Main SIM (Nano or eSIM) — this is the primary that dials up at boot.
  2. Tick Show Advanced Options, then Dual SIM Enable.
  3. Pick the carrier profile in Nano SIM Network Provider and eSIM Network Provider (or edit the APN via Manage).
  4. For reliable failover, set ICMP Detection Mode to Ignore Traffic, enter a reachable target in ICMP Detection Server (e.g., 8.8.8.8 ), and adjust ICMP Detection Interval and Timeout as needed. The device pings that target on the active SIM; if pings fail, it switches to the backup SIM.
  5. Click Apply.

Without ICMP detection, failover only triggers on a hard modem-level disconnect, which can miss “registered but no internet” failure modes.

—
