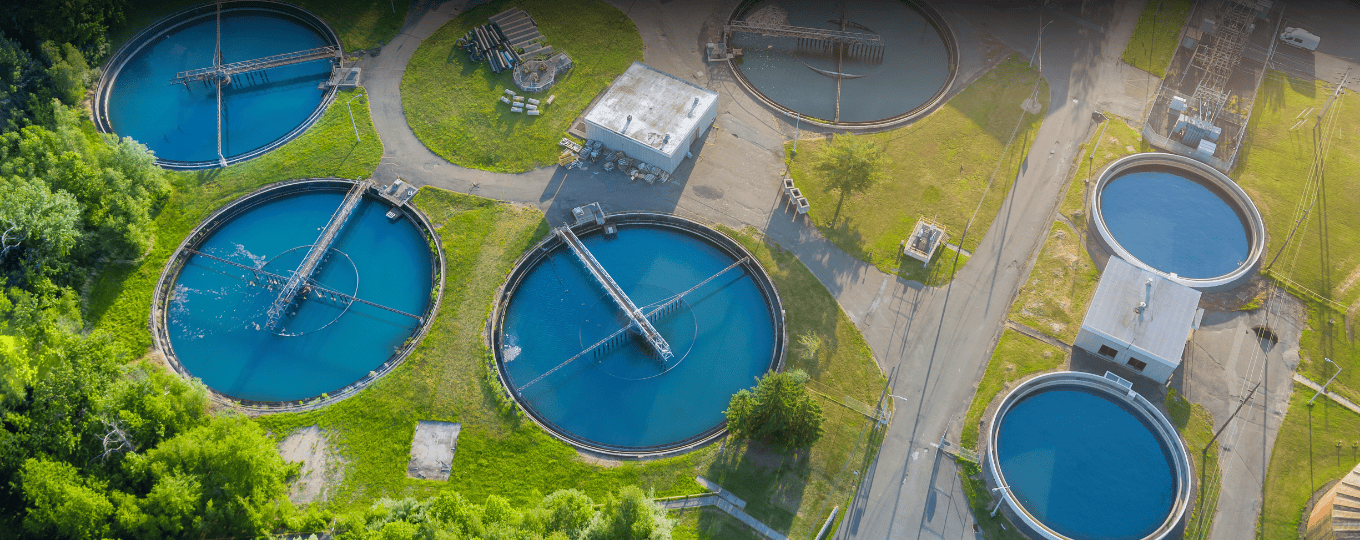

Wastewater Treatment To achieve remote centralized management of the wastewater treatment plant, InHand Networks offers a "cloud + end" remote monitoring solution featuring the IG502 edge gateway and InConnect remote access service, delivering real-time communications and efficient monitoring & control.
Hintergrund
Rural sewage treatment stations have the characteristics of small size and large number of sites. The traditional management method for manual watch and inspection sites. As the site usually can not be equipped with professional operation and maintenance personnel, resulting in untimely troubleshooting, poor sewage treatment effect. And it is difficult to achieve the site’s discharge standards. At the same time, the site needs to be manually guarded and inspected, so the labor costs remain high.
Kundenanforderungen
Complete Control of...
Vorbeugende Wartung
Analysis
Lösung
Ethernet devices such as PLCs and cameras in the wastewater treatment station are connected to the IG502 IoT edge gateway via the ISE1005D industrial switch and the industrial protocols such as EtherNet/IP, Modbus, ISO on TCP, etc. The IG502 collects operational data from equipment such as gas pumps, lift pumps, valves, dosing tanks and flow meters, with data volumes of up to hundreds.
The collected data is subjected to data operation, quality alarm detection and other data preprocessing at the edge side. The processed data in accordance with the format required by the wastewater treatment online monitoring platform (hereinafter referred to as \”cloud platform\”) through 4G cellular or wired network reported to the cloud platform based on Amazon AWS server deployment (companies can also build cloud platforms based on Microsoft Azure and other public or private clouds) and respond to the control instructions issued by the cloud platform.
Vorteile
Reliable Connect
and Reduced Costs
Customer Devices w
Large-scale Deployme
Zukünftige Produkte
IG502
Compact industrial edge gateway for cellular connectivity, protocol conversion, and cloud operations.
Flexible IO
2×FE, serial, USB, MicroSD, DI/DO
Konnektivität
Cellular/Ethernet/Wi-Fi backup, dual SIM
Edge-KI
Python dev, built-in DSA service
Cloud Ops
DeviceLive remote access, batch mgmt
