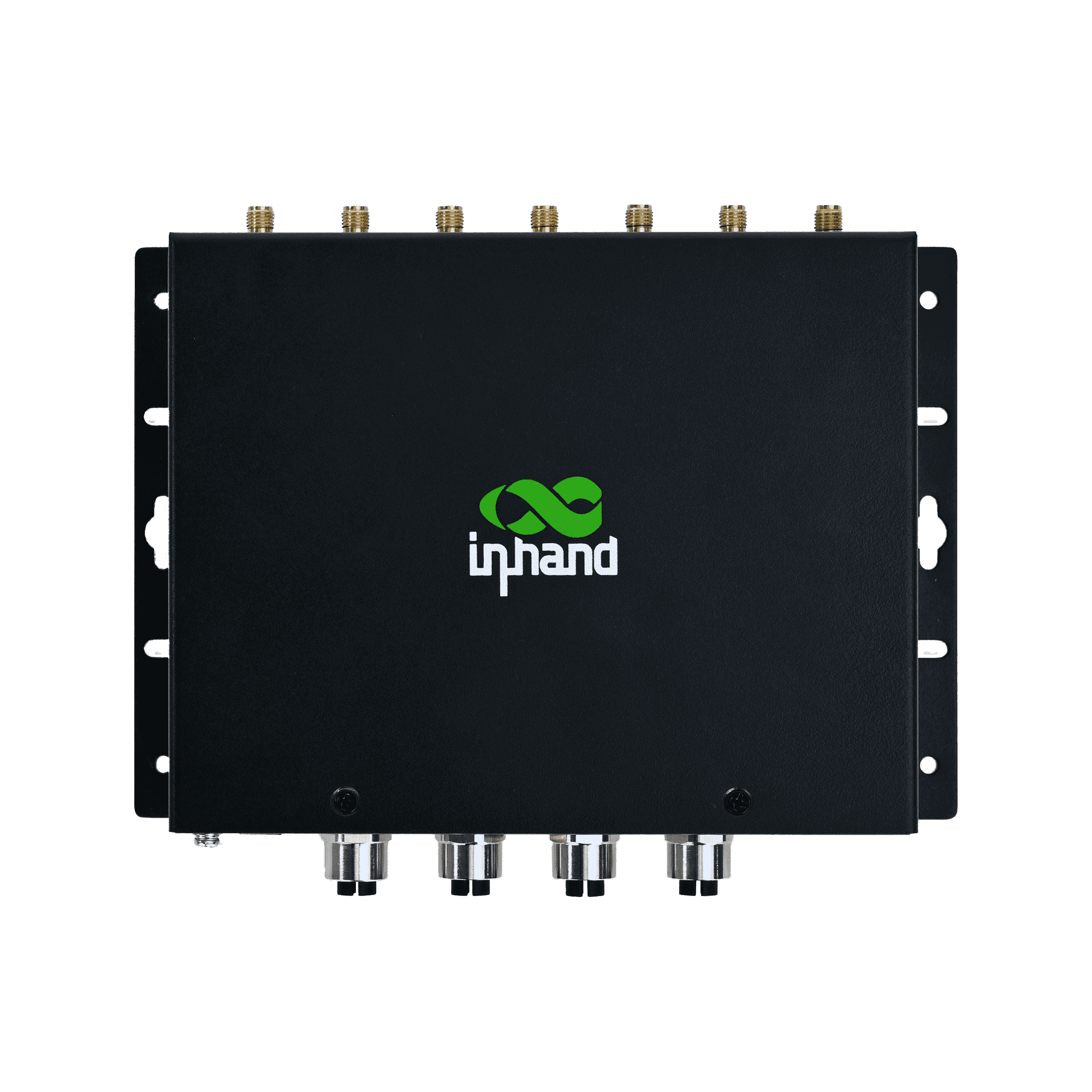

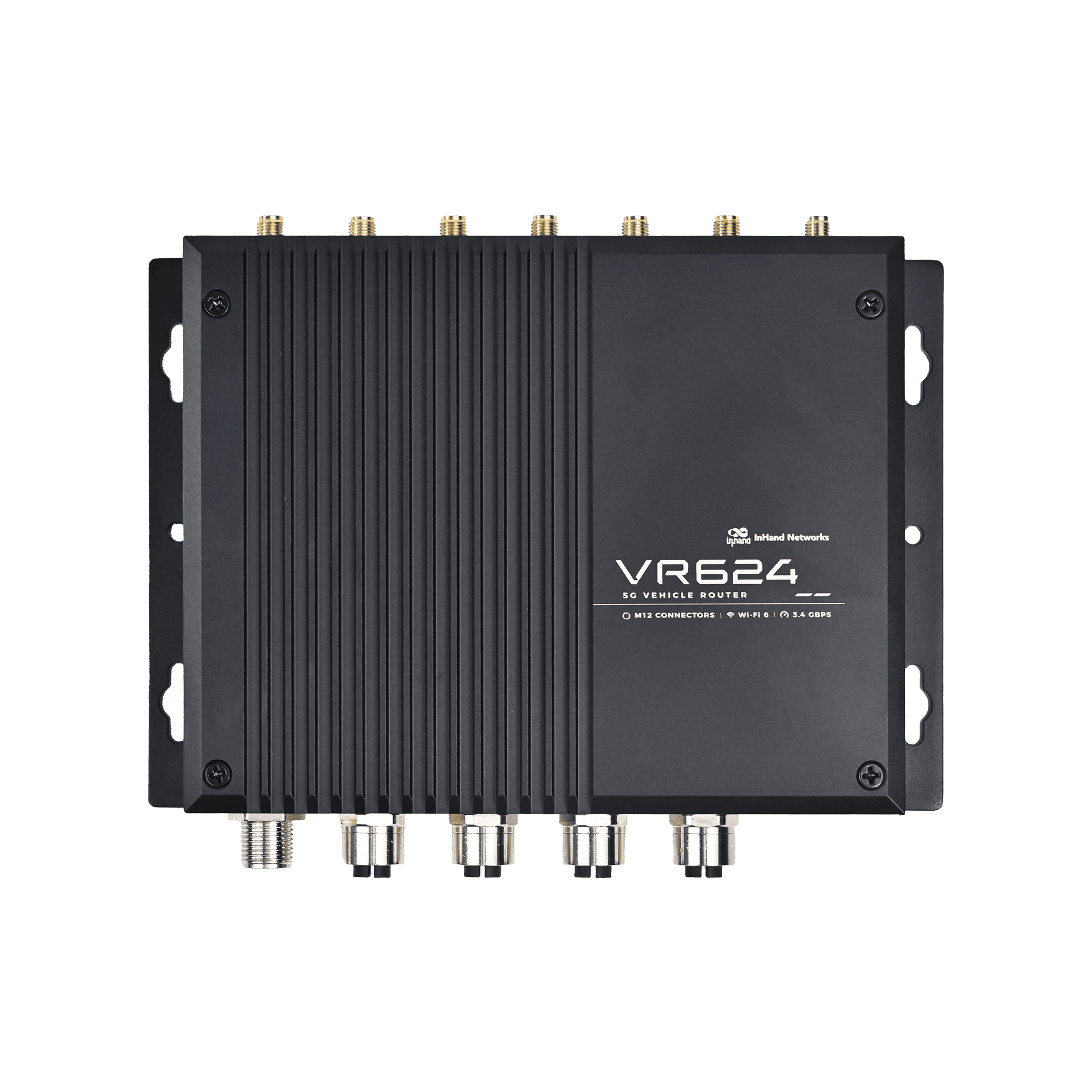

VR624
Vehicle Router
Rugged 5G vehicle router for mission-critical transit, featuring Wi-Fi 6 and M12 connectors for low-latency, secure connectivity in emergency and fleet operations.
Ultra-Fast 5G Connectivity for Smart Mobility
Gigabit 5G, Low-Latency Networking
Supports 5G SA/NSA for lightning-fast speeds. Ideal for real-time video streaming, emergency dispatch, and high-bandwidth transit applications.
Next-Gen Wi-Fi 6 Technology
Integrated Wi-Fi 6 ensures secure, high-capacity connectivity for multiple onboard devices, enhancing passenger experience and operational flow.
Reliable M12 & Vibration Resistance
Equipped with anti-vibration M12 connectors and IP30 protection. Operates from -30°C to 70°C, thriving in harsh public transport environments
Precise GNSS Vehicle Tracking
High-precision GPS allows for real-time positioning, crucial for route optimization, fleet dispatching, and accurate location-based monitoring.
Efficient Remote Device Management
Pairs with InHand Cloud platform for real-time status monitoring, remote diagnostics, and O&M to maximize fleet management efficiency.
Dual-SIM Failover, Secure Links
Features dual-SIM link redundancy and multiple VPN protocols to ensure continuous, encrypted communication for sensitive vehicle data.
-
Core Technical Specifications
Cellular 5G NR (SA/NSA), backward compatible with LTE/3GCloud Management DeviceLive for batch monitoring and remote maintenanceDimensions (W × D × H) 177 × 144.25 × 43 mmInterfaces 4 × M12 Gigabit Ethernet, 1 × RS232, 2 × DIOperating Temperature -30 ~ 70 ℃Positioning GPS, BDS, Galileo, GLONASS, QZSS; <1.5 m (CEP50)Power Input DC 9-48 V, over-current and reverse-polarity protectionProtection IP30, metal enclosure, fanless designReliability Dual SIM failover, link detection, watchdogVPN IPsec, L2TP, OpenVPN, WireGuardWeight 810 gWi-Fi Wi-Fi 6 (802.11ax), dual-band 2.4/5 GHz, up to 3000 Mbps
-
Hardware Platform
CPU 1.3 GHzFLASH 8 GB eMMCRAM 512 MBSecurity Chip TPM 2.0
-
Connectivity
Cellular 5G NR (SA/NSA) with LTE/3G compatibilityESD Protection 15 kVEthernet Port 4 × M12 X-coded 8-pin female, 10/100/1000 MbpsI/O 2 × Input (ignition detection / low battery)Serial Port 1 × RS232SIM Card 1 × drawer-type slot, dual Nano-SIM (1.8 V/3 V), 1 × eSIM (optional)
-
Antenna Interfaces
Antenna Interfaces 4 × SMA for 5G, 2 × SMA for 4G, 2 × RP-SMA for Wi-Fi, 1 × SMA for GNSS
-
Satellite Navigation
GNSS Receiver GPS, BDS, Galileo, GLONASS, QZSSNavigation update rate 10 HzPosition accuracy <1.5 m (CEP50)Tracking Sensitivity -162 dBm
-
Wi-Fi
Frequency 2.4 GHz / 5 GHz dual bandMaximum Transmit Power 5G: 20 dBm; 2.4G: 20 dBmProtocol 802.11 ax/ac/a/b/g/nTransmission Bandwidth 3000 MbpsTransmission Distance up to 50 meters (line of sight; environment dependent)
-
Power
Power Supply DC 9–48 V, over-current protection, anti-reverse connectionReset Reset button
-
Mechanical & Environment
Ambient humidity 5 ~ 95% (no condensing)Certificates CE, E-MARK, ECE R118, FCC, PTCRB, ITxPTCooling FanlessDimensions (W × D × H) 177 × 144.25 × 43 mmEMC (Static) EN61000-4-2 level 3Housing MetalInstallation Wall-mountingOperating Temperature -30 ~ 70 ℃Protection Rating IP30Rail Standard EN50155Shockproof / Vibration IEC60068-2-27 / IEC60068-2-6 / IEC60068-2-32Storage temperature -40 ~ 85 ℃Weight 810 g
-
Network Features
Access Authentication CHAP/PAPConfiguration Backup Import/export supportedLAN Protocol ARP, EthernetNetwork Access APN, VPDNNetwork Diagnostics Ping, Traceroute, network packet capture toolsNetwork Protocols TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP/HTTPS, SSL/TLS, ARP, VRRP, PPP/PPPoE, SSH, Telnet, DDNS, DHCP Server/Relay/Client, IP PassthroughNetwork Type WCDMA, TDD LTE/FDD LTE, 5G NR (SA/NSA)Routing Static routing, BGPWAN Protocol Static IP, DHCP, PPPoE
-
Security
802.1X SupportedAccess Control Based on MAC/IP/port/protocol with NAT, port mapping and firewall filteringData security IPsec VPN, L2TP VPN, OpenVPN, WireGuard VPNPolicy-Based Routing Supported
-
Reliability
Backup Interface backupDual SIM Failover SupportedEmbedded Watchdog Self-detection and auto-recoveryLink Detection Heartbeat packets; auto-redial on disconnection
-
Wi-Fi Security
Encryption WEP/TKIP/AESWi-Fi Portal SupportedWi-Fi Security Open system, shared key, WPA/WPA2/WPA3Working Mode AP, Client
-
DTU Functions
Modbus Bridge Conversion of Modbus RTU to Modbus TCP bridgeTransparent Transmission TCP / UDP transparent transmission mode
-
Monitoring & Alerting
Dashboard Device information, interface status, traffic statisticsLink Monitoring Delay, jitter, packet loss, throughputLogs & Alarm System logs, diagnostic logs, device eventsQoS Traffic shaping supported
-
Remote Maintenance & Cloud Management
Cloud Management DeviceLive: batch management, equipment monitoring, remote maintenanceRemote Access Web/CLI remote access
Standard package*
- VR624 Vehicle Router *1
- VR624 Power Cable *1
- Standard package* contents vary by standard order codes.
- Optional accessories
- 5G Antenna *4
- 4G Antenna *2
- Wi-Fi Antenna *2
- GNSS Antenna *1
- Network Cable M12 X-coded Male to RJ45
- Contact us directly to learn more about our packaging options.
Contact us directly to learn more about our packaging options.
DeviceLive
IoT Device Management Platform
Device management, remote monitoring, edge app management, and remote maintenance to help industrial enterprises build intelligent edge networks.
Related Cases
Public Transport Connectivity
Public Transport Connectivity Applications and Cases Key Takeaways Power connected bus fleets…
Learn More →Premium 5G Connectivity for RV Rentals
Premium 5G Connectivity for RV Rentals Applications and Cases Key Takeaways Give…
Learn More →Frequently Asked Questions
What does the VR624 offer?
The VR624 is a 5G + Wi-Fi 6 vehicle router built for mobile multi-field deployments — public transit, heavy machinery, law enforcement, emergency response, and sanitation fleets. Highlights:
| — | — |
| Cellular | 5G NR (NSA/SA), downlink up to 3.4 Gbps; 4G/3G fallback |
| Wi-Fi | Wi-Fi 6 (802.11ax), dual-band 2.4 + 5 GHz, up to 3000 Mbps, WPA3 |
| Ethernet | 4× M12 X-code GbE — vibration- and corrosion-resistant aviation connectors |
| GNSS | GPS, BDS, Galileo, GLONASS, QZSS; <1.5 m CEP50, 10 Hz update |
| SIM | Dual nano-SIM (one drawer slot) + optional embedded eSIM |
| I/O | 1× RS232 (15 kV ESD); 2× DI (ignition detection + low-battery detection) |
| Security | TPM 2.0; IPSec / L2TP / OpenVPN / WireGuard VPN; 802.1X port authentication |
| Power | DC 9–48 V; over-current protection; ignition-detect shutdown; low-voltage sleep/wake control |
| Form factor | 177 × 144.25 × 43 mm metal housing, fanless, IP30, wall-mount, −30 to +70 °C |
| Cloud | InHand DeviceLive — auto-enrolls once online |
Two cellular SKUs (both global): VR624-GLNR (5G NR NSA + SA) and VR624-GLC6 (4G LTE Cat 6).
Target applications per the datasheet: public transport (buses, coaches), heavy equipment (trucks, excavators, cranes), autonomous and patrol vehicles, law-enforcement and fire trucks, ambulances, and sanitation vehicles.
How do I install the VR624 in a vehicle?
- Mount the VR624 to the vehicle wall using its mounting brackets. Connect the grounding cable to the device’s grounding post — loosen the nut, insert the ring terminal, retighten.
- Connect antennas to the SMA / RP-SMA connectors: 4× SMA for 5G (or 2× SMA for the 4G SKU), 2× RP-SMA for Wi-Fi 2.4 + 5 GHz, 1× SMA for GNSS.
- Wire the 8-pin power cable (
SCAB000637) into the vehicle harness:
- V+ to switched or constant battery (DC 9–48 V)
- V− and GND to chassis ground
- IGT to the ignition-controlled circuit (the VR624 starts and shuts down based on this signal)
- RS232 and DI pins to your serial / digital-input devices as needed
- Insert the SIM card(s) in the drawer slot (dual nano-SIM, 1.8 V / 3 V).
- Connect Ethernet from any of the 4× M12 X-code ports to a computer using an M12-to-RJ45 cable (
AETH050002). Set the PC adapter to DHCP or a static IP in192.168.2.2–254. - Open a browser to
http://192.168.2.1and log in with the credentials printed on the device nameplate. Accept the security warning if shown (Advanced → Proceed).
Verify boot via the System LED: solid red during start-up, then blink green when the OS is running normally.
How do I connect the VR624 to cellular and set the APN?
With the device powered off, insert the SIM card(s). Apply power via the IGT-asserted ignition line — the VR624 auto-detects the carrier and applies the matching APN in most cases, so no manual setup is needed. If the cellular link does not come up, log in, go to Internet > Cellular, edit the SIM profile to enter the APN per your carrier’s requirements, and save. For dual-SIM failover, configure both profiles and set the link priority. Verify by checking the Cellular LED (blink green = connecting, solid green = connected) and the Signal LED (red / yellow / green = poor / medium / good).
How do I configure vehicle power management on the VR624?
Vehicle deployments share power with the battery, so the VR624 includes ignition-aware shutdown and low-voltage protection. Configure at Services > Power Management:
| Setting | Behavior |
| — | — |
| Sleep Voltage | Input voltage threshold (in 100 mV units) at which the router enters low-power sleep — e.g., 90 = 9.0 V. Protects the battery from deep discharge when the vehicle is parked. |
| Power-on Voltage | Threshold (in 100 mV units) at which the router wakes from sleep — e.g., 105 = 10.5 V. Should be set above Sleep Voltage to avoid oscillation. |
| Low-Voltage Shutdown Delay | Seconds to wait after a low-voltage condition is detected before shutting down. Filters out transient dips during cranking. |
| Ignition Shutdown Delay | Seconds the router stays online after the ignition signal is removed. Allows graceful teardown of cellular sessions and final data upload. |
| ITxPT | Enable for ITxPT-compliant in-vehicle power and data management on public-transport deployments. |
The ignition signal is read on the dedicated IGT pin of the 8-pin power cable ( SCAB000637 ) — make sure this pin is wired to the vehicle’s ignition-switched circuit, not to constant battery power, or the router will never enter sleep.
—
