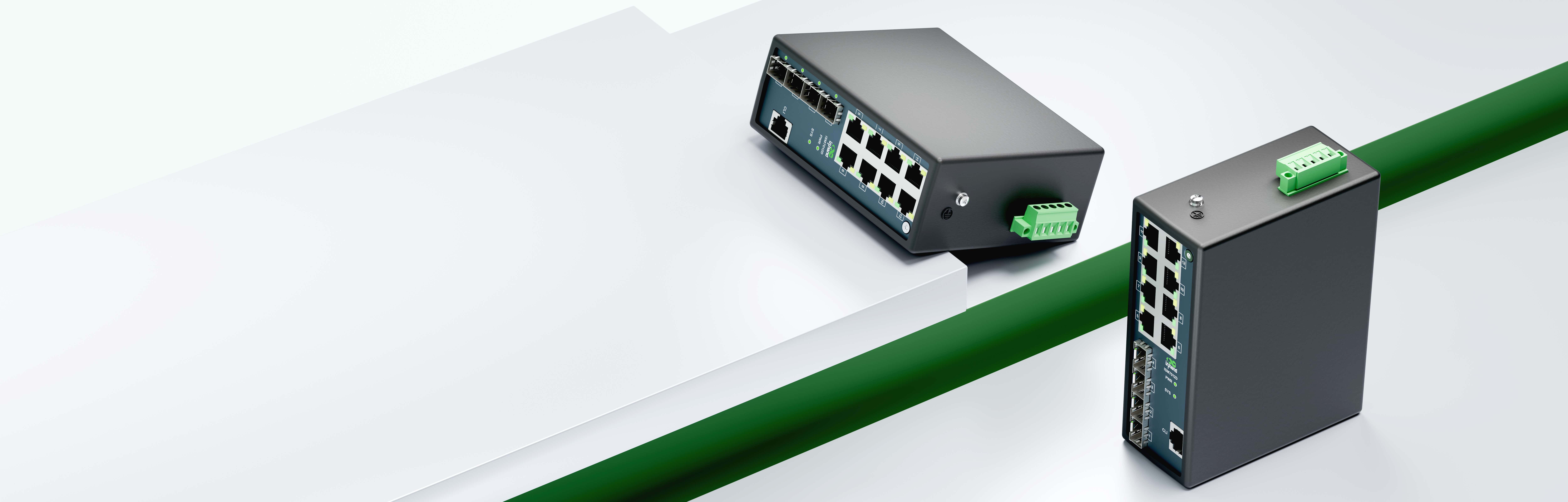

ISM7012D
Industrial Ethernet Switch
This managed Layer 3 industrial Ethernet switch provides 8 10/100/1000Base-T ports and 4 1000Base-X SFP slots for scalable industrial network deployment.
Managed Layer 3 Industrial Ethernet Switching for Complex Networks
Layer 3 Network Services
Delivers Layer 3 network services for scalable industrial deployments, including dynamic routing support and gateway redundancy with VRRP.
Advanced Traffic Control
Supports VLAN, QoS, IGMP snooping, and port mirroring to enable fine-grained segmentation and traffic optimization in industrial networks.
High Availability Redundancy
Supports standard redundancy mechanisms including STP, RSTP, and MSTP to improve network resilience and backbone availability.
Industrial-Grade Hardware
Built with industrial-grade chipsets and a rugged die-cast aluminum housing for reliable operation in harsh environments.
Wide Temperature Operation
Features a fanless design supporting operation across a wide temperature range from -40°C to +75°C for unattended industrial sites.
Redundant DC Power Inputs
Supports isolated redundant dual DC power inputs to enhance power reliability in industrial installations.
-
Key Technical Specifications
Dimensions (W × D × H) 52 × 140 × 110 mmIngress Protection IP40Mounting DIN-rail mountingOperating Temperature -40 °C \~ +75 °CPorts 4 × 1000Base-X SFP + 8 × 10/100/1000Base-TPower Supply 18–60 V DC, redundant dual inputSwitching Capacity 68 Gbps backplane bandwidthWeight 0.7 kg
-
Hardware Performance
Backplane Bandwidth 68 GbpsForwarding Mode Store-and-ForwardForwarding Rate 148,800 pps @ 100M ports; 1,488,000 pps @ 1000M portsMAC Address Table 16KPacket Buffer 4 Mbits
-
Interfaces

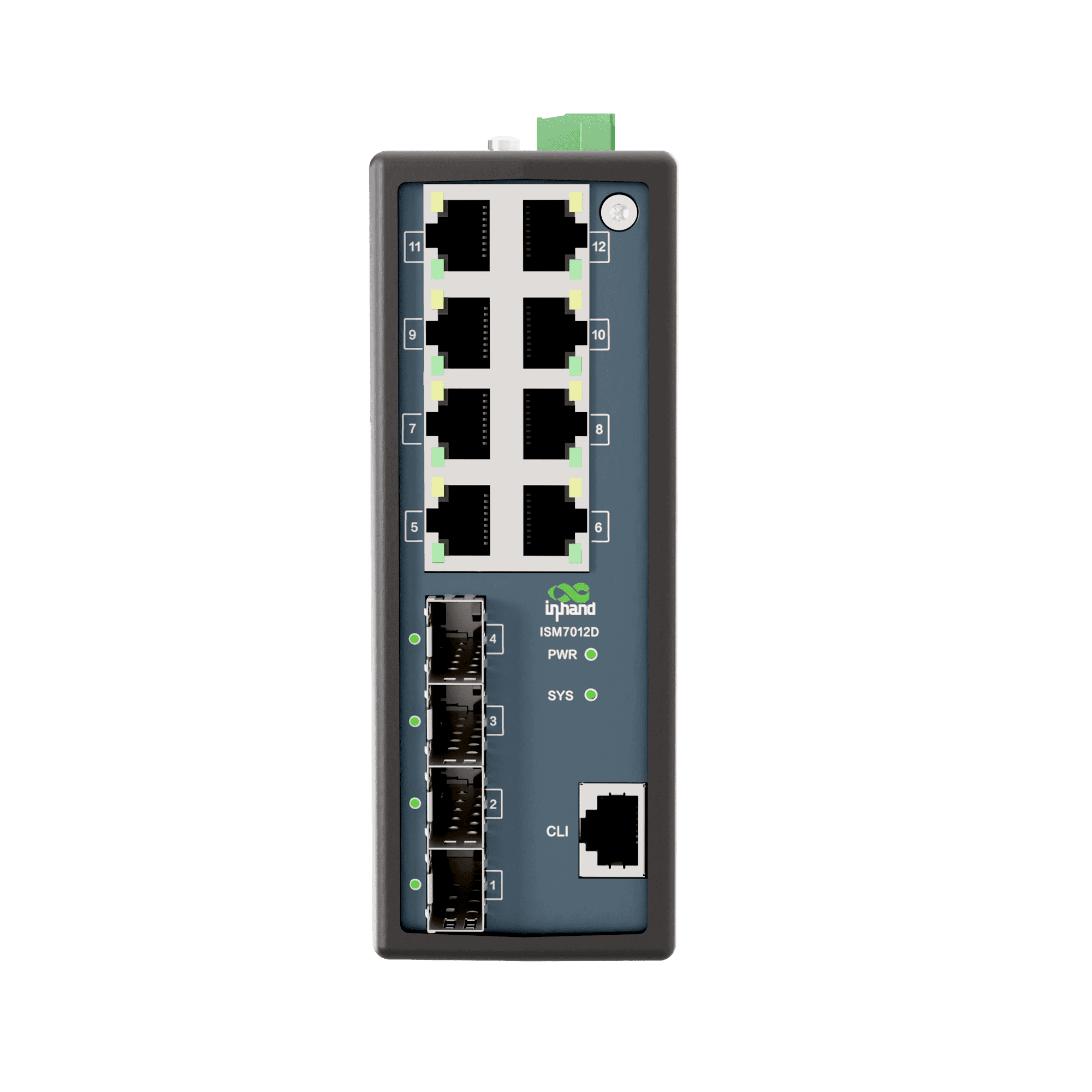

Console Port 1 × Management Serial CLI PortEthernet Port 8 × 10/100/1000Base-T RJ45SFP Port 4 × 1000Base-X SFP (SFP module not included)
-
Power
Input Voltage 18–60 V DC, redundant dual inputOvercurrent Protection SupportedPower Consumption 10 WReverse Polarity Protection Supported
-
Mechanical
Cooling Method FanlessDimensions (W × D × H) 52 × 140 × 110 mmEnclosure Fully enclosed seamless metal enclosureIngress Protection IP40Mounting DIN-rail mountingWeight 0.7 kg
-
Environmental
Humidity 5 \~ 95 % RH (non-condensing)Operating Temperature -40 °C \~ +75 °CStorage Temperature -40 °C \~ +85 °C
-
EMC
Conducted Immunity IEC (EN) 61000-4-6, Level 3Electrical Fast Transient/Burst Immunity IEC (EN) 61000-4-4, Level 4EMI FCC 47 CFR Part 15 Class A; EN55022 Class A; EN55035 Class AESD Immunity IEC (EN) 61000-4-2, Level 4Power Frequency Magnetic Field IEC (EN) 61000-4-8, Level 5Radiated Electric Field IEC (EN) 61000-4-3, Level 3Surge IEC (EN) 61000-4-5, Level 4
-
Shock and Vibration
Drop IEC 60068-2-31Shock Resistance IEC 60068-2-27Vibration Resistance IEC 60068-2-6
-
Quality Assurance
MTBF 35 yearsWarranty Period 5 years
-
Redundancy
Flow Control IEEE 802.3xLink Aggregation Port Trunking (IEEE 802.3ad)Ring Protocols STP, RSTP, MSTP
-
VLAN
VLAN Port-based VLAN, IEEE 802.1Q VLAN, GVRP
-
QoS
Priority & Queuing IEEE 802.1P/1Q, TOS/DiffServ
-
Multicast
Multicast Filtering IGMP Snooping, GMRP/GARP
-
Routing
IP Routing Static routing, RIP v2, OSPFv2, BGP, VRRP
-
Network Security
Authentication IEEE 802.1x, RADIUS, SSH2
-
Network Management
Management Mode Browser (Web), Serial Port (CLI), TelnetSNMP SNMPv1, SNMPv2c, SNMPv3, MIB-II, SMIv2, RMON, Ping MIB (RFC 2925)Time Synchronization SNTP, NTP
-
Diagnostics
Diagnostic Mode Indicator light, Journal File (Syslog), RMON, Port Mirroring, TRAP
Standard package*
- ISM7012D Managed Industrial Switch *1
* Standard package contents vary by standard order codes.
Contact us directly to learn more about our packaging options.
Related Cases
Smart Grid Substation Automation
Smart Grid Substation Automation Applications and Cases Key Takeaways Build a high-performance…
Learn More →Smart Factory
Smart Factory Applications and Cases Key Takeaways Optimize your production line with…
Learn More →Frequently Asked Questions
What does the ISM7012D offer?
The ISM7012D (model ISM7012D-P-4GSFP-8GT-24) is a 12-port managed Layer 2+ industrial Ethernet switch designed for harsh power, transportation, and industrial-control environments. Highlights:
| Ports | 4× 1000BaseX SFP + 8× 10/100/1000BaseT copper, 1× management serial CLI |
| Switching capacity | 68 Gbps backplane; store-and-forward; 16K MAC table; 4 Mbit packet buffer |
| Forwarding rate | 148,800 pps @ 100 M / 1,488,000 pps @ 1000 M |
| Power | 18–60 V DC redundant dual input; overload-current and reverse-polarity protection; 10 W consumption |
| Form factor | 52 × 140 × 110 mm metal fanless enclosure, IP40, DIN-rail mounted, 0.7 kg |
| Environment | −40 to +75 °C operating, −40 to +85 °C storage, 5–95 % humidity non-condensing |
| Reliability | 5-year warranty, 35-year MTBF |
| Redundancy | STP, RSTP, MSTP, port trunking |
| VLAN / QoS | Port-based + IEEE 802.1Q VLAN, GVRP; QoS via IEEE 802.1P/Q and TOS/DiffServ |
| Layer 3 | OSPFv2, BGP-3, RIP v1/v2, VRRP |
| Multicast | IGMP snooping, GMRP/GVRP |
| Security | 802.1X authentication, RADIUS, SSH2, SNMPv3, RMON |
| Management | Browser, serial CLI, SSH, SNMPv1/v2c/v3, RMON, SNTP time sync, port mirroring, TRAP, journal file |
| EMI / EMS | FCC 47 CFR Part 15 Class A, EN55022 Class A, EN55035 Class A; IEC 61000-4-2/3/4/5/6/8 (Class 3–5) |
| Mechanical | Shock IEC 60068-2-27, Vibration IEC 60068-2-6, Free-fall IEC 60068-2-31 |
How do I install and power the ISM7012D?
- Mount to a 35 mm DIN rail using the integrated clip.
- Connect redundant 18–60 V DC dual power inputs — both inputs accept the same wide voltage range and provide automatic failover. Overload-current and reverse-polarity protection are built in.
- Install SFP modules (sold separately) into the 4× 1000BaseX SFP ports for fiber uplink.
- Connect copper devices to the 8× 10/100/1000BaseT RJ45 ports.
- Optional — connect a console cable to the management serial CLI port for initial out-of-band configuration.
How do I access the ISM7012D web interface?
Connect a PC to any copper port and set its IP into the device’s management subnet (per the nameplate / device label). Open a browser to the management IP and log in with the credentials on the device label. Other access paths:
- Serial CLI via the dedicated management port (for initial setup or out-of-band recovery)
- SSH2 for encrypted remote CLI
- SNMPv1/v2c/v3 for NMS integration; RMON for traffic statistics and fault prediction; TRAP for event notifications
How does the ISM7012D differ from the ISM7312D?
Both are 12-port managed Layer 2+ industrial switches with the same 4× SFP + 8× GbE port layout, 68 Gbps backplane, software feature set, dimensions, and operating temperature range. The differences are PoE and the corresponding power-input voltage:
| ISM7012D | ISM7312D | |
| PoE | — | 8× 802.3af/at PoE ports, up to 30 W per port |
| Power input | 18–60 V DC redundant dual | 48–54 V DC redundant dual (PoE requires this range) |
| IP rating | IP40 | IP30 |
Pick the ISM7012D for non-PoE deployments where you want maximum power-input flexibility (any wide-voltage DC supply from 18–60 V works). Pick the ISM7312D when downstream PoE devices — IP cameras, Wi-Fi APs, VoIP phones — need to be powered from the switch.
