Smart Grid Substation Automation
Applications and Cases
Key Takeaways
Build a high-performance communication backbone for mission-critical power infrastructure. InHand managed switches provide the reliability and millisecond-level redundancy required to ensure continuous operation in modern digital substations.
Background
The modernization of power grids and the transition to smart substations have significantly improved energy distribution efficiency. However, substations operate in extremely harsh environments with intense electromagnetic interference (EMI) and extreme temperature fluctuations from -40°C to +85°C. Ensuring their safe operation poses challenges. A highly reliable network is required because losing connection means widespread power outages and potential revenue loss. Grid operators expect devices that deliver secure, zero-delay, and reliable connectivity.
Customer Requirements
Environmental Standards
Critical Power Data
Self-Healing
Synchronization
Solution

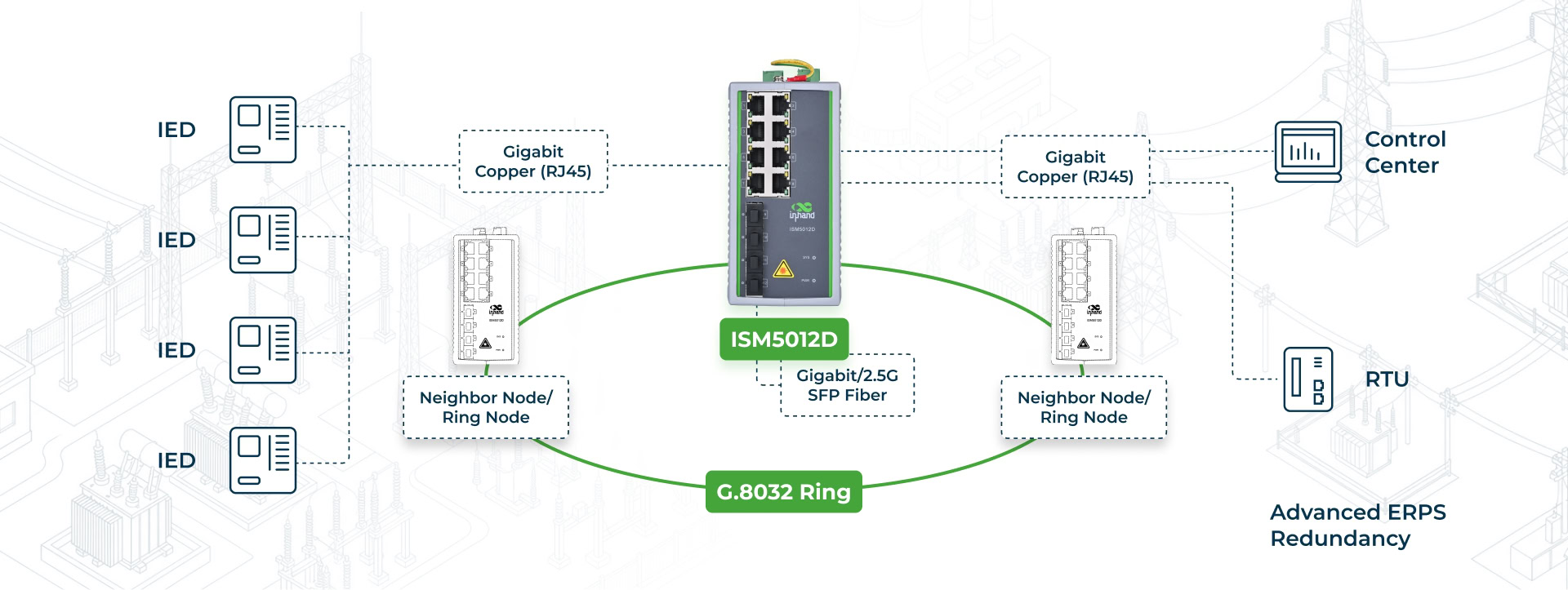

The solution utilizes the ISM5012D managed industrial switch to establish a rugged fiber-optic ring network across the substation floor. These switches aggregate data from various Intelligent Electronic Devices (IEDs) and transmit it securely via 4 Gigabit SFP fiber ports and 8 Gigabit copper ports. By leveraging ERPS (G.8032) and advanced Layer 2 management features, the network ensures sub-50ms self-healing, providing deterministic delivery for time-critical power signals. Furthermore, the fanless design and redundant dual DC power inputs ensure maximum system availability and stable operation in harsh electrical environments.
Benefits
for Power Applications
Forwarding
Oversight
